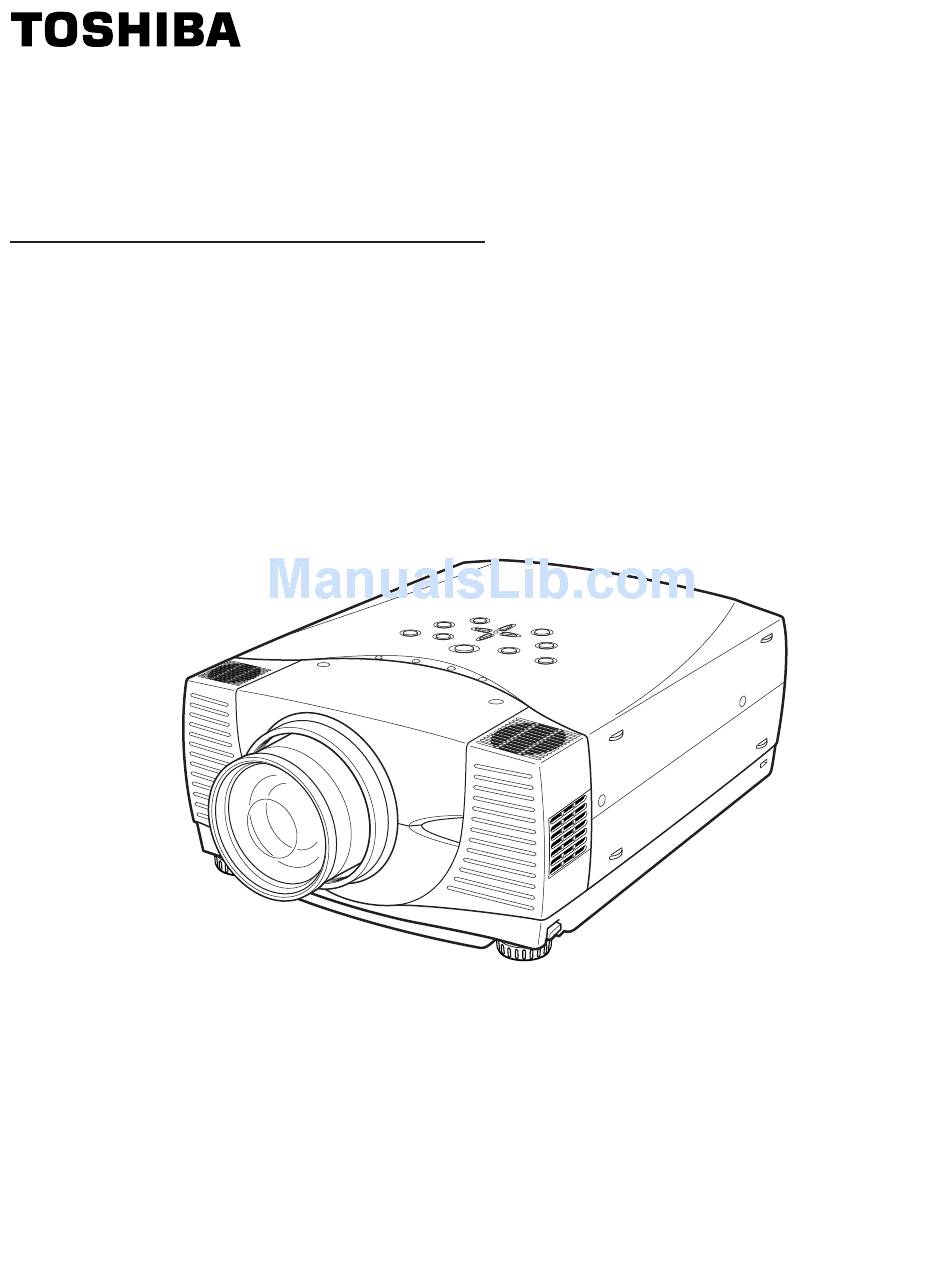

- Page 1 OWNER’S MANUAL 3LCD DATA PROJECTOR TLP-X4100E...
-
Page 2: Safety Precautions
2 hours when there is an extreme or sudden change in temperature. • Toshiba Corporation bears no responsibility in the case of damages arising from earthquakes, fire not liable to Toshiba Corporation, operating by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 7. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 8. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the...
- Page 5 13. Stack Inhibited Do not stack other equipment on this product or do not place this product on the other equipment. Top and bottom plates of this product develops heat and may give some undesirable damage to other unit. 14. Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS 19. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. (Replacement of the lamp only should be made by users.) 20.
-
Page 7: Connecting Ac Power Cord
CONNECTING AC POWER CORD This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. -
Page 8: Table Of Contents
FEATURES AND DESIGN...9 PREPARATION...10 NAME OF EACH PART OF PROJECTOR ...10 SETTING-UP PROJECTOR ...11 POSITIONING PROJECTOR...11 ADJUSTABLE FEET ...12 MOVING PROJECTOR...12 CONNECTING PROJECTOR ...13 TERMINALS OF PROJECTOR ...13 CONNECTING TO COMPUTER ...14 CONNECTING TO VIDEO EQUIPMENT ...15 BEFORE OPERATION ...16 OPERATION OF REMOTE CONTROL ...16 LASER POINTER FUNCTION ...16 REMOTE CONTROL BATTERIES INSTALLATION ...17... -
Page 9: Features And Design
FEATURES AND DESIGN This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ◆ Compact Design This projector is extremely compact in size and weight. -
Page 10: Preparation
PREPARATION NAME OF EACH PART OF PROJECTOR FRONT OF CABINET PROJECTION LENS LENS COVER BACK OF CABINET EXHAUST VENT HOT AIR EXHAUSTED ! Air blown from exhaust vent is hot. When using or installing a projector, following precautions should be taken. ●... -
Page 11: Setting-Up Projector
SETTING-UP PROJECTOR POSITIONING PROJECTOR ● This projector is designed to project on a flat projection surface. ● Projector can be focused from 4.6’ (1.4m) ~ 48.3’ (14.7m). ● Refer to figure below to adjust screen size. 4.6’(1.4m) 40” 31” 40” Max. -
Page 12: Adjustable Feet
PREPARATION Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.5 degrees. Lift front of a projector and pull FEET LOCK LATCHES on both sides of a projector. Release FEET LOCK LATCHES to lock ADJUSTABLE FEET and rotate ADJUSTABLE FEET to fine tune position and tilt. -
Page 13: Connecting Projector
CONNECTING PROJECTOR TERMINALS OF PROJECTOR This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 13 to 15 and connect properly. TERMINALS (DIGITAL/ANALOG) COMPUTER AUDIO INPUT (1 and 2) JACKS Connect computer (digital/analog) output to one of these terminals. -
Page 14: Connecting To Computer
CONNECTING PROJECTOR CONNECTING TO COMPUTER Cables used for connection • VGA Cable (HDB 15 pin) • DVI-Digital Cable (for Single Link T.M.D.S.) • BNC Cable ✽ • Control Cable for PS/2 Port, Serial Port or ADB Port IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA) Monitor Output MAC Adapter Set slide switches... -
Page 15: Connecting To Video Equipment
CONNECTING TO VIDEO EQUIPMENT Cables used for connection • Video Cable (RCA x 1 or RCA x 3) ✽ ✽ • BNC Cable • S-VIDEO Cable ✽ • Audio Cable (RCA x 2) ✽ Video Source (example) Video Cassette Recorder Composite Component Video Output Video Output... -
Page 16: Before Operation
BEFORE OPERATION OPERATION OF REMOTE CONTROL Left Side ALL-OFF SWITCH When using Remote Control Unit, turn this switch to “ON.” And turn it to “ALL OFF” when it is not used. This Remote Control Unit emits a laser beam as laser pointer function from Laser Light Window. When LASER button is pressed, laser light goes on. -
Page 17: Remote Control Batteries Installation
ZOOM BUTTON Used to adjust zoom. (P22) ZOOM FOCUS FOCUS BUTTON D.ZOOM MUTE Used to adjust focus. (P22) MENU MUTE BUTTON Used to mute sound.(P23) KEYSTONE BUTTON Used to correct keystone distortion. (P22, 37) LASER KEYSTONE NO SHOW BUTTON LENS SHIFT Used to turn picture into NO SHOW black image. -
Page 18: Top Controls And Indicators
BEFORE OPERATION TOP CONTROLS AND INDICATORS This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top. LAMP REPLACE INDICATOR Turns to yellow when life of projection lamp draws to an end. (P41) MENU BUTTON Used to open or close MENU operation. -
Page 19: Operating On-Screen Menu
OPERATING ON-SCREEN MENU HOW TO OPERATE ON-SCREEN MENU You can control and adjust this projector through ON-SCREEN MENU. Refer to following pages to operate each adjustment on ON-SCREEN MENU. 1 DISPLAY MENU Press MENU button to display ON-SCREEN MENU. 2 MOVING POINTER Move pointer ( ✽... -
Page 20: Menu Bar
BEFORE OPERATION FOR PC SOURCE Press MENU BUTTON while connecting to PC input source. GUIDE WINDOW PC SYSTEM MENU Shows selected Used to select item of ON- computer system. SCREEN MENU. (Refer to P24, 25) Used to select input source (Input 1, Input 2 or Input 3). -
Page 21: Basic Operation
TURNING ON / OFF PROJECTOR TURNING ON PROJECTOR Complete peripheral connections (with Computer, VCR, etc.) before turning on projector. (Refer to "CONNECTING TO PROJECTOR" on pages 13~15 for connecting that equipment.) Connect a projector's AC Power Cord into an AC outlet. LAMP Indicator lights RED, and READY Indicator lights GREEN. -
Page 22: Adjusting Screen
BASIC OPERATION Press ZOOM button on Top Control or ZOOM ▲/▼ button on Remote Control Unit. Message “Zoom” is displayed. Press ZOOM ▲ button or POINT UP button to make image larger, and press ZOOM ▼ button or POINT DOWN button to make image smaller. -
Page 23: Picture Freeze Function
PICTURE FREEZE FUNCTION Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button. Press NO SHOW button on Remote Control Unit to black out image. To restore to normal, press NO SHOW button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button. -
Page 24: Computer Mode
COMPUTER INPUT SELECTING INPUT SOURCE DIRECT OPERATION Choose Computer by pressing INPUT button on Top Control or on Remote Control Unit. If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below). MENU OPERATION Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select Input and press SELECT button. -
Page 25: Pc Adjustment
AUTOMATIC MULTI-SCAN SYSTEM This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 28). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.) Note : Projector may display one of following messages. -
Page 26: Manual Pc Adjustment
COMPUTER INPUT This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. -
Page 27: Computer Input
Display area Selects area displayed with this projector. Select resolution at Display area dialog box. Display area H Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button. Display area V Adjustment of vertical area displayed with this projector. -
Page 28: Compatible Computer Specifications
COMPUTER INPUT COMPATIBLE COMPUTER SPECIFICATIONS Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 160 MHz of Dot Clock. ON-SCREEN RESOLUTION DISPLAY VGA 1 640 x 480 VGA 2 720 x 400 VGA 3 640 x 400 VGA 4... -
Page 29: Picture Image Adjustment
PICTURE IMAGE ADJUSTMENTS IMAGE LEVEL SELECT (DIRECT) Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture level preset on this projector. Real Picture level with improved halftone for graphics. -
Page 30: Image Level Adjustment
COMPUTER INPUT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button. Level of each item is displayed. -
Page 31: Picture Screen Adjustment
PICTURE SCREEN ADJUSTMENT This projector has a picture screen resize function, which enables you to display desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon. Press POINT DOWN button and move a red frame pointer to function that you want to select and then press SELECT button. -
Page 32: Video Mode
VIDEO INPUT SELECTING INPUT SOURCE WHEN SELECT INPUT 2 (5 BNC INPUT JACKS ) When connecting to those equipment, select a type of Video source in SOURCE SELECT Menu. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon. -
Page 33: Selecting Video System
SELECTING VIDEO SYSTEM Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to AV SYSTEM Menu icon. Press POINT DOWN button to move a red arrow pointer to system that you want to select and then press SELECT button. VIDEO JACK OR S-VIDEO JACK Auto Projector automatically detects incoming Video system, and adjusts... -
Page 34: Picture Image Adjustment
VIDEO INPUT PICTURE IMAGE ADJUSTMENTS Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture level preset on this projector. Cinema Picture level adjusted for picture with fine tone. -
Page 35: Image Level Adjustment
IMAGE LEVEL ADJUSTMENT Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button. Level of each item is displayed. -
Page 36: Picture Screen Adjustment
VIDEO INPUT Store To store adjustment data, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image Level 1 to 4 and then press SELECT button. Other icons operates as follows. -
Page 37: Setting
SETTING Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red-frame pointer to SETTING icon. Press POINT DOWN button to move a red-frame pointer to item that you want to set and then press SELECT button. Setting dialog box appears. - Page 38 SETTING On start When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet. Note ; Be sure to turn projector off properly (refer to section “TURNING OFF PROJECTOR” on P21). If projector is turned off in wrong steps, On Start function does not operate properly.
-
Page 39: Appendix
SETTING/APPENDIX Lamp counter reset This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 41 for operation. Quit Closes SETTING MENU. OPERATING WIRELESS MOUSE Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal Computers. -
Page 40: Maintenance
APPENDIX WARNING TEMP. Indicator flashes red when an internal temperature of a projector exceeds normal temperature. This Indicator stops flashing when temperature of a projector returns to normal. When WARNING TEMP. Indicator continues to flash, check items listed below. Ventilation Slots of a projector may be blocked. In such an event, reposition a projector so that Ventilation Slots are not obstructed. -
Page 41: Lamp Replacement
Replacement Lamp can be ordered through your dealer. When ordering Projection Lamp, give following information to dealer. ● Model No. of your projector : TLP-X4100E ● Replacement Lamp Type No. : TLPLX40 LAMP REPLACE COUNTER Be sure to reset Lamp Replace Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP REPLACE Indicator stops lighting. -
Page 42: Troubleshooting
APPENDIX Before calling your dealer or service center for assistance, check matters below once again. 1. Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 13 ~ 15. 2. - Page 43 Problem: ● Check batteries. Remote Control Unit ● Check ALL-OFF switch on Remote Control Unit is set to “ON”. does not work. ● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit. ● Make sure you are not too far from a projector when using Remote Control Unit. Maximum operating range is 16.4’...
-
Page 44: Technical Specifications
APPENDIX TECHNICAL SPECIFICATIONS Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Panel Resolution Number of Pixels Color System High Definition TV Signal Scanning Frequency Projection Lens Throw distance Motorized Lens Shift Projection Image Size (Diagonal) Horizontal Resolution Projection Lamp Input 1 Jacks... -
Page 45: Configurations Of Terminals
CONFIGURATIONS OF TERMINALS COMPUTER INPUT-1 TERMINAL (ANALOG) Terminal : HDB15-PIN Connect display output terminal of computer to this terminal with VGA Cable (supplied). When connecting Macintosh computer, MAC Adapter (supplied) is required. Pin Configuration COMPUTER INPUT-1 TERMINAL (DIGITAL) Terminal : DVI 24-pin Connect display output terminal of computer to this terminal with DVI cable (for Single Link T.M.D.S. - Page 48 Part No. 610 302 1805 (1AA6P1P3613-- PA8SA) Printed in Japan...
