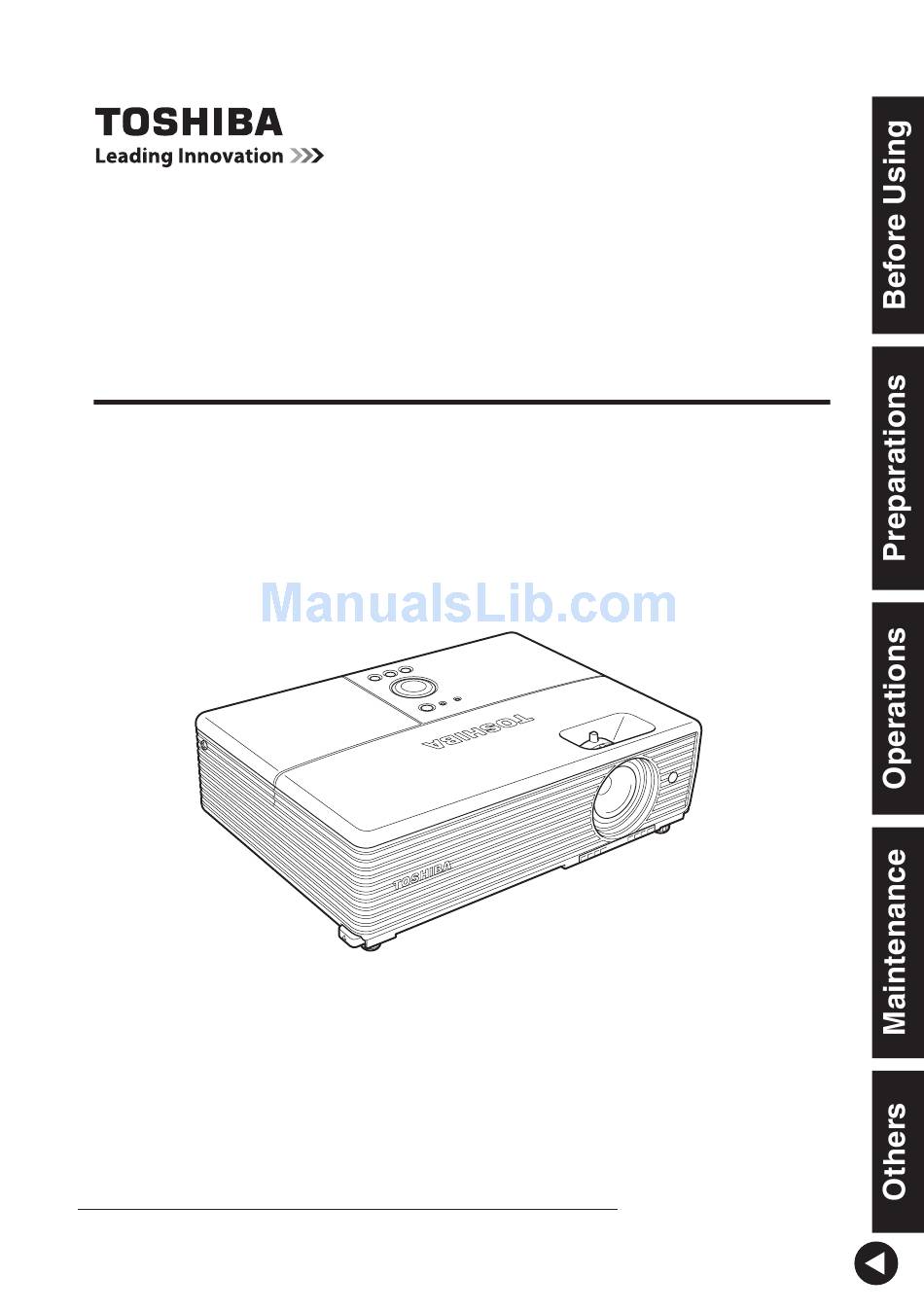

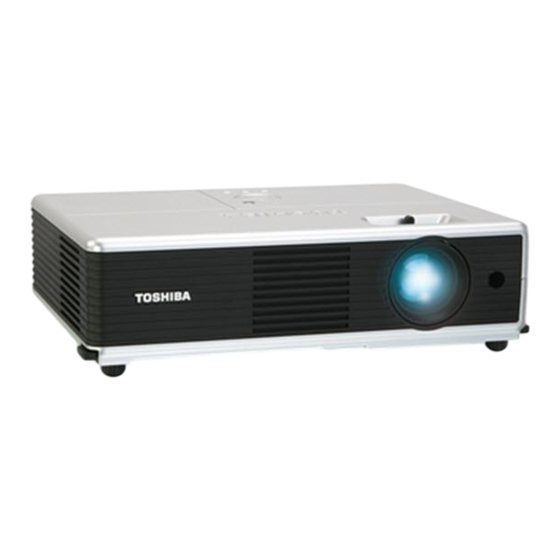

- Page 1 TLP-X100 TLP-WX100 DATA PROJECTOR OWNER’S MANUAL In the spaces provided below, record the Model and Serial No. located at the bottom of your projector. Model No. Retain this information for future reference. (XGA) (WXGA) Serial No.
-
Page 2: Safety Precautions
- Consult the dealer or an experienced radio/TV technician for help. RESPONSIBLE PARTY: TOSHIBA AMERICA INFORMATION SYSTEMS, INC. CAUTION: Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to USA only operate the equipment. Notice: This Class B digital apparatus complies with Canadian ICES-00. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This unit is fully transistorized and does not contain any parts that can be repaired by the user. - Page 4 IMPORTANT SAFETY INSTRUCTIONS (Continued) 11. Lightning storms 13. Do not place or keep the projector within the reach For added protection for this product during a storm, or when it of the children. is left unattended and unused for It may fall or tip over, possibly long periods of time, unplug it from causing serious injury.
-
Page 5: Power Supply Information
IMPORTANT SAFETY INSTRUCTIONS (Continued) 19. If glass components, 22. Safety Check including lens and lamp, Upon completion of any service or repairs to this product, ask should break, contact your the service technician to perform dealer for repair service. safety checks to verify that the This product incorporates glass product is in proper operating components, including a lens and... -
Page 6: Exemption Clauses
EXEMPTION CLAUSES • Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, acts by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems. -
Page 7: Table Of Contents
CONTENTS Before Using SAFETY PRECAUTIONS ... IMPORTANT SAFETY INSTRUCTIONS ... 4 POWER SUPPLY INFORMATION ... 9 IMPORTANT PRECAUTIONS ... 9 EXEMPTION CLAUSES ... 10 OTHER INFORMATION ... 10 REMOTE CONTROL BATTERIES ... 11 CONTENTS ... 1 Preparations Checking the package contents ... 14 Names of each part on the main unit ... -
Page 8: Preparations
Checking the package contents Please make sure that the following items are included in the box, along with the main unit. If any item is missing, immediately contact the store where you purchased the product. (1) Remote control (2) R03 (SIZE AAA) batteries for remote control (2) ... -
Page 9: Names Of Each Part On The Control Panel And Remote Control
Names of each part on the control panel and remote control Control panel Remote Control (10) (11) (12) (13) Name : Main Function Control panel (1) ENTER button : Accepts the selected mode. (2) INPUT button : Selects input. p.26 (3) MENU button : Displays menus. -
Page 10: Names Of The Terminals On The Rear Panel
Names of the terminals on the rear panel (1) (2) Name : Main Function (1) AUDIO IN terminal : Input audio signals from a computer or video equipment. (Multiple use for COMPUTER 1 IN/2 IN, VIDEO and S-VIDEO) (2) S-VIDEO terminal : Input S video signals from video equipment. -
Page 11: Placement
Placement Placement Styles As shown in the figures below, this device can be placed in 4 different styles. The factory setting is “floor-mounted front projection.” Set the [Projection mode] in the Default setting 2 menu , in accordance with your needs. p.41 Floor-mounted front projection Floor-mounted rear projection... -
Page 12: Connection
Connection Before connection • Read the owner’s manual of the device you are connecting to the projector. • Some computers cannot be used with or connected to this projector. Check for an RGB output terminal, supported signal • Turn off the power of both devices before connecting. •... -
Page 13: Operations
Turning the power on and off Connecting the power cord ■ Insert the power cord connector into the AC IN socket of the projector. Insert the power cord plug into a wall or other power outlet. The ON/STANDBY indicator will change to orange, indicating standby mode. -
Page 14: Basic Operations
Basic operations Turn on the power. Turn on the power by following the instructions in “Turning the power on” Select the language and the lamp power (When using the first time). When the projector is used for the first time after purchase, the start menu for language (to display the menus and messages on the screen) and lamp power selection and configuration is displayed in English. -
Page 15: Using Handy Features
Basic operations (Continued) Precautions • Lamp characteristics may rarely cause the brightness to fluctuate slightly. • The LCD panel is made using extremely advanced technology. There may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. These are intrinsic characteristics of the technology and are not malfunctions. -
Page 16: Resizing Image
Using handy features (Continued) Resizing image ■ The projected image can be resized (zoomed in/out). Press the remote control’s RESIZE button. Each time you press the RESIZE button, zoom ratio is up. You can keep pressing. To zoom out, press the remote control’s RESIZE button. -
Page 17: Freezing The Image (Freeze)
Using handy features (Continued) Freezing the image (Freeze) The projected image can be frozen. This function is to be used to pause a video during a presentation, etc. Press the remote control’s FREEZE button. The picture pauses. (The Freeze function is released by pressing the FREEZE button again.) Notes •... -
Page 18: Using The Menus
Using the menus You can call up on-screen menus, and conduct a number of adjustments and settings using the MENU button on the control panel (main unit side) and remote control. p.16 Setup using the Setting display ■ The menu shown below is for operation instructions purposes and might differ from the actual display. -
Page 19: The Display Setting Menu
Using the menus (Continued) Item Description Computer Y/P Position V-position Adjust the vertical position of the image. Clamp 1 Adjusts the clamp pulse position. Clamp 2 Adjusts the clamp pulse width. *1: [Noise reduction] may not work depending on signal type. *2: [NTSC mode] can be displayed and adjusted only when the video signal is set to [NTSC] or [NTSC4.43]. - Page 20 [Background] • TOSHIBA is set for [Logo] by factory setting. • If user’s logo has been registered, it is displayed when [Logo] is set for background.
-
Page 21: The Default Setting Menu
Using the menus (Continued) The Default setting menu ■ This menu shows placement status and other settings. Default setting 1 menu Description Item Auto keystone Always correct keystone distortion automatically. No signal Set the time to wait for the power to be turned off after the last operation is power off made with no input signal. -
Page 22: Displaying Information (Status Display)
Using the menus (Continued) Displaying Information (Status display) This displays information about the input signal, lamp use time, etc. Item Description Computer Input Input source name [Note 1] Mode name RGB input mode Resolution Resolution (in dots) Frequency Sync frequency [Note ] Sync Sync signal polarity... -
Page 23: Lamp Replacement
• If the projector is mounted on the ceiling, it is recommended to use your Toshiba dealership when the lamp has to be exchanged. Uncovering the lamp while the projector is mounted on a ceiling may lead to a danger of damage from falling pieces of glass if the lamp is broken. -
Page 24: Air Filter Cleaning
Lamp replacement (Continued) Notes and Precautions The [Lamp time] item in the Status display menu indicates the time of lamp use (as a • rough guide) p.42 Please replace the lamp after 2000 hours of use with [Lamp power] in the Default •... -
Page 25: Lens And Main Unit Cleaning
Lens and main unit cleaning WARNING • Request cleaning and maintenance of a ceiling-mounted unit from your projector dealership. Attempting to clean or replace the lamp in a high location by yourself may cause you to fall, resulting in injury. Lens cleaning ... - Page 26 Troubleshooting If you think something is wrong, check the followings before contacting customer service. Please see “Trouble indications” as well. p.49 If This Happens Check No power • Is the power cord plugged in? Is it connected to the projector? •...
-
Page 27: List Of General Specifications
Specifications List of general specifications ■ Item Specification Consumption Power 270 W Weight 1.8 kg External Dimensions 268 × 70 × 189 mm (W × H × D) (including protruding parts) Cabinet material PC+ABS resin and PC resin (Some parts including Mg alloy) Conditions for usage environment Temp: 5°C to 35°C;... -
Page 28: Control Terminal
Specifications (Continued) List of supported signals (Component signals) Signal format fh(kHz) 480i(55i)@60Hz 15.7 480p(55p)@60Hz 1.47 576i(65i)@50Hz 15.6 576p(65p)@50Hz 1.5 70p(750p)@60Hz 45.00 70p(750p)@50Hz 7.50 1080i(115i)@60Hz .75 1080i(115i)@50Hz 8.1 1080p(115p)@60Hz 67.50 1080p(115p)@50Hz 56.5 List of supported signals (Video, S-Video signals) Video mode fh(kHz) NTSC...
