Summary of Contents for Toshiba TLP TLP-X2000

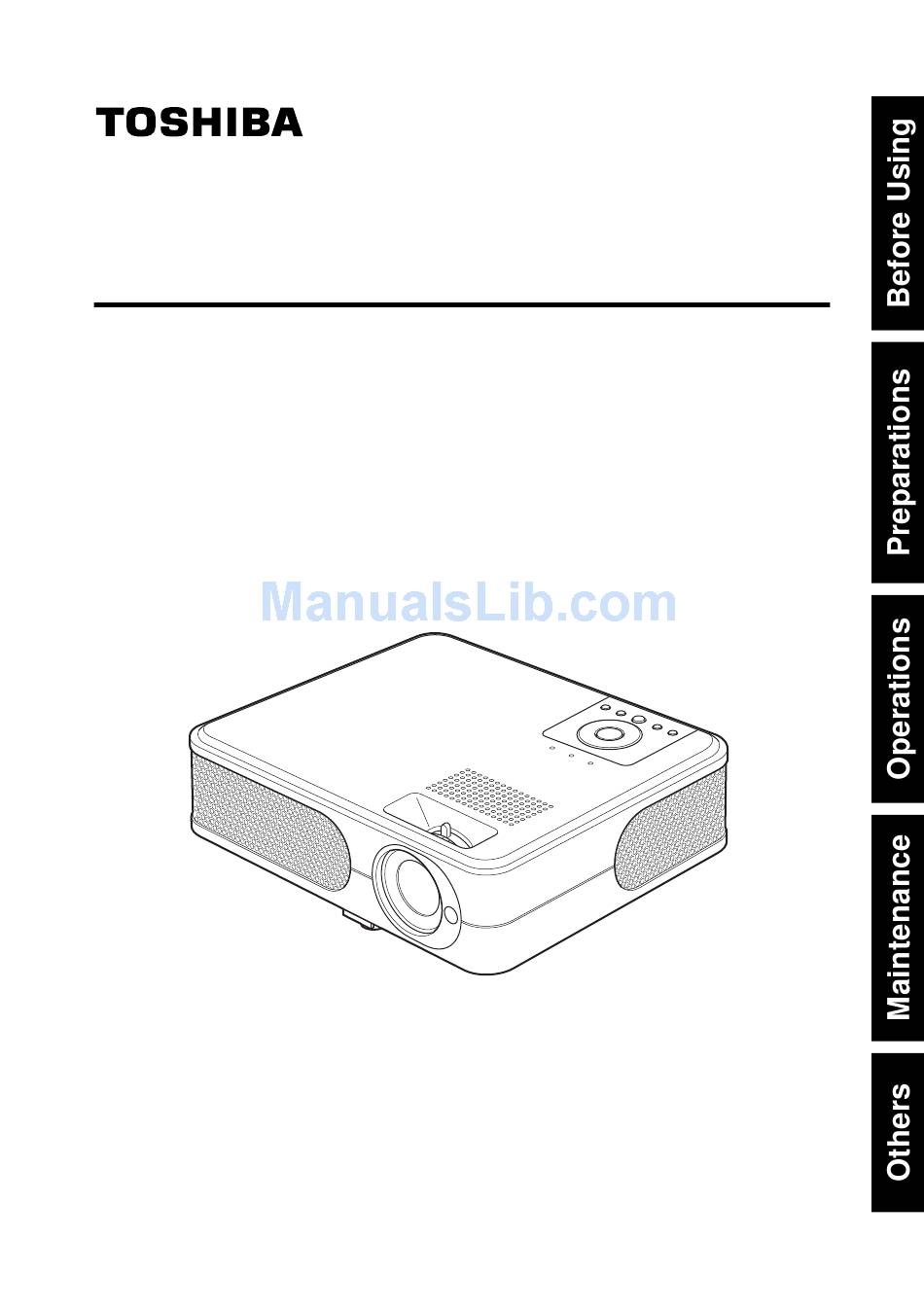

- Page 1 OWNER’S MANUAL 3LCD DATA PROJECTOR TLP-X2000 TLP-XC2000 (With Document Camera) TLP-X2000...
-
Page 2: Before Using
Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This unit is fully transistorized and does not contain any parts that can be repaired by the user. - Page 4 IMPORTANT SAFETY INSTRUCTIONS (Continued) 10. Lightning storms 12. Do not place the product vertically For added protection for this product during storm, or when it is Do not use the product in the left unattended and unused for upright position to project the long periods of time, unplug it from pictures at the ceiling, or any other the wall outlet.
-
Page 5: Power Supply Cord Selection
IMPORTANT SAFETY INSTRUCTIONS (Continued) 19. Replacement Parts 23. Do not look into the laser light source of the remote When replacement parts are required, be sure the service control or direct the laser technician has used replacement pointer toward a person or parts specified by the a mirror. -
Page 6: Contents
EXEMPTION CLAUSES • Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, acts by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems. -
Page 7: Table Of Contents
CONTENTS Before Using SAFETY PRECAUTIONS ... 2 IMPORTANT SAFETY INSTRUCTIONS ... 4 POWER SUPPLY CORD SELECTION ... 9 IMPORTANT PRECAUTIONS ... 9 EXEMPTION CLAUSES ... 10 OTHER CAUTIONS AND INFORMATIONS ... 10 REMOTE CONTROL BATTERIES ... 11 CONTENTS ... 12 Preparations Checking the package contents ... -
Page 8: Preparations
Preparations Checking the package contents Please make sure that the following items are included in the box, along with the main unit. If any item is missing, please contact the store immediately where you purchased the product. ■ ■ ■ ■ (1) Remote control (6) Power cord ■... -
Page 9: Names Of Each Part On The Control Panel And Remote Control
Names of each part on the control panel and remote control Control panel Remote Control (TLP-X2000) (9) (5) (10) Remote control Laser light transmitter source (14) (13) (25) (7) (6) (4) (3) (24) (23) CAUTION (22) • Do not look into the laser light (21) source of the remote control or direct the laser pointer toward a... -
Page 10: Names Of The Terminals On The Rear Panel
Names of the terminals on the rear panel Name : Main Function (1) CONTROL terminal : When operating the projector via a computer, connect this to the controlling computer’s RS-232C port. (2) AUDIO (L/R) terminal : Input audio signals from video equipment. (3) VIDEO terminal : Input video signals from video equipment. -
Page 11: Preparing And Using The Remote Control
XP OS, that is equipped with a USB port which can support USB1.1 (The mouse remote control receiver is also supported on OS 9 or OS X for the Macintosh). However, please note that Toshiba does not guarantee the operation of all computers. Connecting a computer Connect the mouse remote control receiver (supplied) to a computer. -
Page 12: Placement
Placement Placement Styles As shown in the figures below, this device can be placed in 4 different styles. The factory setting is “floor-mounted front projection.” Set the [Projection mode] in the Default setting 2 menu, in accordance with your needs. Floor-mounted front projection Floor-mounted rear projection Ceiling-mounted front projection... -
Page 13: Label Locations
Connection (Continued) Notes • When COMPUTER 2 IN terminal (also used for MONITOR OUT terminal) is used as MONITOR OUT terminal, the signal which is input to COMPUTER 1 IN terminal is output. • Signals are output from MONITOR OUT terminal even in standby mode. However, from AUDIO OUT terminal, no audio signal is output. -
Page 14: Basic Operations
Turning the power on and off (Continued) Notes • The start-up screen will disappear after a moment. You can dismiss the start-up screen before this by performing any operation. You can also configure the start-up screen not to appear via the Display setting menu p.39 •... -
Page 15: Using Handy Features
Basic operation (Continued) Projector placement angle adjustments The placement angle and the height of the projected image can be adjusted by the foot adjuster. q Lift up the front of the projector to the desired angle, then press the foot adjuster release button. The foot adjuster extends. -
Page 16: Resizing Image
Using handy features (Continued) Adjusting Keystone distortion [Auto] Press the button. The keystone distortion is automatically corrected. The correction. When adjustment is finished, the Keystone menu appears again. For fine adjust- ment, select [V-keystone] by the button and adjust image manually by the buttons. -
Page 17: Changing Screen Size
Using handy features (Continued) ■ Changing screen size The screen size for the projected image can be changed. Press the remote control’s SCREEN SIZE button. Pressing the button switches Full/Thru/Wide in turn. Notes • Thru display is available for computer-input images. •... - Page 18 Using handy features (Continued) How to set password (from [Off] to [On]) Select [Password] in the Default setting 2 menu and press the button. Select [Password setting] in the password registration, setting menu, and press the button. Select [On]. Select [OK] and press the button.
-
Page 19: Using The Menus
Using the menus You can call up on-screen menus, and conduct a number of adjustments and settings using the operation buttons on the control panel (main unit side) and remote control. p.16 ■ How to use the menus The menu shown below is for operation instructions purposes and might differ from the actual display. -
Page 20: The Display Setting Menu
Using the menus (Continued) Item Description Position V-position Adjust the vertical position of the image. Clamp 1 Adjusts the clamp pulse position. Clamp 2 Adjusts the clamp pulse width. *1: [Noise reduction] may not work depending on signal type. *2: [[NTSC mode] can be displayed and adjusted only when the video signal is set to [NTSC] or [NTSC4.43]. - Page 21 [Background] • TOSHIBA is set for [Logo] by factory setting. • If user’s logo has been registered, it is displayed when [Logo] is set for background.
-
Page 22: The Default Setting Menu
Using the menus (Continued) ■ The default setting menu This menu shows placement status and other settings. Default setting 1 menu Item Description No signal Set the time to wait for the power to be turned off after the last power off operation is made with no input signal. -
Page 23: Displaying Information (Status Display)
Using the menus (Continued) [Key lock] Protect from operating errors by locking on the control panel buttons of the projector. (The remote control operations are available.) Control panel operations are locked after the setting is done, and accordingly operation with the control panel buttons is disabled. •... -
Page 24: Image Projection With The Document Camera
Using the document camera (Continued) ■ Image projection with the document camera Press the LED LIGHT button. The illumination LED lights. CAUTION • Please do not look into the lighting LED directly. The strong light may cause damage to the eyes or sight. Place the document. -
Page 25: Locking The White Balance
Using the document camera (Continued) ■ Locking the white balance Although the projector’s camera is constantly adjusting the color balance of the images it photographs, the color balance may be disrupted, depending on the color layout of the document. If this happens, the white balance can be locked using the procedures below. Lay down a piece of white paper, and adjust so it fills the screen. -
Page 26: Lamp Replacement
If this happens, replace it with a new one. WARNING • If the projector is mounted on the ceiling, it is recommended to use your Toshiba dealer- ship when the lamp has to be exchanged. -
Page 27: Air Filter Cleaning
Air filter cleaning The air filter prevents dust and debris from getting inside the projector. Never run the projector with the filter removed. It is recommended that the air filter is cleaned regularly. • The message “Check the air filter for dirt.” is displayed every 100 hours. (If the usage time exceeds 100 hours, this message is displayed for about 30 seconds when the image is displayed for the first time after power is turned on. -
Page 28: Others
Others Trouble indications The indicator lights to inform you of internal abnormalities. No power ⇒ Problem with projector (Off) • Unplug the power cord, and contact your dealer. Lamp went out during use, or won’t come on ⇒ Lamp temperature is high so that it is difficult to turn on, the lifetime of the (Red (Red lit) lamp has ended or the projector is malfunctioning. -
Page 29: List Of Supported Signals (Rgb Signals)
Specifications ■ List of general specifications Item Specification Consumption Power TLP-X2000: 280 W TLP-XC2000: 280 W Weight TLP-X2000: 2.8 kg TLP-XC2000: 4.0 kg TLP-X2000: 288 × 92 × 247 mm (W × H × D) External Dimensions TLP-XC2000: 370.5 × 92 × 249 mm (W × H × D) (including protruding parts) Cabinet material PC resin and PC+ABS resin... -
Page 30: List Of Supported Signals) (Y/P Signals))
Specifications (Continued) ■ List of supported signals (Y/P signals) Signal format fh(kHz) 480i(525i)@60Hz 15.73 480p(525p)@60Hz 31.47 576i(625i)@50Hz 15.63 576p(625p)@50Hz 31.25 720p(750p)@60Hz 45.00 720p(750p)@50Hz 37.50 1080i(1125i)@60Hz 33.75 1080i(1125i)@50Hz 28.13 ■ List of supported signals (Video, S-Video signals) Video mode fh(kHz) fv(Hz) NTSC 15.73 15.63...
