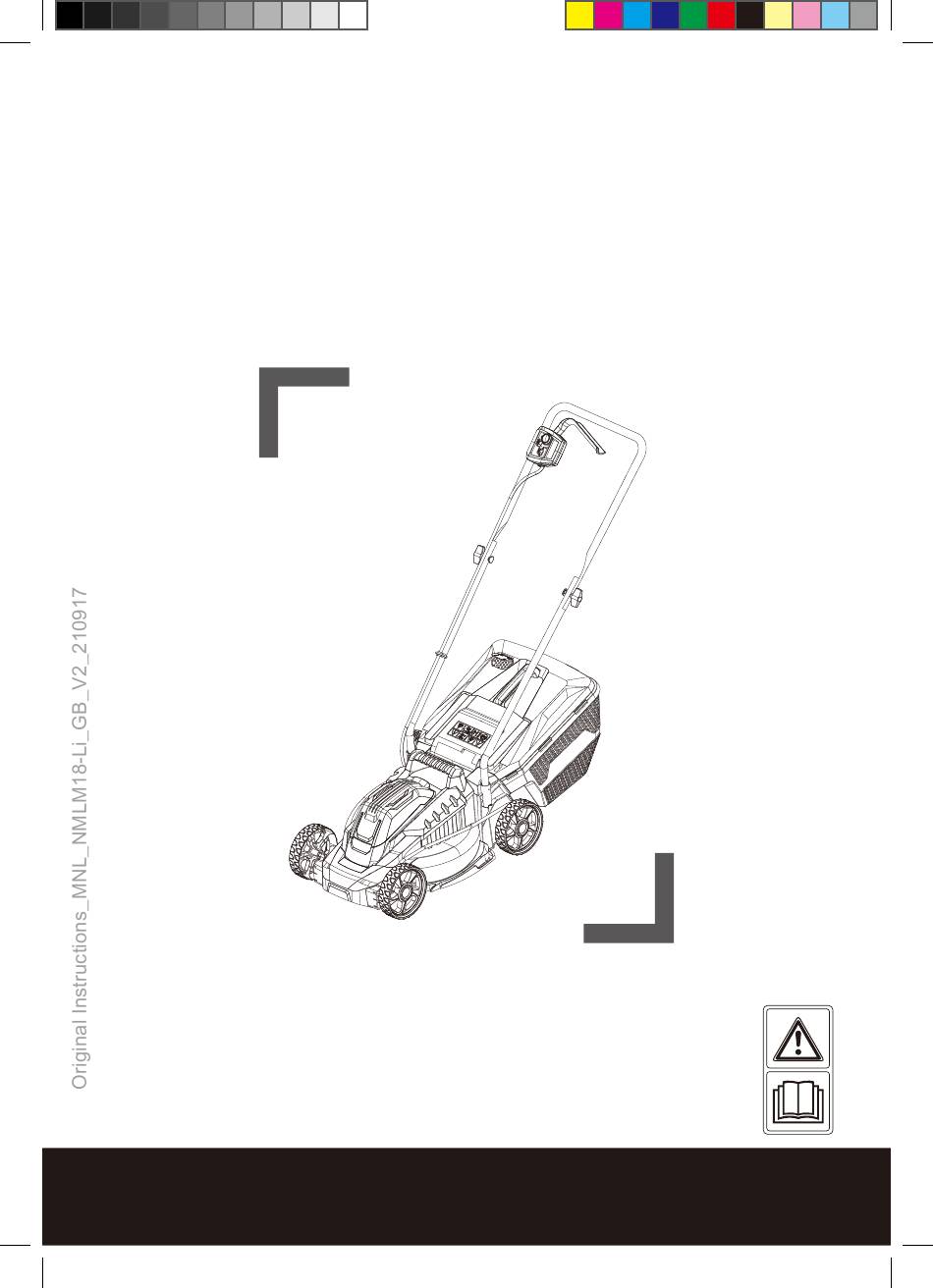

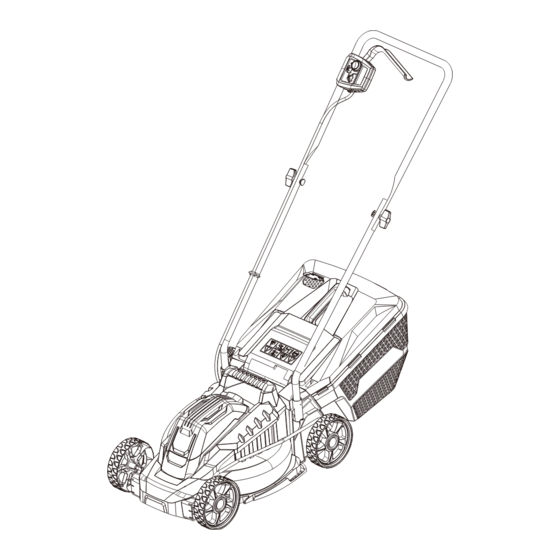

  • Page 1 Lawnmower 18V 32cm NMLM18-Li BX220IM CAUTION: Read the instructions before using the product. MNL_NMLM18-Li_Lawn Mower 18V 32cm_V2_210917.indd 1 9/17/21 2:59 PM...

  • Page 2: Table Of Contents

    Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical...
  • Page 3 Safety information NMLM18-Li Safety warnings 1. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
  • Page 4 Safety information NMLM18-Li Safety warnings 3. Never mow while people, especially children, or pets are nearby. 4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. Preparation 1. While mowing, always wear substantial footwear and long trousers.
  • Page 5 Safety information NMLM18-Li 8. Use extreme caution when reversing or pulling the product towards you. 9. Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed.
  • Page 6 Safety information NMLM18-Li Safety warnings 18. If the product starts to vibrate abnormally (check immediately) inspect for damage, replace or repair any damaged parts, check for and tighten any loose parts. Maintenance and storage 1. Disconnect the product from the power supply (i.e.

  • Page 7: Safety Information

    Safety information NMLM18-Li 12. When not in use, store the product out of the reach of children. Safety warnings for battery pack 1. Recharge the battery pack only with the charger A charger that is suitable for one type of battery pack may create a risk battery pack.
  • Page 8 Safety information Safety information NMLM18-Li Safety warnings 8. Follow all charging instructions and do not charge the battery pack outside the temperature range Charging improperly 9. Do not charge battery in a damp or wet location. 10. Longer life and better performance can be obtained if the battery is charged when the air temperature is between 18°C and 24°C.
  • Page 9 Safety information NMLM18-Li Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
  • Page 10 Safety information NMLM18-Li Safety warnings Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
  • Page 11 Safety information NMLM18-Li Centimeter Litre dB(A) Decibel (A-rated) Metres per second squared Read the instruction manual. IPX1 Protection against vertically falling water drops. xxWyy Manufacturing date code; year of manufacturing (20xx) and week of manufacturing (Wyy) Wear hearing protection. Wear eye protection.
  • Page 12 Safety information NMLM18-Li Symbols Beware of sharp blades. Blades continue to rotate after the motor is switched off - Remove disabling device before maintenance. Keep hands and feet away from sharp rotating parts – danger of injury! When cleaning, repairing, or inspecting, make certain the cutting blade and all mowing parts have stopped.

  • Page 13: Your Product

    Your product NMLM18-Li Your product 9b 9a MNL_NMLM18-Li_Lawn Mower 18V 32cm_V2_210917.indd 13 9/17/21 3:00 PM...
  • Page 14 Your product / Before you start NMLM18-Li Your product 1. Safety switch button e. Spare battery b. Top cover* 2. Grip handle compartment c. Bottom case (x2)* 3. Start lever 10. Safety key d. Hatch 4. Upper handle bar 11. Front wheel (x2) e.

  • Page 15: Before You Start

    Before you start NMLM18-Li You will need (items not supplied) (items supplied) Suitable personal protective equipment Grass catcher (16) Suitable wrench Cutting blade (12c) Suitable cross-head driver Battery pack (20) Charger (21) and its manual NOTE: The accessories required depend on the intended application.
  • Page 16 Before you start NMLM18-Li Setup Upper handle bar 1. Hold the upper handle bar (4) with the safety switch button (1) facing upwards. Align the mounting holes of the upper handle bar (4) and the lower handle bars (6). 2. Pass the mounting bolts (5a) through the mounting holes of the upper handle bar (4) and the lower handle bars (6) to the end (Fig.
  • Page 17 Before you start NMLM18-Li 2. Align the front ends of the top cover (16b) and the combination of the bottom cases (16c) of the grass catcher (16). Clip them together starting at the front (Fig. 5). NOTE: Once the front clips on either side are secure, work back to secure each clip.
  • Page 18 Before you start Before you start NMLM18-Li Setup hold it in position (Fig. 8, step 1). 6. Carry the grass catcher (16) by its carry handle (16a). 7. Align the grass catcher hanging holes (16e) with the hooks (19a) and hang the grass catcher (16) on (Fig.
  • Page 19 Before you start NMLM18-Li NOTE: The spare battery compartment (9e) is only used for temporary storage of unused battery pack (20). Releasing the battery pack The battery pack (20) can’t be charged whilst in the mower. Remove the battery pack (20) from its battery compartment (9d) or spare battery compartment (9e) for charging.
  • Page 20 Before you start NMLM18-Li Connect battery pack 1. Make sure the start lever (3) is released and safety switch button (1) is not pressed. 2. Attach the battery pack (20) to the product. Ensure it snaps in place. 3. Insert the safety key (10) into its slot fully.
  • Page 21 Product functions NMLM18-Li Intended use This cordless lawn mower NMLM18-Li is designated with a rated voltage of 18 V . It is designed only to be used with the battery pack which is listed in The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high, dry or wet grass, e.g.

  • Page 22: Product Functions

    Product functions NMLM18-Li Cutting height adjustment WARNING! Ensure that the lever (13) engages in the slot after each adjustment. NOTE: There are 5 cutting height levels available. The adjustable Handle bar adjustment 1. Loosen the knobs (5) anti-clockwise but do not remove them (Fig.14, step 1).

  • Page 23: Operation

    Operation NMLM18-Li Indicator during operation. Fig. 16 Fig. 17 left to collect grass (Fig. 16). 2. When the hatch (16d) is closed, the grass catcher (16) is full and must be emptied (Fig. 17). Emptying Empty the grass catcher (16) frequently during use. Do not wait until it is completely full.
  • Page 24 Operation NMLM18-Li General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows 3. Always push the product using the grip handle (2). Keep the handles dry to ensure safe support.
  • Page 25 Operation NMLM18-Li Starting/Stopping 2. Insert the safety key (10) into the slot fully (Fig. 18). 3. Close the battery cover (9) and stand behind the grip handle (2). 4. While holding the safety switch button (1) pressed (Fig. 19, step 1), pull the start lever (3) towards the grip handle (2) (Fig.

  • Page 26: Care And Maintenance

    Operation / Care and maintenance NMLM18-Li Mowing WARNING! If the product strikes a foreign object stop immediately! Let the product cool down and thoroughly inspect the product for damage! Have any damage repaired before restarting! Extensive vibration of the product during operation is an indication of...
  • Page 27 Care and maintenance NMLM18-Li NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. Check for any damage and wear. Repair damages in accordance with this instruction manual or take it to an authorised service centre before using the product again.
  • Page 28 Care and maintenance NMLM18-Li Underbody and cutting blade 5. Replace the cutting blade (12c) with a new one of the same type. Check the (12e) and the hex nut (12f) properly. Tighten the hex nut (12f) clockwise with 25 Nm min, 30 Nm max. to ensure safe operation of your product.

  • Page 29: Troubleshooting

    Care and maintenance / Troubleshooting NMLM18-Li Storage 1. Switch the product off, disconnect the safety key (10) and remove the battery pack (20) before storage. 2. Clean the product as described above. 3. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
  • Page 30 Troubleshooting NMLM18-Li Troubleshooting Problem Possible cause Solution 1. Product does 1.1. Battery pack is not 1.1. Attach properly not start properly attached 1.2. Battery pack is 1.2. Remove and charge discharged battery pack 1.3. Battery pack is damaged 1.3. Check by a specialist electrician 1.4.

  • Page 31: Recycling And Disposal

    Recycling and disposal NMLM18-Li Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. The product comes in a package that protects it against damage during shipping.

  • Page 32: Guarantee

    Guarantee NMLM18-Li Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
  • Page 33 Guarantee NMLM18-Li Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom MNL_NMLM18-Li_Lawn Mower 18V 32cm_V2_210917.indd 33 9/17/21 3:00 PM...
  • Page 34 NMLM18-Li General > Rated voltage : 18 V > Rated no load speed n : 3400 min > Max. cutting width : 32 cm > Cutting height range > Grass catcher volume : 30 l > Protection class : III >...
  • Page 35 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. Rating label explanation Lawn mower: NMLM18-Li NM = Brand name LM = Lawnmower 18 = Voltage (V)

  • Page 36: Declaration Of Conformity

    Declaration of conformity NMLM18-Li Declaration of conformity MNL_NMLM18-Li_Lawn Mower 18V 32cm_V2_210917.indd 36 9/17/21 3:00 PM...
  • Page 37 Declaration of conformity NMLM18-Li MNL_NMLM18-Li_Lawn Mower 18V 32cm_V2_210917.indd 37 9/17/21 3:00 PM...
  • Page 38 Pour consulter les manuels d’instructions en ligne, www.bricodepot.fr rendez-vous sur le site www.kingfisher.com/products www.castorama.pl Aby zapozna si z instrukcj obs ugi online, odwied stron www.kingfisher.com/products www.bricodepot.es Para consultar los manuales de instrucciones en línea, visite www.kingfisher.com/products www.bricodepot.pt...
