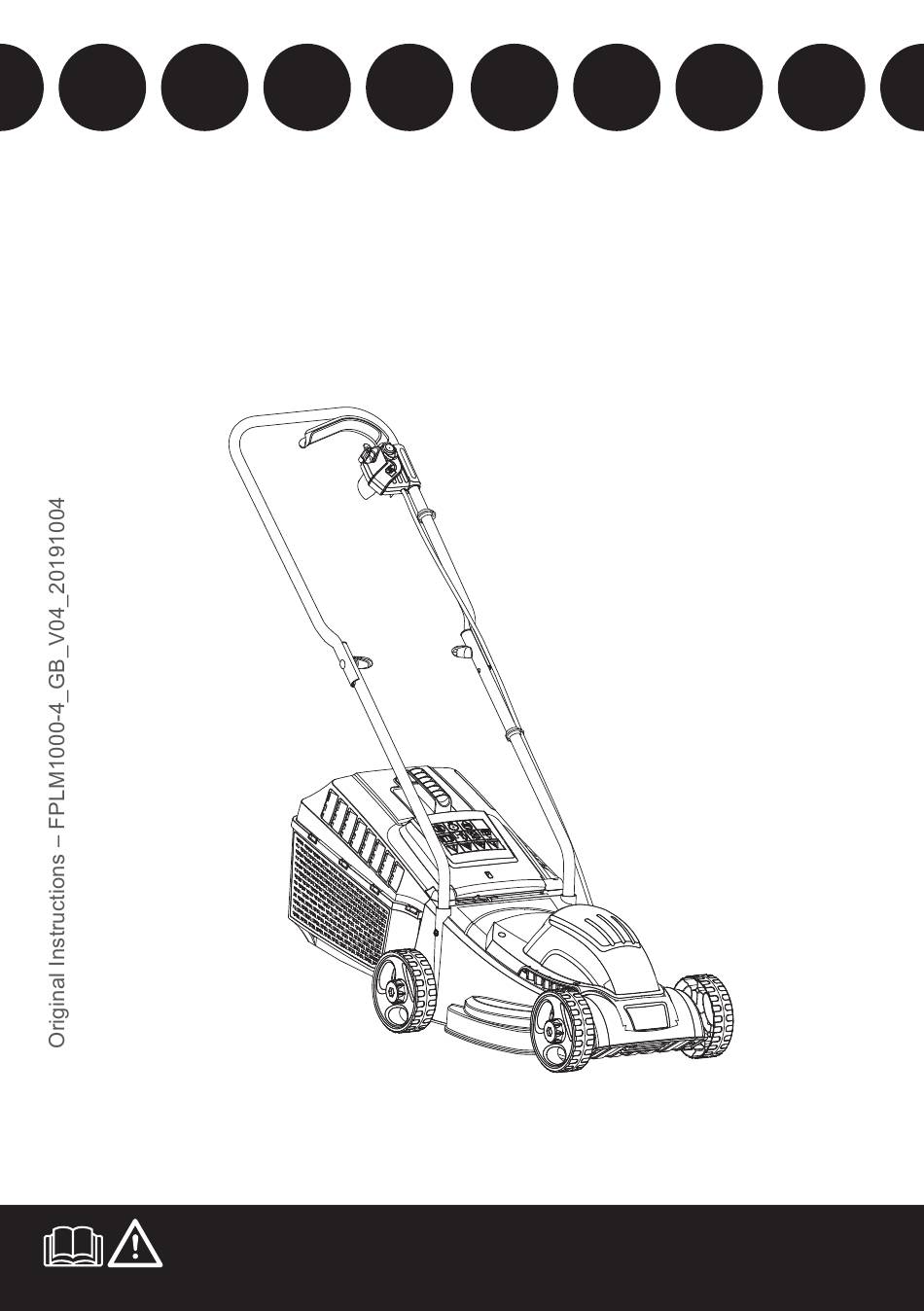

- Page 1 Electric Lawn Mower 1000W FPLM1000-4 EAN: 3663602939313 WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
FPLM1000-4 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your product Before start more detail... Product functions Operation Care maintenance Trouble shooting... -
Page 3: Safety Information
Safety information FPLM1000-4 Safety warnings 1. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 2. If an extension cord is used, it cannot lighter than H05VV-F, wire cannot be less than 2 x 1.5 mm and max. - Page 4 Safety information FPLM1000-4 2. Thoroughly inspect the area where the product is to be used and remove all objects which can be thrown by the product. 3. Before using, always visually inspect to see that the blade, blade bolt and the blade assembly are not worn or damaged.
- Page 5 Safety information FPLM1000-4 11. Do not tilt the machine when switching on the motor, except if the machine has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator.
- Page 6 Safety information FPLM1000-4 4. Always allow the product to cool down before storing. 5. Keep tight grip on the handles/gripping surface. 6. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). 7. Plan your work schedule to spread any high vibration tool use across a longer period of time.
- Page 7 Safety information FPLM1000-4 Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1. Always be alert when using this product, so that you can recognise and handle risks early.
- Page 8 Safety information FPLM1000-4 Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage)
- Page 9 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. FPLM1000-4 FP - OPP, LM - Lawn mower...
-
Page 10: Your Product
Your product FPLM1000-4 Your product... - Page 11 Your product FPLM1000-4 1. Handle 10. Grass catcher 2. Upper handle bar a. Handle 3. Mounting set (x 2) b. Top part * a. Knob * c. Bottom part * b. Bolt * 11. Deflector guard 4. Lower handle bar 12.
- Page 12 Your product FPLM1000-4 The sound values have been determined according to noise test code given in EN 60335-2-77, using the basic standards EN ISO 11201 and EN ISO 3744. The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
-
Page 13: Before You Start
Before you start FPLM1000-4 Assembly WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! - Page 14 Before you start FPLM1000-4 Fig. 1 5. Place the lawnmower on its side when tightening each wheel. Important: Ensure all four wheels are securely tightened before each use.
- Page 15 Before you start FPLM1000-4 Lower handle bar 1. Insert the lower handle bars (4) into the supports (5). Ensure the mounting holes in the lower handle bars (4) are aligned with the ones in the supports (5) (Fig. 2). 2. Secure the lower handle bars (4) with the screws (4a) and tighten them with a proper crosshead screwdriver (Fig.
- Page 16 Before you start FPLM1000-4 Upper handle bar 1. Attach the upper handle bar (2) to the lower handle bars (4) and align the holes in the upper handle bar with the ones in the lower handle bars (Fig. 3). 2. Secure the upper handle bar (2) with the mounting sets (3) to the lower handle bars (4) and tighten the knobs (3a) clockwise (Fig.
- Page 17 Before you start FPLM1000-4 Grass catcher 1. Align the fronts end of the top part (10b) and the bottom part (10c) of the grass box. Clip the two halves together starting at the front. 2. Once the front clips on either side are secure, work back on either side to secure each clip.
-
Page 18: In More Detail
FPLM1000-4 more detail... Product functions Operation Care maintenance Trouble shooting Recycling disposal Guarantee EC declaration of conformity... -
Page 19: Product Functions
FPLM1000-4 Intended use This electric lawnmower FPLM1000-4 is designated with a rated input of 1000 Watts. 1. The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high dry grass or wet grass, e.g. pasture grass; for shredding leaves or mulching. - Page 20 Product functions FPLM1000-4 Fig. 10 1. Release the start lever (16) and disconnect the product from the power supply before adjusting the height of the wheels. 2. Loose the knob with bolt (8a) and remove them together the wheel (8).
- Page 21 Product functions FPLM1000-4 Handle bar adjustment 1. Disconnect the plug from the extension cord and loosen the knobs (3b) anti-clockwise to fold the handle assembly for storage (Figs. 11, 12). 2. Ensure the power cord (13) is not squeezed, and then tighten the knobs (3b) clockwise.
- Page 22 Product functions FPLM1000-4 Grass catcher Always attach the grass catcher (10) when using the product for grass collection. Always carry the grass catcher by its handle (10a). Emptying Empty the grass catcher (10) frequently during use. Do not wait until it is completely full.
-
Page 23: Operation
Operation FPLM1000-4 General operation Check the product, its interconnection cord and extension cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 1. Double check that accessories or cutting device are properly fixed. - Page 24 Operation FPLM1000-4 Mowing 1. Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its motor. 2. Do not cut wet grass because it tends to stick to the underbody of the product, preventing the proper discharge of grass clippings, and it could also cause you to slip and fall.
-
Page 25: Care And Maintenance
Care and maintenance FPLM1000-4 The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 26 Care and maintenance FPLM1000-4 Underbody and cutting device WARNING! Wear safety gloves when working on the cutting device and close to it! Use proper tools to remove debris, e. g. a wooden stick! Never use your bare hands! Always use original spare parts for replacement. The cutting device must be replaced by an identification no.
- Page 27 Care and maintenance FPLM1000-4 8. Lubricate the cutting device (17) after each use to prolong the life span of cutting device and product. Apply light machine oil along the edge of the cutting device. Fig. 15 Grass catcher Inspect the grass catcher (10) before each use. Do not use it if you find any damage.
- Page 28 Care and maintenance FPLM1000-4 Power cord If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. UK plug If you need to replace the fitted plug, then follow the instructions below.
- Page 29 Care and maintenance FPLM1000-4 Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly to have it checked and repaired. Storage 1. Clean the product as described above.
-
Page 30: Trouble Shooting
Trouble shooting FPLM1000-4 Trouble shooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All... -
Page 31: Recycling And Disposal
Recycling and disposal/Guarantee FPLM1000-4 Recycling and disposal Old products are potentially recyclable under WEEE and do not, therefore, belong in your house hold rubbish. You are requested to assist us and our contribution to saving resources and protecting the environment by handing in this appliance at an equipped collection centre (if there is one available). -
Page 32: Ec Declaration Of Conformity
EC declaration of conformity Kingfisher International Products B.V. Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands Declare that the product 1000 W 32 cm Lawnmower FPLM1000-4 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives:... - Page 33 Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com SFD Limited Trade House, Mead Avenue...
Need help?
Do you have a question about the FPLM1000-4 and is the answer not in the manual?
Questions and answers
My lawnmower just went pop and will not start again. What can I do?
If your Kingfisher FPLM1000-4 lawnmower won't start after making a popping sound, follow these troubleshooting steps:
1. Check Power Supply:
- Ensure the product is connected to a working power supply (Problem 1.1).
- Try connecting it to a different power source in case the original one is faulty (Problem 2.2).
2. Inspect Power Cord and Plug:
- A popping sound may suggest an electrical issue. Check the power cord and plug for damage (Problem 1.2). Have a specialist electrician inspect them if necessary.
3. Check for Electrical Defects in the Product:
- If the cord and plug are fine, the popping sound may indicate an internal fault. Have a specialist electrician inspect the product (Problem 1.3).
4. Correct Start Procedure:
- Ensure the lock-off button is pressed before squeezing the start lever (Problem 1.4). Follow the correct starting steps:
- Press and hold the lock-off button.
- Squeeze the start lever toward the handle.
If the issue persists after these steps, further inspection by a qualified specialist is required.
