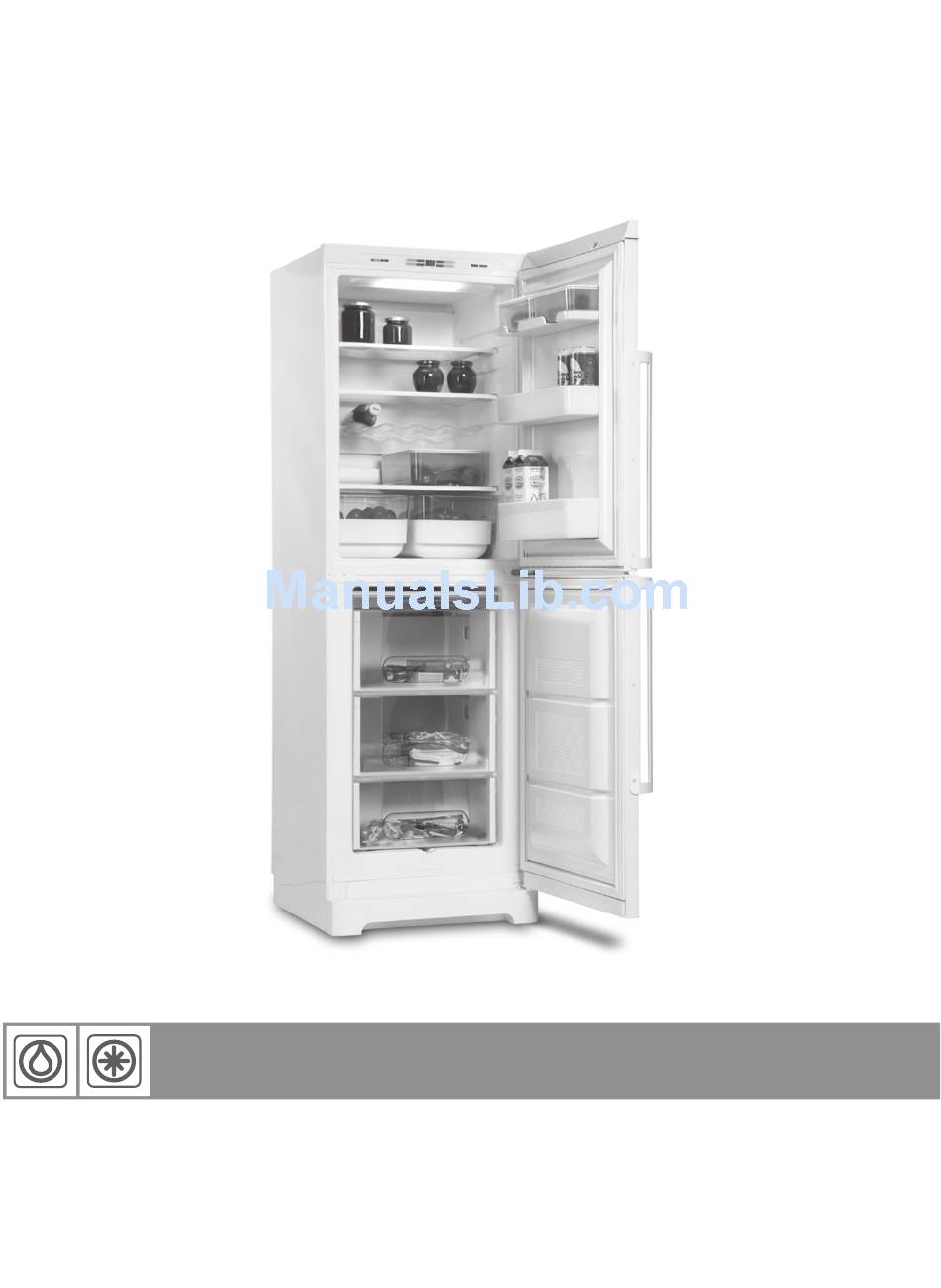

- Page 1 FZ ... M UK Instructions for use DE Bedienungsanleitung FR Mode d’emploi DK Brugsanvisning NO Bruksanvisning NL Gebruiksaanwijzing ES Instrucciones para el uso CZ Návod k použití PL Instrukcja obsługi RUS Инструкция по эксплуатации...
-
Page 2: Table Of Contents
Thank you for purchasing your new fridge/ freezer from Vestfrost. Please note that these instructions apply to all fridge/freezers in the FZ range. Illustrations and fittings may therefore not necessarily correspond exactly to your model. Warning As the refrigerant used in this appliance is a flammable gas (Isobutane R600a), special care must be taken to prevent damage to the refrigerant circuit and piping during... -
Page 3: Get To Know Your Fridge/Freezer
Get to know your fridge/freezer Control panel Lighting Shelf with storage boxes Door shelf Bottle rack Large storage box Glass shelf Nameplate Crisper bins Freezing tray Sealing strip Freezer drawers Door handle Defrost water drain Kick plate Adjustable feet fig. 1... -
Page 4: Installation And Start-Up
Installation and start-up Placement For safety and operational reasons, the appliance must not be installed outdoors. The appliance should be placed on a level surface in a dry, well ventilated room (max. 75% relative air humidity). Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight. - Page 5 Special considerations for climate class ST When building in the appliance where room temperature exceeds +32 °C (climate class ST), there must be at least 25 mm free space to the right and left of it. In addition, there must be 100 mm free space above the appliance (see fig.
- Page 6 The appliance viewed from above If the appliance is placed beside a wall, there must be sufficient room for the freezer door to be opened wide enough to allow the drawers to be pulled out (fig. 4). Fitting the tilt-stop A tilt-stop can be fitted to prevent the unit from tilting forwards when the door is opened.
- Page 7 Setting up It is important that the appliance be absolutely level. To level the appliance, remove the kick plate below the door and screw the adjustable feet up or down (figs 8 and 9). Use a spirit level to check that the appliance is absolutely level.
-
Page 8: Reversing The Doors
Reversing the doors The doors can be changed from right-hinged to left-hinged and vice versa as follows: 1. Lay the appliance on its back with the doors uppermost. 6. Remove the middle hinge by unscrewing the screws. 7. Lift off the lower door and lay it aside. 11. -
Page 9: Electrical Connection
Electrical connection The appliance is intended for connection to alternating current. The required voltage (V) and frequency (Hz) are stated on the nameplate inside the appliance. Power must be connected via an independent wall socket outlet. If the mains lead has been damaged, it must be replaced with a corresponding type supplied by the manufacturer or an approved service centre. -
Page 10: Operation And Function
Operation and function Super Freeze Four-star freezer symbol Control lamp Alarm on/off Electronic controls The appliance is factory set to maintain +5°C in the refrigerator section and -18°C in the freezer section. Following any power failure, these settings are automatically recalled. -
Page 11: Temperature Setting
Starting up Connect the appliance to the socket outlet. Press the on/off switch The actual temperature in the freezer section is shown on the display. To display the actual temperature in the refrigerator section, press the refrigerator button once. After 1 minute, the display returns automatically to the temperature in the freezer section. -
Page 12: Refrigerator Section
Refrigerator section Glass shelves The shelves are made of tempered glass and can be repositioned within the cabinet. To move the shelves, the door must be opened 90°. To remove a shelf, pull it forwards and lower it. The shelf can then be removed and placed in the desired position. -
Page 13: Freezer Section
Freezer section Freezer section The freezer section is a four-star freezer, approved for freezing and storing foodstuffs. With the exception of frost-free models, the freezer section is equipped with a practical tray for freezing loose berries, ice cubes, etc. Freezing To keep food at its best, items must be frozen to -18°C as quickly as possible. - Page 14 Defrosting Automatic defrosting of refrigerator section The refrigerator is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate. The defrost water tray should be cleaned at intervals.
-
Page 15: Cleaning And Maintenance
Cleaning and maintenance Cleaning Switch off the appliance by pressing the on/off button before cleaning it inside. The cabinet is best cleaned using warm water (max. 85°C) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. -
Page 16: Fault Finding
Fault finding Fault Possible cause No control lamps are The appliance is switched off. lit. Power failure; the fuse is blown; the appliance is not plugged in correctly. Water collects on the Items of food at the back of the glass shelves. -
Page 17: Warranty, Spare Parts And Service
Warranty, spare parts and service Warranty disclaimer Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building- in, installation or mains connection, fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations, or repairs performed by others than service centres approved by Vestfrost, and any other faults and damage that the... -
Page 18: Disposal
Disposal Environmental regulations on disposal must also be observed. When disposing of the appliance you should contact your local authority technical department who will inform you of how collection and recycling of such units take place in your area. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
