- Page 1 FZ 277/302/349/374 R Instructions for use...
-
Page 2: Table Of Contents
Thank you for purchasing your new inform you of how collection and recycling refrigerator from Vestfrost. Please note that of such units take place in your area. these instructions apply to all refrigerators in the FZ range. Illustrations and fi ttings... -

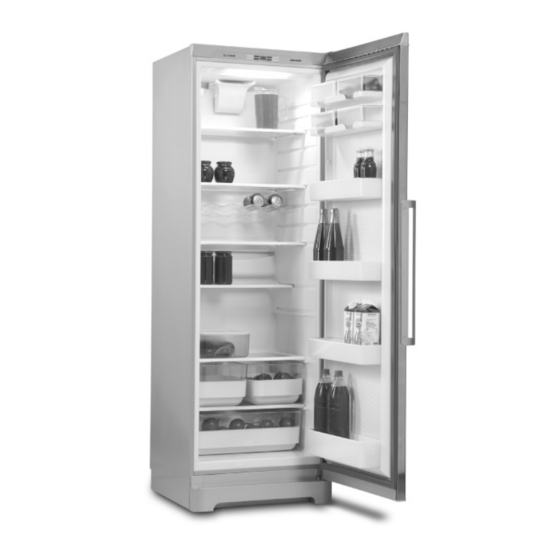

Page 3: Get To Know Your Refrigerator
Get to know your refrigerator Control panel Lighting Shelf with storage boxes Bottle rack Door shelf Glass shelf Sealing strip Door handle Large storage box Nameplate Crisper bins Mega-shelf Kick plate Adjustable feet fi g.1... -
Page 4: Installation And Start-Up
Installation and start-up Placement For safety and operational reasons, the appliance must not be installed outdoors. The appliance should be placed on a level surface in a dry, well ventilated room (max. 75% relative air humidity). Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight. - Page 5 The appliance viewed from Ventilation It is important that the appliance be above well ventilated and that air can circulate If the appliance is placed beside a wall, unhindered above, below and around it. The there must be suffi cient room for its door fi...
- Page 6 Setting up It is important that the appliance be absolutely level. To level the appliance, remove the kick plate below the door and screw the adjustable feet up or down (fi gs 8 and 9). Use a spirit level to check that the appliance is absolutely level.
-
Page 7: Reversing The Door
Reversing the door The door can be changed from right-hinged to left-hinged and vice versa as follows: 1. Lay the appliance on its back with the 2. Remove the upper hinge. 4. Lift off the door and lay it aside. door uppermost. -
Page 8: Electrical Connection
Electrical connection The appliance is intended for connection to alternating current. The required voltage (V) and frequency (Hz) are stated on the nameplate inside the appliance. Power must be connected via an independent wall socket outlet. If the mains lead has been damaged, it must be replaced with a corresponding type supplied by the manufacturer or an approved service centre. -
Page 9: Operation And Function
Operation and function Refrigerator temperature On/off switch Control lamp Concealed door switch Display fi g. 12 Electronic controls Starting up The appliance is factory set to maintain Connect the appliance to the socket outlet. +5°C. Following any power failure, these Press the on/off switch settings are automatically recalled. -
Page 10: Layout And Fi Ttings
Layout and fi ttings Glass shelves Glass shelf with slide damper The shelves are made of tempered glass The slide damper above the crisper bins and can be repositioned within the cabinet. allows the temperature and humidity in the To move the shelves, the door must be bins to be regulated. -
Page 11: Defrosting, Cleaning And Maintenance
Defrosting, cleaning and maintenance Automatic defrosting removed using a vacuum cleaner. It is possible to clean beneath the appliance by The refrigerator is defrosted automatically. removing the kick plate. Defrost water runs through a pipe and is collected in a tray above the compressor Stainless steel or aluminium doors are best where the heat generated by the cleaned using a care spray and soft cloth. -
Page 12: Fault Fi Nding
Fault fi nding Fault Possible cause Remedy No control lamps are lit. The appliance is switched off. Press the on/off switch. Power failure; the fuse is blown; the appliance is not Check that power is connected. plugged in correctly. Reset the fuse. Water collects on the glass Items of food at the back of Move the rearmost items... -
Page 13: Warranty, Spare Parts And Service
fi g. 17 installations, or repairs performed by others Note: Always use approved service centres than service centres approved by Vestfrost, when your appliance is to be repaired or and any other faults and damage that the replaced! - Page 16 Vestfrost reserves the right to alter specifi cations without prior notice. 9120.80X-0000 06/04...
