Warning. In case this appliance contains hydrocar- a responsible person to ensure bon refrigerant please refer to guidelines that they can use the appliance listed below. safely. Young children should be supervised to ensure that they As the appliance contains a flammable do not play with the appliance refrigerant, it is essential to ensure that the refrigerant pipes are not damaged.
Contents Before starting the appliance Warning ..........2 Before operating your new appliance, please read the following instructions care- Get to know ..........3 fully as they contain important information on safety, installation, operation and main- Before starting the appliance ....4 tenance.

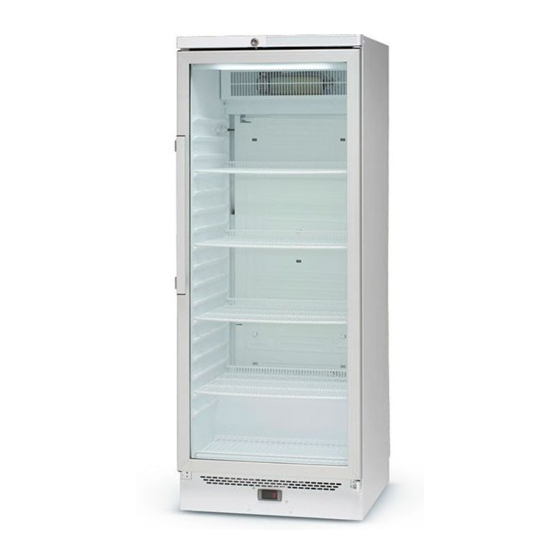

Installation and start-up. Table height width depth AKG 317 1530 AKG 377 1850 The appliance can be installed as a free- standing unit against a wall or side-by-side with other appliances The surface on which the appliance is to be placed must be level.
Placement Ventilation For safety and operational reasons, the ap- It is important that the appliance be well pliance must not be installed outdoors. ventilated and that air can circulate unhin- dered above, below and behind it. The appliance should be placed on a level surface in a dry, well ventilated room (max.
Operation and function. Technical data. This device complies with relevant EU directives including Low Voltage Directive 2006/95 EEC. and Electromagnetic Com- patibility Directive 2004/108/EC The rating plate provides various techni- cal information as well as type and serial number. Fig 3 Starting up Connect the appliance to the socket outlet.
Temperature control Actual temperature at the top of the cabinet Selection of temperature. Press for 2 seconds 3+4: Temperature +/- Unit on/off Press first button “SET” (2) for about two seconds (until the ° C begins to flash). You can then adjust the temperature using buttons (3) and (4).
Reversing the door. (Not all appliances have lock.) 3. Loosen the top panel. Do not 1. Remove the lock pin using a 2. Remove the lock housing. remove the screws, just loosen flat-headed screwdriver. them. 6. Pull the torsion spring out 5.
Page 10
13. Fit the left-side top hinge (avail- 15. Raise the appliance into 14. Secure the top hinge in able as extra). Tighten the tosion uppight possion. Click the top position. spring approx. 1/2 turn (anticlock- panel into place (it is secured in wise on left side, clockwise on rigth.) three places.) 17.
Replaceable lamp strip. ● Pull the screen to the left. ● Pull down the right side of the screen and take it out. Remove the strip - possibly with text - by pulling it out of the tracks along the whole length of the profile.
Defrosting, cleaning and maintenance. Automatic defrosting. It is possible to clean beneath the appliance by removing the kick plate The wine cooler is defrosted automatically. Defrost water runs through a pipe and is 1. Loosen the kick plate using the accompa- collected in a tray above the compressor nying hex key.
Fault finding. Fault Possible cause Remedy No control lamps are lit. The appliance is switched Press the on/off switch off. Check that power has Power failure; the fuse is been connected, both on blown; the appliance is the wall socket and con- not plugged on correctly trol panel.
Warranty, spare parts and service. Warranty disclaimer Spare parts Faults and damage caused directly or When ordering spare parts, please state indirectly by incorrect operation, misuse, the type, serial and product numbers of insufficient maintenance, incorrect building, your appliance. This information is given on installation or mains connection.
Disposal For business users in the Euro- Information for Users on Collection and Disposal of Old Equipment and pean Union. used Batteries If you wish to discard electrical and electronic equipment, please contact These symbols on the products, your dealer or supplier for further packaging, and/or accompanying information.
Page 16
Reserving the right to alter specifications without prior notice. 8120 801-01...
