4. EVALUATION WITH LABROS SOILVIEW-ANALYSIS

This section explains the special features of evaluating the combined HYPROP 2 and

VARIOS measurement. Both recorded data, HYPROP 2 and VARIOS, need to be evaluated

as usual. Please refer to the user manuals

LABROS SoilView-Analysis for VARIOS

HYPROP 2 and VARIOS measurement is *.bhvdx.

The Information Register (the first of five tabs) is a window that contains ten blocks

providing information about the selected project. Some data are editable by the Public User,

and some are editable only by the Power User. For more information about the User options,

please refer to section 2.2 in the

data cannot be altered by the user (these data are listed as the information specified by the

LABROS SoilView data acquisition program and the respective firmware).

In a typical measurement evaluation, two input values must be specified by the user. This is

at first the Empty soil sampling ring weight [g] in the group HYPROP/VARIOS parameters.

Since the sampling ring weight differs from sample to sample, the weight of the ring must be

specified for each measurement. Without this value, an evaluation cannot be performed. The

second value is the weight of the silicone retaining rings used for fixing the VARIOS sensor

needle to the soil sampling ring (Figure 26).

EVALUATION WITH LABROS SOILVIEW-ANALYSIS

LABROS SoilView-Analysis for HYPROP

for these evaluations. The file format of a combined

user manual

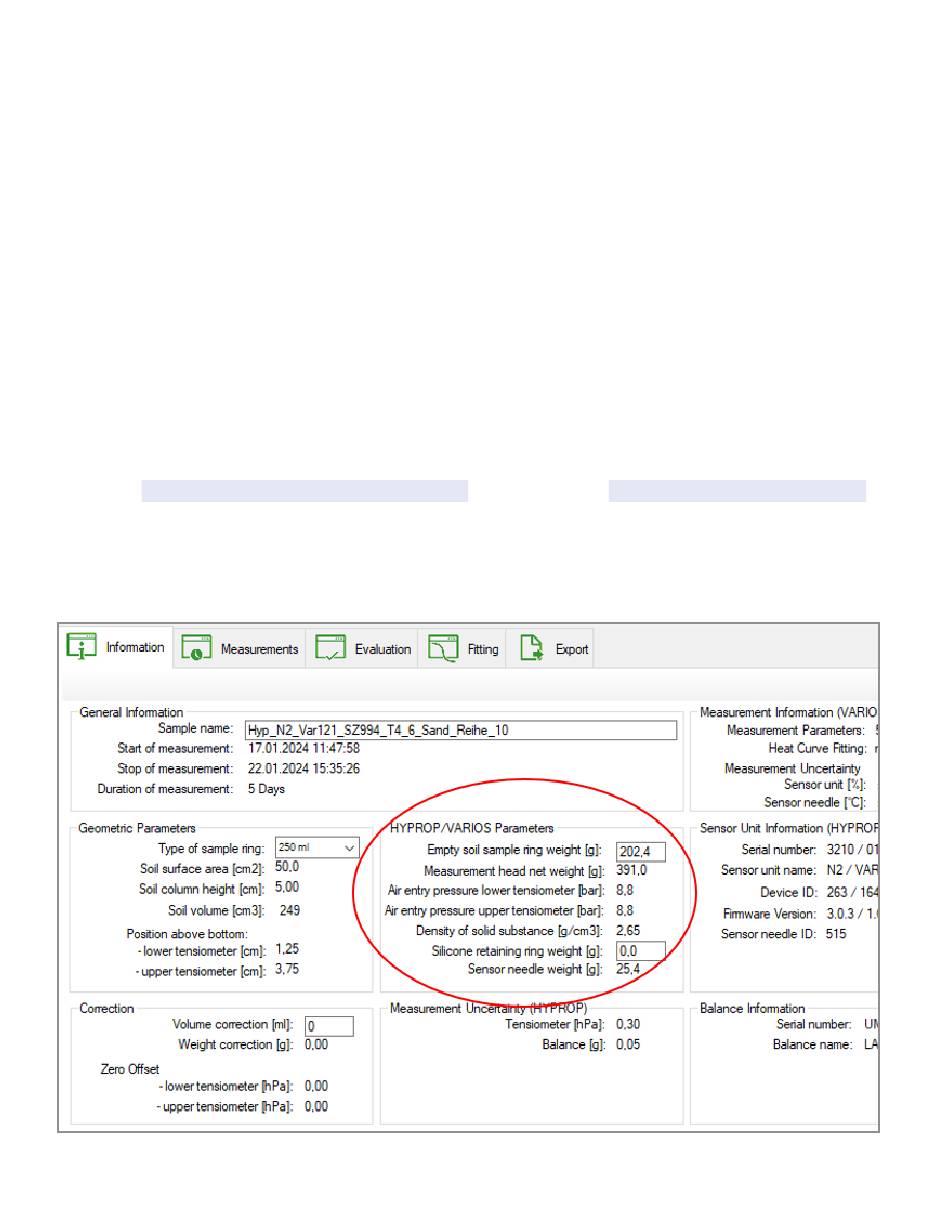

Figure 26 Information tab

LABROS SoilView-Analysis for HYPROP 2. Other

and
