  • Page 1 SATURO...

  • Page 3: Table Of Contents

    14968-02 12.29.2017 TABLE OF CONTENTS 1. Introduction ....................1 2. Operation ....................2 2.1 Installation ....................2 2.2 Functionality ..................... 3 2.2.1 Setting up a Test ................3 2.2.2 Starting a Test .................. 6 2.2.3 Stopping a Test ................7 2.2.4 Downloading Data ................

  • Page 5: Introduction

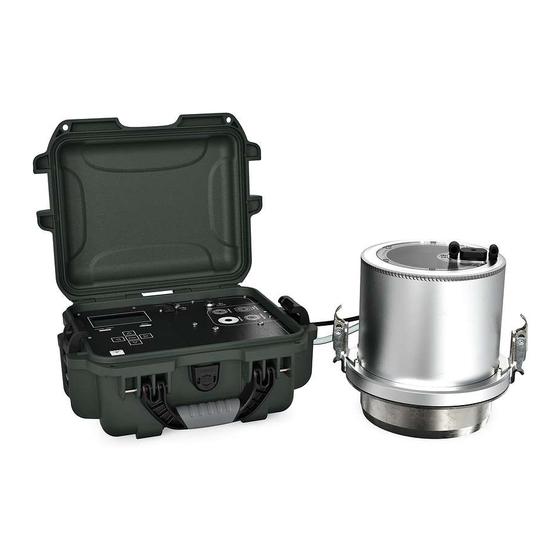

    SATURO 1. INTRODUCTION Thank you for choosing the SATURO Infiltrometer from METER Group. This manual should help you understand the functionality of SATURO, make high-quality measurements, and get the most out of the instrument. SATURO was designed to be an automated instrument for measuring permeability and field saturated hydraulic conductivity ( ) in soil.

  • Page 6: Operation

    OpERATION 2. OpERATION Please read all instructions before operating the SATURO to ensure it performs to its full potential. 2.1 INSTALLATION Follow the steps listed in Table 1 to set up the instrument. Table 1 Installation Verify Access to Water Identify a source of water on site or bring water to the site.

  • Page 7: Functionality

    SATURO Table 1 Installation (continued) Connect the hoses and sensor cable to the designated fittings on the infiltrometer head. Each input and output line is purposefully a different size of tubing to help prevent a mismatch. If a tube does not snugly fit into a connection, it is probably in the wrong one.
  • Page 8 OpERATION b. Highlight letters and press Enter after each one (Figure 2). A decimal point is not allowed as the first character of a test name. Toggle between upper and lower case by selecting the boxed up arrow in the lower right of the screen.
  • Page 9 SATURO reduce water usage. Table 2 provides rough guidelines to determine initial pressure head settings. These values are starting points only and should be adjusted for the particular soil based on experience. b. Set soak time. During soak time, the infiltrometer applies water to achieve saturation of the soil before beginning the pressure cycles.

  • Page 10: Starting A Test

    OpERATION Run time Cycle 1 Cycle 2 High pressure Low pressure Soak Hold Hold Hold Hold Figure 4 Run time diagram 6. After the settings are configured, press BACK to go to the Test Setup screen. 2.2.2 STARTING A TEST 1. On the Test Setup screen, select Start. The infiltrometer displays a message to check tubing and connections.

  • Page 11: Stopping A Test

    Figure 6 Stop test warning 2.2.4 DOWNLOADING DATA The SATURO Downloader application is used to download the data from SATURO, erase stored data, set the date and time, and check for firmware updates for SATURO. Download the application from metergroup.com/saturo-support before beginning the following steps.
  • Page 12 OpERATION 4. Select the proper COM port and click Download (Figure 8). Figure 8 SATURO Downloader dialog 5. After the download is complete, a prompt will ask if the data stored on the device should be erased (Figure 9). Select Yes or No.

  • Page 13: System

    SATURO 3. SYSTEM This section describes the specifications, components, and theory of the SATURO system. 3.1 SpECIFICATIONS MEASUREMENT SpECIFICATIONS Infiltration Rate Range 0.0038–115.0000 cm/h Resolution 0.0038 cm/h Accuracy ±5% of reading values that can be effectively measured by SATURO are limited by the listed minimum and maximum infiltration rates.

  • Page 14: Components

    5 cm (1.97 in) Insertion depth 10 cm (3.94 in) COMpLIANCE Manufactured under ISO 9001:2015 2004/108/EC and 2011/65/EU 3.2 COMpONENTS SATURO consists of four main components: the control unit, insertion ring, infiltrometer head, and water supply tank (Figure 10). Figure 10 SATURO components...

  • Page 15: Control Unit

    3.2.1 CONTROL UNIT The SATURO control unit has seven buttons to navigate through screens and configure settings (Figure 11): • When the device is off, press the pOWER/MENU button to turn on the device. Hold the pOWER/MENU button down for more than 4 s to power off the device. This button also navigates between different screen tabs.
  • Page 16 • Top right connection is a 6.4-mm (1/4-in) air output (control unit to infiltrometer head). Water input Air input Sensor Water output connection Figure 12 Control unit connections The SATURO display (Figure 13) features three main tabs designed for ease of use: Reading, Configuration, and Data. Configuration tab Battery level Active tab Data tab Time remaining...
  • Page 17 SATURO READING TAB The Reading tab is used to view screens related to the current tests, including charts from the most recent flux, pressure, and water level readings. Use Up and DOWN to scroll through the available reading screens. • Status Screen. The Status screen shows the test status as Soaking (Figure 14). When the test is completed, it changes to the Results screen.
  • Page 18 Press Up and DOWN to change Reading screens or press the pOWER/MENU button to navigate to the Configuration tab. SATURO will display the results from the last test if no test is running. Figure 18 Results screen CONFIGURATION TAB The Configuration tab is used to view and set global preferences (Figure 19).
  • Page 19 SATURO • Date. Edit this screen to change the date saved in the control unit (Figure 20). Select the Date option in the Configuration tab. Use Up and DOWN to change the current value and hold the buttons down to scroll quickly. Press RIGHT to move to the next value or press LEFT to return to the previous value.
  • Page 20 SYSTEM • Contrast. Change the screen lighting contrast settings (Figure 23). Select the Contrast option on the Configuration tab. Use the directional buttons to change the contrast to any value from 00–25. Use RIGHT and LEFT to highlight Done and press Enter to save the new contrast setting.

  • Page 21: Insertion Ring

    SATURO • About. Displays the instrument’s serial number, firmware version, hardware version, copyright date, and manufacturer’s name (Figure 25). Select the About option on the Configuration tab and press Enter. No changes can be made in this screen. Press BACK to return to the previous menu Figure 25 Viewing the About option...

  • Page 22: Infiltrometer Head

    (Figure 28). Some sites with higher infiltration rates will use more than 5 gal of water in the time necessary to complete a measurement. The Y-connector may be used to connect two water tanks to SATURO, doubling the water supply available for a measurement.

  • Page 23: Theory

    SATURO Figure 28 Water tank 3.3 THEORY Field saturated hydraulic conductivity, (cm/s) is a fundamental soil hydraulic property that describes the ease with which a fluid (usually water) can move through pore spaces or fractures under field saturated conditions. One of the oldest and simplest methods for in situ...
  • Page 24 (∝). This analysis is known as the two-ponding head approach (Reynolds and Elrick 1990). The two -ponding head approach is the technique used by SATURO, though with some modifications and simplifications. The easiest equation for this calculation is from Nimmo et al.
  • Page 25 ∆ is the infiltrometer insertion depth and is the infiltrometer radius. For the SATURO ∆ 5-cm insertion ring, = 5 cm and = 7.5 cm, so = 9.3 cm.
  • Page 26 SYSTEM The hydraulic conductivity is then multiplied by the difference in quasi-steady state infiltration rate for the last pressure cycle and divided by the difference in the measured pressure head from the last pressure cycle. Equation 4 is equivalent to Equation 41 from Reynolds and Elrick (1990) and removes the λ...

  • Page 27: Service

    SATURO 4. SERVICE This section describes the calibration and maintenance of the SATURO infiltrometer. Troubleshooting solutions and customer service information are also provided. 4.1 CALIBRATION The water pump comes factory calibrated and is accurate to within ±5% of the reading at the time of shipment.
  • Page 28 Adjust Measured Value screen (Figure 35). Enter the new value from the scale or cylinder reading, and select Done. This value becomes the new default water flow value (Figure 36). SATURO uses this flow value to measure the flow of water into the infiltrometer head.

  • Page 29: Maintenance

    The water pump on the SATURO is a peristaltic pump with a replaceable cartridge that houses the tube and rollers. The tubing and rollers can wear out over time, typically around 5,000 hours of run time. The pump run time is tracked in the diagnostics screen of SATURO.

  • Page 30: Troubleshooting

    SATURO is powered by 12-V, 7-A sealed lead acid battery. Over time, there will be a decrease in the maximum charge value of the battery. If the battery does not come up to full capacity after a full charge (typically 4–6 h), it will need to be replaced. Contact Customer Support information for a new battery and servicing.
  • Page 31 Check for leaks around the seal of the infiltrometer head. Test failed to reach the If SATURO is on a slope, the slope may be too great, and the water target water level level will not reach the sensor.
  • Page 32 SERVICE Table 3 Troubleshooting SATURO (continued) problem possible Solutions Check sensor connection to the control unit. Verify it is measuring correctly by checking the Water Level value “No depth sensor!” on the Diagnostics screen. If these actions do not fix the issue, contact Customer Support.

  • Page 33: Customer Support

    AND pAYMENT. Invoice prices will be based upon METER prices as quoted or at METER list price in effect at the time an order is received by the Seller. Prices do not include any state or federal taxes, duties, fees, or charges now or hereafter enacted applicable to the goods or to this transaction, all of which are the responsibility of the Buyer.
  • Page 34 SERVICE delivery or, if transportation charges are prepaid by the Seller, the Buyer will reimburse the Seller upon receipt of an invoice from the Seller. The Buyer is obligated to obtain insurance against damage to the goods being shipped. Unless otherwise specified, the goods will be shipped in the standard Seller commercial packaging.
  • Page 35 SATURO will not be affected. Each term not so declared invalid or unenforceable will be valid and enforced to the fullest extent permitted by law and the rights and obligations of the parties will be construed and enforced as though a valid commercially reasonable term consistent with the undertaking of the parties under the order has been substituted in place of the invalid provision.

  • Page 36: References

    SERVICE REFERENCES Bouwer H. 1986. Intake rate: Cylinder infiltrometer. In Klute A., editor, Methods of soil analysis: Part 1—Physical and Mineralogical Methods. 2nd ed. Madison (WI): ASA and SSSA. 825−844. Dane JH and Topp GC, editors. 2002. Methods of soil analysis: Part 4—Physical Methods. Madison (WI): Soil Science Society of America Inc.

  • Page 37: Index

    7–8 starting 6 control unit 11 stopping 7 depth sensor 18 infiltrometer head 18 insertion ring 17 USB port 11 SATURO Downloader 7–8 water supply tank 18–19 screen connections 12 about 17 contents. See components contrast 16 customer support 29–33...
  • Page 38 14967-02 12.29.2017 METER Group, Inc. USA 2365 NE Hopkins Court Pullman, WA 99163 T: +1.509.332.5600 F: +1.509.332.5158 E: info@metergroup.com W: metergroup.com © 2017 All Rights Reserved.
