Summary of Contents for METER PROCHECK

  • Page 1 PROCHECK...

  • Page 2: Table Of Contents

    2.2 Taking a Reading ..................4 2.3 Annotating a Reading ................. 5 2.4 Downloading Data ..................5 2.5 Deleting Data ..................... 6 2.6 Using a METER SDI-12 Address ..............6 2.7 Applying a Custom Calibration ..............7 3. System ....................... 10 3.1 Specifications ..................
  • Page 3 MENU SAVE...

  • Page 4: Introduction

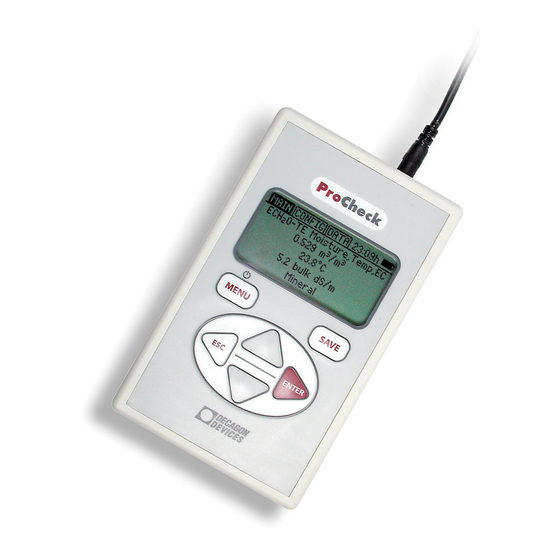

    1. INTRODUCTION Thank you for choosing the PROCHECK Handheld Reader from METER Group. The PROCHECK is a handheld readout device for use with all soil moisture sensors and environmental monitoring sensors made or sold by METER. Visit the Data logger compatibility tables (metergroup.com/environment/articles/data-logger-compatibility-tables) for specific...

  • Page 5: Operation

    Before taking measurements, configure the PROCHECK system date and time to ensure accurate timestamps. ECH2O Utility automatically synchronizes the date and time of your PROCHECK to the computer time when connected to a PROCHECK. The date and time can be manually selected in the Set Date/Time from the Action menu (Section 4).
  • Page 6 12. Press ENTER to move to the next value or ESC to return to the previous value. Repeat to select the accurate time. 13. After the last number is changed, press ENTER to return to the Configuration tab. 14. Press MENU to return to the Measurement tab. The PROCHECK is ready to take readings (Section 2.2).

  • Page 7: Taking A Reading

    Measurement tab (Figure 4). Figure 4 Measurement screen with the desired sensor NOTE: The sensor version is only shown if the PROCHECK was able to retrieve sensor information directly from the sensor. Plug the sensor into the stereo connector at the top of the PROCHECK.

  • Page 8: Annotating A Reading

    USB driver from the included USB or from downloads.metergroup.com. Use the following steps to connect to download data. Launch ECH2O Utility. Use the supplied USB-to-serial cable to connect PROCHECK to an available USB port on the computer. Choose the correct communication port from the Connect Via dropdown list.

  • Page 9: Deleting Data

    ECH2O Utility will download data in the units chosen in the Preferences dialog. These options apply only to the Excel Workbook and Processed Data Text file formats. Data can also be downloaded through the PROCHECK if ECH2O Utility is not functioning properly. Contact Customer Support for more information.

  • Page 10: Applying A Custom Calibration

    Press ESC or MENU to exit the SDI-12 Address menu. 2.7 APPLYING A CUSTOM CALIBRATION The PROCHECK can use custom calibration for certain sensor types. Custom calibrations apply directly to the raw analog-to-digital count (ADC) in the form of a fifth-order polynomial.
  • Page 11 OPERATION To enter a custom calibration into the PROCHECK: Navigate to the Configuration tab (Figure 9). Figure 9 Configuration tab Select Calibration Type. Select the sensor type (Figure 10). Figure 10 Selecting the sensor type Highlight Medium (Figure 11). Figure 11 Toggle the medium type for calibration Press ENTER until the medium type is Custom.
  • Page 12 PROCHECK Figure 12 Custom Calibration screen Each coefficient corresponds to a letter in the polynomial at the top of the screen. Below the polynomial resides the value of each coefficient in scientific notation. Highlight the desired coefficient and press ENTER. The Edit screen appears (Figure 13).

  • Page 13: System

    SYSTEM 3. SYSTEM This section describes the specifications and components of the PROCHECK. 3.1 SPECIFICATIONS Sensor Input Ports Sensor Port Type 3.5-mm stereo plug connector Firmware versions up to 1.5C: All environmental, soil moisture, and water potential sensors sold by METER before November 2012.

  • Page 14: Buttons

    3.2 BUTTONS The PROCHECK has six buttons to navigate through the its functions (Figure 14): • MENU: Turns on and off the PROCHECK when held down. Use to cycle through the menus at the top of the screen. • UP and DOWN arrow keys: Scrolls through sensors, menu options, and characters or numbers in the editing menus.

  • Page 15: Screens

    SYSTEM 3.3 SCREENS The PROCHECK features three main menus designed for ease of use. Press MENU to navigate between the tabs and the arrow buttons and ENTER to manage selections. 3.3.1 MEASUREMENT TAB The Measurement tab is the PROCHECK home screen and appears when the PROCHECK is turned on.
  • Page 16 PROCHECK UNITS SCREEN From this menu configure your unit preferences for various unit types (Figure 16). Figure 16 Units screen Turning on the Show Unprocessed Data option displays any formatted data in its raw analog- to-digital converter (ADC) state. All data readings on the Measurement and Data tabs display in an unprocessed format as seen on the following screen.
  • Page 17 NOTE: With the GS3 sensors (only), custom calibration equations must be constructed with ε (dielectric permittivity) as the variable. Figure 19 Custom Calibration screen Specific instructions on how to make a custom calibration can be found on the METER website (metergroup.com/environment/articles/method-a-soil-specific-calibrations- for-meter-soil-moisture-sensors)
  • Page 18 SDI-12. METER digital soil moisture sensors use both the SDI-12 standard and a METER proprietary protocol. This SDI-12 feature is not necessary when using METER sensors with METER data loggers. The SDI-12 may be useful using the sensors with third-party data acquisition systems such as Campbell Scientific data loggers.
  • Page 19 Figure 21 Date screen TIME SCREEN The Time screen displays the current set date on the handheld (Figure 22). The time must be updated prior to using PROCHECK (Section 2.1). Figure 22 Time screen SRS α-VALUES SRS α-values may need to be changed (see the SRS User Manual for more information). To modify the SRS α-values for both the SRS-NDVI and SRS-PRI sensors, follow the directions...
  • Page 20 Connect ATMOS 41 to PROCHECK. Navigate to the ATMOS 41 Config in the Configuration tab. Press ENTER. The PROCHECK will connect to the sensor. Press ENTER to select Strike Reject Level. A pair of arrows will appear next to the selected level (Figure 24).

  • Page 21: Data Tab

    ABOUT SCREEN This menu displays the PROCHECK serial number, device name, and firmware version. 3.3.3 DATA TAB This tab allows data to be viewed, downloaded, or erased (Figure 26). The PROCHECK can store up to 5,000 individual readings. Figure 26 Data tab The View option is a summary of the saved data records.

  • Page 22: Statistics Tab

    Erase option deletes all data (Section 2.5). 3.3.4 STATISTICS TAB The Statistics tab collects summary statistics, including average and standard deviation, from measurements taken with the PROCHECK (Figure 29). NOTE: Statistics Saved cannot be downloaded into an exported .xls file. Figure 29 Statistics tab Use the UP and DOWN arrows to select the correct sensor.

  • Page 23: Ech2O Utility

    ECH2O Utility can also be used to delete measurement data stored in the PROCHECK and set the date and time in the PROCHECK. NOTE: The ECH2O Utility is designed to work with the PROCHECK and METER loggers. Some controls, features, and settings are disabled when connected to a PROCHECK.

  • Page 24: Service

    4.1 MAINTENANCE The PROCHECK may be returned to METER for maintenance in the following areas: system inspection, parts replacement, and instrument cleaning. Replacement parts can also be ordered from METER. Contact Customer Support for more information.

  • Page 25: Troubleshooting

    This message could also indicate a broken sensor. Contact Customer Support for assistance. PROCHECK cannot communicate with a digital sensor. Check that the sensor is plugged in and the correct sensor type is selected. Display reads Invalid Response or No Response Press the ENTER button several times to restart the sensor measurement.

  • Page 26: Customer Support

    PROCHECK. ECH2O Utility can not connect to PROCHECK • Download the driver here. • Check that the serial cable is securely plugged into the PROCHECK and computer. • Check PROCHECK has battery level. Check or replace the serial cable.

  • Page 27: Terms And Conditions

    NOTE: For products purchased through a distributor, please contact the distributor directly for assistance. 4.5 TERMS AND CONDITIONS By using METER instruments and documentation, you agree to abide by the METER Group, Inc. USA Terms and Conditions. Please refer to metergroup.com/terms-conditions...

  • Page 28: Index

    INDEX INDEX live update mode 4 About screen 18 Annotate screen 5 ATMOS 41 Config screen 17 maintenance 21 Measurement tab 4, 15 Calibration Type screen 13–14 compatibility phone number 23, 24 ECH2O Utility 20 pigtail-to-stereo adapter 1, 6 sensor 10 components 1 batteries 1, 10, 15, 22 SDI-12 address 6–7...
  • Page 29 14564-02 9.30.2019 METER Group, Inc. USA 2365 NE Hopkins Court Pullman, WA 99163 T: +1.509.332.2756 F: +1.509.332.5158 E: info@metergroup.com W: metergroup.com METER Group AG Mettlacher Straße 8, 81379 München T: +49 89 1266520 F: +49 89 12665220 E: info.europe@metergroup.com W: metergroup.de...
