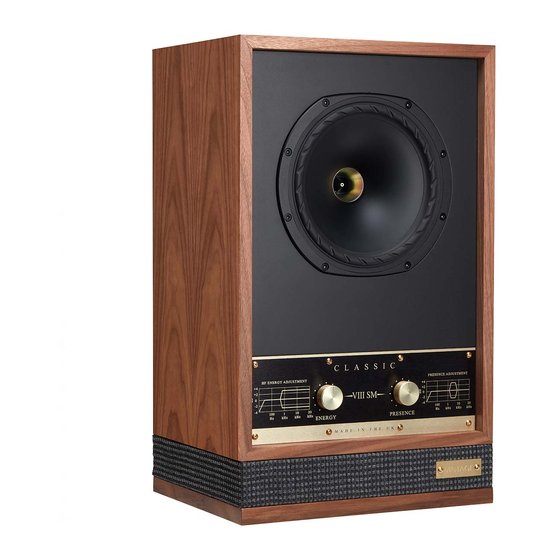

- Page 1 VINTAGE CLASSIC VIII, VIII SM FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Safety Stand Mounting Spike Fixing (Floorstanding Models) Positioning Amplifier Choice Cable Choice Connecting Speaker Cables Earth Connection Adjustments Grille Storage 12. Cabinet Care Warranty 14. Specifications... -
Page 4: Introduction
1 INTRODUCTION Thank you for investing in Fyne Audio loudspeakers. Our experienced team of acoustic and product design engineers have been in the loudspeaker industry for very many years. Since coming together to form Fyne Audio, they have been augmenting their existing skills and developing new technologies to ensure that we can offer best in class performance through technical innovation and advanced manufacturing techniques. The new Fyne Vintage Classic Series takes the cutting-edge modern technology first developed by Dr Paul Mills for the award-winning F1 Series and distils it into timeless and distinctive period designs with a modern twist, that has influenced his journey to the industry leading expert he is today. • Before installing these loudspeakers please read this manual in full, both for safety reasons and to ensure you achieve the best performance possible. • Please retain packing for possible future use. • Check contents of the accessories box. Your accessories box includes CLASSIC VIII SM: • Protective self adhesive feet (x8) • Bi-wire links (x4) CLASSIC VIII: • Floor coupling spike M8 (x8) • Spike locking wheel (x8) • Floor protection cups (x8) • Bi-wire links (x4) 2 SAFETY For safety reasons, and to ensure you achieve the best performance possible, please fully read this... -
Page 5: Positioning
4 SPIKE FITTING (CLASSIC VIII) Thread the 4 carpet spikes and adjustment thumb wheels into the inserts on the base of the loudspeaker. Adjust the spikes so the loudspeaker is level, then lock the thumb wheels to prevent movement. On wooden or other delicate floors, use the cups provided to prevent damage to the surface (Fig. 1). LEFT SPEAKER LEFT SPEAKER LEFT SPEAKER LINK CABLES IN PLACE LINK CABLES REMOVED LINK CABLES REMOV TO 'GROUND' OR 'EARTH' CONNECTION ON AMPLIFIER TO 'GROUND' OR 'EARTH' TO 'GROUND' OR 'EARTH' (OPTIONAL) CONNECTION ON AMPLIFIER CONNECTION ON AMPLIFIER... -
Page 6: Amplifier Choice
6 AMPLIFIER CHOICE The advisable range of amplifier powers is detailed in to use valve (tube) amplifies such as single ended the Specification. Responsible use with higher powered triodes, with output powers less than the minimum amplifiers is possible, due to the robust design of these recommendation. This will not cause damage to the loudspeakers. loudspeakers, but will restrict the maximum volume and dynamic range, especially in large rooms. We do not advocate any specific amplifier technology, i.e. transistor versus valve (tube). As with any high resolution If you are considering the purchase of a new amplifier, loudspeaker system, it is the quality of the amplification your dealer will be able to give you recommendations that that is paramount in extracting maximum performance work well. from your loudspeakers. Some customers may wish 7 CABLE CHOICE It is important to use cables of appropriate quality the sound quality. The optimum cable is both subjective for such high performance loudspeakers. While from and system dependent; your dealer will be able to give a technical perspective, an adequately low electrical advice. resistance is necessary to minimise losses and maximise amplifier damping. The physical construction of the cable Cables should be terminated in high quality connectors, including conductor type and purity, together with either 4mm banana or spade. - Page 7 LEFT SPEAKER LEFT SPEAKER LEFT SPEAKER LEFT SPEAKER LEFT SP LINK CABLES IN PLACE LINK CABLES IN PLACE LINK CABLES REMOVED LINK CABLES REMOVED TO 'GROUND' OR 'EARTH' TO 'GROUND' OR 'EARTH' CONNECTION ON AMPLIFIER CONNECTION ON AMPLIFIER TO 'GROUND' OR 'EARTH' TO 'GROUND' OR 'EARTH' (OPTIONAL) (OPTIONAL)
-
Page 8: Earth Connection
9 EARTH CONNECTION The loudspeaker is provided with an earth or ground connection, connected to the drive unit chassis. The purpose of this is to ground any radio frequency interference that may get back to the amplifier, reducing fine detail and resolution. A separate earth wire may be used for this purpose, but best results will be obtained by using a dedicated screened loudspeaker cable. 10 ADJUSTMENTS The Vintage Classic Series are provided with two adjustment controls on the front panel, to achieve optimal performance in terms of both +4 dB the listening environment and listener preference. +2 dB The upper ‘Energy’ control alters the level of signal fed to the tweeter, from the crossover point upwards, giving control over how bright the 0 dB presentation sounds (Fig. 6). -2 dB The lower ‘Presence’ control only affects the lower treble region of 2.5 - 5.0kHz, and influences articulation and vocal clarity and having an -4 dB effect on image depth (Fig. 7). 100 Hz 1 kHz 10 kHz 20 kHz Start with both controls in the central (level) position, and make small adjustments with well recorded programme material that you are familiar with. Achieving the correct presentation is equivalent to focusing the lens on a camera, to achieve the most realistic sound-staging depth. FIG 6. -
Page 9: Grille Storage
(OPTIONAL) (OPTIONAL) TO RIGHT TO RIGHT TO RIGHT TO RIGHT SPEAKER SPEAKER SPEAKER SPEAKER 11 GRILLE STORAGE +4 dB +4 dB LEFT RIGHT RIGHT LEFT LEFT RIGHT RIGHT Although the magnetically attached grilles are designed for maximum transparency, we always recommend removal for +2 dB +2 dB 0 dB 0 dB the best possible sound quality. The grilles may be magnetically fixed to the rear of the loudspeaker for neatness and -2 dB -2 dB EQUENCY LOW FREQUENCY... -
Page 10: Warranty
13 WARRANTY 1. No maintenance of the loudspeaker is necessary. 2. Please register your Fyne Audio Limited product online at www.fyneaudio.com. All of our products have been produced and tested with care and precision to give first-class service. 3. All passive loudspeakers are guaranteed for a period of 7 years from the date of purchase from an authorised Fyne Audio Limited dealer. This warranty is subject to the absence or evidence of misuse, overload, or accidental damage, applies only to the original registered owner, it is non transferable, and covers only genuine Fyne Audio Limited products with the original undamaged serial number and proof of purchase. 4. All active and electronic components are guaranteed for a period of 2 years from the date of purchase from an authorised Fyne Audio Limited dealer subject to the absence of, or evidence of, misuse, overload or accidental damage. 5. If at any time during this warranty period the equipment proves to be defective for any reason other than accident, misuse, neglect, unauthorised modification, incorrect installation or connection, matched with improper equipment or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for labour, parts or return carriage. 6. If you suspect a problem with a Fyne Audio Limited product, in the first instance, discuss it with your Fyne Audio Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited distributor. If you cannot locate your distributor please contact Fyne Audio Limited Customer Services, via our website listed above or at the e-mail enquiries@fyneaudio.com 7. Do not ship any product to Fyne Audio Limited without previous authorisation. LIABILITY Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, Fyne Audio Limited and its Authorised Distributors shall not be liable to you and/or any third party or entity whatsoever for:- any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the Fyne Audio Limited products any damages, loss and liability (except for any personal injuries or death), whether direct, indirect, incidental, consequential special, punitive or otherwise, howsoever caused by, arising out of, or otherwise in relation to the installation, delivery, use, service, repair, replacement and/or maintenance of the Fyne Audio Limited product; or any damages, loss and liability (except for any personal injuries or death) under this warranty in respect of any act, omission, or negligence of any of their technicians, employees, agents, representatives or independent contractors relating to the actual or purported performance of any of the obligations under this warranty. 9. Without limiting the above, the maximum liability of the Fyne Audio Limited and its Authorised Distributors under this warranty shall not in any event or under any circumstances exceed the actual purchase price paid for the Fyne Audio Limited product(s). -
Page 11: Specifications
14 SPECIFICATIONS Model CLASSIC VIII SM CLASSIC VIII System type 2 way, downwards firing port, 2 way, downwards firing port, with BassTrax Tractrix diffuser with BassTrax Tractrix diffuser Recommended amplifier 30 - 180 30 - 200 power (Watt RMS) Continuous power handling (Watt RMS) Sensitivity (2.83 Volt @ 1m) 91dB 91dB Nominal impedance 8 Ohm 8 Ohm Frequency response 34Hz - 34kHz 30Hz - 34kHz (-6dB typical in room) Drive unit complement 1 x 200mm IsoFlare point source driver, 1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, multi-fibre bass / midrange cone, FyneFlute surround with... - Page 12 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio 4 May 2023...
