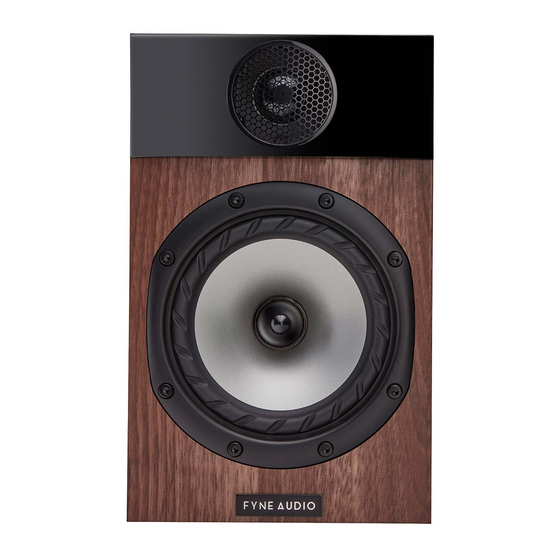

- Page 1 F300i RANGE FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Safety Plinth & Spike Fixing F300i LCR Wall Mounting 2 Channel Positioning AV Positioning Connecting Speaker Cables Connecting Speaker Cables (F303i Only) Grilles Cabinet Care Warranty Specifications... -
Page 4: Introduction
1 INTRODUCTION Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. We believe they will give you many years of listening pleasure. 2 SAFETY For safety reasons, and to ensure you achieve the best performance possible, please fully read this document before installing these loudspeakers. -
Page 5: F300I Lcr Wall Mounting
4 F300i LCR WALL MOUNTING This model is designed to be wall mounted using the supplied template, to ensure correct fixing to the hanging points provided. It is the users’ responsibility to provide appropriate fixing hardware. Ensure there are no water or gas pipes behind the wall drilling locations. -
Page 6: Av Positioning
6 AV POSITIONING The front speakers should be positioned as below for 2 instructions provided with it. channel operation, with the centre speaker equidistant between them and in the same plain, ideally at ear level. Stand mounting or floor standing models from the F300i range may be used for the rear effects loudspeakers (See When incorporating a subwoofer, please refer to the Fig. -
Page 7: Connecting Speaker Cables
7 CONNECTING SPEAKER CABLES Your dealer will be able to advise on the most suitable Ensure connections are made positive to positive and choice of cables for your budget and system, to obtain the negative to negative between the speaker and the best performance. -
Page 8: Connecting Speaker Cables (F303I Only)
8 CONNECTING SPEAKER CABLES (F303i ONLY) This model is provided with two sets of terminals, one for the HF and one for the LF. When using a single cable set, keep the link bars in place (Fig. 6). For bi-wire operation remove the link bars and wire with two sets of cable or a dedicated bi-wire cable (Fig. -
Page 9: Grilles
If you suspect a problem with a Fyne Audio Limited product, in the first instance, discuss it with your Fyne Audio Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited distributor. -
Page 10: Specifications
12 SPECIFICATIONS Model F300i F301i F302i F303i System type 2 way, rear ported 2 way, rear ported 2 way, rear ported 2 way, rear ported Recommended amplifier 20 - 70 35 - 150 40 - 180 30 - 120 power (Watt RMS) Continuous power handling (Watt RMS) Sensitivity (2.83 Volt @ 1m) - Page 11 Model F300i LCR System type 2 way, closed box Recommended amplifier 25 - 100 power (Watt RMS) Continuous power handling (Watt RMS) Sensitivity (2.83 Volt @ 1m) 90dB Nominal impedance 8 Ohm Frequency response 80Hz - 34kHz (-6dB typical in room) Drive unit complement 2 x 125mm multi- fibre bass / mid...
- Page 12 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio 20 January 2022...
