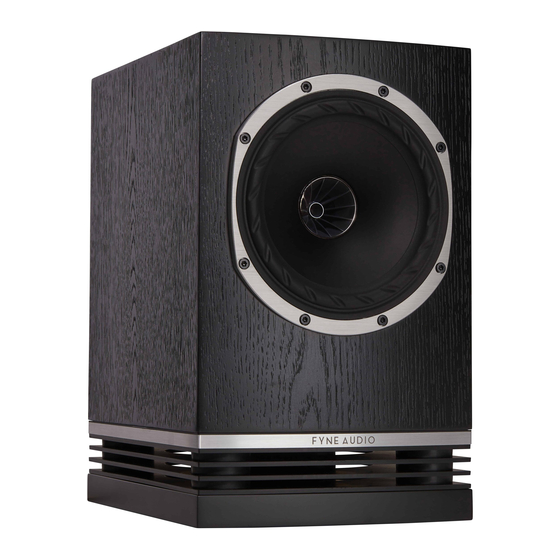

- Page 1 F500 RANGE FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Safety Spike Fixing Two Channel Positioning AV Positioning Connecting Speaker Cables Grilles Warranty Specifications... -
Page 4: Introduction
1 INTRODUCTION Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. We believe they will give you many years of listening pleasure. Before installing these loudspeakers, please read this manual in full, both for safety reasons, and to ensure you achieve the best performance possible. -
Page 5: Two Channel Positioning
4 TWO CHANNEL POSITIONING The loudspeakers should be positioned approximately On wooden or other delicate floors, use the cups provided to prevent damage to the surface. 1.5- 4.5m apart (5- 15 feet), ideally no closer than 0.5m (20 inches) from the rear wall, and no closer than 1m (3 feet) from the side walls (Fig.2). -
Page 6: Av Positioning
5 AV POSITIONING The front speakers should be positioned as for 2 channel instructions provided with it. operation, with the centre speaker equidistant between them and in the same plain, ideally at ear level. Stand mounting or floor standing models from the F500 range may be used for the rear effects loudspeakers (See When incorporating a subwoofer, please refer to the Fig. -
Page 7: Connecting Speaker Cables
6 CONNECTING SPEAKER CABLES Your dealer will be able to advise on the most suitable Ensure connections are made positive to positive and negative to negative between the speaker and the amplifier. choice of cables for your budget and system, to obtain the best performance. All models are provided with two sets of terminals one for Bare wire connections may be made by unscrewing the HF and one for the LF. -
Page 8: Grilles
7 GRILLES Although the magnetically attached grilles are designed magnetically fixed to the rear of the loudspeaker for for maximum transparency, we always recommend neatness and to avoid damage. removal for the best possible sound quality. Remove grille from the front of the loudspeaker (Fig. 6), With the F501 and F502 models, the grilles may be and locate on rear (Fig. -
Page 9: Warranty
If you suspect a problem with a Fyne Audio Limited product, in the first instance, discuss it with your Fyne Audio Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited distributor. If you cannot locate your distributor please contact Fyne Audio Limited Customer Services, via our website listed above or at the e-mail enquiries@fyneaudio.com... -
Page 10: Specifications
9 SPECIFICATIONS Model F500 F501 F502 F500C System type 2 way, downwards firing 2 ½ way, downwards firing 2 ½ way, downwards firing 2 ½ way, rear ported port, with Tractrix port with Tractrix port with Tractrix (BassTrax ) diffuser* (BassTrax ) diffuser* (BassTrax ) diffuser* Recommended amplifier 30 - 120 35 - 150 40 - 180 30 - 120 power (Watt RMS) Continuous power... - Page 12 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio 19 March 2019...
