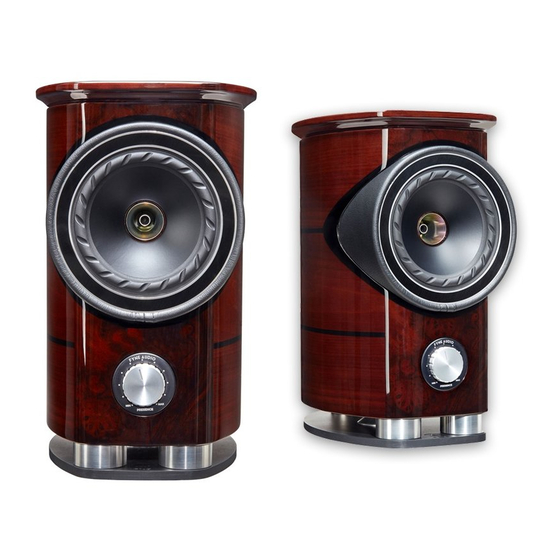

- Page 1 F1-5, F1-8 FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Technology Positioning Stand Mounting Amplifier choice Cable choice Connecting speaker cables Earth connections Presence Control Care of cabinet Warranty 12. Specification... -
Page 3: Introduction
1 INTRODUCTION Thank you for choosing Fyne Audio F1 loudspeakers, proudly designed by our experienced team of engineers, and constructed to the highest standards by artisans in our own facility in Scotland. We believe they will give you many years of listening pleasure. -
Page 4: Technology
Polyester surround to optimally terminate loudspeaker industry for very many years. energy. The HF unit annular waveguide has Since coming together to form Fyne Audio, a computer optimised expansion rate and they have been augmenting their existing geometry to provide flat frequency response skills and developing new technologies and avoid internal reflections. - Page 5 A grounding terminal is fitted to minimise the effect of radio frequency interference masking fine detail. BASSTRAX™ TRACTRIX DIFFUSER SYSTEM The F1-5 and F1-8 employ a downwards firing port arrangement. Below the vent in the base of the loudspeaker, the BassTrax™ Tractrix profile diffuser is used to convert the plain wave energy to an expanding spherical 360-degree wavefront, dispersing energy uniformly into the room.
-
Page 6: Positioning
3 POSITIONING LEFT SPEAKER LEFT SPEAKER LEFT SPEAKER The loudspeakers should be positioned Some degree of experimentation will provide approximately 1.5 – 4.5m apart (5 – 15 feet), the best results, especially with toe in ideally no closer than 0.5m (20 inches) from towards the listener, to give the best stereo the rear wall and no closer than 1m (3 feet) imaging. -
Page 7: Stand Mounting
The centre of the drive unit should be approximately at ear height when seated. The F1-5 should similarly be mounted on an appropriate stand. However, bookshelf placement may be preferred, although there will be a degree of compromise in terms of stereo imaging and bass performance. -
Page 8: Amplifier Choice
5 AMPLIFIER 6 CABLE CHOICE CHOICE The advisable range of amplifier It is important to use cables of powers is detailed in the Specification. appropriate quality for such a high Responsible use with higher powered performance loudspeaker. While from amplifiers is possible, due to the robust a technical perspective, low electrical design of these loudspeakers. resistance is necessary to minimise losses and maximise amplifier We do not advocate any specific... -
Page 9: Connecting Speaker Cables
7 CONNECTING SPEAKER CABLES Ensure the amplifier is switched off before connecting cables, to avoid damage. F1-5 The F1-5 is provided with one set of speaker terminals. Ensure connections are made positive to positive and negative to negative between the loudspeaker and the amplifier (Fig 2). LEFT SPEAKER LEFT SPEAKER TO 'GROUND' OR 'EARTH'... - Page 10 F1-8 The F1-8 is provided with two sets of terminals, one for the HF and one for the LF section. Wiring may be done in either single wire mode or bi-wire mode. The latter will provide optimum performance. When using a single cable, wire as shown (Fig. 3), fitting the link cables provided. The best sound quality is generally achieved when connecting to the HF terminals. For bi-wire operation, ensure the link wires are not fitted, and wire with two sets of cable, or a dedicated bi-wire cable (Fig 4).
- Page 11 A further option is bi-amping, where the two stereo amplifiers, it is recommended LF and HF sections of the loudspeaker that one is used as the LF channel to both are each driven from their own amplifier, loudspeakers and the other HF (Fig 5). To for further enhancement in sound quality. avoid amplifier damage, the link cables Either two stereo power amplifiers or four must not be in place.
-
Page 12: Earth Connections
9 PRESENCE CONTROL The F1-5 and F1-8 are provided with an adjustment control on the front panel, to achieve optimal performance in terms of both the listening environment and listener preference. -
Page 13: Care Of Cabinet
10 CARE OF CABINET The cabinet may be cleaned with a microfiber cloth. Occasionally use a high quality non-silicone furniture polish on the high gloss wooden areas. As wood is a natural material, avoid exposure to extremes of heat, humidity and direct sunlight for extended periods of time. If unused for long periods of time, you may wish to cover the loudspeakers with the cloth bags they were packaged in, to provide... -
Page 14: Warranty
Without limiting the above, the maximum charge for labour, parts or return carriage. liability of the FYNE AUDIO LIMITED and If you suspect a problem with a FYNE AUDIO its Authorised Distributors under this LIMITED product, in the first instance, warranty shall not in any event or under any... -
Page 15: Specification
12 SPECIFICATIONS F1-5 System type 2 way, downwards firing port, with BassTrax Tractrix diffuser* Recommended amplifier 30 - 100 power (Watt RMS) Peak power handling (Watt peak) Continuous power handling (Watt RMS) Sensitivity (2.83 Volt @ 1m) 87dB Nominal impedance 8 Ohm 48Hz - 38kHz... - Page 16 F1-8 System type 2 way, downwards firing port, with BassTrax Tractrix diffuser* Recommended amplifier 30 - 180 power (Watt RMS) Peak power handling (Watt peak) Continuous power handling (Watt RMS) Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm 33Hz - 34kHz Frequency response (-6dB typical in room) Drive unit complement 1 x 200mm IsoFlare...
- Page 17 ENJOY.
- Page 18 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio 10 September 2019...
