- Page 1 SUPERTRAX FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Technology Positioning Connecting speaker cables Adjustments Care of cabinet Warranty Specification... -
Page 4: Introduction
1 INTRODUCTION Thank you for choosing the Fyne Audio super tweeter, using our proprietary patent pending SuperTrax™ technology. Proudly designed by our experienced team of engineers and constructed to the highest standards by artisans in our own facility in Scotland, we believe they will give you many years of listening pleasure. -
Page 5: Technology
2 TECHNOLOGY Unlike a conventional direct radiating super tweeter, the Fyne Audio patent pending SuperTrax™, radiates energy through 360 degrees brings further important benefits in performance, while using a new type of thin ply carbon diaphragm (TPCD). HUMAN PERCEPTION OF ULTRASOUND Looking at the frequency range of musical instruments and human hearing, the accepted range is taken as extending from 15 to 20kHz including the harmonics of instruments. - Page 6 HARMONICS, PHASE & THE IsoFlare™ is a function of its point source nature, POINT SOURCE is it provides linear phase response. Fyne Audio’s IsoFlare driver is a point Every loudspeaker or audio device exhibits a low pass filter function and source system whereby the bass /...

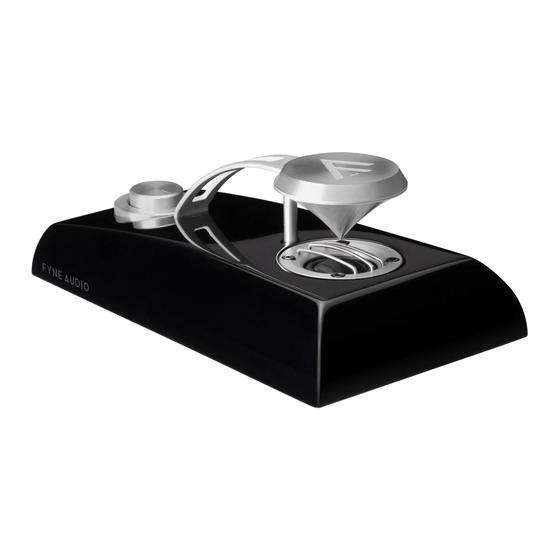

- Page 7 22kHz CD Red Book The SuperTrax makes use of an standard. upwards firing super tweeter, designed to be placed on the main loudspeaker cabinet, above which is mounted...
- Page 8 Thus, the frequency response of our SuperTrax super tweeter is seen to extend to over 60kHz. The solution we have adopted is to use a new and unique Thin Ply Carbon...
-
Page 9: Positioning
Table 1 and as illustrated by Fig. 2. This aligns it to the acoustic point source location for these Fyne Audio models. For new models of loudspeaker designs, please check our website for updates. If using with other brands of point source driver, we suggest a similar placement according to driver size, though some experimentation may be required to achieve the optimum results. - Page 10 ILLUSTRATION OF PLACEMENT Position Distance...
-
Page 11: Connecting Speaker Cables
4 CONNECTING SPEAKER CABLES The super tweeter should be connected to the terminal panel on your loudspeaker, positive to positive and negative to negative. For speakers which are bi-wired, connect to the HF terminals (Fig. 3). In both cases, you can use an optional earth cable, to ground the super tweeter to your loudspeakers, then back to the amplifier chassis or other earth point. -
Page 12: Adjustments
5 ADJUSTMENT 6 CARE OF CABINET The super tweeter is provided with a level adjustment, which enables a The cabinet may be dusted with a +/- 3dB range. The main audible effect lint free cloth such as muslin, which is to increase the sense of air and can be slightly moistened. -
Page 13: Warranty
2. Please register your Fyne Audio Limited enquiries@fyneaudio.com product online at www.fyneaudio.com. All 7. Do not ship any product to Fyne Audio of our products have been produced and Limited without previous authorisation. tested with care and precision to give first- 8. -
Page 14: Specification
8 SPECIFICATIONS SUPERTRAX Maximum Recommended amplifier power (Watt RMS) Sensitivity (2.83 Volt @ 1m) Suitable for loudspeakers up to 98dB typically Nominal impedance 8 Ohm Frequency response 16kHz -60kHz (-6dB typical in room) Drive unit complement 25mm (1”) Thin Ply Carbon Diaphrahm (TPCD) - Page 16 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio 11 January 2024...
