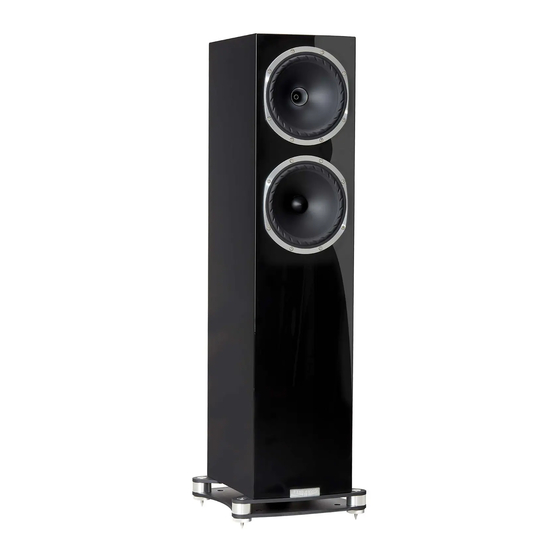

- Page 1 F502SP FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Safety Spike Fixing Positioning Connecting Speaker Cables Earth Connection Grilles Cabinet Care Warranty 10. Specifications... -
Page 4: Introduction
1 INTRODUCTION Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced engineers and manufactured to exacting standards by our craftsmen in Scotland. We believe they will give you many years of listening pleasure. Before installing these loudspeakers, please read this manual in full, both for safety reasons, and to ensure you achieve the best performance possible. -
Page 5: Positioning
4 POSITIONING The loudspeakers should be positioned approximately results, especially with toe in towards the listener, to give the best stereo imaging. 1.5 - 4.5m apart (5 - 15 feet), ideally no closer than 0.5m (20 inches) from the rear wall, and no closer than 1m (3 feet) from the side walls (Fig.2). -
Page 6: Connecting Speaker Cables
5 CONNECTING SPEAKER CABLES Your dealer will be able to advise on the most suitable Ensure connections are made positive to positive and negative to negative between the speaker and the amplifier. choice of cables for your budget and system, to obtain the best performance. All models are provided with two sets of terminals one for Bare wire connections may be made by unscrewing the HF and one for the LF. -
Page 7: Grilles
Left Speaker Amplifier / Recevier Right Left To Right Speaker To Ground or ‘Earth’ (Optional) BI-WIRED 7 GRILLES Although the magnetically attached grilles are designed for maximum transparency, we always recommend removal for the best possible sound quality. When removed, the grilles may be stored magnetically on the rear of the loudspeaker (Fig 5 &... -
Page 8: Cabinet Care
If you suspect a problem with a Fyne Audio Limited product, in the first instance, discuss it with your Fyne Audio Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited distributor. If you cannot locate your distributor please contact Fyne Audio Limited Customer Services, via our website listed above or at the e-mail enquiries@fyneaudio.com... -
Page 9: Specifications
10 SPECIFICATIONS Model F502SP System type 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system Recommended amplifier 30 - 200 power (Watt RMS) Continuous power handling (Watt RMS) Peak power handling (Watt RMS) Sensitivity (2.83 Volt @ 1m) 92dB Nominal impedance 8 Ohm Frequency response 30Hz - 34kHz (-6dB typical in room) Drive unit complement 1 x 200mm IsoFlare™... - Page 10 ENJOY.
- Page 12 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced engineers and manufactured to exacting standards by our craftsmen in Scotland. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio F6480 0006 | 12 August 2019...
