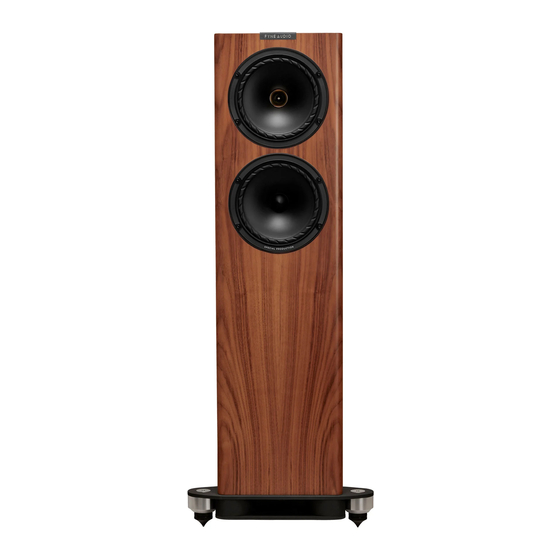

- Page 1 F702SP, F703SP FYNE ADVICE ESSENTIAL INFORMATION GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Safety Accessories Spike Fitting Positioning Connecting speaker cables Earth connections Grilles Cabinet care Warranty 11. Specification... -
Page 4: Introduction
Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced engineers and manufactured to exacting standards by our craftsmen in Scotland. We believe they will give you many years of listening pleasure. The F702SP and F703SP incorporate ‘trickle down’ enhancements from the F1 Series, to give a significant performance improvement from the original and widely acclaimed models they are based on. -
Page 5: Accessories
3 ACCESSORIES Your accessories box includes: • Floor coupling spike M12 (x8) • Spike locking wheel (x8) • Floor protection cups (x8) • Spike adjustment tool (x1) • Bi-wire links (x4) 4 SPIKE FITTING Thread the 4 carpet spikes and adjustment thumb wheels to the inserts in the plinths of each loudspeaker. They can be adjusted from above once the loudspeaker is in place using the HEX key provided, to ensure it is stable and level (Fig. 1). -
Page 6: Positioning
5 POSITIONING Some degree of experimentation will provide The loudspeakers should be positioned the best results, especially with toe in approximately 1.5 - 4.5m apart (5 - 15 feet), towards the listener, to give the best stereo ideally no closer than 0.5m (20 inches) from imaging. the rear wall, and no closer than 1m (3 feet) from the side walls (Fig.2). 0.5 METRE MINIMUM 1 METRE MINIMUM 1.5 TO 4.5 METRES... -
Page 7: Connecting Speaker Cables
6 CONNECTING SPEAKER CABLES to positive and negative to negative Your dealer will be able to advise on the most suitable choice of cables for between the speaker and the amplifier. your budget and system, to obtain the best performance. All models are provided with two sets of terminals one for the HF and one Bare wire connections may be made by for the LF. - Page 8 Left Speaker Amplifier / Receiver Right Left To Ground or ‘Earth’ (Optional) To Right Speaker SINGLE-WIRE Left Speaker Amplifier / Receiver Right Left To Right Speaker To Ground or ‘Earth’ (Optional) BI-WIRE...
-
Page 9: Grilles
8 GRILLES Although the magnetically attached grilles are designed for maximum transparency, we always recommend removal for the best possible sound quality. 9 CABINET CARE The cabinet may be cleaned with a microfiber cloth. Avoid exposure to extremes of heat, humidity and direct sunlight for extended periods of time. On no account use solvents or abrasive materials, as this will cause damage and invalidate the warranty. -
Page 10: Warranty
If you suspect a problem with a Fyne Audio Limited product, in the first instance, discuss it with your Fyne Audio Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited distributor. - Page 11 Fyne Audio Limited products any damages, loss and liability (except for any personal injuries or death), whether direct, indirect, incidental, consequential special, punitive or otherwise, howsoever caused by, arising out of, or otherwise in relation to the installation, delivery, use, service, repair, replacement and/or maintenance of the Fyne Audio Limited product; or any damages, loss and liability (except for any personal injuries or...
-
Page 12: Specification
11 SPECIFICATIONS Model F702SP F703SP System type 2 way, downwards firing 2 way, downwards firing port, with BassTrax™ port, with BassTrax™ Tractrix diffuser Tractrix diffuser Twin-cavity loading system Twin-cavity loading system Recommended amplifier 30 - 200 30 - 250 power (Watt RMS) Continuous power handling (Watt RMS) Peak power handling (Watt) Sensitivity (2.83 Volt @ 1m) 92dB... - Page 13 NOTES...
- Page 14 ENJOY.
- Page 16 Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland, and constructed to the highest standards. WWW.FYNEAUDIO.COM FYNEAUDIO @FyneAudio 22 November 2023...
