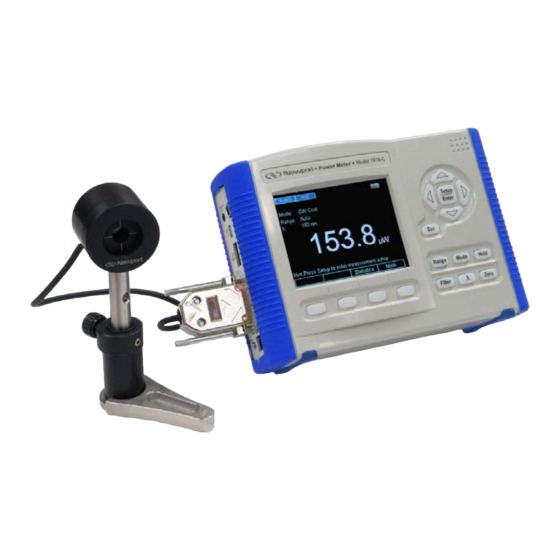

Hand-held optical meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model 1918-C
Hand-held Optical Meter
Start Up Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1918-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newport 1918-C

Summary of Contents for Newport 1918-C

  • Page 1 Model 1918-C Hand-held Optical Meter Start Up Guide...
  • Page 2 Start Up Guide First printing 2006 © 2006 by Newport Corporation, Irvine, CA. All rights reserved. No part of this start up guide may be reproduced or copied without the prior written approval of Newport Corporation. This start up guide has been provided for information only and product specifications are subject to change without notice.
  • Page 3 CD. You can also view a copy of the User’s Manual, and obtain the instrument software drivers, on the Newport web site. In an effort to keep the 1918-C Optical Meter optimized for your applications, Newport will on occasion update existing and add new features to this instrument.

  • Page 4: Eu Declaration Of Conformity

    We declare that the accompanying product, identified with the mark, complies with requirements of the Electromagnetic Compatibility Directive, 89/336/EEC and the Low Voltage Directive 73/23/EEC. Model Number: 1918-C mark affixed: 2006 Year Type of Equipment: Electrical equipment for measurement, control and laboratory use.

  • Page 5: Safety Precautions

    Start Up Guide Safety Precautions Please carefully read the following important safety precautions prior to unpacking and operating this equipment. In addition, please refer to the complete User’s Manual for additional important notes and cautionary statements regarding the use and operation of the equipment. Symbols and Definitions The following are definitions of symbols that are used throughout this Start Up Guide to call your attention to important information regarding your...

  • Page 6: General Cautions

    Adhere to good laser safety practices when using this equipment. Unpacking and Handling It is recommended that the 1918-C Optical Meter be unpacked in a lab environment or work site. Inspect the box carefully to verify all items identified in section 1.6 are included.

  • Page 7: Parts List

    Start Up Guide Parts List The following is a list of parts included in the hardcase with the 1918-C Optical Meter: 1. This Quick Start Guide (Hard copy) 2. CD containing the Software Drivers and Utilities and the User Manual 3.
  • Page 8 The battery needs to be charged for at least 4 hours before using the optical meter without the external power supply. The 1918-C Optical Meter is shipped from the factory with the battery removed from the unit. Install the battery before plugging the external power supply and before turning on the unit.
  • Page 9 90-264 VAC and 50/60 Hz. CAUTION Permanent damage may occur to the optical meter if an external power supply other than the Newport 1918-PS is used. Please call Newport Corporation if extra power supplies are needed for a particular setup.

  • Page 10: System Start-Up

    At the end of the charging time, the Optical Meter can be used without the external power supply. For the highest precision and accuracy, the 1918-C Optical Meter should be allowed to warm up for one hour before being used for measurements.
  • Page 11 Start Up Guide 2.2.1 Front Panel Elements The front panel of the 1918-C features the following elements (Figure 2): • A faceplate with a 4” active color liquid crystal display • Menu/Enter and Esc keys • Rubberized horizontal (left/right) and vertical (up/down) arrow keys •...

  • Page 12: Side Panel Layout

    Start Up Guide Side Panel Layout Input Connectors The input connectors are on the side panel. The 1918-C Optical Meter model supports input from external detectors through a DB15 detector connector. The external power supply is plugged in the DC INPUT connector.
  • Page 13 Figure 4 Side Panel Layout CAUTION Permanent damage may occur to the optical meter if an external power supply other than the Newport 1918-PS is used. Please call Newport Corporation if extra power supplies are needed for a particular setup.

  • Page 14: Rear Panel Layout

    Labels Kickstand Figure 5 Rear panel 2.4.1 Rear Panel Elements The rear panel of the 1918-C features the following elements (Figure 5): • Battery compartment cover • Kickstand • Labels Markings on the rear panel identify the instrument compliance with different standards and regulations.

  • Page 15: Firmware Upgrade Procedure

    Restart the Optical Meter by turning it OFF and back ON. The Optical Meter will restart running the new firmware. New firmware files may be available either through the Newport web site (http://www.newport.com) at the product page or through your local Newport application specialist.

  • Page 16: Maintenance, Service And Support

    Support Enclosure Cleaning WARNING Before cleaning the enclosure of the 1918-C Optical Meter, the AC power cord must be disconnected from the wall socket. The enclosure should only be cleaned with isopropyl alcohol or a mild soapy water solution applied to a damp lint-free cloth.
  • Page 17 Number (RMA#). Return the product to Newport Corporation, freight prepaid, clearly marked with the RMA# and we will either repair or replace it at our discretion. Newport is not responsible for damage occurring in transit and is not obligated to accept products returned without an RMA#.
  • Page 18 Newport Corporation Worldwide Headquarters 1791 Deere Avenue Irvine, CA 92606 (In U.S.): 800-222-6440 Tel: 949-863-3144 Fax: 949-253-1680 Internet: sales@newport.com Visit Newport Online at: www.newport.com...
