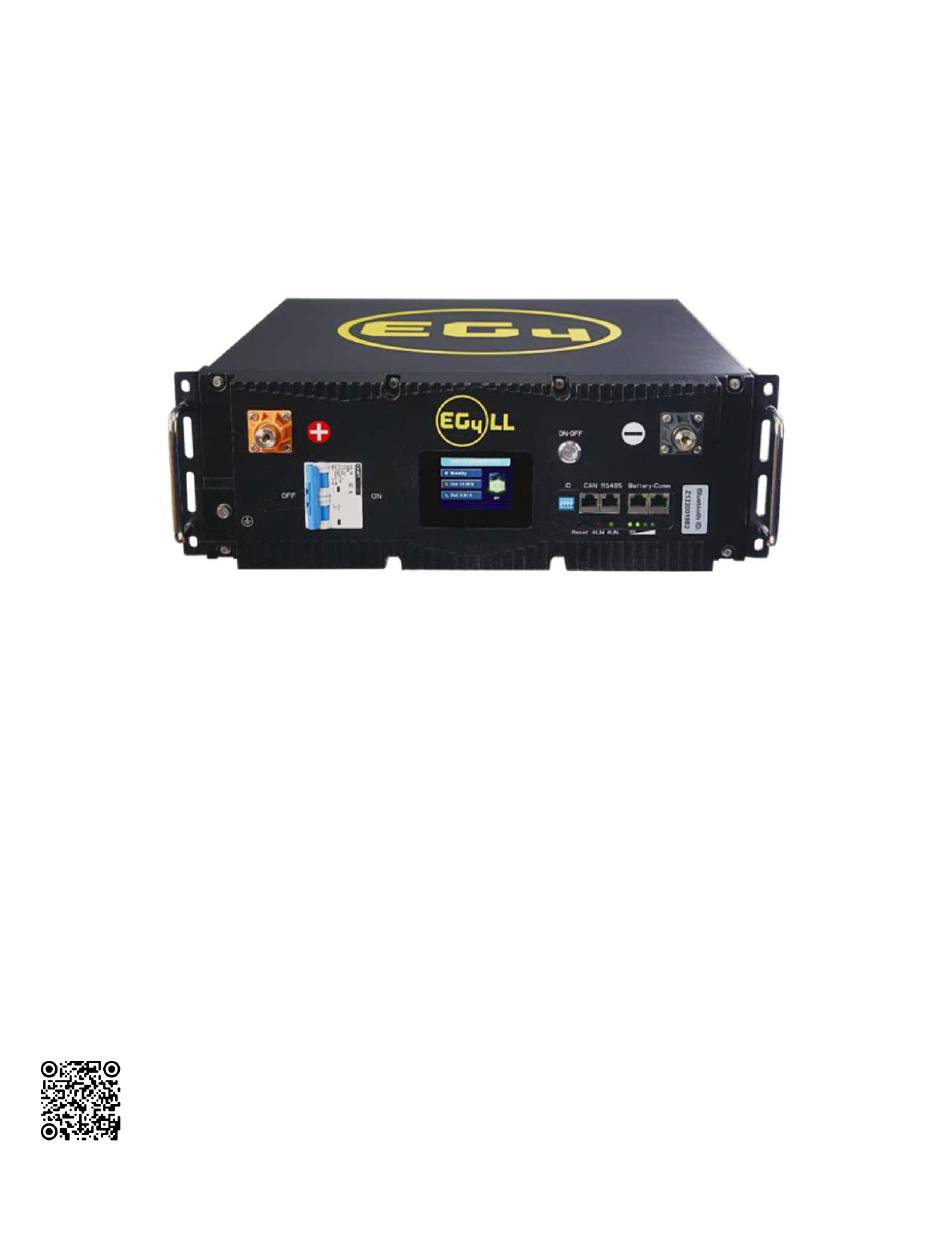

- Page 1 1 2 V 4 0 0 A h / 2 4 V 2 0 0 A h SCAN FOR UPDATED DOCUMENTS ©2024 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED. VERSION 2.0 INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. MODEL #: SR-12|400-LL-00 -- SR-24|200-LL-00...
-
Page 3: Table Of Contents
ABBREVIATIONS..............................1 TECHNICAL SPECIFICATIONS ........................... 2 EG4 LL 12V 400AH SPECIFICATIONS ......................2 EG4 LL 24V 200AH SPECIFICATIONS ......................3 SAFETY .................................. 5 SAFETY INSTRUCTIONS ..........................5 IMPORTANT SAFETY NOTIFICATIONS ...................... 5 BRIEF INTRODUCTION ............................7 INSTALLATION..............................7 PACKAGING LIST & PLACEMENT ........................7 LOCATION SELECTION AND INSTALLATION .....................7... -
Page 4: Abbreviations
1. ABBREVIATIONS Isc – Short-Circuit Current AWG – American Wire Gauge In. lbs. – Inch Pounds A – Amp(s) kW – Kilowatt Ah – Amp hour(s) kWh – Kilowatt-hour AC – Alternating Current LCD-Liquid Crystal Display AFCI-Arc-Fault Circuit Interrupter LFP – Lithium Iron Phosphate or LiFePO4 AHJ –... -
Page 5: Technical Specifications
2. TECHNICAL SPECIFICATIONS EG4 LL 12V 400AH SPECIFICATIONS MODULE OPERATING PARAMETERS Voltage 12.8V Capacity 400Ah Charging Voltage (Bulk/Absorb) 14.0V (+/-0.2V) Float 13.5V (+/-0.2V) 11.8 – 11.4V (depending on load – start high, lower Low DC Cutoff if needed) Charging Current 100A (Max. -
Page 6: Eg4 Ll 24V 200Ah Specifications
Bluetooth Monitoring Customized EG4 App Maximum Modules in Parallel Dimension (H×W×D) 6.1 in×19 in×20.2 in (15.5 cm×48.2 cm×51.3 cm) Weight 98.1 lbs. (44.5 kg) 2.2 EG4 LL 24V 200AH SPECIFICATIONS MODULE OPERATING PARAMETERS Voltage 25.6V Capacity 200Ah Charging Voltage (Bulk/Absorb) 28.1V (+/-0.2V) - Page 7 Cycle Voltage Accuracy 0.5% For Cells/Module Measurement Cycle Measurement Range Current Accuracy Measurement +/-200A Integral Calculation Power Consumption (Sleep & Off Mode) <300uA Storage/Transport Power Consumption (Operating) <20mA Charging/Discharging Communication Ports RS485/CAN Customizable Maximum Modules in Parallel Dimension (H×W×D) 6.1 in.×19 in.×20.2 in. (15.5 cm×48.2 cm×51.3 cm) Weight 99.2 lbs.
-
Page 8: Safety
DANGER! Hazardous Voltage Circuits! AVERTISSEMENT! Circuits à tension élevée! 3. SAFETY SAFETY INSTRUCTIONS International safety regulations have been strictly observed in the design and testing of the inverter. Before beginning any work, carefully read all safety instructions, and always observe them when working on or with the inverter. The installation must follow all Applicable national or local standards and regulations. - Page 9 Please refer to this manual or spec sheet for charging parameters. DISCLAIMER EG4 reserves the right to make changes to the material herein at any time without notice. Please refer to www.eg4electronics.com for the most updated version of our manuals/spec sheets.
-
Page 10: Brief Introduction
The state of the battery when placed into storage will affect how long it can be stored as well as the battery’s condition when it is brought out of storage. EG4 recommends that each battery is brought to a 100% SOC (state of charge) before placing it in storage. Lithium iron phosphate batteries will lose a certain percentage of their total charge while in storage, depending on how long they are stored and the conditions they are stored in. -
Page 11: Requirements For Installation
5.2.2 REQUIREMENTS FOR INSTALLATION WARNING: Before using batteries, inspect them for signs of damage. Never use damaged or puffy batteries. Please contact the distributor if a battery is received in this state or experiences this issue. • Avoid exposing batteries to conductive materials, such as water, strong oxidizers, and strong acids. -
Page 12: Installation
Tools Needed for Installation The tools required may vary depending on how you choose to mount your battery. Typically, the following items are needed to install the battery into an EG4 battery rack solution or general racking. 1. 10mm socket and ratchet 2. -
Page 13: Installation In Eg4 Battery Rack
Do not ground rack/cabinet or door to negative or positive bus bars! For example, in this image, there are 6 EG4-LL 12V 400Ah batteries wired in parallel. This battery bank still maintains the appropriate 12V needed for a system. However, the Amp hour rating of this bank has increased to 2400Ah. -
Page 14: Battery Overview
5.3 BATTERY OVERVIEW 5.3.1 SYSTEM CONNECTIONS An example system connection diagram can be found below:... - Page 15 19-inch cabinet and communicates with external devices via CAN/RS485 as well as with other EG4 batteries via RS485. The modules can be connected in parallel to meet expansion requirements. Inter-battery communications support a maximum of 16 modules.
- Page 16 Battery Diagram Item Description Remarks Handle Handle to carry module Rack mount ear For rack mounting Battery positive terminal Terminal M8 screw Circuit Breaker Shuts down power supply HD LCD HD touch screen ON/OFF Button Button to turn BMS On/Off Battery negative Terminal M8 screw terminal...
-
Page 17: Operation Guide
BATTERY COMMUNICATIONS To system Each EG4 battery is designed with you in mind, displaying as much information as possible in the simplest manner. EG4 Electronics includes the option of connecting the battery to PC software to monitor the module status. This allows you to see and understand exactly what the battery is doing as well as troubleshoot if problems arise. -
Page 18: Lcd Screen
6.2 LCD SCREEN Each module has a built-in HD LCD touch screen used to display important information about the cells including voltage, current, temperature, SOC, and others. 6.2.1 BUTTON DESCRIPTION There are 4 function buttons below the display with detailed descriptions as shown in the table below. Description Down Return... -
Page 19: Temperature Information
6.2.4 TEMPERATURE INFORMATION Press "Enter" on the Cell Voltage page to view the temperature information of the PCB and the cells (Shown in °C) Note: There are only 2 temperature sensors distributed evenly among the 4 packs. 6.3 COMMUNICATION PROTOCOL SELECTION IMPORTANT: Only the host battery (Address 1) needs to be set to the inverter protocol;... - Page 20 EG4 LL 24V RS485 Protocol List EG4 LL 12V CAN Protocol List NOTE: The only supported 12V CAN protocol at this time is for 12V Victron systems. EG4 LL 24V CAN Protocol List 5. Press the “Return” key to return to the main interface.
-
Page 21: Bms Tools Installation And Interfacing
6.4 BMS TOOLS INSTALLATION AND INTERFACING The PC software “BMS Tools” provides real-time battery analysis and diagnostics. The battery cannot communicate with BMS Tools and a closed loop inverter at the same time. 6.4.1 DOWNLOADING AND INSTALLING BMS TOOLS 1. Visit https://eg4electronics.com/resources/software-drivers and navigate down to the BMS Tools section and click Download. - Page 22 5. Change the Baud Rate to 9600. 6. Change the “ID” to 64.
- Page 23 7. Select, “Start Monitoring”. 8. The “Com State” will now change from “Offline” to “Online”. The system will now monitor the battery’s values in real time. 9. To review these steps, please watch our step-by-step guide at this link: https://www.youtube.com/watch?v=eHLefvjPN8c...
-
Page 24: Interface Menu Definition
6.4.3 INTERFACE MENU DEFINITION WARNING: Although there are multiple tabs in the BMS Tools software, the following tabs should not be tampered with as any unauthorized changes will void the warranty of this product and risk damaging and/or rendering the product permanently inoperable. •... -
Page 25: Battery Charging
This protection also aids in keeping the battery and battery cells operational for a greater number of life cycles. Each EG4-LL battery is specifically configured to ensure peak performance and operation with any system. -
Page 26: Troubleshooting
Current Protection The BMS is designed to constantly monitor the charge/discharge amperage and has built-in safeguards against exceeding specific parameters. These include built-in timers that shut off quickly in the event of short circuits, extremely high amperage and delayed shut down for amperage that is only slightly above the maximum capacity. - Page 27 HELPFUL TIP: The “Historical Record” tab can indicate what occurred with the module before entering a warning or protection state. It is recommended to export this data into a text (.txt) file to provide to the distributor for any additional troubleshooting assistance. Other Common Faults and Solutions Fault Analysis...
-
Page 28: Battery End Of Life
7.3 BATTERY END OF LIFE The EG4 LL battery is designed to last for more than 15 years when used correctly. We have worked tirelessly to ensure that our batteries will maintain a charge after thousands of cycles. However, when it does come time to retire the battery, there are a few things to consider. - Page 29 Notes...
- Page 30 CONTACT US support@eg4electronics.com +1 (903) 609-1988 www.eg4electronics.com...
