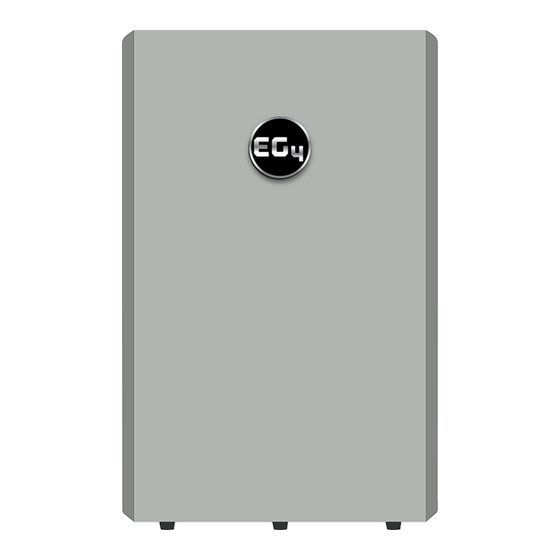

- Page 1 EG4® 14.3kWh PowerPro WallMount All Weather Battery © 2023 EG4 Electronics, LLC. All rights reserved. Version 1.0.0 | Information subject to change without notice.
-
Page 2: Table Of Contents
12.2 BMS Protection............................33 12.3 Troubleshooting ............................. 35 12.4 Battery End of Life ..........................37 13. EG4® 10 Year Limited Warranty ........................37 13.1 Warranty Exclusions ..........................37 14. Technical Specifications ..........................38 14.1 Battery Performance Curves ......................... 38 14.2 Technical Specifications Table ....................... -
Page 3: Abbreviations
Abbreviations • AWG – American Wire Gauge • A — Amp(s) • Ah — Amp hour(s) • AC — Alternating Current • AHJ — Authority Having Jurisdiction • ANSI — American National Standards Institute • BMS — Battery Management System •... -
Page 4: Safety
2. Safety 2.1 Safety Instruction Before any work begins, carefully read all safety instructions, and always observe them when working on or with the battery. The installation must follow all applicable national or local standards and regulations. Consult with your AHJ to obtain the proper permits and permissions before installation. Incorrect installation may cause: •... - Page 5 15. Install the WallMount in a location that prevents damage from flooding DISCLAIMER EG4® reserves the right to make changes to the material herein at any time without notice. You may refer to the EG4® website at www.eg4electronics.com for the most updated version of our manual.
-
Page 6: Brief Introduction
Comprehensive safety UL9540A, UL1973 on cell and module level with enhanced onboard fire- extinguishing modules. 3.1 Product Description The EG4® 48V PowerPro WallMount All Weather 280Ah batteries are ideal for low-voltage residential outdoor energy storage system (ESS) applications. These batteries use lithium iron phosphate (LiFePO... -
Page 7: Packaging List
The items listed below are included with the purchase: Concrete Mounting bracket X-Bracket 280Ah Battery expansion bolts (Qty 1) (used for EG4-18kPV) (Qty 1) (Qty 1) M8×70 (Qty 6) Battery to Inverter Red power cable 2/0 AWG Black power cable 2/0 AWG communication cable 39.4 in (to inverter positive... -
Page 8: Battery Overview
5. Battery Overview Figure 1: Battery cross-sectional view Danger! When installing or removing battery, ensure battery is in the off position, and use a voltmeter to confirm there is no voltage present. This will prevent users from encountering live (powered) terminals by accident. -
Page 9: Battery Diagram
5.1 Battery Diagram It is highly recommended to install the battery with at least 12-inch clearance on each side of the battery (back and front sides excluded) in order to easily access the side panel. Side A Side B Figure 2: Battery diagram (side view) Item Description Remarks... -
Page 10: Location Selection And Installation
Warning • Do not put EG4® 48V batteries in series. The BMS and internal components are not designed to handle this setup, which could cause the modules to fail. Do NOT mix EG4® WallMount 280Ah batteries with any non-280Ah lithium batteries. This will •... -
Page 11: Outdoor Conduit Box Installation* (Sold Separately)
6.1 Outdoor Conduit Box Installation* (sold separately) The conduit box is a highly recommended accessory for the battery to retain all the cables inside an enclosure for added protection and safety. The conduit box holds both the conduits and wires that are running between the inverter and the battery. - Page 12 Figure 5: Conduit Box with top If you are installing the WallMount as an additional battery or along with non-EG4 18kPV inverter (Section 6.3), please use the plugs to cover the top holes on the conduit box. Refer to Figure 6.
-
Page 13: Installation Without A Conduit Box
The battery is 300lb, please ensure full mounting support. 3. Attach the EG4® WallMount battery pack to the mounting bracket. To accomplish this, lift the battery up and hook the flange on the back of the battery into the flange on the front of the mounting bracket. -
Page 14: Installation With A Conduit Box
The battery is 300lb, please ensure full mounting support. Attach the EG4® WallMount battery pack to the mounting bracket. To accomplish this, lift the battery up and hook the flange on the back of the battery into the flange on the front of the mounting bracket. - Page 15 Final-Front View Step 4 Step 3 PowerPro WallMount All Weather Installation Manual...
-
Page 16: With Eg4 18Kpv Inverter
Attach the EG4® WallMount battery pack to the mounting bracket. To accomplish this, lift the battery up and hook the flange on the back of the battery into the flange on the front of the mounting bracket. - Page 17 Installation continued… Step 4 (back view) Step 3 (back view) PowerPro WallMount All Weather Installation Manual...
- Page 18 Step 6 (back view) Step 5 (back view) Final - Front View w/ Dimensions PowerPro WallMount All Weather Installation Manual...
-
Page 19: General Installation
7. General Installation Warning! Be sure your battery packs are powered “OFF” before making/removing any connections. Use the two included sets of 2/0 AWG (70mm) outdoor rated (Amphenol SurLok or equivalent) positive and negative battery cables with the outdoor rated connectors. The connectors (Amphenol SurLok or equivalent) will “click”... -
Page 20: Battery Cable Connections
6. Once all cable connections are completed and the system is ready to be commissioned, power on each battery breaker and BMS ON/OFF switch one at a time beginning with the master battery. 7.2 Battery Cable Connections The following battery cable connection diagrams are examples using the internal busbars to parallel the batteries together and attach the inverter(s) to the batteries. -
Page 21: Additional Configurations
Please seek the guidance of an electrician or qualified person for optional system layout. Pro Tip: One EG4-18kPV and a minimum of 2 WallMount units is the recommended configuration to maximize the inverter’s functionality... - Page 22 (2) 18kPV Inverter w/ (2) WallMount (2) 18kPV Inverter w/ (3) WallMount (2) 18kPV Inverter w/ (4) WallMount PowerPro WallMount All Weather Installation Manual...
- Page 23 (3) 18kPV Inverter w/ (3) WallMount (3) 18kPV Inverter w/ (4) WallMount PowerPro WallMount All Weather Installation Manual...
-
Page 24: Emergency Stop (Rsd, Ess Disconnect)
8. Emergency Stop (RSD, ESS Disconnect) Figure 10: Emergency Stop The optional ESS disconnect can be connections WallMount used to shut down all batteries and inverters (if equipped) with the push of a button. When paralleling multiple batteries, the ESS disconnect only needs to have connections made with the master battery. -
Page 25: Battery Communications
9. Battery Communications Each EG4® battery is designed with you in mind, displaying as much information as possible in the simplest manner. EG4® Electronics includes the option of connecting the battery to PC software to monitor the module status. This allows the user to see and understand exactly what the battery is doing as well as troubleshoot if problems arise. -
Page 26: Lcd Screen
9.2 LCD Screen Each module has a built-in HD LCD touch screen used to display important information about the cells including voltage, current, temperature, SOC, among others. Button description There are 4 function buttons below the display with detailed descriptions, as shown in the table below. Figure 11: LCD screen button description Description Down... -
Page 27: Communication Protocol Selection
Temperature Information Press “Enter” on the Cell Voltage page to view the temperature information of the PCB and individual cells (shown in °C) Cell Information Check individual cell voltage by pressing the “Enter” button on the main page of the LCD screen (shown in mV). -
Page 28: Operation Guide
4. Select the corresponding RS485 program or CAN program, and press Enter. 5. Press the “Return” key to return to the main interface. 6. Change the master DIP switch address back to address 1. (See image on right.) 7. Power cycle the master battery, and the BMS will correspond to the protocol selected. 10. - Page 29 1. Once downloaded, locate the file. (This is typically in the Downloads folder.) 2. Right click on the folder and click “Extract All.” Verify the location the file will be extracted to for future reference. Check the box “Show extracted files when complete” and click on “Extract.” 3.
- Page 30 4. You will be brought to the main page of BMS Tools. PowerPro WallMount All Weather Installation Manual...
-
Page 31: Interfacing With Bms Tools
10.2 Interfacing with BMS Tools 1. Press the ON/OFF button on the battery to power off the BMS. 2. Set the DIP switch ID address of the battery to Address 64 (6-pin DIP, see image to the right). 3. Connect the included battery-to-PC USB cable to your PC and to the RS485 port on the battery. (If BMS Tools is running on your PC, close the program before continuing.) 4. - Page 32 6. Open “Device Manager”, and double click on “Ports” to look for the COM port the battery is in. (See image below.) 7. Open BMS Tools. Under “Monitor Status,” verify “COM” matches the battery COM from the SearchDevice previous “Ports” list. Verify “Baud Rate” is set to 9600, and “PACK ID” is set to 16, then click “.”...
- Page 33 Warning! Although there are multiple tabs in the BMS Tools software, the following tabs should not be tampered with as any unauthorized changes will void the warranty of this product and risk damaging and/or rendering the product permanently inoperable. • BMS Parameter • BMS Control • Software Parameter If you are experiencing any issues with the battery module or the BMS, please contact your distributor for assistance or troubleshooting steps.
-
Page 34: Battery Charging
This protection also aids in keeping the battery and battery cells operational for a greater number of life cycles. Each EG4® battery is specifically configured to ensure peak performance and operation with any system. - Page 35 Cell balance protection Cell balance ensures that each cell is within a specific voltage range of each other. Cell balance is crucial for ensuring that the battery is operating properly for its lifespan. This is always done automatically. Environmental temperature protection It may be dangerous to attempt using the battery in extreme heat or cold.
-
Page 36: Troubleshooting
12.3 Troubleshooting Alarm Description and Troubleshooting When the ALM light on the battery control panel is on, it means that the battery has given an alarm or has been protected from potential damage. Please check the cause of the failure through the app or BMS Tools and take appropriate measures or go directly to the battery site to troubleshoot. - Page 37 Other common faults and solutions Note : If any of the warnings or faults from both tables persist, please contact the distributor for additional troubleshooting steps. Fault Analysis Action Check communication port Input proper “host” battery Inverter communication connection, and battery ID DIP switch address, and power cycle failure setting.
-
Page 38: Battery End Of Life
There are several websites and organizations that will accept this battery to recycle at little to no cost to the user. At EG4®, we understand that we are working with customers across the United States and the world. Our recommendation is to go online and search the term “Lithium Battery Disposal Near Me.”... -
Page 39: Technical Specifications
The Customer agrees to full indemnification for EG4® henceforth from any legal recourse relating to and arising out of losses, direct or consequential, from the installation of the products purchased by the customer more than the value of the equipment purchase price. -
Page 40: Technical Specifications Table
14.2 Technical Specifications Table Module Operating Parameters Parameter Recommended Setting Voltage 51.2V – Capacity 280Ah – Charging Voltage 56.0V (+/-0.8V) 56.2V (+/-0.2V) (Bulk/Absorb) Float – 54V (+/-0.2V) Low DC Cutoff 44.8V 47-45.6V (start high, lower as needed) Charging Current 100/140/200A 60A - 160A (Max. - Page 41 Power Consumption Operating Mode <25mA Charging/Discharging Communication Ports RS485/CAN Can be customized Battery Heater Specifications Parameter Spec Condition Voltage – Power Consumption 224W – Internal Battery ≤32°F (0°C)/≥41°F (5°C) Heat On/Heat Off Temperature Physical Specifications Dimensions (H×W×D) 34.6 in.×22.3 in.×9.1 in. (88.0 cm×56.6 cm×23.2 cm) Weight 308.6 lbs.
-
Page 42: Storage
The state of the battery when placed into storage will affect how long it can be stored as well as the battery’s condition when it is brought out of storage. EG4® recommends that each battery is brought to a 100% SOC (state of charge) before placing it in storage. Lithium iron phosphate batteries will lose a certain percentage of their total charge while in storage, depending on how long they are stored and the conditions they are stored in. - Page 43 Notes PowerPro WallMount All Weather Installation Manual...
- Page 44 CONTACT US Email: support@eg4electronics.com Phone: +1 (903) 609-1988 Website: www.eg4electronics.com © 2023 EG4 Electronics, LLC. All rights reserved. Version 1.0.0 | Information subject to change without notice.
