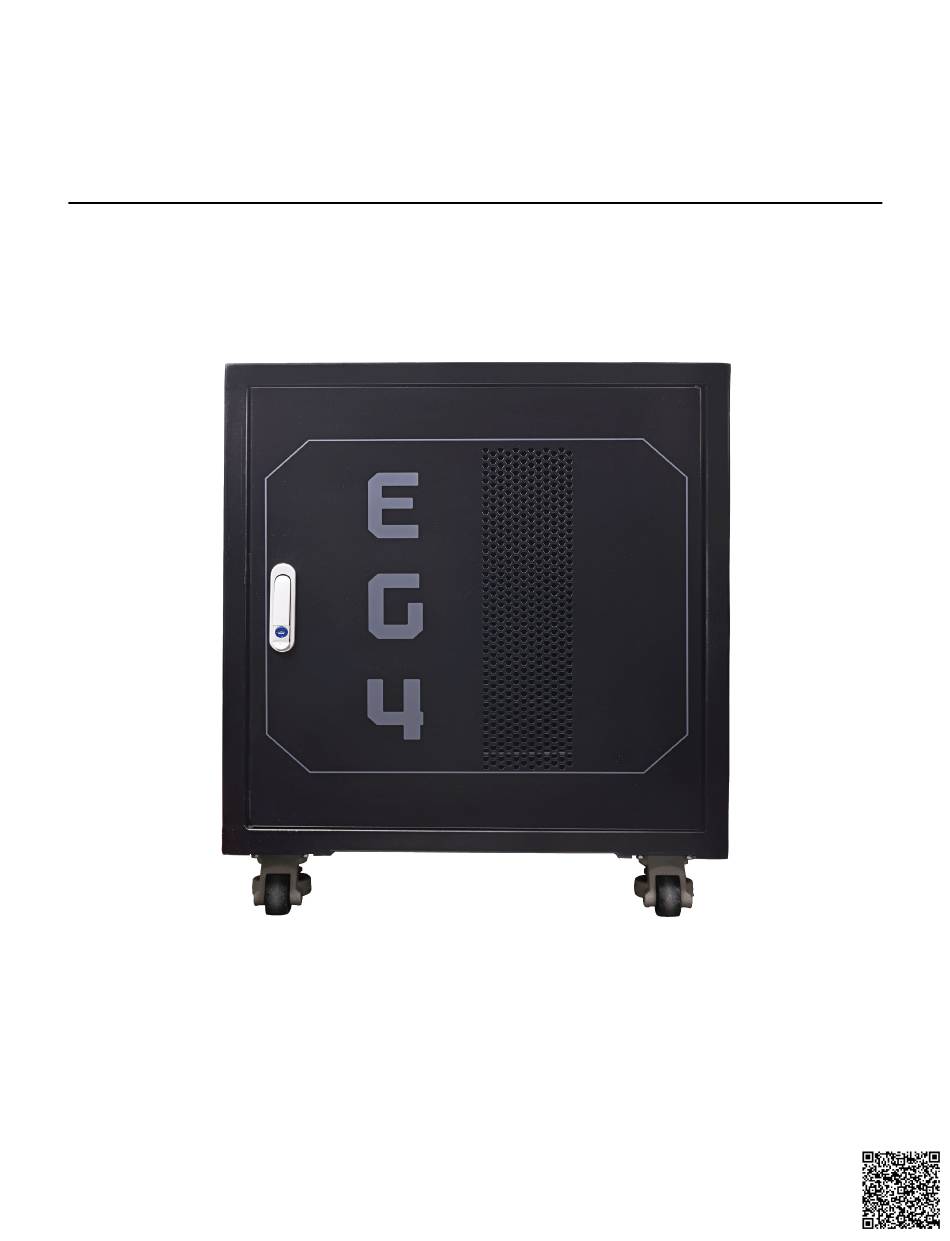

- Page 1 I N D O O R C A B I N E T Q U I C K - S T A R T G U I D E ©2024 EG4 ELECTRONICS®, LLC. ALL RIGHTS RESERVED. VERSION 1.0 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS ..........................1 ABBREVIATIONS ..............................2 BATTERY SAFETY PRECAUTIONS........................3 SAFETY INSTRUCTIONS ..........................3 IMPORTANT SAFETY NOTIFICATIONS ....................3 BRIEF INTRODUCTION............................5 PRODUCT DESCRIPTION ..........................5 OVERVIEW OF SYSTEM COMPONENTS ....................6 LOCATION FOR STORAGE ............................. 7 PACKING LIST ................................ -
Page 3: Technical Specifications
2.5 in. (63.5 mm) SIDE CABLE ENTRY/EXIT KNOCKOUTS 3/4 in. CABLE GLAND SIZE 3 EG4® Server Rack Style MAX. NUMBER OF BATTERIES M6-1.0x15 with a 10mm hex head (and Phillips head) BATTERY CONNECTION BOLTS (IN BUSBAR) M8-1.25x15 with a 13mm hex head (and Phillips head) SYSTEM CONNECTION BOLTS (IN BUSBAR) 84 in. -
Page 4: Abbreviations
2. ABBREVIATIONS • In-lbs. – Inch Pounds AWG – American Wire Gauge • • kW – Kilowatt A – Amps • • kWh – Kilowatt-hour • Ah – Amp hour(s) • LCD – Liquid Crystal Display • AC – Alternating Current LFP –... -
Page 5: Battery Safety Precautions
3. BATTERY SAFETY PRECAUTIONS DANGER! Hazardous Voltage Circuits! AVERTISSEMENT! Circuits à tension élevée! SAFETY INSTRUCTIONS International safety regulations have been strictly observed in the design and testing of the inverter. Before beginning any work, carefully read all safety instructions, and always observe them when working on or with the inverter. - Page 6 6. Please keep children away from touching or misusing the battery and relevant systems. DISCLAIMER EG4 reserves the right to make changes to the material herein at any time without notice. Please refer to www.eg4electronics.com...
-
Page 7: Brief Introduction
(ESS). Made of high-quality steel with a powder coat finish, this durable unit is resistant to wear and tear over time and is perfect for housing EG4 server rack batteries. It features a locking door handle to prevent unauthorized access and heavy-duty swivel casters with adjustable feet making it simple to move and easy to level and fix in place. -
Page 8: Overview Of System Components
4.2 OVERVIEW OF SYSTEM COMPONENTS Front view Front view with door open Item Description Press on the “Push” button and turn handle counterclockwise to open the Handle with Lock door Swivel Casters Four heavy duty swivel casters with adjustable feet (24) M6-1.0x10, Phillips head screws provided to secure batteries in the Battery Securing Bolts cabinet... -
Page 9: Location For Storage
Top Side Grommets (Large) 2in. Rubber Grommets (x2) 5. LOCATION FOR STORAGE The installation location for the EG4 battery cabinet can greatly affect the health of the batteries. Keep ® the cabinet away from locations where it may get wet or locations with high humidity. Install the cabinet away from combustible materials. -
Page 10: Tools Needed For Installation
The busbar is intended for a max of 300A (along with any 48V EG4 accessories). Cable sizing from the battery cabinet to the remainder of the ESS is dependent on multiple factors including the system maximum current draw, distance between the battery cabinet and ESS, location, temperature, etc. -
Page 11: Installing The Casters On The Cabinet
8. INSTALLING THE CASTERS ON THE CABINET 1. Before installing the batteries into the cabinet, carefully remove all items from inside the cabinet and lay it on its back, preferably on a clean surface or a furniture blanket. 2. Attach the casters to the bottom of the cabinet using the included sixteen M6-1.0x10 Phillips hex head bolts included with the cabinet, and a 10mm socket and ratchet, or Phillips head screwdriver. -
Page 12: Opening And Locking The Cabinet
OPENING AND LOCKING THE CABINET 1. Locate the button 2. Turn the under the keyhole door handle that says “Push” counterclock and press it wise 90° downward to and pull to release the door open the handle. door. 3. Push the door closed and rotate the handle clockwise to the closed position. -
Page 13: Battery Installation Information
9. BATTERY INSTALLATION INFORMATION EXAMPLE CABINET CONFIGURATION For demonstration purposes, the image below shows a fully populated EG4 Welded Indoor Cabinet ® with three EG4 48V batteries. Batteries: There is one EG4-LL V2 48V/100Ah batteries (top), one EG4-LL V1 48V/100Ah battery, and one EG4 LifePower4 48V/100Ah server rack battery (bottom). -
Page 14: Battery Installation
2. Use the M6-1.0x15 Phillips hex head bolts included in the cabinet busbars and the 6 AWG red and black DC battery cables included with the EG4 batteries to connect each battery to the internal positive and negative busbars, respectively. These bolts require a 10mm socket. - Page 15 NOTES...
- Page 16 CONTACT US support@eg4electronics.com +1 (903) 609-1988 www.eg4electronics.com...
