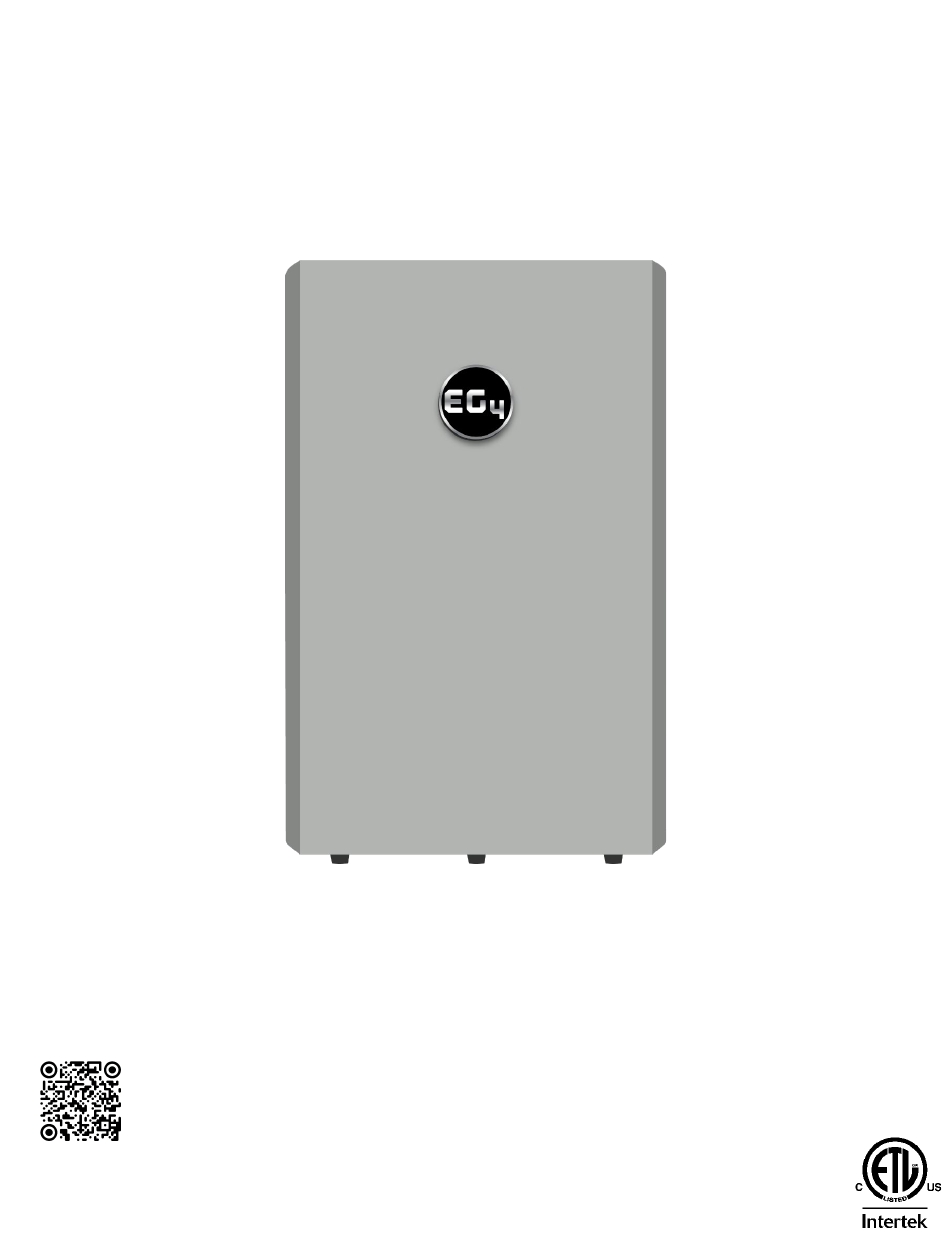

U S E R M A N U A L
L I T H I U M B A T T E R Y
P O W E R P R O W A L L M O U N T
A L L - W E A T H E R B A T T E R Y
SCAN FOR UPDATED
DOCUMENTS
© 2023 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED.
VERSION 1.1 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
MODEL #: WPOWER-16/280-AW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPOWER-16/280-AW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EG4 WPOWER-16/280-AW

Summary of Contents for EG4 WPOWER-16/280-AW

  • Page 1 A L L - W E A T H E R B A T T E R Y SCAN FOR UPDATED DOCUMENTS © 2023 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED. VERSION 1.1 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. MODEL #: WPOWER-16/280-AW...

  • Page 3: Table Of Contents

    TROUBLESHOOTING, MAINTENANCE & DISPOSAL ................36 13.1 INTRODUCTION TO THE BMS ....................... 36 13.2 BMS PROTECTION ..........................36 13.3 TROUBLESHOOTING ..........................37 13.4 BATTERY END OF LIFE ........................... 39 EG4 10 YEAR LIMITED WARRANTY ......................39 14.1 WARRANTY EXCLUSIONS ........................39 STORAGE ................................40...

  • Page 4: Technical Specifications Sheet

    1. TECHNICAL SPECIFICATIONS SHEET MODULE OPERATING PARAMETERS Parameter Recommended Charger Settings Total Energy Capacity 14.3kWh @25C, 100% SOC Voltage 51.2V Capacity 280Ah ±2% @25°C ±2°C @ 0.5C Charging Voltage (Bulk/Absorb) 56.0V (±0.8V) 56.2V (±0.2V) Float 54V (±0.2V) 47-45.6V Low DC Cutoff 44.8V (start higher, lower as needed) 100/140/200A...
  • Page 5 BATTERY HEATER SPECIFICATIONS Parameter Spec Condition Voltage Power Consumption 224W Internal Battery Temperature ≤32°F (0°C) or ≥41°F (5°C) Heat On/Heat Off PHYSICAL SPECIFICATIONS Dimensions (H × W × D) 34.6 × 22.3 × 9.1 in. (88 × 56.6 × 23.2cm) Weight 308.6 lbs.

  • Page 6: Abbreviations

    2. ABBREVIATIONS AWG – American Wire Gauge A – Amp(s) Ah – Amp hour(s) AC – Alternating Current AHJ – Authority Having Jurisdiction ANSI – American National Standards Institute BMS – Battery Management System DC – Direct Current DIP – Dual In-line Package DOD –...

  • Page 7: Safety

    3. SAFETY SAFETY INSTRUCTIONS International safety regulations have been strictly observed in the design and testing of the inverter. Before beginning any work, carefully read all safety instructions, and always observe them when working on or with the inverter. The installation must follow all applicable national or local standards and regulations.
  • Page 8 During operation, only the LCD and buttons should be touched. DISCLAIMER EG4 reserves the right to make changes to the material herein at any time without notice. Please refer to www.eg4electronics.com...

  • Page 9: Brief Introduction

    Comprehensive safety UL9540A, UL1973 on cell and module level with enhanced onboard fire-extinguishing modules. PRODUCT DESCRIPTION The EG4® 48V PowerPro WallMount All Weather 280Ah batteries are ideal for low-voltage residential outdoor energy storage system (ESS) applications. These batteries use lithium iron phosphate (LiFePO...

  • Page 10: Packing List

    5. PACKING LIST The items listed below are included with the purchase: Concrete Mounting X-Bracket expansion bolts bracket (Qty 1) (used for EG4-18kPV) 280Ah Battery M8×70 (Qty 6) (Qty 1) Black power cable 2/0 Battery to Inverter Red power cable 2/0 AWG AWG 39.4 in (to inverter...

  • Page 11: Battery Overview

    6. BATTERY OVERVIEW Figure 4 – Battery Cross-Sectional View DANGER When installing or removing battery, ensure battery is in the off position, and use a voltmeter to confirm there is no voltage present. This will prevent users from encountering live (powered) terminals by accident.

  • Page 12: Battery Diagram

    (back and front sides excluded) to easily access the side panel. Side Panel Screws Side A Side B Figure 5 – Battery (side view) NOTE: Additional hardware may be required to remove the side terminal covers. EG4 recommends a 3mm width, 90mm length #2 Phillips head screwdriver ITEM DESCRIPTION REMARKS...

  • Page 13: Location Selection And Installation

    7. LOCATION SELECTION AND INSTALLATION WARNING • Do not put EG4 48V batteries in series. The BMS and internal components are not designed to handle this setup, which could cause the modules to fail. • Do NOT mix EG4 WallMount 280Ah batteries with any non-280Ah lithium batteries. This will void your warranty.

  • Page 14: Powerpro Conduit Box Installation

    Ensure at least 12 in. between multiple WallMount batteries and other devices, unless it is installed as a part of PowerPro WallMount ESS that includes EG4-18kPV with the conduit box. In a PowerPro WallMount ESS installation, the conduit box is attached directly to both battery and inverter.
  • Page 15 Figure 8 – Conduit Box Schematics...
  • Page 16 Figure 10 – Conduit Box Thumb Screws If you are installing the WallMount as an additional battery or along with non-EG4 18kPV inverter (Section 7.3), please use the plugs to cover the top holes on the conduit box. Refer to Figure 11.

  • Page 17: Installation Without A Conduit Box

    7.2 INSTALLATION WITHOUT A CONDUIT BOX Mounting Instructions 1. Place mounting bracket on wall at proper mounting height (Min. 28.0625 in) from the ground; use a Level to make sure the bracket is straight, and mark mounting hole locations. Drill holes to accommodate mounting hardware being used.

  • Page 18: Installation With A Conduit Box

    7.3 INSTALLATION WITH A CONDUIT BOX Attach the conduit box (sold separately) to the top of the WallMount battery using the included hardware. Refer to Section 7.1 for the conduit box installation instructions. Mounting Instructions Place mounting bracket on wall at proper mounting height (minimum 28.0625 in) from the ground; use a Level to make sure the bracket is straight, and mark mounting hole locations.
  • Page 19 Step 4 Final-Front View Step 3 Figure 14 – WallMount Installation with Conduit Box Steps 3, 4 & 5...

  • Page 20: With Eg4 18Kpv Inverter

    (concrete/brick walls) or appropriate hardware required for the mounting surface. The X-bracket will be behind the mounting plate, against the wall. Using the X-bracket as a guide, attach the EG4 18kPV mounting bracket using the appropriate hardware required for the mounting surface.
  • Page 21 Step 3 (back view) Step 4 (back view) Figure 16 – WallMount Installation with Conduit Box & 18kPV Steps 3 & 4...
  • Page 22 Step 5 (back view) Step 6 (back view) Figure 17 – WallMount Installation with Conduit Box & 18kPV Steps 5 & 6...
  • Page 23 Final - Front View w/ Dimensions Figure 18 – WallMount Installation with Conduit Box & 18kPV Final...

  • Page 24: General Installation

    8. GENERAL INSTALLATION WARNING Be sure your battery packs are powered “OFF” before making/removing any connections. Use the two included sets of 2/0 AWG (70mm) outdoor rated positive and negative battery cables with the outdoor rated connectors. The connectors will “click” when seated properly. Note: To remove the circular connector installed on the battery, first depress the release button on the side of the connector, then slowly pull until the connection is broken.

  • Page 25: Battery Cable Connections

    8.2 BATTERY CABLE CONNECTIONS The following battery cable connection diagrams are examples using the internal busbars to parallel the batteries together and attach the inverter(s) to the batteries. When relying on the internal integrated busbars, up to 3 batteries are supported in parallel when connected to a single inverter or 4 batteries in parallel when connected to 2 inverters, or up to 5 batteries in parallel when connected to 3 inverters.

  • Page 26: Additional Configurations

    Please seek the guidance of an electrician or qualified person for optional system layout. Pro Tip: One EG4-18kPV and a minimum of 2 WallMount units is the recommended configuration to maximize the Figure 21 – (1) 18kPV Inverter with (2) WallMount inverter’s functionality...
  • Page 27 Figure 23 – (2) 18kPV Inverter with (2) WallMount Figure 25 – (2) 18kPV Inverter with (3) WallMount Figure 24 – (2) 18kPV Inverter with (4) WallMount...
  • Page 28 Figure 26 – (3) 18kPV Inverter with (3) WallMount Figure 27 – (3) 18kPV Inverter with (4) WallMount...

  • Page 29: Emergency Stop (Rsd, Ess Disconnect)

    9. EMERGENCY STOP (RSD, ESS DISCONNECT) The optional ESS disconnect can be used to shut down all batteries and inverters (if equipped) with the push of a button. When paralleling multiple batteries, the ESS disconnect only needs to have connections made with the master battery.

  • Page 30: Battery Communications

    10. BATTERY COMMUNICATIONS Each EG4 battery is designed with you in mind, displaying as much information as possible in the simplest manner. EG4 Electronics includes the option of connecting the battery to PC software to monitor the module status. This allows the user to see and understand exactly what the battery is doing as well as troubleshoot if problems arise.

  • Page 31: Lcd Screen

    10.2 LCD SCREEN Each module has a built-in HD LCD touch screen used to display important information about the cells including voltage, current, temperature, SOC, among others. Button Description There are 4 function buttons below the display with detailed descriptions, as shown in the table below.

  • Page 32: Communication Protocol Selection

    10.3 COMMUNICATION PROTOCOL SELECTION IMPORTANT: Only the master battery (Address 1) should to be set to the inverter protocol; all other batteries must have unique addresses starting at address 2 and ascending in chronological order. You must connect the CAN/RS485 port of the master battery to your inverter’s (or communication devices) BMS communication port.
  • Page 33 4. Select the corresponding RS485 program or CAN program, and press Enter. Protocol # Manufacturer Protocol # Manufacturer P01-EG4 P01-EG4/LUX EG4/LUX P02-GRW Growatt P02-GRW Growatt P03-SLK Sol-Ark P03-LUX Luxpower P04-DY Deye P04-SCH Schneider P05-MGR Megarevo P06-VCT Victron P07-LUX Luxpower P08-SMA Figure 34 –...

  • Page 34: Operation Guide

    11. OPERATION GUIDE 11.1 BMS TOOLS INSTALLATION AND INTERFACING The PC software “BMS Tools” provides real-time battery analysis and diagnostics. The battery cannot communicate with BMS Tools and a closed loop inverter at the same time. The steps outlined below will walk through the initial set up of BMS Tools.
  • Page 35 5. Change the Baud Rate to 9600. Figure 37 – BMS Tools Baud Rate 6. Change the “ID” to 64. Figure 38 – BMS Tools ID Selection...
  • Page 36 7. Select, “Start Monitoring”. Figure 39 – BMS Tools Monitoring Initiation 8. The “Com State” will now change from “Offline” to “Connected.” You can now monitor the battery’s values in real time. Figure 40 – BMS Tools Real-Time Monitoring...

  • Page 37: Battery Charging

    12. BATTERY CHARGING Charge cycle Ensure the proper settings are set on the charge controller and/or inverter being used to avoid overcharging or damaging the module. (Refer to Section 1: Technical Specifications Table for a full list of charging/discharging parameters.) IMPORTANT It is normal for LFP batteries that have their own internal BMS and that are wired in parallel to demonstrate a wide variety of SOC readings during any given charge or discharge cycle.

  • Page 38: Battery Performance Curves

    12.1 BATTERY PERFORMANCE CURVES Figure 41 – Lithium Battery Performance Curves...

  • Page 39: Troubleshooting, Maintenance & Disposal

    This protection also aids in keeping the battery and battery cells operational for a greater number of life cycles. Each EG4 battery is specifically configured to ensure peak performance and operation with any system.

  • Page 40: Troubleshooting

    13.3 TROUBLESHOOTING Alarm Description and Troubleshooting When the ALM light on the battery control panel is on, it means that the battery has given an alarm or has been protected from potential damage. Please check the cause of the failure through the app or BMS Tools and take appropriate measures or go directly to the battery site to troubleshoot.
  • Page 41 Other common faults and solutions NOTE: If any of the warnings or faults from both tables persist, please contact the distributor for additional troubleshooting steps. Fault Analysis Action Check communication port Input proper “host” battery DIP Inverter communication connection, and battery ID switch address, and power cycle failure setting.

  • Page 42: Battery End Of Life

    There are several websites and organizations that will accept this battery to recycle at little to no cost to the user. At EG4, we understand that we are working with customers across the United States and the world. Our recommendation is to go online and search the term “Lithium Battery Disposal Near Me.”...

  • Page 43: Storage

    The state of the battery when placed into storage will affect how long it can be stored as well as the battery’s condition when it is brought out of storage. EG4 recommends that each battery is brought to a 100% SOC (state of charge) before placing it in storage. Lithium iron phosphate batteries will lose a certain percentage of their total charge while in storage, depending on how long they are stored and the conditions they are stored in.
  • Page 44 Notes...
  • Page 46 CONTACT US support@eg4electronics.com (903) 609-1988 www.eg4electronics.com...
