Aplex PHANTAM-8 B Series User Manual
  1. Manuals
  2. Brands
  3. Aplex Manuals
  4. Touch Panel
  5. PHANTAM-8 B Series
  6. User manual

Aplex PHANTAM-8 B Series User Manual

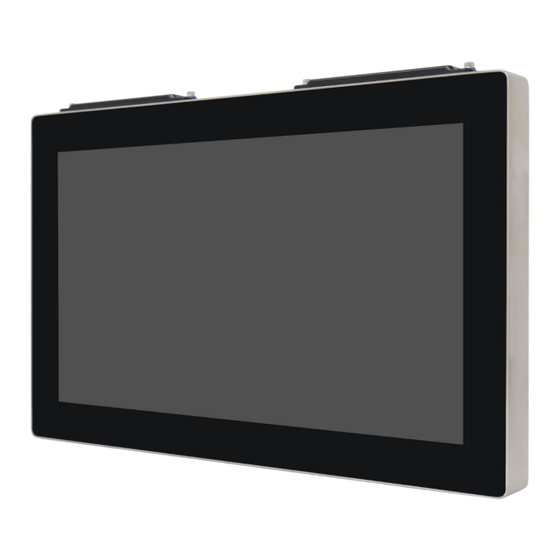

15.6”, 18.5” and 21.5” ip66/ip69k intel elkhart lake fanless stainless steel panel pc
Hide thumbs Also See for PHANTAM-8 B Series:
Table of Contents

Advertisement

Quick Links

Download this manual
PHANTAM-8XXB Series
Release Date
Nov.2023
®2023 Aplex Technology, Inc.
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883
15.6", 18.5" and 21.5" IP66/IP69K
Intel Elkhart Lake
Fanless Stainless Steel Panel PC
User Manual
All Rights Reserved.
Email:
aplex@aplex.com
URL:
http://www.aplex.com
Revision
V1.0
Published in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHANTAM-8 B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex PHANTAM-8 B Series

Summary of Contents for Aplex PHANTAM-8 B Series

  • Page 1 Fanless Stainless Steel Panel PC User Manual Release Date Revision Nov.2023 V1.0 ®2023 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 Email: aplex@aplex.com...

  • Page 2: Revision History

    Revision History Reversion Date Description 2023/11/28 Initiation PHANTAM-8XXB Series User Manual...

  • Page 3: Warning

    Disclaimer This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 4: Safety Precautions

    Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use. ◆...

  • Page 5: Table Of Contents

    Table of Contents Revision History ..........................1 Warning!_______________________________________ ..............2 Safety Precautions ..........................3 Chapter 1 System Product ......................6 Features ..........................6 Specifications .......................... 6 Display ..........................8 Dimensions ..........................9 Brief Description of PHANTAM-8XXB Series ................11 VESA Mount and SWING ARM ....................14 Chapter 2 Hardware .........................
  • Page 6 Figures Figure 1: Dimensions of PHANTAM-816BP/BR(H)………………………..………………..…….…………..…9 Figure 2: Dimensions of PHANTAM-821BP/BR(H)………..……………………………………………………10 Figure 3: Front View of PHANTAM-816BP/BR(H)………….……….……………………..……………………12 Figure 4: Rear View of PHANTAM-816BP/BR(H)…………..……….……..……………………………………12 Figure 5: Front View of PHANTAM-821BP/BR(H)……….….……….……………………….…………………13 Figure 6: Rear View of PHANTAM-821BP/BR(H)….…..………….……………………………………………13 Figure 7: PHANTAM-8XXB VESA Mount………………..……..…...………………………………………………14 Figure 8: PHANTAM-8XXB SWING ARM………………..…..……………………………………………………14 PHANTAM-8XXB Series User Manual...

  • Page 7: Chapter 1 System Product

    System Product Chapter 1 1.1 Features ⚫ 15.6”/18.5”/21.5” Stainless Steel Panel PC ⚫ Intel® Atom® Elkhart Lake x6000 series, and Intel® Pentium® and Celeron® N and J series Processor ⚫ IP66/69K Full-sealed with Anti-Corrosion Enclosure ⚫ Gap-free sealing and Slim Front Frame architecture at front bezel ⚫...
  • Page 8 Option Wi-Fi/BT module and 2 x External antenna at rear side RFID RFID RFID module design on the front side by supporting Android and Linux driver or BSP module and porting by customer side or use Aplex-recommended module. Power Power Input DC 9~36V (onboard)

  • Page 9: Display

    Display Standard LCD PHANTAM-816BP/R PHANTAM-821BP/R Display Type 15.6” TFT LCD 21.5” TFT LCD Max. Resolution 1366 x 768 1920 x 1080 1920 x 1080 Max. Color 16.7M/16.7M 16.7M Luminance(cd/m²) 400 nits 250 nits 450 nits Contrast Ratio 500:1/800:1 1000:1 Viewing angle(H/V) 178/178 170 / 170 Backlight Lifetime...

  • Page 10: Dimensions

    1.4 Dimensions Figure 1 Dimensions of PHANTAM-816BP/BR(H) PHANTAM-8XXB Series User Manual...

  • Page 11: Figure 2 Dimensions Of Phantam-821Bp/Br(H)

    Figure 2 Dimensions of PHANTAM-821BP/BR(H) PHANTAM-8XXB Series User Manual...

  • Page 12: Brief Description Of Phantam-8Xxb Series

    1.5 Brief Description of PHANTAM-8XXB Series There are 15.6” and 21.5” Stainless Steel Panel PC in PHANTAM-8XXB series, which comes with flat front panel design and Stainless Steel 304 Enclosure. It is powered by Intel® Atom® Elkhart Lake x6000 series, and Intel®...

  • Page 13: Figure 3 Front View Of Phantam-816Bp/Br(H)

    Figure 3 Front View of PHANTAM-816BP/BR(H) Figure 4 Rear View of PHANTAM-816BP/BR(H) PHANTAM-8XXB Series User Manual...

  • Page 14: Figure 5 Front View Of Phantam-821Bp/Br(H)

    Figure 5 Front View of PHANTAM-821BP/BR(H) Figure 6 Rear View of PHANTAM-821BP/BR(H) PHANTAM-8XXB Series User Manual...

  • Page 15: Vesa Mount And Swing Arm

    1.6 VESA Mount and SWING ARM The PHANTAM-8xxB series is designed to be VESA mount and SWING ARM as shown in pictures below. Figure 7 PHANTAM-8XXB VESA MOUNT Figure 8 PHANTAM-8XXB SWING ARM PHANTAM-8XXB Series User Manual...

  • Page 16: Chapter 2 Hardware

    Hardware Chapter 2 SBC-7127 is a 3.5” industrial motherboard developed on the basis of Intel Elkhart Lake, which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features two GbE ports, 4-COM ports and one Mini PCIE and one M.2 2230 configuration. To satisfy the special needs of high-end customers, due to its compact size, the product is widely used in various sectors of industrial control.
  • Page 17 1 x RS-232(default)/422/485, signals select via BIOS (COM1), pin9 RI(default)/5V/12V, select via JP1. (DB9, COM1) Serial 1 x RS-232 via pitch 2.0mm 2x5pin header, pin9 RI(default)/5V/12V, select via JP2 (COM2) 2 x 2wired RS485 via pitch 2.0mm 2x5pin header (COM3) GPIO 8-bit digital I/O by Pin header (GPIO2) 4-bit digital Input...

  • Page 18: Board Dimensions

    2.2 Board Dimensions (units :mm) Figure 2.1: Board Dimension of SBC-7127 PHANTAM-8XXB Series User Manual...

  • Page 19: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Board Top Board Bottom PHANTAM-8XXB Series User Manual...

  • Page 20: Jumpers Setting And Connectors

    2.4 Jumpers Setting and Connectors 1. CPU1: (FCBGA1493) Onboard Intel Elkhart Lake SoC. Model Numbe Cores/ Remarks Threads SBC-7127-J6412 J6412 2.0~2.6GHz 4 / 4 Default SBC-7127-X6425E X6425E 2.0~3.0GHz 4 / 4 Option 2. DDR4_1: (SO-DIMM 260Pin slot) DDR4 memory socket, the socket is located at the top of the board and supports 260Pin 1.2V DDR4 SO-DIMM memory module up to 32GB.
  • Page 21 CMOS clear switch, CMOS clear operation will permanently reset old BIOS settings to factory defaults. Procedures of CMOS clear: a) Turn off the system and unplug the power cord from the power outlet. b) To clear the CMOS settings, close Pin5-6 for 1 second c) Power on the system again.
  • Page 22 8. CN2: (1.25mm Pitch 2-Pin Wafer) Connect to ambient light sensor to support auto light sensing function. Pin# Signals MCU_PWR 9. CN3 (1.25mm Pitch 2x20 Connector, DF13-40P) Support 18/24-bit LVDS interface LCM with USB2.0 signal for touch screen. Function Signal Name Pin# Signal Name Function...
  • Page 23 10. INVT1: (2.0mm Pitch 1x8 wafer Pin Header) Provide backlight power & control for LVDS. Pin# Signal Name 12V_S0 12V_S0 BKLT_EN_OUT BKLT_CTRL 11. DP1: (Vertical DP Connector) DisplayPort Interface connector. DisplayPort 1.4, DP++ support resolution up to 4096x2160@60Hz. 12. HDMI1: (Vertical HDMI Connector) HDMI Interface connector.
  • Page 24 14. LAN2 ® (RJ45 Connector) Provide 10/100/1000/2.5GbE LAN via Intel I225-LM/I226-LM. 15. LINE_OUT1: (Diameter 3.5mm Jack) Provide line-out via onboard Realtek ALC888S codec. 16. F_AUDIO1: (2.0mm Pitch 2x6 Pin Header) Provide line-in/line-out/mic-in via onboard Realtek ALC888S codec. Signal Name Pin# Pin# Signal Name 5V_S5...
  • Page 25 18. USB1: (2.0mm Pitch 2x5 Pin Header) Provide 2xUSB2.0 signals. Signal Name Pin# Pin# Signal Name 5V_USB56 5V_USB56 USB5_N USB6_N USB5_P USB6_P 19. USB2: (2.0mm Pitch 2x5 Pin Header) Provide 2xUSB2.0 signals. Signal Name Pin# Pin# Signal Name 5V_USB47 5V_USB47 USB4_N USB7_N USB4_P...
  • Page 26 RS422 (option): Pin# Signal Name 422_TX- 422_TX+ 422_RX+ 422_RX- BIOS Setup：Serial Port 1 Configuration【RS-422】 RS485 (option): Pin# Signal Name 485- 485+ BIOS Setup：Serial Port 1 Configuration【RS-485】 21. JP1: (2.0mm Pitch 2x3 Pin Header) For COM1 pin9 signal setting. JP1 Pin# Function Close 1-2 COM1 Pin9 RI (Ring Indicator, Default)
  • Page 27 RI/5V/12V via JP2 23. JP2: (2.0mm Pitch 2x3 Pin Header) For COM2 pin9 signal setting. JP1 Pin# Function Close 1-2 COM2 Pin9 RI (Ring Indicator, Default) Close 3-4 COM2 Pin9 = +5V Close 5-6 COM2 Pin9 = +12V 24. COM3: (2.0mm Pitch 2x5 Pin Header) Provide 2x2wired RS485(COM3/4).
  • Page 28 27. M-PCIE1: (Socket 52Pin) Mini-PCI express socket, supports full-sized mini-PCIe cards with 1xSIM slot. Function Support Remarks PCIex1 (PCIe 5) ● SMbus ● Micro SIM (SIM1) ● USB2.0 (USB8) ● 28. SIM1 (Micro-SIM Slot) Support Micro SIM card for M_PCIE1. Pin# Signal Name SIMVCC...
  • Page 29 Note: Output current of the connector must not be above 1A. 33. WLAN_1/LED2/GPIO1: WLAN_1 : Green LED for M.2 E-key status. LED2 : Green LED for power status. GPIO1 : Red LED for MCU status. PHANTAM-8XXB Series User Manual...

  • Page 30: Chapter 3 Bios Setup Description

    Chapter 3 BIOS Setup Description 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation. Press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup Press F11 to load default values and continue 0085 3.2 BIOS SETUP UTILITY Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing system summary information will appear.

  • Page 31: Main Settings

    3.3 Main Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit BIOS Information Choose the system default Project Version 7130V002 language EC VERSION 7130E005 Build Date and Time 06/14/2023 16:22:58 Compute Die Information Name ElkhartLake ULX Type Intel(R) Celeron(R) J6412 @ 2.00GHz...

  • Page 32: Advanced Settings

    3.4 Advanced Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit ►CPU Configuration CPU Configuration ►Power & Performance Parameters. ►Thermal Configuration ►Trusted Computing ►ACPI Settings ►Super IO Configuration ►Hardware Monitor ►S5 RTC Wake Settings ►GOP Settings ►Acoustic Management Configuration →←: Select Screen ►AMI Graphic Output Protocol Policy...
  • Page 33 Hardware Prefetcher: [Disabled] [Enabled] Intel (VNX) Virtualization Technology: [Disabled] [Enabled] PECI: [Disabled] [Enabled] Active Processor Cores: [ALL] BIST: [Disabled] [Enabled] AP threads Idle Manner: [HALT Loop] [MWAIT Loop] [RUN Loop] AES: [Disabled] [Enabled] MachineCheck: [Disabled] [Enabled] MonitorMWait: [Disabled] [Enabled] CPU SMM Enhancement CPU SMM Enhancement SMM Use Delay Indication: [Disabled]...
  • Page 34 [Disabled] [Enabled] #AC Split Lock: [Enabled] [Disabled] 3.4.2 Power & Performance Power & Performance CPU – Power Management Control CPU – Power Management Control P0 Fused Max Core Ratio P1 Fused Max Core Ratio P2 Fused Max Core Ratio P3 Fused Max Core Ratio Boot performance mode: [Max Battery] [Max Non-Turbo Performance]...
  • Page 35 [Disabled] [Enabled] View/Configure Turbo Options Current Turbo Settings Max Turbo Power Limit 4095.875 Min Turbo Power Limit Package TDP Limit 10.0 Power Limit 1 10.0 Power Limit 2 20.0 1-core Turbo Ratio 2- core Turbo Ratio 3- core Turbo Ratio 4- core Turbo Ratio Energy Efficient P-state: [Disabled]...
  • Page 36 PSYS PMax Power Acoustic Noise Settings Acoustic Noise Settings Acoustic Noise Mitigation: [Disabled] [Enabled] VccIn VR Domain Disable Fast PKG C State Ramp for VccIn Domain: [FALSE] [TRUE] Slow Slew Rate for VccIn Domain: [Fast/2] [Fast/4] [Fast/8] [Fast/16] VccIn VR Settings VccIn VR Domain VR Config Enable: [Disabled]...
  • Page 37 TDC Time Window: [1 ms] [2 ms] [3 ms] [4 ms] [5 ms] [6 ms] [7 ms] [8 ms] [9 ms] [10 ms] TDC Lock: [Disabled] [Enabled] RFI Settings RFI Domain RFI Current Frequency 139.200MHz RFI Frequency RFI Spread Spectrum Platform PL1 Enable: [Disabled] [Enabled]...
  • Page 38 [Disabled] [Enabled] CState Pre-Wake: [Disabled] [Enabled] IO MWAIT Redirection: [Disabled] [Enabled] Package C State Limit [C3] C6/C7 Short Latency Control(MSR 0x60B) Time Unit [1024 ns] Latency C6/C7 Short Latency Control(MSR 0x60C) Time Unit [1024 ns] Latency C8 Latency Control(MSR 0x633) Time Unit [1024 ns] Latency...
  • Page 39 Energy Performance Gain: [Disabled] [Enabled] EPG DIMM Idd3N EFG DIMM Idd3P Power Limit 3 Settings CPU Lock Configuration CFG Lock: [Disabled] [Enabled] Overclocking Lock: [Disabled] [Enabled] GT – Power Management Control GT – Power Management Control Maximum GT frequency: [Default Max Frequency] [100Mhz] [150Mhz] [200Mhz]...
  • Page 40 Disable Turbo GT frequency: [Enabled] [Disabled] 3.4.3 Thermal Configuration Thermal Configuration Enable All Thermal Funcations: [Disabled] [Enabled] CPU Thermal Configuration Cpu Thermal Configuration DTS SMM: [Disabled] [Enabled] [Critical Temp Reporting(Out of spec)] Tcc Activation Offset Tcc Offset Time Window: [Disabled] [5ms] [10 ms] [55 ms]...
  • Page 41 [40 sec] [48 sec] [56 sec] [64 sec] [80 sec] [96 sec] [112 sec] [128 sec] [160 sec] [192 sec] [224 sec] [256 sec] [320 sec] Tcc Offset Clamp Enable: [Disabled] [Enabled] Tcc Offset Lock Enable: [Disabled] [Enabled] Bi-directional PROCHOT#: [Disabled] [Enabled] Disable PROCHOT# Output:...
  • Page 42 [15 C] [23 C] [31 C] [39 C] [47 C] [55 C] [63 C] [71 C] [79 C] [87 C] [95 C] [100 C] [103 C] [111 C] [119 C (POR)] [127 C] [130 C] Active Trip Point 0: [Disabled] [15 C] [23 C] [31 C]...
  • Page 43 [63 C] [71 C] [79 C] [87 C] [95 C] [103 C] [111C] [119 C (POR)] Active Trip Point 1 Fan Speed: Passive Trip Point : [Disabled] [15 C] [23 C] [31 C] [39 C] [47 C] [55 C] [63 C] [71 C] [79 C] [87 C]...
  • Page 44 CPU Energy Read: [Disabled] [Enabled] CPU Temp Read: [Disabled] [Enabled] Alert Enable Lock: [Disabled] [Enabled] CPU Temp CPU Fan Speed DPTF Configuration DPTF Configuration Hardware Health Monitor Hardware Health Monitor Thermal Sensor 1 Temp 0.0 C Thermal Sensor 2 Temp 0.0 C Thermal Sensor 3 Temp 0.0 C...
  • Page 45 3.4.6 Super IO Configuration Super IO Configuration Super IO Chip IT8786 Serial Port 1 Configuration Serial Port 1 Configuration Serial Port: [Disabled] [Enabled] Device Settings IO=3F8h; IRQ=4; Change Settings: [Auto] [IO=3F8h; IRQ=4] [IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12;] [IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12;] [IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;] [IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;] COM1 Config: [RS232 mode] [RS485 mode]...
  • Page 46 Change Settings: [Auto] Serial Port 4 Configuration Serial Port 4 Configuration Serial Port: [Disabled] [Enabled] Device Settings IO=2E8h; IRQ=4; Change Settings: [Auto] Serial Port 5 Configuration Serial Port 5 Configuration Serial Port: [Disabled] [Enabled] Device Settings IO=2F0h; IRQ=4; Change Settings: [Auto] COM5 Config: [RS485 mode]...
  • Page 47 CPU_CORE_VIN : +1.653 V +1.2V : +1.236 V +12V : +13.120 V : +5.123 V Smart Fan Function Fan 1 Setting Fan 1 Setting Smart Fan 1 Mode: [Software Mode] [Automatic Mode] Fan 1 Type: [PWM] [RPM] Tempurature select: [TMPIN1] [TMPIN2] [TMPIN3] Fan off temperature limit:...
  • Page 48 [EDP1] [DP1] Brightness Setting BIST Enable: [Disabled] [Enabled] 3.4.12 Network Stack Configuration Network Stack: [Disabled] [Enabled] 3.4.13 NVME Configuration NVMe Configuration No NVME Device Found PHANTAM-8XXB Series User Manual...

  • Page 49: Chipset Settings

    3.5 Chipset Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit ►System Agent (SA) Configuration System Agent (SA) ►PCH-IO Configuration Parameters →←: Select Screen ↑↓ : Select Item Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit...
  • Page 50 [2- Enabled HOT only] LPDDR Thermal Sensor: [Disabled] [Enabled] SelfRefresh Enable: [Disabled] [Enabled] SelfRefresh IdleTimer: Throttler CKEMin Defeature: [Enabled] [Disabled] Throttler CKKEMin Timer: For LPDDR Only: Throttler CKEMin Defeature: [Enabled] [Disabled] For LPDDR Only: Throttler CKEMin Timer: 64 Dram Power Meter Dram Power Meter Use user provided power weights, Sacle factor, and channel power...
  • Page 51 Write Energy Ch1Dimm0 Idle Energy Ch1Dimm1 PowerDown Energy Ch1Dimm1 Activate Energy Ch1Dimm1 Read Energy Ch1Dimm1 Write Energy Ch1Dimm1 Memory Thermal Reporting Lock Thermal Management Registers: [Disabled] [Enabled] Memory Thermal Reporting Extern Therm Status: [Disabled] [Enabled] Closed Loop Therm Manage: [Disabled] [Enabled] Open Loop Therm Manage: [Disabled]...
  • Page 52 Hot Budget Ch1 Dimm0 Hot Budget Ch1 Dimm1 Memory RAPL Memory RAPL Rap1 Power Floor Ch0 Rap1 Power Floor Ch1 RAPL PL Lock: [Disabled] [Enabled] RAPL PL 1 enable: [Disabled] [Enabled] RAPL PL 1 Power RAPL PL 1 WindowX RAPL PL 1 WindowY RAPL PL 2 enable: [Disabled] [Enabled]...
  • Page 53 [Disabled] [Enabled] Jedec Write Leveling: [Disabled] [Enabled] LPDDR4 Write DQ DQS Retraining: [Disabled] [Enabled] Early Write Time Centering 2D: [Disabled] [Enabled] Early Read Time Centering 2D: [Disabled] [Enabled] Write Timing Centering 1D: [Disabled] [Enabled] Write Voltage Centering 1D: [Disabled] [Enabled] Read Timing Centering 1D: [Disabled] [Enabled]...
  • Page 54 [Disabled] [Enabled] Read Amplifier Training*: [Disabled] [Enabled] Write Timing Centering 2D: [Disabled] [Enabled] Read Timing Centering 2D: [Disabled] [Enabled] Command Voltage Centering: [Disabled] [Enabled] Write Voltage Centering 2D: [Disabled] [Enabled] Read Voltage Centering 2D: [Disabled] [Enabled] Late Command Training: [Disabled] [Enabled] Round Trip Latency: [Disabled]...
  • Page 55 [Disabled] [Enabled] DIMM SPD Alias Test: [Disabled] [Enabled] Receive Enable Centering 1D: [Disabled] [Enabled] Retrain Margin Check: [Disabled] [Enabled] Write Drive Strength Up/ Dnindependently: [Disabled] [Enabled] Command Slew Rate Training: [Disabled] [Enabled] Command Drive Strength and Equalization: [Disabled] [Enabled] Command Normalization: [Disabled] [Enabled] Early DQ Write Drive Strength and...
  • Page 56 [Disabled] [Enabled] Duty Cycle Correction: [Disabled] [Enabled] DQ DFE Training: [Disabled] [Enabled] Sense Amplifier Correction Training: [Disabled] [Enabled] Memory Configuration Memory RC Version 0.0.4.104 Memory Data Rate 3200 MTPS Memory Timings (tCL-tRCD-tRP-tRAS) 22-22-22-52 Channel 0 Slot 0 Not Populated / Disabled Channel 0 Slot 1 Not Populated / Disabled Channel 1 Slot 0...
  • Page 57 [1800] [1867] [2000] [2133] [2200] [2400] [2600] [2667] [2800] [2933] [3000] [3200] [3467] [3600] [3733] [4000] [4200] [4267] HOB Buffer Size: [Auto] [1B] [1KB] [Max (assuming 63KB total HOB size)] Max TOLUD: [Dynamic] [1 GB] [1.25 GB] [1.5 GB] [1.75 GB] [2 GB] [2.25 GB] [2.5 GB]...
  • Page 58 [Disabled] [Enabled] DDR4_1DPC: [Disabled] [Enabled on DIMM0 only] [Enabled on DIMM1 only] [Enabled] Enable RH Prevention: [Disabled] [Enabled] REFRESH_PANIC_WM: REFRESH_HP_WM: Exit On Failure (MRC): [Disabled] [Enabled] Enable/Disable IED (Intel Enhanced Debug): [Enabled] [Disabled] Ch Hash Support: [Disabled] [Enabled] Ch Hash Mask: 12492 Ch Hash Interleaved Bit: [BIT6]...
  • Page 59 [PPD-DLLoff] Page Close Idle Timeout: [Enabled] [Disabled] Memory Scrambler: [Enabled] [Disabled] Force ColdReset: [Enabled] [Disabled] Channel 0 DIMM Control: [Enable both DIMMs] [Disable DIMM0] [Disable DIMM1] [Disable both DIMMs] Channel 1 DIMM Control: [Enable both DIMMs] [Disable DIMM0] [Disable DIMM1] [Disable both DIMMs] Force Single Rank: [Disabled]...
  • Page 60 Rank Margin Tool Per Task: [Disabled] [Enabled] Training Tracing: [Disabled] [Enabled] Lpddr Mem WL Set: [Set A] [Set B] BDAT Memory Test Type [Rank Margin Tool Rank] Rank Margin Tool Loop Count: Low Supply for LPDDR4 Data: [Disabled] [Enabled] Low Supply for LPDDR4 Clock/Command/Control: [Disabled] [Enabled]...
  • Page 61 [PCIE 8] [PCIE 9] [PCIE 10] [PCIE 11] [PCIE 12] [PCIE 13] [PCIE 14] [PCIE 15] [PCIE 16] [PCIE 17] [PCIE 18] [PCIE 19] Internal Graphics: [Auto] [Disabled] [Enabled] GTT Size: [2 MB] [4 MB] [8 MB] Aperture Size: [128 MB] [256 MB] [512 MB] [1024 MB]...
  • Page 62 [28M] [32M/F7] [36M] [40M] [44M] [48M] [52M] [56M] [60M] DVMT Total Gfx Mem: [128M] [256M] [MAX] DISM Size: [0GB] [1GB] [2GB] [3GB] [4GB] [5GB] [6GB] [7GB] Intel Graphics Pei Display Peim: [Enabled] [Disabled] VDD Enable: [Disabled] [Enabled] Configure GT for use: [Enabled] [Disabled] PAVP Enable:...
  • Page 63 [Max CdClock freq based on Reference C1k] Skip Full CD Clock Init: [Enabled] [Disabled] VBT Select: [eDP] [MIPI] IUER Button Enable: [Disabled] [Enabled] Intel(R) Ultrabook Event Support: Intel(R) Ultrabook Event Support IUER Slate Enable: [Disabled] [Enabled] IUER Dock Enable: [Disabled] [Enabled] VT-d: [Disabled]...
  • Page 64 3.5.2 PCH-IO Configuration PCH-IO Configuration PCI Express Configuration PCI Express Configuration DMI Link ASPM Control: [Disabled] [L0s] [L1] [L0sL1] [Auto] PCIE Port assigned to LAN Disabled Port8xh Decode: [Disabled] [Enabled] Peer Memory write Enable: [Disabled] [Enabled] Compliance Test Mode: [Disabled] [Enabled] PCH PCI Express Clock Gating: [Platform-POR]...
  • Page 65 [Disabled] [L0s] [L1] [L0sL1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE:...
  • Page 66 PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual]...
  • Page 67 [Disabled] [Enabled] Prefetchable Memory: Reserved Memory Alignment: Prefetchable Memory Alignment: PCIe Express Root Port 2 PCIe Express Root Port 2: [Disabled] [Enabled] Connection Type: [Built - in] [Slot] ASPM: [Disabled] [L0s] [L1] [L0sL1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] ACS: [Disabled] [Enabled]...
  • Page 68 NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O:...
  • Page 69 [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] Force LTR Override: [Disabled] [Enabled] LTR Lock: [Disabled] [Enabled] Extra options Detect Non-Compliance Device: [Disabled] [Enabled] Prefetchable Memory: Reserved Memory Alignment: Prefetchable Memory Alignment: PCIe Express Root Port 3 PCIe Express Root Port 3: [Disabled] [Enabled] Connection Type:...
  • Page 70 PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed:...
  • Page 71 [Gen2] [Gen3] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] Force LTR Override: [Disabled] [Enabled] LTR Lock: [Disabled]...
  • Page 72 Connection Type: [Built - in] [Slot] ASPM: [Disabled] [L0s] [L1] [L0sL1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled]...
  • Page 73 [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled]...
  • Page 74 [Enabled] Extra options Detect Non-Compliance Device: [Disabled] [Enabled] Prefetchable Memory: Reserved Memory Alignment: Prefetchable Memory Alignment: USB/SATA/UFS PCI Express Root Port 5 PCI Express Root Port 5: [Disabled] [Enabled] Connection Type: [Built-in] [Slot] ASPM: [Disabled] [L0s] [L1] [L0sL1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 &...
  • Page 75 TC3: [VC0] [VC1] TC4: [VC0] [VC1] TC5: [VC0] [VC1] TC6: [VC0] [VC1] TC7: [VC0] [VC1] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] PHANTAM-8XXB Series User Manual...
  • Page 76 SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled]...
  • Page 77 [Enabled] Extra options Detect Non-Compliance Device: [Disabled] [Enabled] Prefetchable Memory: Reserved Memory Alignment: Prefetchable Memory Alignment: PCI Express Root Port 6 Lane configured as USB/SATA/UFS PCI Express Root Port 7 PCI Express Root Port 7: [Disabled] [Enabled] Connection Type: [Built-in] [Slot] ASPM: [Disabled]...
  • Page 78 TC3: [VC0] [VC1] TC4: [VC0] [VC1] TC5: [VC0] [VC1] TC6: [VC0] [VC1] TC7: [VC0] [VC1] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] PHANTAM-8XXB Series User Manual...
  • Page 79 SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled]...
  • Page 80 Extra options Detect Non-Compliance Device: [Disabled] [Enabled] Prefetchable Memory: Reserved Memory Alignment: Prefetchable Memory Alignment: PCIE clocks Clock0 assignment: [Platform-POR] [Enabled] [Disabled] ClkReq for Clock0: [Platform-POR] [Disabled] Clock1 assignment: [Platform-POR] [Enabled] [Disabled] ClkReq for Clock1: [Platform-POR] [Disabled] Clock2 assignment: [Platform-POR] [Enabled] [Disabled] ClkReq for Clock2:...
  • Page 81 [Disabled] ClkReq for Clock4: [Platform-POR] [Disabled] Clock5 assignment: [Platform-POR] [Enabled] [Disabled] ClkReq for Clock5: [Platform-POR] [Disabled] SATA Configuration SATA Configuration SATA Controller(s): [Enabled] [Disabled] SATA Mode Selection: AHCI SATA Ports Multiplier: [Enabled] [Disabled] SATA Test Mode: [Enabled] [Disabled] Software Feature Mask Configuration Software Feature Mask Configuration HDD Unlock: [Disabled]...
  • Page 82 [Enabled] Configured as eSATA Hot Plug supported External: [Disabled] [Enabled] Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 0 DevSlp: [Disabled] [Enabled] SATA Port 0 RxPolarity: [Disabled] [Enabled] DITO Configuration:...
  • Page 83 Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 1 DevSlp: [Disabled] [Enabled] SATA Port 1 RxPolarity: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value DM Value Serial ATA Port 2 Empty Software Preserve...
  • Page 84 Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 2 DevSlp: [Disabled] [Enabled] SATA Port 2 RxPolarity: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value DM Value USB Configuration USB Configuration XHCI Compliance Mode: [Disabled] [Enabled] xDCI Support: [Disabled] [Enabled] USB2 PHY Sus Well Power Gating: [Disabled] [Enabled]...
  • Page 85 USB Overcurrent Lock: [Disabled] [Enabled] USB Port Disable Override: [Disabled] [Select Per-Pin] USB Device/HOST Mode Override: [Disabled] [Select Per-Pin] USB UCSI ACPI device: [Disabled] [Enabled] SCS Configuration eMMC 5.1 Controller: [Disabled] [Enabled] eMMC 5.1 HS400 Mode: [Disabled] [Enabled] Enable HS400 software tuning: [Disabled] [Enabled] Enable HS400 software tuning:...

  • Page 86: Security Settings

    3.6 Security Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this Is a power on password and must be entered to Is a power on password and must be entered to...

  • Page 87: Boot Settings

    3.7 Boot Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Boot Configuration Number of seconds toWait for Setup Prompt Timeout Setup Activation key. Bootup NumLock State [Off] 65535(0xFFFF)means Indef Quiet Boot [Enabled] inite waiting. Boot Option Priorities Fast Boot [Disabled] →←: Select Screen...

  • Page 88: Save & Exit Settings

    3.8 Save & Exit Settings Aptio Setup - AMI Main Advanced Chipset Boot Security Save & Exit Save options Exit system setup after Save Changes and Exit Saving the changes. Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Save Changes Discard Changes →←: Select Screen...
  • Page 89 [Yes] [No] Discard Changes Discard Changes done so far to any of the setup options? [Yes] [No] Restore Defaults Restore /Load Defaults values for all the setup options? [Yes] [No] Save as user Defaults Save the changes done so far as User Defaults? [Yes] [No] Restore user Defaults...

  • Page 90: Chapter 4 Installation Of Drivers

    Installation of Drivers Chapter 4 This chapter describes the installation procedures for software and drivers under the windows 10. The software and drivers are included with the motherboard. The contents include Intel Chipset, Graphics chipset driver, Audio driver, LAN driver and Intel® management engine interface. The instructions are as below.

  • Page 91: Intel Chipset

    Intel Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Here is welcome page. Please make sure you save and exit all programs before install. Click Next. Step 2. Read the license agreement. Click Accept to accept all of the terms of the license agreement.
  • Page 92 Step 3. Click Install to begin the installation. Step 4. Select Restart Now to reboot your computer for the changes to take effect. PHANTAM-8XXB Series User Manual...

  • Page 93: Intel® Hd Graphics Chipset

    Intel® HD Graphics Chipset To install the Intel® HD Graphics Chipset, please follow the steps below. Step 1. Click Begin installation. Step 2. Read the license agreement. Click I agree to accept all the terms of the license agreement. PHANTAM-8XXB Series User Manual...
  • Page 94 Step 3. Choose Install function and Click Start to setup program. Step 5. Click Finish to complete installation. PHANTAM-8XXB Series User Manual...

  • Page 95: Realtek Hd Audio Driver Installation

    Realtek HD Audio Driver Installation To install the Realtek HD Audio Driver, please follow the steps below. Step 1. Click Next to continue. Step 2. Click Yes, I want to restart my computer now. Click Finish to complete the installation. PHANTAM-8XXB Series User Manual...

  • Page 96: Lan Driver

    LAN Driver To install the LAN driver, please follow the steps below. Step 1. Click Zip File to continue. Step 3. Click OK to begin the installation. Step 4. Click Close to finish installation. PHANTAM-8XXB Series User Manual...

  • Page 97: Intel® Management Engine Interface

    Intel® Management Engine Interface To install the Intel® Management Engine Interface, please follow the steps below. Step 1. Select setup language you need. Click Next to continue. Step 2. Choose I accept the terms in the License Agreement and click Next to begin the installation.
  • Page 98 Step 3. Click Next to continue. Step 4. Click Finish to complete the installation. PHANTAM-8XXB Series User Manual...

  • Page 99: Touch Screen Installation

    Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. Windows 10 Universal Driver Installation for PenMount 6000 4.6.1 Series Before installing the Windows 10 driver software, you must have the Windows 10 system installed and running on your computer.
  • Page 100 Step 1. Click Next to continue. Step 2. Read the license agreement. Click I Agree to agree the license agreement. PHANTAM-8XXB Series User Manual...
  • Page 101 Step 3. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. Step 4. Click Yes to continue. PHANTAM-8XXB Series User Manual...
  • Page 102 Step 5. Click Finish to complete installation. PHANTAM-8XXB Series User Manual...
  • Page 103 Software Functions 4.6.2 Resistive Touch Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 104 Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens. Click this button and touch the red squares in sequence with a stylus. To skip, press ESC’. Step 1. Please select a device then click “Configure”. You can also double click the device too. Step 2.Click “Standard Calibration”...
  • Page 105 NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: Step 3. Select Device to calibrate, then you can start to do Advanced Calibration. PHANTAM-8XXB Series User Manual...
  • Page 106 NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration.
  • Page 107 Touch Mode This mode enables and disables the mouse’s ability to drag on-screen icons – useful for configuring POS terminals. Mouse Emulation – Select this mode and the mouse functions as normal and allows dragging of icons. Click on Touch – Select this mode and mouse only provides a click function, and dragging is disables.
  • Page 108 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows 7/8/8.1 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 109 When the mapping screen message appears, click OK. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. Touching all screens completes the mapping and the desktop reappears on the monitors. Select a display and execute the “Calibration”...
  • Page 110 NOTES: 1. If you use a single VGA output for multiple monitors, please do not use the Multiple Monitor function. Just follow the regular procedure for calibration on each of your desktop monitors. 2. The Rotating function is disabled if you use the Multiple Monitor function. 3.
  • Page 111 Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions. Exit Exits the PenMount Monitor function. Configuring the Rotate Function 1.

This manual is also suitable for:

Phantam-816bpPhantam-816brPhantam-816bphPhantam-816brhPhantam-821bpPhantam-821br ... Show all

Table of Contents
