- Page 1 Monoprice 27in USB-C CrystalPro Monitor P/N 44522 User Manual...
-
Page 2: Table Of Contents
Thank you for purchasing this product To ensure optimum performance and safety, read the following instructions before connecting, operating, or adjusting the product. Keep this manual for future reference. Table of Contents Safety Warnings and Guidelines .......................... 2 Introduction..................................2 Features .................................... -
Page 3: Safety Warnings And Guidelines
Safety Warnings and Guidelines Keep the User Manual • Install in accordance with the User Manual • Do not use water near the product • Clean with a dry and soft cloth • Prevent blocking any ventilation openings • Avoid installing near any heat source such as radiators, heat registers, stoves, •... -
Page 4: Introduction

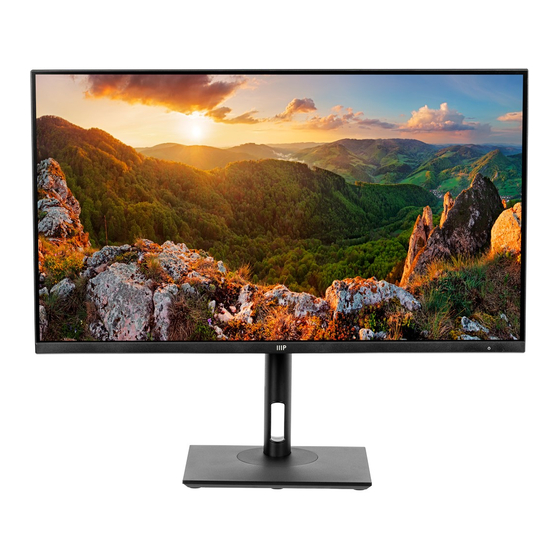

It includes a USB Type‑C® video input, with 65 watts of Power Delivery (PD) for charging/powering the connected device. The 27" CrystalPro™ 4K UHD Monitor features an A+ grade panel and, as with all our monitors, is backed by our 1 Year PixelPerfect™ guarantee. -
Page 5: Power Indicator Light
Power Indicator Light Indicator Mode No light Power Off Green light Normal Green light flashing No signal input OSD Menu PICTURE The function adjusts the BRIGHTNESS, CONTRAST, DCR, and ECO of the monitor. BRIGHTNESS – Adjusts display brightness. 2. CONTRAST – Adjusts display contrast ratio. 3. - Page 6 PICTURE The function adjusts the color temperature. Color Temperature - This option adjusts the intensity of the color. a. Normal - Normal color temperature. b. Warm - Warm color temperature. c. COOL - Cool color temperature. d. USER - This color temperature is for users who would like to adjust the RGB (red, green, blue) values manually.
- Page 7 OSD SETTING The function allows you to change and adjust the OSD options. Language - Select the desired language. 2. OSD H-position - Adjusts OSD horizontal position. 3. OSD V-position - Adjusts OSD vertical position. 4. OSD Transparency - Adjusts OSD transparency. 5.
- Page 8 SETUP The function allows you to change the signal source and adjust the volume. INPUT SOURCE a. HDMI - Select HDMI as the video source of the monitor b. DP - Select DP (Display Port) as the video source of the monitor c.
- Page 9 OTHER SETTINGS This function includes some new features. Aspect Ratio a. Wide Screen - Set Aspect Ratio is Wide Screen b. 4:3 - Set Aspect Ratio is 4:3 c. 1:1 - Set Aspect Ratio is 1:1 d. Auto - Set Aspect Ratio is Auto 2.
- Page 10 5. HDR - Turns the HDR of the monitor on or off 6. Multi-Window a. Multi-Window - Select Multi-window mode b. Sub Win2 Input - Select the source to display in the second window c. PIP Size - Change the size of the Sub Window in PIP mode d.
- Page 11 Keys Function Press and hold the "OK key" for 6 seconds to turn it on and off. 2. When the display is turned on, click "OK" to open the main menu for one second. Power/OK 3. Select the "direction key" to select the items to be adjusted up and down in the main menu.
-
Page 12: Connection
Connection Connect the power cord to the AC IN port found on the back of the monitor. Plug the power cord into a nearby outlet. Use a connection appropriate for your computer. Use the HDMI/TYPE-C/DP connector on the video card. -
Page 13: Specifications
Specifications Model 44522 Display Size 27” Resolution 3840x2160 Refresh Rate 60Hz Type Active Area 596.736(H)x335.664(V)mm Curvature Flat Aspect Ratio 16:9 Brightness 400 nits Contrast Ratio 1200:1 Color 1.07B sRGB CIE1976 100% Spec DCI-P3 CIE1976 95% Color 6500/7500 (Default)/9300. temperature View Angle 178°/178°... - Page 14 Control Navigation button Language 7 languages Menu Input 100-240AC 50/60Hz Power Power type Internal Consumption Max: 45W STB≤0.5W Kensington lock VESA 100x100mm Stand Adjustable 24.17” (613.8mm) x 14.27” (362.5mm) x 2.11” W/O Stand (53.7mm) 24.17” (613.8mm) x 21.16in (537.4mm) x 8.93” With Stand (226.8mm) Construction...
- Page 15 Altitude ≤16404ft (5000m) 1. Color Temp. (cold/warm/user) 2. Low blue color control 3. Navigation button 4. DCR Key Functions 5. Multi-language Menu 6. HDR 7. FPS/RTS Gaming mode switch 8. PIP/PBP...
- Page 16 If you have any problems with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com.
- Page 17 Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
- Page 18 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2023 Monoprice, Inc. All rights reserved.
