Summary of Contents for Monoprice 38035

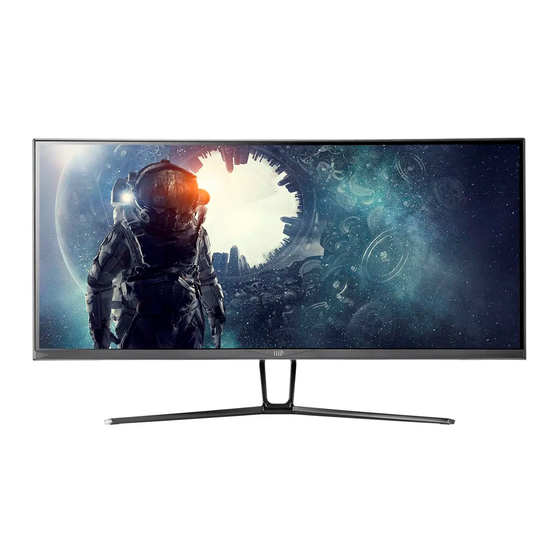

- Page 1 35" UWQHD 100Hz Zero-G Gaming Monitor P/N 38035 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ........................3 FEATURES ......................................4 SYSTEM REQUIREMENTS ..............................5 CUSTOMER SERVICE ................................. 5 PACKAGE CONTENTS ................................5 PRODUCT OVERVIEW ................................7 Controls ....................................... 7 Connections .................................... 8 INSTALLING THE STAND ............................... 8 REMOVING THE STAND ................................. 9 USING A WALL OR DESK MOUNT .......................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 4: Features
Take care to prevent damage to the power cord. Do not allow it to become crimped, pinched, walked on, or become tangled with other cords. Ensure that the power cord does not present a tripping hazard. Never unplug the unit by pulling on the power cord. Always grasp the ... -
Page 5: System Requirements
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. - Page 6 1x Stand Stem 1x Stand Base 3x K-Head Screws (M4x12) 4x P-Head Screws (M4x10) 4x Wall Mount Screws (Installed) 2x Wall Mount Adapters 1x AC Power Cord 1x User's Manual...
-
Page 7: Product Overview
PRODUCT OVERVIEW Controls MENU: If the OSD menu is not displayed, press the MENU button to access the OSD menu. If the OSD menu is displayed, press the MENU button to enter a submenu. If editing a value, press the MENU button to save the edited value. -
Page 8: Connections
Connections AC POWER SOCKET: NEMA 5-15 socket for connecting the included AC power cord. AUDIO: 3.5mm stereo jack for connecting headphones, powered speakers, etc. DISPLAYPORT: DisplayPort® 1.2a video input. 10. HDMI 1: HDMI® 2.0 video input. HDMI 2: HDMI 1.4 video input. 12. -
Page 9: Removing The Stand
Remove the monitor from the box and place it face down with the foam packaging on a table or floor, then remove the rear piece of foam packaging. Press the Button on the back of the monitor, as shown in the image below, then remove the Stand Plate. -
Page 10: Using A Wall Or Desk Mount
USING A WALL OR DESK MOUNT The monitor supports a 100x100 VESA® mounting pattern, allowing it to be used with a compatible wall or desk mount (not included). Perform the following steps to attach the monitor to a mount. Install the wall or desk mount using the instructions included with the mount. - Page 11 Main Menu Submenu Options Description Brightness 0~100 Adjusts the display brightness Brightness/ Contrast 0~100 Adjusts the display contrast Contrast On, Off Turn DCR on or off Gamma 1.8 Gamma 2.0 Gamma Gamma 2.2 Sets the Gamma level Gamma 2.4 Gamma 2.6 Standard, Photo, Picture Mode...
- Page 12 Main Menu Submenu Options Description Off, High, Super Enhances the image resolution Middle, Resolution when the actual resolution is low Picture Quality Dynamic Compensates for gray scale Setting Luminous On, Off display screen and strengthens Control the expression of gray scale Wide Screen, Aspect Ratio...
- Page 13 Main Menu Submenu Options Description English, Chines, Korean, Sets the language used in the OSD Language Russian, menu Spanish, Japanese, French OSD H- Adjusts the horizontal position of 0~100 Position the OSD menu OSD V- Adjusts the vertical position of the 0~100 Position OSD menu...
-
Page 14: Troubleshooting
TROUBLESHOOTING The screen is blank. Ensure that power is turned on. Check the brightness/contrast settings. Check the LED INDICATOR. If it is flashing, no video signal is being received. Check the display settings of the connected device. The image is out of focus. Check the video cable connection. -
Page 15: Technical Support
A11: Check the settings in the monitor's OSD menu and PC display settings. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 16: Specifications
SPECIFICATIONS Model 38035 1x DisplayPort® 1.2, 1x HDMI® 2.0, Video Inputs 2x HDMI 1.4 Display Size 35" Curvature 1800R Active Display Area 32.2" x 13.6" (819 x 346 mm) Panel Type Panel Model AUO M350QVR01.1 Maximum Resolution 3440x1440p Maximum Refresh Rate 100Hz VESA®... -
Page 17: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. -
Page 18: Notice For Industry Canada
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
