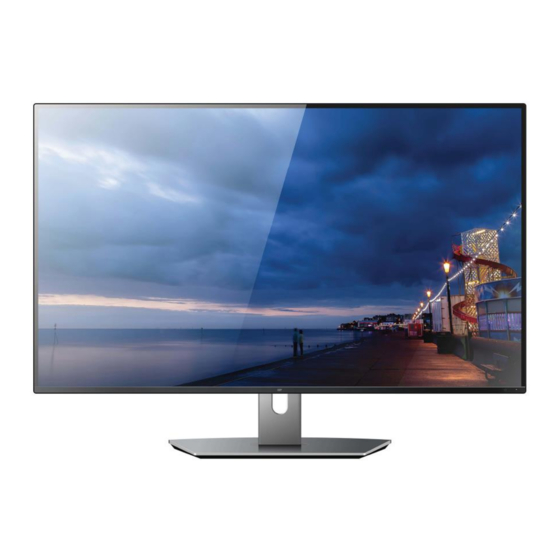

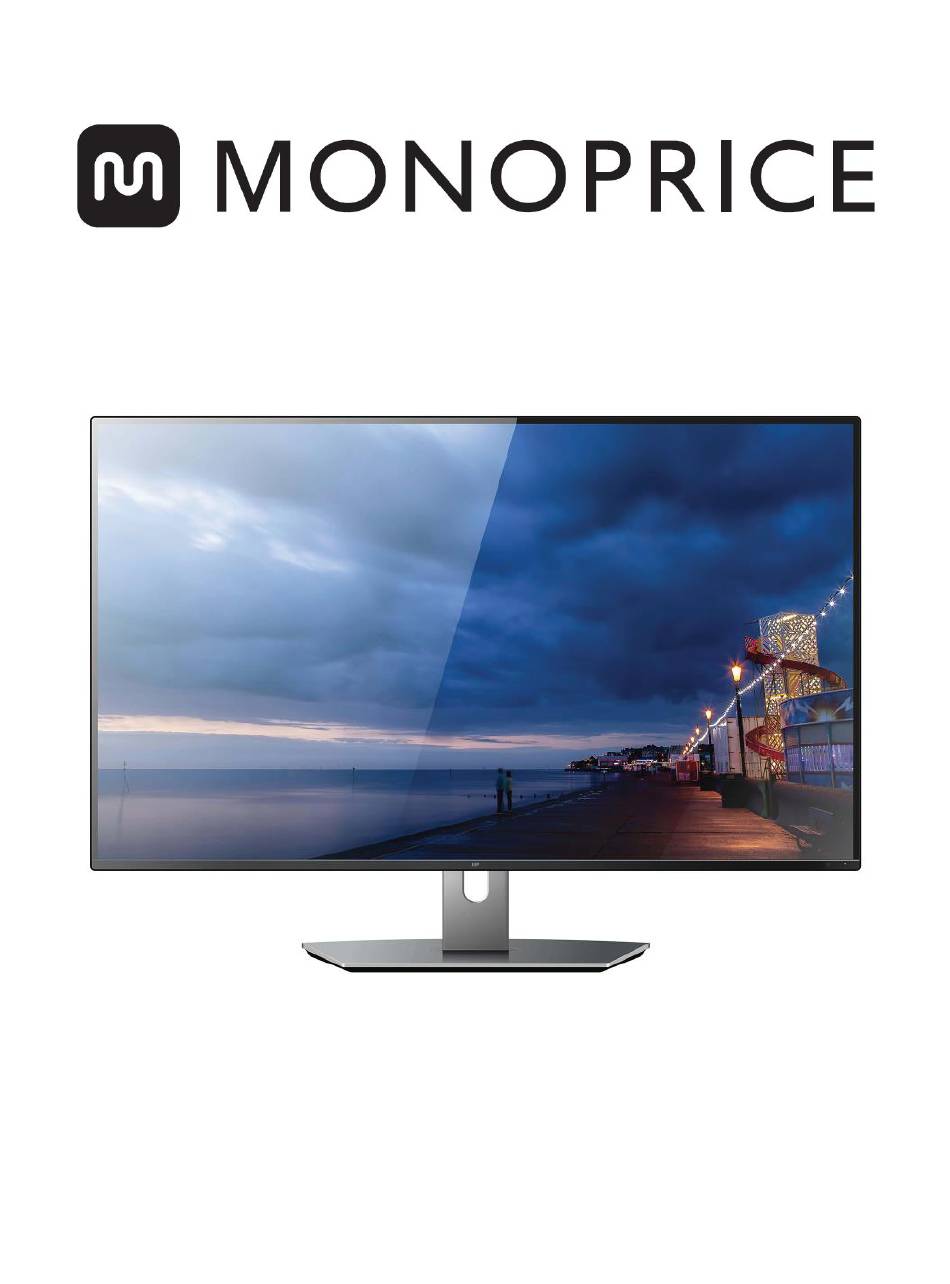

- Page 1 27" CrystalPro WQHD Monitor P/N 37922, 38940 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................4 SETUP ............................................5 KENSINGTON SECURITY SLOT ................................6 OSD MENU ........................................... 7 Button Labels and Functions ................................ 7 Menu Structure ......................................8 TECHNICAL SUPPORT ....................................12 SPECIFICATIONS ...................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This monitor is intended for indoor use only. ... -
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Setup
SETUP Perform the following steps to prepare your monitor for use. 1. Either assemble the stand and attach it to the rear of the monitor or mount the monitor to a wall or desk mount. 2. Plug one end of the included HDMI® cable into one of the HDMI inputs on the monitor, then plug the other end into the HDMI video output on your computer. -
Page 6: Kensington Security Slot
KENSINGTON SECURITY SLOT This monitor features a Kensington Security Slot™, which can be used to secure your monitor to prevent theft. The connector is located on the rear of the monitor. The following image illustrates an example of usage to secure the monitor to a table or desk. For more information on installation and usage, please visit the Kensington website at the following address: http://www.kensington.com... -
Page 7: Osd Menu
OSD MENU Button Labels and Functions Pressing any of the control buttons, other than the Power Button ( ), causes the button labels to appear on screen above their respective buttons. Following are the basic menu level button labels, from left to right. View Mode: Displays a quick menu that allows for selection of one of nine video equalization presets (Standard, FPS Game, RTS Game, MOBA Game, Movie, Web, Text, MAC, and Mono). -
Page 8: Menu Structure
Down: Moves the highlight down. Left/Decrease: Moves the highlight to the left or decreases the displayed value when editing an entry. Right/Increase: Moves the highlight to the right or increases the displayed value when editing an entry. Menu Structure Input Select HDMI 1 HDMI 2 DisplayPort... - Page 9 Text Mono Color Adjust Contrast/Brightness Contrast (0-100) Brightness (0-100) Color Temperature sRGB Bluish Cool Native Warm User Color Red (0-100) Green (0-100) Blue (0-100) Color Space Auto RGB Mode YUV Mode Color Range Auto Full Range...
- Page 10 Limited Range Auto Force 2048 Manual Image Adjust Sharpness (0-100 in increments of 25) Blue Light Filter (0-100) Aspect Ratio Fill Aspect Ratio Full Screen Overscan (On/Off) Black Stabilization (0-100 in increments of 10) Advanced DCR (0/25/50/75/100) Response Time Standard Advanced Ultra Fast Setup Menu...
- Page 11 Spanish Italian Finnish Russian Turkish Japanese Traditional Chinese Simplified Chinese Korean Resolution Notice (On/Off) Information Resolution H. Frequency V. Frequency Pixel Clock OSD Timeout (5/15/30/60 seconds) OSD Background (On/Off) Auto Power Off (On/Off) Sleep (30/45/60/120 minutes/Off) ECO Mode Standard Optimize Conserve DDC/CI (On/Off) Memory Recall...
-
Page 12: Technical Support
DisplayPort TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 13: Specifications
SPECIFICATIONS Model 37922, 38940 Display Size 27" (686 mm) Display Type TFT Active Matrix Display Finish Anti-glare Display Area 23.5" x 13.2" (597 x 336 mm) Video Inputs 2x HDMI®, 1x DisplayPort® Maximum Resolution 2560 x 1440 @60Hz Color Filter RGB vertical stripe Pixel Pitch 0.2311 x 0.2311 mm... -
Page 14: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. -
Page 15: Notice For Industry Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. EU Declaration of Conformity Monoprice, Inc. declares the product described within this user guide or manual is in compliance with below applicable directives. The full text of the EU Declaration of Conformity is available at the following internet address: https://www.monoprice.com/product?p_id=37922... -
Page 16: Safety Notice
For Consumers in the European Union: This EU Directive requires that the product bearing this symbol and or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
