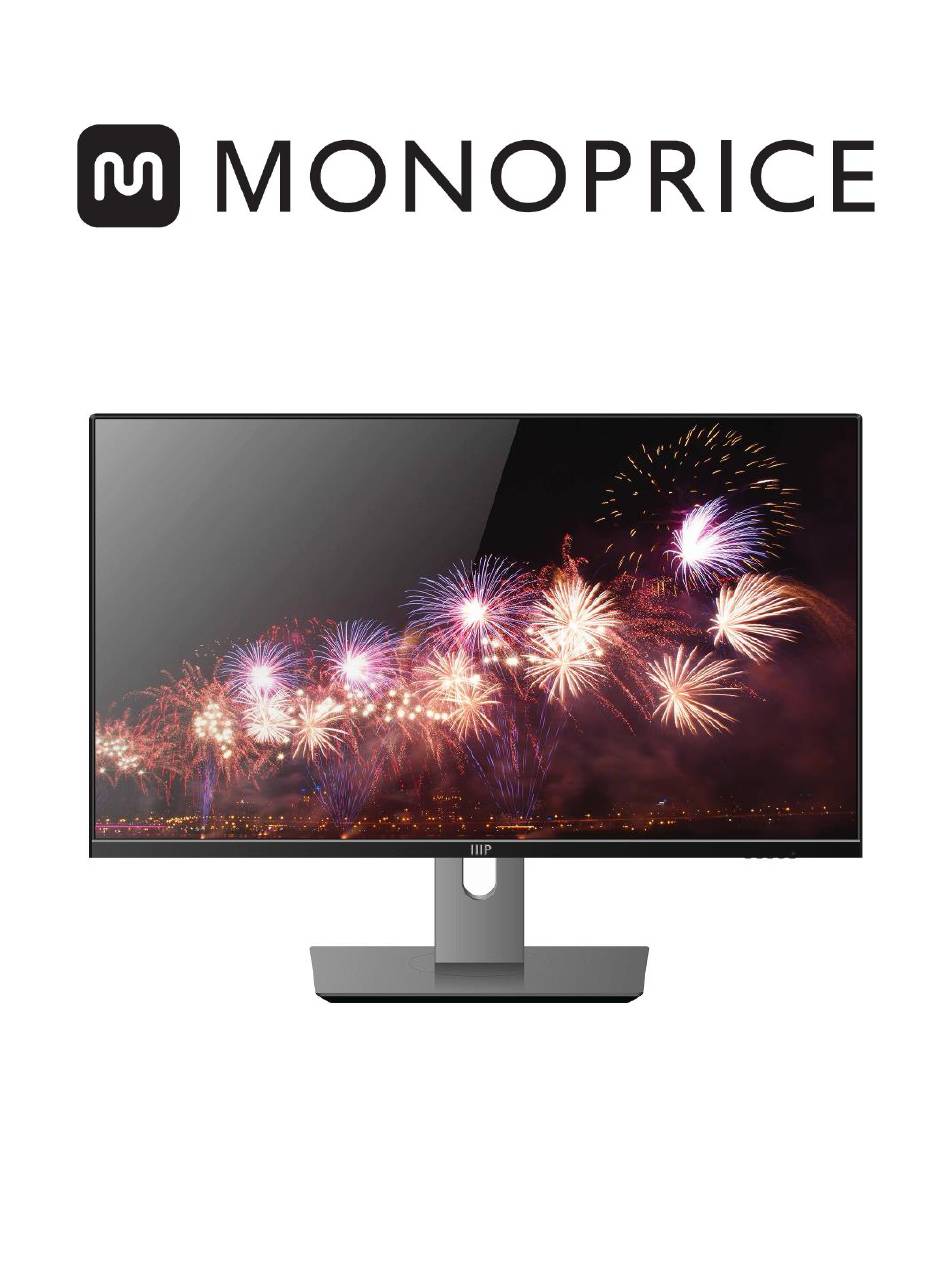

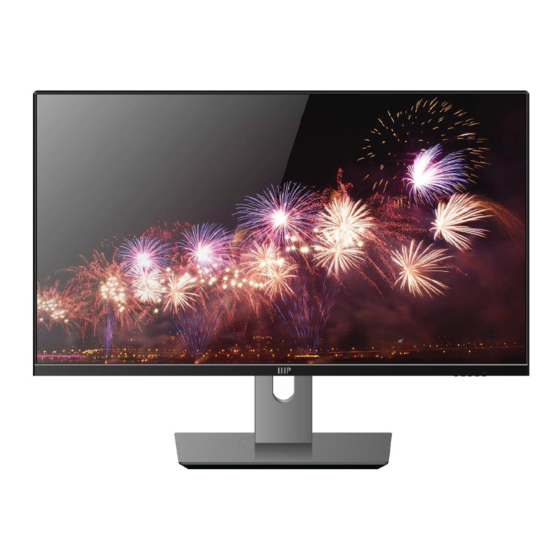

- Page 1 27" CrystalPro UHD 4K Monitor P/N 37923, 38939 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................4 SETUP ............................................5 KENSINGTON SECURITY SLOT ................................6 OSD MENU ........................................... 7 Button Labels and Functions ................................ 7 Menu Structure ......................................8 SPECIFICATIONS ......................................14 TECHNICAL SUPPORT .................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This monitor is intended for indoor use only. ... -
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Setup
SETUP Perform the following steps to prepare your monitor for use. 1. Either assemble the stand and attach it to the rear of the monitor or mount the monitor to a wall or desk mount. 2. Plug one end of the included HDMI® cable into one of the HDMI inputs on the monitor, then plug the other end into the HDMI video output on your computer. -
Page 6: Kensington Security Slot
KENSINGTON SECURITY SLOT This monitor features a Kensington Security Slot™, which can be used to secure your monitor to prevent theft. The connector is located on the rear of the monitor. The following image illustrates an example of usage to secure the monitor to a table or desk. For more information on installation and usage, please visit the Kensington website at the following address: http://www.kensington.com... -
Page 7: Osd Menu
OSD MENU Button Labels and Functions Pressing any of the control buttons, other than the Power Button ( ), causes the button labels to appear on screen above their respective buttons. Following are the basic menu level button labels, from left to right. View Mode: Displays a quick menu that allows for selection of one of nine video equalization presets (Standard, Game, Movie, Web, Text, MAC, and Mono). -
Page 8: Menu Structure
Left/Decrease: Moves the highlight to the left or decreases the displayed value when editing an entry. Right/Increase: Moves the highlight to the right or increases the displayed value when editing an entry. Menu Structure Input Select HDMI 1 HDMI 2 DisplayPort Audio Adjust Volume (0-100) - Page 9 Ultra Fast Recall Game GAMER 1 Low Input Lag (On/Off) Black Stabilization (0-100 in increments of 10) Advanced DCR (0/25/50/75/100) Blue Light Filter (0-100) Response Time Standard Advanced Ultra Fast Rename Recall GAMER 2 Low Input Lag (On/Off) Black Stabilization (0-100 in increments of 10) Advanced DCR (0/25/50/75/100) Blue Light Filter (0-100) Response Time...
- Page 10 GAMER 3 Low Input Lag (On/Off) Black Stabilization (0-100 in increments of 10) Advanced DCR (0/25/50/75/100) Blue Light Filter (0-100) Response Time Standard Advanced Ultra Fast Rename Recall FPS 1 FPS 2 MOBA Movie Text Mono Color Adjust Contrast/Brightness Contrast (0-100) Brightness (0-100)
- Page 11 Color Temperature sRGB Bluish Cool Native Warm User Color Red (0-100) Green (0-100) Blue (0-100) Color Space Auto RGB Mode YUV Mode Color Range Auto Full Range Limited Range HDR (On/Off) Manual Image Adjust Sharpness (0-100 in increments of 25) Blue Light Filter (0-100) Aspect Ratio Fill Aspect Ratio...
- Page 12 Full Screen Overscan (On/Off) Setup Menu Language Select English French German Spanish Italian Finnish Russian Turkish Japanese Korean Traditional Chinese Simplified Chinese Resolution Notice (On/Off) Information Resolution H. Frequency V. Frequency Pixel Clock OSD Timeout (5/15/30/60 seconds) OSD Background (On/Off)
- Page 13 Auto Power Off (On/Off) Sleep (30/45/60/120 minutes/Off) ECO Mode Standard Optimize Conserve DDC/CI (On/Off) Memory Recall View Mode Quick Menu Standard Game Movie Text Mono Input Select Quick Menu HDMI 1 HDMI 2 DisplayPort...
-
Page 14: Specifications
SPECIFICATIONS Model 37923, 38939 Display Size 27" (686 mm) Display Type TFT Active Matrix Display Finish Anti-glare Display Area 23.5" x 13.2" (597 x 336 mm) Video Inputs 2x HDMI®, 1x DisplayPort® Maximum Resolution 3840 x 2160 @60Hz Color Filter... -
Page 15: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 16: Notice For Industry Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. EU Declaration of Conformity Monoprice, Inc. declares the product described within this user guide or manual is in compliance with below applicable directives. The full text of the EU Declaration of Conformity is available at the following internet address: https://www.monoprice.com/product?p_id=37923... -
Page 17: Weee Information
Electric and Electronic Equipment (WEEE). This document contains important information for users with regards to the proper disposal and recycling of Monoprice products. Consumers are required to comply with this notice for all electronic products bearing the following symbol: For Consumers in the European Union: This EU Directive requires that the product bearing this symbol and or its packaging must not be disposed of with unsorted municipal waste. -
Page 18: Safety Notice
Safety Notice WARNING: Do not use this product near water, for example, in a wet basement or near swimming pool or in an area where accidental contact with water or liquid might occurs WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from the surge caused by lightning WARNING: The external power adapter or AC power cord is the equipment's disconnection device.
