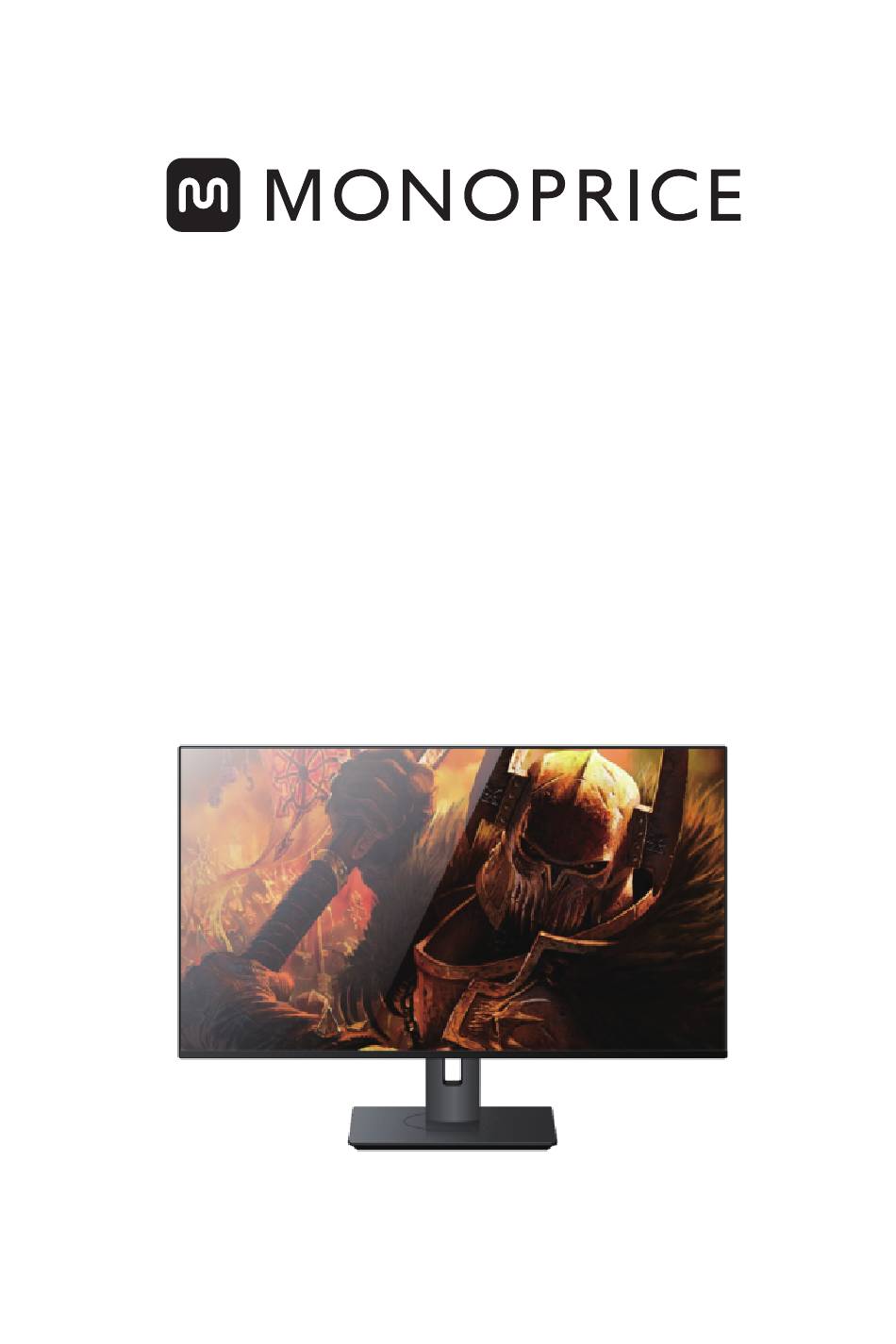

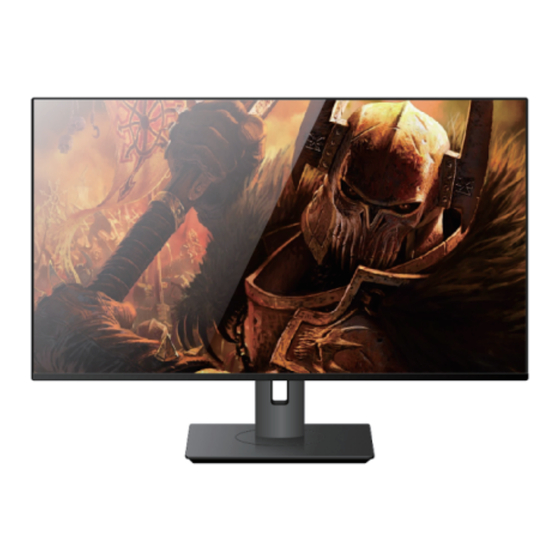

- Page 1 34" WQHD Monitor Desktop Monitor with Height Adjustable Stand P/N 43021 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This monitor is intended for indoor use only. Do not expose this monitor to water or moisture of any kind. -
Page 3: Package Contents
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 4: Using The Kensington Lock
USING THE KENSINGTON LOCK The Kensington security connector is located on the back side of the monitor. For more information on installation and usage please visit the Kensington website at http://www. kensington.com. Below is an example of setting up the Kensington lock on a table for your reference. - Page 5 Perform the following steps to prepare your monitor for use. 1. Either assemble the stand and attach it to the rear of the monitor or mount the monitor to a wall or desk mount. *This picture is for reference only 2.
- Page 6 POWER ON Turn On LCD Monitor and Computer Turn ON the LCD Monitor, then turn ON the computer. This particular order (LCD monitor before computer) is important.
- Page 7 ADJUSTING THE SCREEN IMAGE SETTING THE TIMING MODE Set your monitor resolution to its recommended resolution (see section "specification") to get the best experience possible, with brilliant color and crisp text. Here is how: Go to your display resolution settings window (each operating system will have a different process to get there).
-
Page 8: Using The Control Panel
USING THE CONTROL PANEL After setting the timing mode, use the buttons on the Front or rear control panel to display and adjust OSD for screen image adjustment. * The postition refer to section 2.2 Front & OSD symbol explanation The symbol explanation is stated below: NOTE: Power light Blue = ON... - Page 9 The OSD Menu and OSD Quick-Menu Symbol explanations and their functional uses are stated below. Activation symbol to turn the various modes on when operating the menu system. Activation symbol to exit, go back or deactivate the desired function that is selected. Scrolls through menu options and adjusts the monitor controls.
-
Page 10: Osd Menu Introduction
OSD MENU INTRODUCTION OSD MENU TREE For an explanation of the OSD tree and pertaining functions, please refer to the 4-1 OSD explanation below. The OSD tree visually represents the complete OSD menu that can be accessed by your monitor. If you aren’t sure where an option/function is or cannot locate a specific feature, please utilize the OSD tree below. -
Page 11: Osd Menu Explanation
If current input source is no signal, monitor will automatically switch to next input option. This function on some model is disabled by default. Black stabilization Monoprice’s Black stabilization provides heightened visibility and detail by brightening dark scenes. Blue light filter Adjusts the filter that blocks high-energy blue light for a safer experience for our users. - Page 12 Color adjust Provides several color adjustment modes, to help adjust the color settings to fit our users’ needs. Color range Adjusts the color range, allowing users to adjust the range in RGB and YUV color settings. Color space Allows users to choose which color space they would like to use for monitor color output (RGB, YUV).
- Page 13 Color temperature Allows users to select specific color temperature settings to further customize their viewing experience. Explanation sRGB Standard color space used for the windows system, digital cameras and the Internet. NATIVE Native is a default color temperature. Recommended for general graphic design and regular use. Contrast Adjusts the difference between the image background (black level) and the foreground (white level).
- Page 14 Information Displays the timing mode (video signal input) coming from the graphics card in the computer, and the LCD model number. See your graphics card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency). NOTE: VESA 1024 x 768 @ 60Hz (example) means that the resolution is 1024 x 768 and the refresh rate is 60 Hertz.
- Page 15 Response time Adjusts the response time, creating smooth images without streaking, blurring or ghosting. A low response time is perfect for the most graphic- intense gaming, and provides amazing visual quality while watching sports or action movies. Setting the menu to ‘Ultra Fast’ is advised. Resolution notice The notice tells users that the current viewing resolution is not the correct native resolution.
- Page 16 Monitor Setting Management OSD Timeout The OSD Timeout function, allows users to choose how long the OSD will reside on the screen after in-activity (number of seconds). OSD Background The OSD Background function allows users to turn off the OSD background while selecting and adjusting OSD settings.
-
Page 17: Specifications
SPECIFICATIONS Type TFT (Thin Film Transistor), Active Matrix 3440 x1440 LCD, 0.2325 (H) x 0.2325 (V)mm pixel pitch Display Size Metric: 86.7 cm Imperial: 34” (34” viewable) Color Filter RGB vertical stripe Glass Surface Anti-Glare Input Signal Video Sync TMDS digital (100ohms) HDMI: f :84-112 kHz, f :56-75 Hz... - Page 18 Operating Temperature +32 °F to +104 °F (0 °C to +40 °C) conditions Humidity 10% to 90% (non-condensing) Altitude To 16,404 feet Storage Temperature -4 °F to +140 °F (-20 °C to +60 °C) conditions Humidity 5% to 90% (non-condensing) Altitude To 40,000 feet Dimensions...
-
Page 19: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 20 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. N otice for Industry Canada This Class B digital apparatus complies with Canadian ICES -003. Cet appareil numérique de la classe B est conforme à...
