Quick start proceDure
WHAT YOU CAN DO WITH THE DC1709A
1. Compare the contents of the EEPROM in the LTC3880
against your project or hex file.
2. Reprogram the contents of the EEPROM in the LTC3880
using your project or hex file.
4
Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from

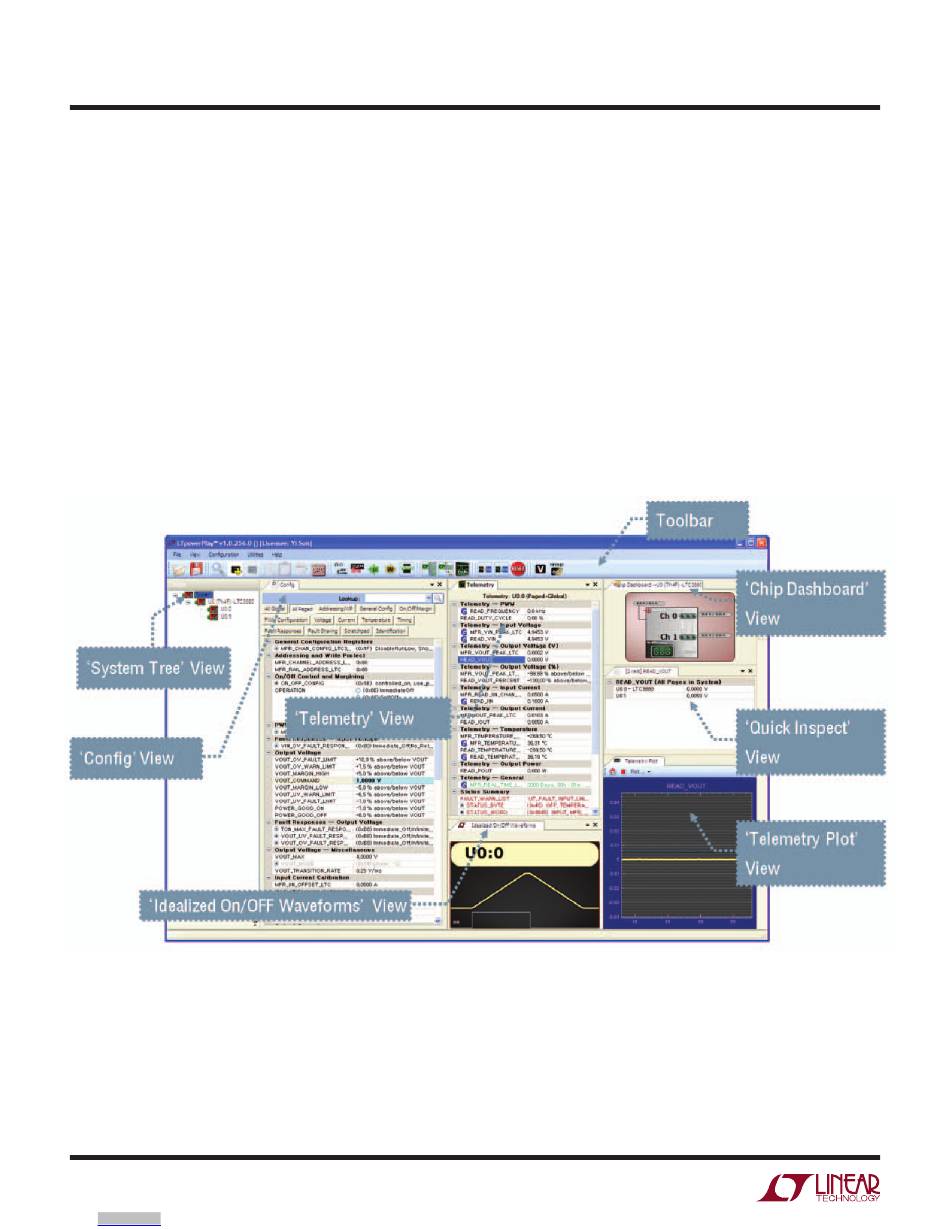

Figure 5. LTpowerPlay Interface of Programming the LTC3880
3. Verify the EEPROM within the DC1709A contains the
factory defaults.
From the LTpowerPlay interface, load the factory
n
defaults project file. This file is located at:
C:\Program Files\Linear Technology\LTpowerPlay\
project files\democricuits\LTC3880_datasheet_
defaults.proj
Click the Verify button.
n
Design files for this circuit board are available at
http://www.linear.com/demo
