Technical Manual
Arc and Arc XL Technical Document AU.indd 1
07/11/2023 16:28:41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gozney ARC

Summary of Contents for Gozney ARC

  • Page 1 Technical Manual Arc and Arc XL Technical Document AU.indd 1 07/11/2023 16:28:41...
  • Page 2 Arc and Arc XL Technical Document AU.indd 2 07/11/2023 16:28:41...
  • Page 3 Live-Fire cooking made easy. Arc and Arc XL Technical Document AU.indd 3 07/11/2023 16:28:41...
  • Page 4 flammable liquids or vapors in the vicinity of this or any other appliance. An LPG cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. Arc and Arc XL Technical Document AU.indd 4 07/11/2023 16:28:41...
  • Page 5 fire Never operate this appliance within 7.5m department. Do not attempt to extinguish of any flammable liquid. an oil or a grease fire with water. Arc and Arc XL Technical Document AU.indd 5 07/11/2023 16:28:41...

  • Page 6: Table Of Contents

    ARC COVER FIRING UP GAS OVERVIEW OF FIRING GAS CONNECTING TO GAS GAS SAFETY INSTALLING THE IGNITER BATTERY CONNECTING THE GAS HOSE ANTICLOCKWISE REGULATOR TESTING FOR LEAKS IGNITION FIRST FIRING Arc and Arc XL Technical Document AU.indd 6 07/11/2023 16:28:41...
  • Page 7 TROUBLESHOOTING GAS BURNER DISCONNECTING GAS ANTICLOCKWISE REGULATOR GENERAL MAINTENANCE MAINTENANCE CLEANING THE VENTURI CLEANING THE OVEN INTERNAL EXTERNAL REPLACING THE PROBE PRODUCT WARRANTY WARRANTY Arc and Arc XL Technical Document AU.indd 7 07/11/2023 16:28:41...

  • Page 8: General Advice

    Do not allow children Do not over fill Arc or cover the burner. near the device during or after operation. Arc can stay hot for a few hours after use. Do not use an unlined masonry chimney as the flue for this appliance.

  • Page 9: Partial Enclosures

    (i) at least 25% of the total wall area is completely open; and (ii) at least 30% of the remaining wall area is open and unrestricted. Arc and Arc XL Technical Document AU.indd 9 07/11/2023 16:28:43...

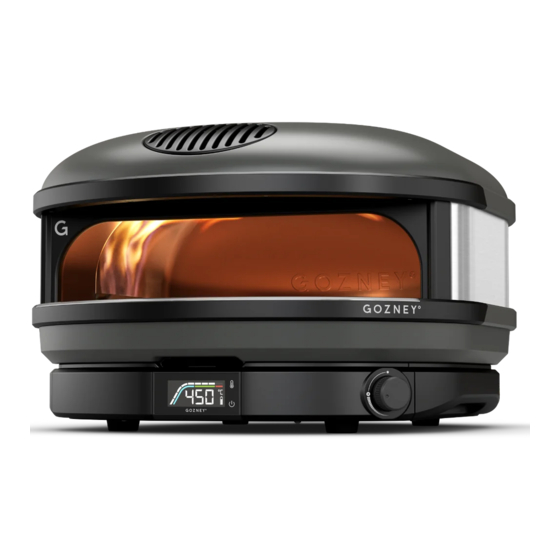

  • Page 10: Product Overview

    Product Overview - What's in the Box Oven Dock Thermometer Gas Control Dial Gas Hose & Regulator Burner Guard Flue Outlet Arc and Arc XL Technical Document AU.indd 10 07/11/2023 16:28:43...
  • Page 11 Gas Inlet Stone Adjustment Tool Torx Screwdriver Arc and Arc XL Technical Document AU.indd 11 07/11/2023 16:28:43...

  • Page 12: Data Plate

    Data Plate Gozney Limited, Units 18 & 19, Radar Way, Christchurch, Dorset, BH23 4FL UK. Appliance name: Gozney Arc, Gozney Arc XL Type No.: Arc: GOZ-1485-05 Arc XL: GOZ-1728-05 Trade name: Gozney Arc, Gozney Arc XL Gas pressure: 2.75 KPA...
  • Page 13 Arc and Arc XL Technical Document AU.indd 13 07/11/2023 16:28:43...
  • Page 14 This section details the correct operation and install of a Gozney Arc. Arc and Arc XL Technical Document AU.indd 14 07/11/2023 16:28:43...
  • Page 15 Arc and Arc XL Technical Document AU.indd 15 07/11/2023 16:28:43...

  • Page 16: Safety Considerations

    Do not operate Arc in strong winds. codes, with the following standards: Wind can extinguish flame. AS/NZS 5601 Do not wear flammable loose garments or sleeves. Arc and Arc XL Technical Document AU.indd 16 07/11/2023 16:28:44...

  • Page 17: Fire

    If the exposure has been severe it may as this may cause splashing of burning cause death. grease, resulting in a further spreading of the fire. Please follow local regulations and install a CO alarm if necessary. Arc and Arc XL Technical Document AU.indd 17 07/11/2023 16:28:44...
  • Page 18 This section details the set up of the oven and the accessories included with your Arc. Arc and Arc XL Technical Document AU.indd 18 07/11/2023 16:28:44...
  • Page 19 Arc and Arc XL Technical Document AU.indd 19 07/11/2023 16:28:44...

  • Page 20: Adjusting The Stones

    Adjusting The Stones Before using Arc it is important that the four blue stone retention wedges and other packaging inside of the oven are removed. The removable stone design of Arc means that it is not fi xed inside the oven and as such can shift backwards during transport.
  • Page 21 Installing The Flue & Burner Guard Arc and Arc XL Technical Document AU.indd 21 07/11/2023 16:28:44...

  • Page 22: Moving The Oven

    Moving the Oven Use the hand holds on the underside edges of the oven to carry it. Do not move Arc whilst in operation or when it is still hot. Be sure that you have the capability to safely move the oven and set it in place.

  • Page 23: Oven Placement

    30cm clearance (back and sides) and liquids. and 100cm clearance (front and top) from any combustible construction. Under no circumstances is the oven to be placed under or on top of any combustible structure. Arc and Arc XL Technical Document AU.indd 23 07/11/2023 16:28:44...
  • Page 24 flame down into the dock. If you see fire coming from the dock, turn the oven off from either the gas bottle or control knob. Never operate the oven in high winds. Arc and Arc XL Technical Document AU.indd 24 07/11/2023 16:28:45...

  • Page 25: Digital Temperature Display

    Digital Temperature Display Arc and Arc XL Technical Document AU.indd 25 07/11/2023 16:28:45...

  • Page 26: Set Up

    SECONDS the temperature from within the oven. The Digital Temperature Display is held in place by magnets. °C °C °C °C °F °C Arc and Arc XL Technical Document AU.indd 26 07/11/2023 16:28:45...

  • Page 27: Recommended Temperature Ranges

    Do not try to rapidly cool the oven. This may need replacing. Please refer to may crack the stone fl oor or cause stress maintenance instructions at the end of damage to the oven. the manual. Arc and Arc XL Technical Document AU.indd 27 07/11/2023 16:28:45...

  • Page 28: Optional Accessories

    ARC BOOSTER Raise your cooking game and your oven with the Arc booster allowing you to use Arc at the optimal height when placed on an outdoor counter-top or table. The easy access shelf will keep all of...
  • Page 29 Arc and Arc XL Technical Document AU.indd 29 07/11/2023 16:28:45...
  • Page 30 Your guide to burning gas. Arc and Arc XL Technical Document AU.indd 30 07/11/2023 16:28:45...
  • Page 31 Arc and Arc XL Technical Document AU.indd 31 07/11/2023 16:28:45...

  • Page 32: Connecting To Gas

    4) Burner control in off position. We recommend using a 9kg gas bottle 5) Turn gas cylinder on. in conjunction with Arc and 5kg as a 6) Check no gas leaks. minimum. 7)Push and turn burner control anticlockwise. You should hear a clicking.

  • Page 33: Gas Safety

    Please take a moment to review all of the oven. Young children should be kept safety requirements before operating away. the appliance when using gas. Arc and Arc XL Technical Document AU.indd 33 07/11/2023 16:28:45...
  • Page 34 Keep the cylinder outdoors in its upright position. Do not connect multiple gas cylinders to Arc or store a spare within the same vicinity. A regulator which complies with AS or equivalent must fit between the gas canister and the oven.

  • Page 35: Installing The Igniter Battery

    Unscrew the cap and place the battery in (negative end first)before returning the thermometer to its original position in the dock. You're now ready to connect the gas bottle to the oven. Arc and Arc XL Technical Document AU.indd 35 07/11/2023 16:28:45...

  • Page 36: Connecting The Gas Hose

    CONNECTING THE GAS HOSE To attach the quick connection gas hose is evidence of abrasion, wear, cuts, to your Arc pull the collar back on the or leaks, the hose and regulator must connector and place the hose onto the be replaced with Gozney approved gas inlet.
  • Page 37 Continue to tighten until a tight fit has been made. This connection must be tested for leaks before using the oven. Arc and Arc XL Technical Document AU.indd 37 07/11/2023 16:28:46...

  • Page 38: Testing For Leaks

    Use a different LPG cylinder and the hose. If a leak is present the solution recheck for leaks with the soap-and- will bubble. water solution. Arc and Arc XL Technical Document AU.indd 38 07/11/2023 16:28:46...

  • Page 39: Ignition

    If the fl ame is extinguished during use the gas fl ow will automatically be cut off by the oven. If this happens, turn the gas off at the bottle and leave Arc for 5 minutes to ensure any gas has dissipated before reattempting the ignition process.

  • Page 40: First Firing

    fi rst fi ring. Always check that the oven is clean and free from accumulated grease and other cooking residue before use. For information on how to clean the oven see page 47. Arc and Arc XL Technical Document AU.indd 40 07/11/2023 16:28:46...
  • Page 41 If the problem persists after trying the following solutions please contact Gozney for further support. Arc and Arc XL Technical Document AU.indd 41 07/11/2023 16:28:46...
  • Page 42 After cooking, be sure to turn off the gas from the gas canister first before turning of Arc. This will allow any gas left in the burner or pipe to be used up safely. Three minutes after turning the gas off...
  • Page 43 Arc and Arc XL Technical Document AU.indd 43 07/11/2023 16:28:46...
  • Page 44 Your guide to general maintenance. Arc and Arc XL Technical Document AU.indd 44 07/11/2023 16:28:46...
  • Page 45 Arc and Arc XL Technical Document AU.indd 45 07/11/2023 16:28:46...
  • Page 46 When the oven is turned off, disconnect it from the gas and let it cool. Make sure Arc is on a soft surface that won't cause scratches before gently rolling it onto its side.
  • Page 47 Cleaning The Oven INTERNAL The best way to clean the inside of Arc is to burn off any food debris or soot that is left behind. When the oven is over 350˚C it will start self cleaning and any burnt on food will burn off after a period of three hours.
  • Page 48 EXTERNAL For the exterior of Arc ensure the oven is cool and use a non caustic bleach free cleaning spray on the dirty areas. Clean the area with warm soapy water and a sponge or non abrasive dish cloth and then wipe clean with paper towels.
  • Page 49 Thread the cable back through to the front of the oven and plug it back into the thermometer. Replace the bottom panel and return the oven to its upright position. Arc and Arc XL Technical Document AU.indd 49 07/11/2023 16:28:47...
  • Page 50 Arc and Arc XL Technical Document AU.indd 50 07/11/2023 16:28:47...
  • Page 51 This section details the Gozney Dome product warranty. Arc and Arc XL Technical Document AU.indd 51 07/11/2023 16:28:47...
  • Page 52 Arc and Arc XL Technical Document AU.indd 52 07/11/2023 16:28:47...
  • Page 53 (iv) proof of purchase, and we’ll get back of the return carriage by normal means to you as soon as possible. within our serviced territories and the Arc and Arc XL Technical Document AU.indd 53 07/11/2023 16:28:47...
  • Page 54 This warranty shall not a fect your consumer or other statutory rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Arc and Arc XL Technical Document AU.indd 54 07/11/2023 16:28:47...
  • Page 55 Arc and Arc XL Technical Document AU.indd 55 07/11/2023 16:28:47...
