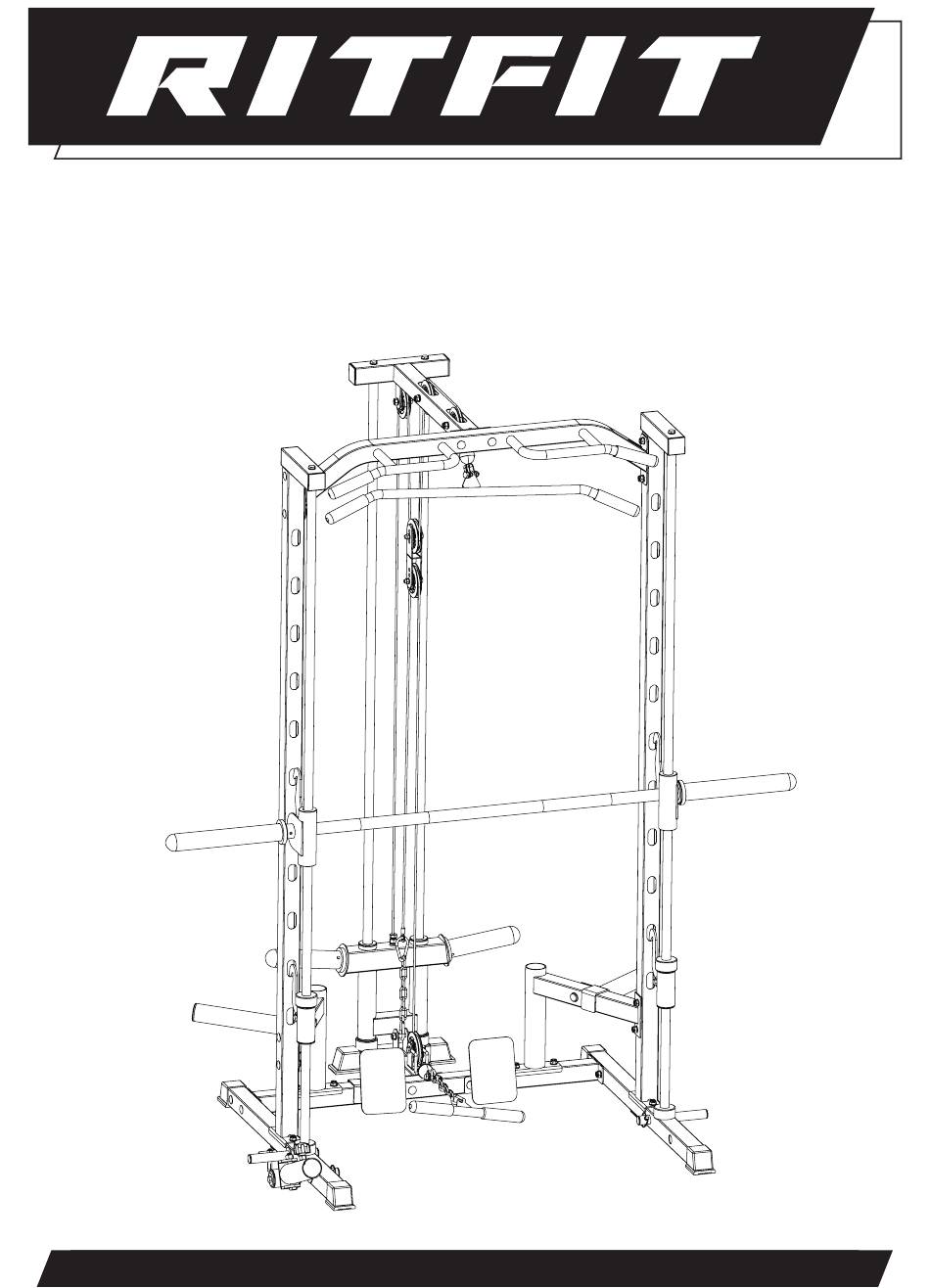

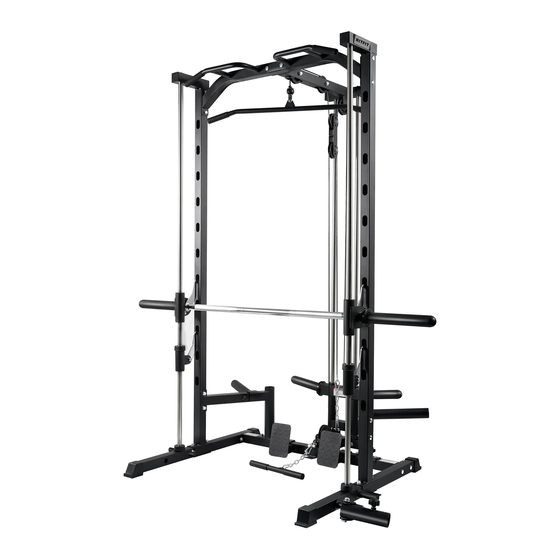

  • Page 1 POWER RACK PSR05 OWNER’S MANUAL & ASSEMBLY INSTRUCTIONS...

  • Page 2: Safety And Precautions

    4. One person at a time should use this equipment incomplete form. Please contact RITFIT for a unless otherwise designed for safety (example: ·...

  • Page 3: Warranty

    These warranty repairs or adjustments will be made by RitFit at no charge, using new or remanufactured parts. D. When It Begins? The Basic Warranty begins on the day of order.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the versatile RitFit® Power Rack. RitFit® Power Rack is designed and manufactured to optimize users’ workout performance and minimize adjustment or set-up time for users. Rack For your benefit, read this manual carefully before using the Power .

  • Page 5: Parts List

    PARTS LIST FASTENER AND TOOLS QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10x65 Square Neck Bolt M10x70 Hex Bolt M10x60 Hex Bolt M10x45 Hex Bolt M10x20 Hex Bolt M10 Expansion Bolt M10 Washer M10 Nut M17-M19 Wrench M14-M17 Wrench M4 Hex Key M10x70 Square Neck Bolt M10x65 Square Neck Bolt c M10x70 Hex Bolt...
  • Page 6 PARTS LIST ACCESSORIES QUANTITY DESCRIPTION Quick Release Plates Storage Tubes Quick Loading Pedals Band Peg Landmine M8x35 Ring Bolt A Quick Release Plates B Quick Loading Pedals Landmine C Band Peg Storage Tubes E M8x35 Ring Bolt MAIN FRAME QUANTITY DESCRIPTION Back Upright Frame Bottom Base Frame...
  • Page 7 Short Plate Storage Peg long Plate Storage Peg Pulley Peg Lat Bar Low Row Bar Barbell Shaft Barbell Rod Hollow Guide Rod Solid Guide Rod PSR05-ROP01 Cable A PSR05-ROP02 Cable B Carabiner Pulley System Base Frame Pulley System Top Frame Plate Carriage...
  • Page 8 PARTS LIST Slider-L Slider-R Barbell Safety Chain Support Hook 15 Rubber Gasket 16 Rubber Pad 17 Pulley 18 Pulley Block Pulley Peg Short Plate Storage Peg Long Plate Storage Peg 23 Lat Bar 22 Low Row Bar 24 Barbell Shaft 25 Barbell Rod 26 Hollow Guide Rod 27 Solid Guide Rod...
  • Page 9 ASSEMBLY STEP 1 DESCRIPTION QUANTITY Bottom Base Frame Bottom Cross Beam M10x65 Square Neck Bolt M10 Washer M10 Nut...
  • Page 10 ASSEMBLY STEP 2 (Two People Are Required.) DESCRIPTION QUANTITY Slider-L Slider-R Barbell Safety Support Hook Rubber Pad Solid Guide Rod...
  • Page 11 ASSEMBLY STEP 3 (Two People Are Required.) DESCRIPTION QUANTITY Back Upright Frame Bolt-down Floor Bracket M10x70 Square Neck Bolt M10x20 Hex Bolt M10 Washer M10 Nut...
  • Page 12 ASSEMBLY STEP 4 (Two People Are Required.) DESCRIPTION QUANTITY Pull-Up Bar M10x65 Square Neck Bolt M10 Washer M10 Nut...
  • Page 13 ASSEMBLY STEP 5 (Two People Are Required.) DESCRIPTION QUANTITY Barbell Storage Frame-L Barbell Storage Frame-R M10x65 Square Neck Bolt M10 Washer M10 Nut...
  • Page 14 ASSEMBLY STEP 6 (Two People Are Required.) DESCRIPTION QUANTITY Rubber Gasket Long Plate Storage Peg Barbell Shaft Barbell Rod M4 Hex Key Step 6d Step 6c Step 6b Step 6a...
  • Page 15 ASSEMBLY STEP 7 (Two People Are Required.) DESCRIPTION QUANTITY Pulley System Base Frame M10x65 Square Neck Bolt M10 Washer M10 Nut...
  • Page 16 ASSEMBLY STEP 8 (Two People Are Required.) DESCRIPTION QUANTITY Plate Carriage Rubber Gasket Rubber Pad Short Plate Storage Peg Hollow Guide Rod M10x60 Hex Bolt M10 Washer M10 Nut M4 Hex Key Step 8b Step 8a...
  • Page 17 ASSEMBLY STEP 9 (Two People Are Required.) DESCRIPT ION QUANTITY Pulley System Top Frame M10x65 Square Neck Bolt M10x20 Hex Bolt M10 Washer M10 Nut *IN A LOOKING DOWN VIEW...
  • Page 18 ASSEMBLY STEP 10 DESCRIPTION QUANTITY Pulley Pulley Peg M10x70 Hex Bolt M10x45 Hex Bolt M10 Washer M10 Nut...
  • Page 19 ASSEMBLY STEP 11 DESCRIPTION QUANTITY Chain Pulley Block Cable A Cable B Carabiner M10x45 Hex Bolt M10 Washer M10 Nut If this part is too tight, adjust it by the bolt as the diagram shows.
  • Page 20 ASSEMBLY STEP 12 DESCRIPTION QUANTITY Quick Release Plates Storage Tubes Quick Loading Pedals Band Peg Landmine M8x35 Ring Bolt...
  • Page 21 ASSEMBLY STEP 13 DESCRIPTION QUANTITY M10 Expansion Bolt *If you want to increase the stability of this Power Rack, you can use the Bolt-down Floor Bracket to fix it.
  • Page 22 If you have any questions, please e-mail our customer service team at support@ritfitsports.com Dear RitFit Customers, Thank you so much for choosing PSR05! Before starting assembling this power cage, please notice that there are THREE important warnings to kindly remind you of the user safeties and product safeties.
  • Page 23 Congratulations! You have assembled the Power Rack! Now, you can officially start strength training! 82 in...
