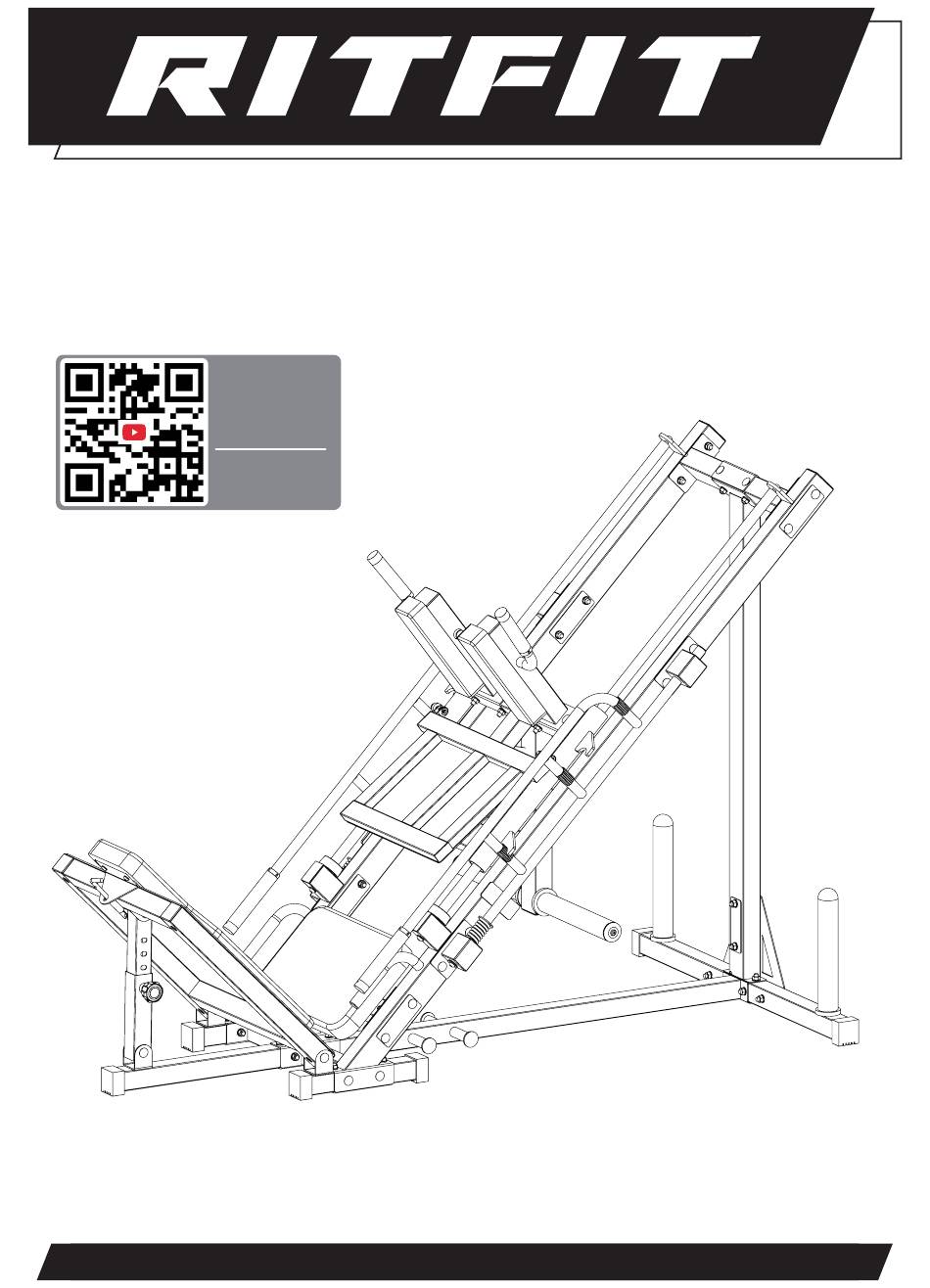

- Page 1 LEG PRESS MACHINE BLP01 BLP01 Installation Guide Video Tutorial OWNER’S MANUAL & ASSEMBLY INSTRUCTIONS...
- Page 3 Additional features on products may be added during seasonal production but may not be featured in line art diagrams at time of production. Changes of such will not affect the performance or assembly of the unit. If you would like further clarification during your assembly process please feel free to contact RITFIT for direction.
- Page 4 A. What’s Covered Under RitFit LLC’s Basic Warranty? Basic Warranty. B. Who Is Covered? You are covered by the Basic Warranty if you are a purchaser for use of the RitFit Leg Press Machine. C. What’s Covered? The Basic Warranty covers the cost of all parts and labor needed to repair any item on your leg press machine when it left the manufacturing plant that is defective in material, workmanship or factory preparation.
- Page 5 BEFORE YOU BEGIN Thank you for selecting the versatile RITFIT® Leg Press Machine. RITFIT® Leg Press Machine is designed to be used with weight training system to help you develop your lower muscle group of the body. For your benefit, read this manual carefully before using the Leg Press Machine.If you have...
- Page 6 PARTS LIST ·FASTENER AND TOOLS QUANTITY DESCRIPTION M10x90 Square Neck Bolt M10x70 Square Neck Bolt M10x70 Hexagon Socket Button Head Bolt M10x35 Hexagon Socket Button Head Bolt M10x25 Hexagon Socket Button Head Bolt M8x90 Hexagon Socket Button Head Bolt M8x70 Hexagon Socket Button Head Bolt M8x30 Hexagon Socket Button Head Bolt M10x90 Square Neck Bolt M10x25 Hexagon Socket Button Head Bolt...
- Page 7 PARTS LIST ·FASTENER AND TOOLS QUANTITY DESCRIPTION M10 Nut M10 Large Washer M10 Washer M8 Washer L-Pin M6 Allen Key M5 Allen Key Open-Ended Wrench M8x20 Countersunk Head Screw M8 Nut M10 Nut M10 Washer M10 Large Washer M8 Washer M6 Allen Key L-Pin M8x20 Countersunk Head Screw...
- Page 8 PARTS LIST ·Packed in the box QUANTITY DESCRIPTION Backrest Back Cushion Slide Frame Base Slider Reinforced Frame Upper Cross Beam Weldment Frame Bottom Cross Beam Support frame Bottom Adjusting Frame Connection Frame (Right) Connection Frame (Left) Backrest Back Cushion Slide Frame Base Slider Reinforced Frame Upper Cross Beam...
- Page 9 PARTS LIST · Packed in the box QUANTITY DESCRIPTION Side Frame (Right) Side Frame (Left) Seat Cushion Frame 16-1 Foot Plate Sundial 16-2 Foot Plate Safety Handrail (Left) Safety Handrail (Right) Plate Carriage Shoulder Pad Frame (Left) Shoulder Pad Frame (Right) Sleeve Bolt Plate Side Frame (Right)
- Page 10 PARTS LIST ·Packed in the box QUANTITY DESCRIPTION Handrail Connection Frame Seat Cushion Shoulder Pads L-shaped Reinforced Plate Rubber Pad Triangle Reinforced Plate Guiding Rod Spring Back Cushion Fixing Plate Lubricating Oil Ratchet Wrench Seat Cushion Shoulder Pads Handrail Connection Frame L-shaped Reinforced Plate Rubber Pad Triangle Reinforced Plate...
- Page 11 ASSEMBLY AND ADJUSTMENT STEP 1 (Two People Are Required.) QUANTITY DESCRIPTION M10x25 Hexagon Socket Button Head Bolt M10 Washer Bottom Cross Beam Sleeve...
- Page 12 ASSEMBLY AND ADJUSTMENT STEP 2 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10 Nut M10 Washer Weldment Frame Connection Frame (Right) Connection Frame (Left) Triangle Reinforced Plate...
- Page 13 ASSEMBLY AND ADJUSTMENT STEP 3 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10 Nut M10 Washer Support Frame Bolt Plate...
- Page 14 ASSEMBLY AND ADJUSTMENT STEP 4 (Two People Are Required.) QUANTITY DESCRIPTION M10x90 Square Neck Bolt M10x70 Square Neck Bolt M10 Nut M10 Washer Upper Cross Beam L-shaped Reinforced Plate...
- Page 15 ASSEMBLY AND ADJUSTMENT STEP 5 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10 Nut M10 Washer Slide Frame Base Side Frame (Right) Side Frame (Left) Bolt Plate...
- Page 16 ASSEMBLY AND ADJUSTMENT STEP 6 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10 Nut M10 Washer Seat Cushion Frame Bolt Plate Note: To install the Seat Cushion correctly in Step 17, the Seat Cushion Frame needs to be installed as shown above, with the flat side facing up.
- Page 17 ASSEMBLY AND ADJUSTMENT STEP 7 (Two People Are Required.) QUANTITY DESCRIPTION Slider Rubber Pad Guiding Rod...
- Page 18 ASSEMBLY AND ADJUSTMENT STEP 8 (Two People Are Required.) QUANTITY DESCRIPTION M10x25 Hexagon Socket Button Head Bolt M10 Washer...
- Page 19 ASSEMBLY AND ADJUSTMENT STEP 9 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10 Nut M10 Washer Reinforced Frame Plate Carriage Bolt Plate...
- Page 20 ASSEMBLY AND ADJUSTMENT STEP 10 (Two People Are Required.) QUANTITY DESCRIPTION M8x70 Hexagon Socket Button Head Bolt M8 Washer Shoulder Pad Frame (Left) Shoulder Pad Frame (Right) Shoulder Pads Note: The Shoulder Pad Frame & need to be installed correctly, please refer to the diagram above.
- Page 21 ASSEMBLY AND ADJUSTMENT STEP 11 (Two People Are Required.) QUANTITY DESCRIPTION M10x90 Square Neck Bolt M10x70 Square Neck Bolt M10 Nut M10 Washer Bolt Plate...
- Page 22 ASSEMBLY AND ADJUSTMENT STEP 12 (Two People Are Required.) QUANTITY DESCRIPTION M8 Washer M8x20 Countersunk Head Screw M8 Nut Foot Plate Sundial 16-1 16-2 Foot Plate 16-2 16-1...
- Page 23 ASSEMBLY AND ADJUSTMENT STEP 13 (Two People Are Required.) QUANTITY DESCRIPTION M10x35 Hexagon Socket Button Head Bolt M10 Nut NOTE: The Pegs are pretty small, maybe packed together with other fasteners.
- Page 24 ASSEMBLY AND ADJUSTMENT STEP 14 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Square Neck Bolt M10x25 Hexagon Socket Button Head Bolt M10 Nut M10 Large Washer M10 Washer Safety Handrail (Left) Safety Handrail (Right) Bolt Plate Handrail Connection Frame Spring...
- Page 25 ASSEMBLY AND ADJUSTMENT STEP 15 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Hexagon Socket Button Head Bolt M10 Nut M10 Washer Backrest...
- Page 26 ASSEMBLY AND ADJUSTMENT STEP 16 (Two People Are Required.) QUANTITY DESCRIPTION M10x70 Hexagon Socket Button Head Bolt M10 Nut M10 Washer Bottom Adjusting Frame...
- Page 27 ASSEMBLY AND ADJUSTMENT STEP 17 (Two People Are Required.) QUANTITY DESCRIPTION M8x90 Hexagon Socket Button Head Bolt M8 Washer Seat Cushion...
- Page 28 ASSEMBLY AND ADJUSTMENT STEP 18 (Two People Are Required.) QUANTITY DESCRIPTION M8x30 Hexagon Socket Button Head Bolt M8 Washer Back Cushion Back Cushion Fixing Plate Note： The Back Cushion Fixing Plate needs to be installed correctly, please refer to the diagram below.
- Page 29 ASSEMBLY AND ADJUSTMENT STEP 19 (Two People Are Required.) QUANTITY DESCRIPTION L-Pin...
- Page 30 Congratulations! You have assembled the Leg Press Machine! Now, you can officially start strength training with RITFIT. 55.5 in Don't mind if you have extra fasteners after installation, which can be used as future replacement parts.
- Page 32 www.ritfitsports.com support@ritfitsports.com...
