- Page 1 Installation Guide DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal...
- Page 2 Remind to take notice. The note contains the helpful information for a better use of the product. Related Document The related documents of the product are provided on Download Center. To obtain the latest product information, visit the official website: https://www.tp-link.com.
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction ——————————— 2 Product Overview ............2 Appearance ...............3 Chapter 2 Installation ——————————— 6 Package Contents ............6 Safety Precautions ............6 Installation Tools ..............8 Product Installation ............8 Chapter 3 Connection ——————————— 10 Port Connection ..............10 Verify Installation .............11 Power On ................11 Initialization ................13 Chapter 4 Configuration ——————————... -
Page 4: Introduction
ISP’s access networks, and they are scalable and reliable for deploying services to meet various demands of ISP’s customers. A simplified network topology is shown as the following figure. We take DS-P7500-08 as an example of OLT devices. -
Page 5: Appearance

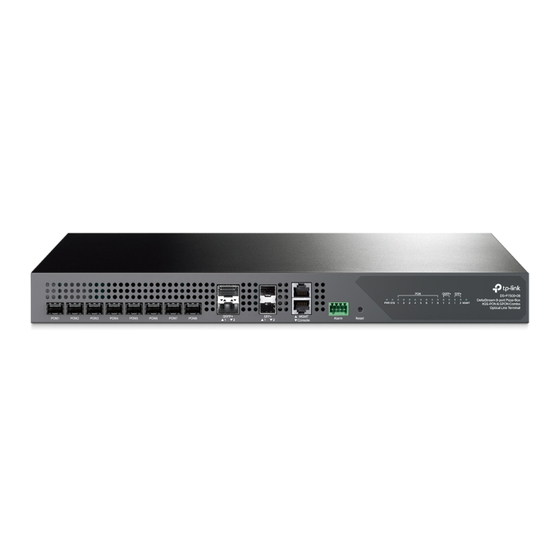

DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal Appearance Front Panel ■ The front panel of DS-P7500-08 is shown as the following figure. The figure is for demonstration purposes only. Your device may differ in appearance from the depicted. QSFP+ SFP+ MGMT Console Alarm Reset LEDs The PON port connects to the XGS-PON&GPON network via an OLT SFP module and an optical cable. - Page 6 Rear Panel ■ The rear panel of DS-P7500-08 is shown as the following figure. The figure is for demonstration purposes only. Your device may differ in appearance from the depicted. Here, the AC Power Supply Module as the main power supply and the DC Power Supply Module as the backup power supply as an example.
- Page 7 PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection measures, refer to the Lightning Protection Guide from the website: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/. Kensington Security Slot Secure the lock (not provided) into the security slot to prevent the device from being stolen.
-
Page 8: Chapter 2 Installation
DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal Chapter 2 Installation Package Contents Make sure that the package contains the following items. Please contact your distributor, if any of the listed items is damaged or missing. The figures are for demonstration only. The actual items may differ in appearance and quantity from the depicted. - Page 9 DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device.
-
Page 10: Installation Tools
■ Note: For detailed lightning protection measures, refer to the Lightning Protection Guide from the website: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/. Installation Site When installing the device on a rack or a flat workbench, attach much importance to the following items: The rack or workbench is flat, stable, and sturdy enough to support the weight of 5.5 kg at least. - Page 11 DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal Rack Caution: Leave 5 to 10 cm gaps around the devices for air circulation. ■ Avoid placing heavy things on the device. ■ Place the device with its bottom facing downwards. ■ Mount devices in sequence from the bottom to top of the rack and ensure a certain clearance ■...
-
Page 12: Chapter 3 Connection
Chapter 3 Connection Port Connection Connect the ports of OLT to the devices and networks according to your needs. Some options for port connection are demonstrated in the following figure. We take DS-P7500-08 as an example of OLT devices. Internet... -
Page 13: Verify Installation
For AC power supply, please use the provided AC power cord. Using DC Power Supply ■ In the following figures, we take DS-P7500-08 as an example. Your device may differ in appearance from the depicted. 1. Connect the power cord It is recommended to use an 18-14 AWG power cord to connect the power supply equipment and the DC power input of the device, and make sure that the connection is reliable. - Page 14 DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal electrical installation of the building. And the disconnect device shall have a contact separation at least 1.5mm. 2. Connect to the ground In different environments, the device may be grounded differently. The following will instruct you to connect the device to the ground in two ways.
-
Page 15: Initialization
DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal Grounding Terminal Equipotential Bonding Cable Ground Cable (18-14 AWG) Grounding Bar Caution: The product can be powered by a DC power source such as accumulator cell and a power ■ supply server. The DC power supply should comply with EN 62368-1 2014 clause 5.4.2.3.2.3, and the transient voltage shall be no more than 2500 V peak For DC power supply, please note that the power wires and disconnecting device are not... -
Page 16: Chapter 4 Configuration
Via the Console Port ■ Note: For the detailed configurations, refer to the User Guide of the device. We take DS-P7500-08 as an example of OLT devices in the following figures. Via the MGMT Port 1. Connect the MGMT port of OLT to the management PC using an Ethernet cable. -
Page 17: Via The Console Port
Via the Console Port 1. Connect the Console port of OLT to the management PC using an RJ45 console cable. OLT (DS-P7500-08) Console Port 2. Start the terminal emulation program (such as the Hyper Terminal) on the PC and configure the... -
Page 18: Appendix A Troubleshooting
DeltaStream 8-port Pizzabox XGS-PON&GPON Combo Optical Line Terminal Appendix A Troubleshooting Q1. What could I do if I forgot the username and password of the device? You can reset the device by holding the reset button for more than 5 seconds. Note that all the configurations will be lost after resetting the device. - Page 19 EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
- Page 20 For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. © 2023 TP-Link 7106510802 REV1.0.0...
