Configuration Guide

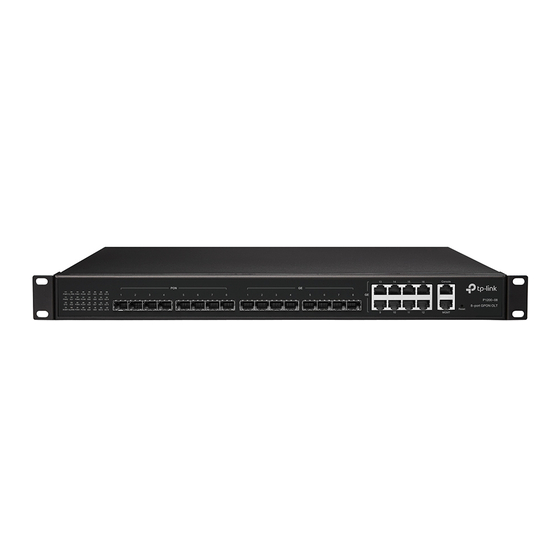

GPON OLT P1200-08
Version: V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPON OLT P1200-08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TP-Link GPON OLT P1200-08

Summary of Contents for TP-Link GPON OLT P1200-08

  • Page 1 Configuration Guide GPON OLT P1200-08 Version: V1.0...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.

  • Page 3: Table Of Contents

    CONTENTS 1 Intended Audience ........................1 Command Conventions ....................1 Keyword Operation Conventions ................... 1 Symbol Conventions ...................... 1 Terms Conventions ................错误!未定义书签。 Prompt ....................错误!未定义书签。 2 Overview of the System ......................3 3 System Access ..........................3 Overview ........................3 Console Access ......................

  • Page 4: Intended Audience

    1 Intended Audience This document helps to learn configuration procedures of various services of TP-Link P1200-08 GPON OLT. 1.1 Command Conventions The command conventions that may be found in this document are defined as follows. Convention Description Boldface The keywords of a command line are in boldface.
  • Page 5 This warning symbol means danger. You are in a situation that could cause bodily injury or broke the equipment. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents by making quick guide based on this guide.

  • Page 6: Overview Of The System

    2 Overview of the System This section describes each of the devices in our GPON environment. The GPON FTTx system is an all-optical, fiber-to-the-x system that can deliver triple-play services such as data, voice, video to residential and business subscribers. The GPON FTTx system consists of the following network components.

  • Page 7: Telnet Access

    computer. Run a VT terminal emulation software (e.g. HyperTerminal) with the attributes Band Rate: 9600 Data Bit:8 Parity Check: NO Stop Bit: 1 Flow Control: NO When the OLT start up, the terminal program will display the login prompt automatically. Access the OLT as follows: 1、After starting the terminal session, the login prompt is displayed: OLT>username:...

  • Page 8: Upgrade Olt Version

    OLT> enable OLT# config OLT(config)# vlan 100 OLT(config)# interface vlanif 100 OLT(interface-vlanif-100)# ip address 192.168.1.99 255.255.255.0 OLT(interface-vlanif-100)# exit OLT(config)# interface ge OLT(interface-ge)# vlan access 9 100 OLT(interface-ge)# exit 4 Upgrade OLT Firmware For OLT firmware upgrade, you need a FTP server (we use WFTPD as FTP Server in the following example) for FW download.

  • Page 9: Application Example

    Use the command “load packetfile ftp server-ip-address user-name user-password filename” in Config Mode to upgrade the OLT as below. OLT(config)# load packetfile ftp 192.168.1.222 admin admin P1200-08_FW_V1.0.3_151015_1420.img Broadcast message from root: Upgrade is in process. File [P1200-08_FW_V1.0.3_151015_1420.img] download ..OK File [P1200-08_FW_V1.0.3_151015_1420.img] upgrade ..

  • Page 10: Data Plan

    5.1 Data Plan The subsequent examples are configured based on the following data plan. Data Plan Service Classification Data Profile ID：10 Profile Type：Type3 DBA Profile Assured Bandwidth：8Mbit/s Maximum Bandwidth：20Mbit/s Profile ID：10 T-CONT ID：1 ONT Line Profile Internet access service GEM Port ID：11 VoIP service GEM Port ID：12 IPTV service GEM Port ID：13 Service Profile：10...
  • Page 11 restrict both upstream and downstream data.  Configure a DBA profile Run the show dba-profile command to query existing DBA profiles in the system. If the existing DBA profiles in the system do not meet the requirements, run the dba-profile command to add a DBA profile.

  • Page 12: Add An Ont To Olt

    OLT(ont-srvprofile-10)# exit  Configure an ONT traffic profile Create a traffic profile, profile ID is 123,profile name is test, cir is 10240,pir is 409600, cbs is 20000, pbs is 20001. OLT(config)# traffic-profile profile-id 123 profile-name test cir 10240 pir 409600 cbs 20000 pbs 20001 5.3 Add an ONT to OLT Only when the ONT register to the OLT successfully, you can configure the service of the ONT.

  • Page 13: Check Ont Status

    If multiple ONTs of the same type bound to the same line profile or service profile are connected to the same port, you can add ONTs in bulk by confirming all the automatically discovered ONTs to make configuration easier and more efficient. To do so, the preceding command can be modified as follows:：...
  • Page 14 T-CONT ID: 1 Internet Access Service GEM Port ID: 11 Upstream Port: GE9 VLAN: 100 Network topology and VLAN Plan PON Port: PON4 VLAN: 100 ONT1：Eth1 VLAN：100 Configuration Process  Configure the OLT： 1、 Configure the mapping between a GEM port and a VLAN The service flow of C-VLAN 100 is mapped to GEM port 11 in the ONT line profile.

  • Page 15: Configuring Service On Gateway Ont

    OLT(interface-gpon)# ont port car 4 1 eth 1 inbound 123 outbound 123 6. Save the data OLT(config)# save The ONT does not need to be configured.  ----End 5.6 Configuring service on HGU (Gateway ONT) This topic describes how to configure Internet access service, voice service, BTV service and VoD service when HGU is used to build an FTTH network.
  • Page 16 OLT(config)# interface ge OLT(interface-ge)# vlan mode 9 hybrid OLT(interface-ge)# vlan hybrid 9 tagged 100 ge9: hybrid add tag vlan: Fail: 0, Success: 1 3、Configure PON port vlan Add PON port PON4 to VLAN 100 and set Ethernet port 1 native-vlan as 100. OLT(config)# interface gpon OLT(interface-gpon)# vlan mode 4 hybrid OLT(interface-gpon)# vlan hybrid 4 tagged 100...
  • Page 17 Set WAN service type to IPoE.  Set service description to INTERNET.  Set 802.1Q VLAN ID to 100 (The VLAN ID of the ONT must be the same as the user-side  VLAN ID configured on the OLT.)
  • Page 18 Set WAN IP Mode to Obtain an IP auto.  Set Enable NAT to enable the NAT function. ...
  • Page 19 Set the default Gateway is veip0.2   Set the DNS server interface to veip0.2.  Click APPLY/Save button in WAN Setup Summary window  Check the WAN Connection, the veip0 status is Connected, and get the IPv4 address  success.
  • Page 20 4.6.2 Configuring Voice Service Prerequisites The SIP interface data and POTS user data corresponding to the MG interface have been  configured on the SIP server. The connection between the OLT and the SIP server is set up. The OLT can ping the IP ...
  • Page 21 OLT(config)# interface ge OLT(interface-ge)# vlan hybrid 9 tagged 200 ge9: hybrid add tag vlan: Fail: 0, Success: 1 3、 Configure PON port VLAN OLT(config)# interface gpon OLT(interface-gpon)# vlan mode 4 hybrid OLT(interface-gpon)# vlan hybrid 4 tagged 200 4、 Save the data OLT(config)# save ...
  • Page 22  Set WAN IP Mode to Obtain an IP auto.
  • Page 23  Set Enable NAT to enable the NAT function.  Set the default Gateway is veip0.3.  Set the DNS server interface to veip0.3.  Click APPLY/Save button in WAN Setup Summary window.
  • Page 24 4、Configure parameters for the SIP-based voice interface a、Click VoiceGlobal parameters to choice the SIP protocol. b、Click Voice > SIP Basic Seething> Service Provider0, configuring the SIP Registrar, SIP Proxy, SIP Account, Password etc. c、Click Apply/Save 4.6.3 Configuring IPTV Service The OLT is connected to the remote HGU device through a PON port, and provide users with the multicast service through the bridge WAN of the HGU.
  • Page 25 The OLT has been connected to the uplink device and the program source.  The VLAN of the LAN switch port connected to the OLT uplink port is the same as the uplink  VLAN of the OLT. Data plan Item Data Line Profile: 10...
  • Page 26 Fail: 0, Success: 1 OLT(interface-ge)# exit OLT(config)# interface gpon OLT(interface-gpon)# vlan hybrid 4 tagged 300 p4 : hybrid add tag vlan: Fail: 0, Success: 1  Save the data. OLT(config)# save  Configure the ONT  Set Wan service to “Bridging”； ...
  • Page 27  Click Advance Setup LAN, Default version is 3.
