Step 7. Connect power supply and ground in accordance
with local codes. Neutral line to white lead, 120V or
277V Live line to black lead, ground to green lead.
Splice connections must be pushed back into the
junction box.

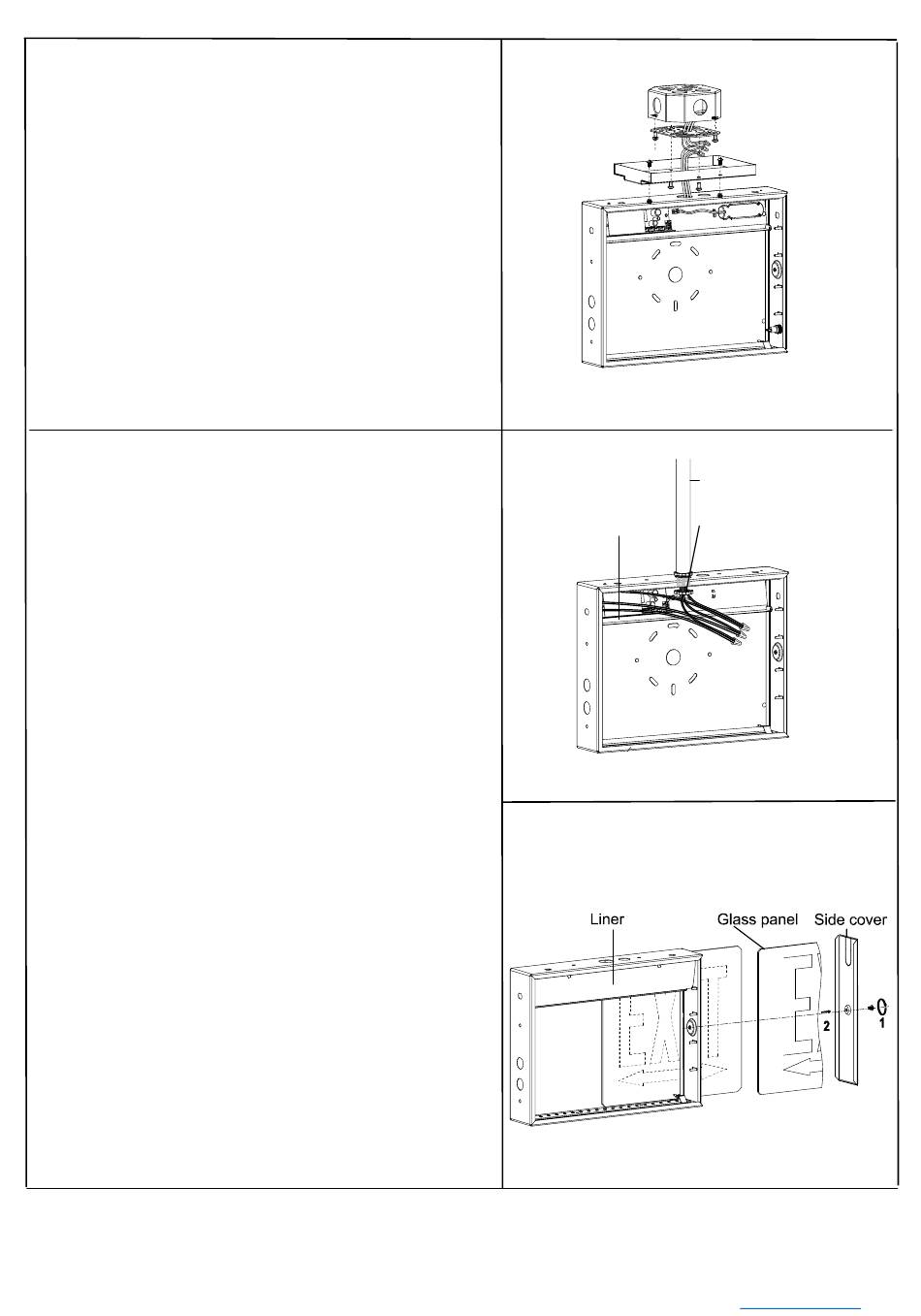

Step 8. Mount exit-canopy assembly to crossbar using two
#8-32x1 screws.
Step 9. When side mounting, route wires along top and
side edges of exit frame. Use wire manager provided
to hold wires flush to inside of housing.
Step 10. Energize AC supply, LED will come on.
Step 11. Fasten liner back, slide the glass panel into the
housing, reassemble side cover and screw removed
in Step 2.
[The following steps required when converting to double
(2) face.]
Step 12. Fasten liner back, remove backplate, slide the glass
panels into the housing. (take note to confirm
direction of panels)
CONDUIT MOUNT INSTALLATION
Step 1. Extend unswitched AC supply of rated voltage to
conduit. Leave at least 18" of slack. Circuit should
not be energized at this time.
Step 2. Disassemble glass panel by removing the screw
holding the side cover, use flat head screwdriver
to open the liner. See Fig 2.
Step 3. Knock out the mounting pattern on top of the
sign housing.
Step 4. Feed wires through the center hole and fasten
conduit to exit housing by conduit nut.
Step 5. Connect power supply and ground in accordance
with local codes. Neutral line to white lead, 120V
or 277V Live line to black lead, ground to green
lead. Splice connections must be enclosed by liner.
Step 6. Energize AC supply, LED will come on.
Step 7. Fasten liner back, slide the glass panel into the
housing, reassemble side cover and screw removed
in Step 2.
[The following steps required when converting to double
(2) face.]
Step 8. Fasten liner back, remove backplate, slide the glass
panels into the housing. (take note to confirm
direction of panels)
© 2023 Signify Holding. All rights reserved. The information provided herein is subject to change, without notice. Signify does not give any representation or
warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information
presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify
page 4 of 4
Conduit (by others)
Conduit nut(by others)
Liner
Signify North America Corporation
400 Crossing Blvd, Suite 600
Bridgewater, NJ 08807
Telephone 800-555-0050
www.chloride-lighting.com
Fig 5
Fig 6
Fig 7
