SIGNIFY CHLORIDE CCSE Series Installation page 3

WIRING DIAGRAM
AC wiring
Connect the white wire to neutral, connect the
black wire to the hot lead , connect the green
wire to ground.
White NEUTRAL
AC input
Black 120~277VAC
WALL MOUNT INSTALLATION
Step 1. Extend unswitched 24 hour AC supply of rated
voltage to junction box. Leave at least 18 inches
of slack. Circuit should not be energized at this time.
Step 2. Disassemble glass panel by removing the screw
holding side cover, use flat head screwdriver to
open the liner. See Fig 2.
Step 3. Knock out the appropriate mounting pattern and
wire pass hole to match junction box. Insert
bushing into wire access hole to prevent abrasion
on supply wires, bring wires through back of fixture.
Step 4. Connect power supply and ground in accordance
with local codes. Neutral line to white lead, 120V
or 277V Live line to black lead, ground to green
lead. Splice connections must be pushed back into
the junction box.
Step 5. Mount to junction box.
Step 6. Energize AC supply, LED will come on.
Step 7. Fasten liner back, slide the glass panel back to
housing, reassemble side cover and screw removed
in Step 2.
CEILING OR SIDE MOUNT INSTALLATION
Step 1. Extend unswitched AC supply of rated voltage to
junction box. Leave at least 18" of slack. Circuit
should not be energized at this time.
Step 2. Disassemble glass panel by removing the screw
holding the side cover, use flat head screwdriver
to open the liner. See Fig 2.
Step 3. Knock out the appropriate mounting pattern on top
or side of housing to accommodate canopy.
Step 4. Fasten canopy to exit housing by means of two
#8-32x3/8 screws and nuts.
Step 5. Feed unswitched AC supply through center of crossbar.
Mount crossbar to junction box by choosing proper
slots and using screws supplied with junction box.
Step 6.Feed wires through exit housing and canopy.
MAIN PCBA
Exit LED
LED strip
page 3 of 4
PREPARATION WORK FOR
INSTALLATION

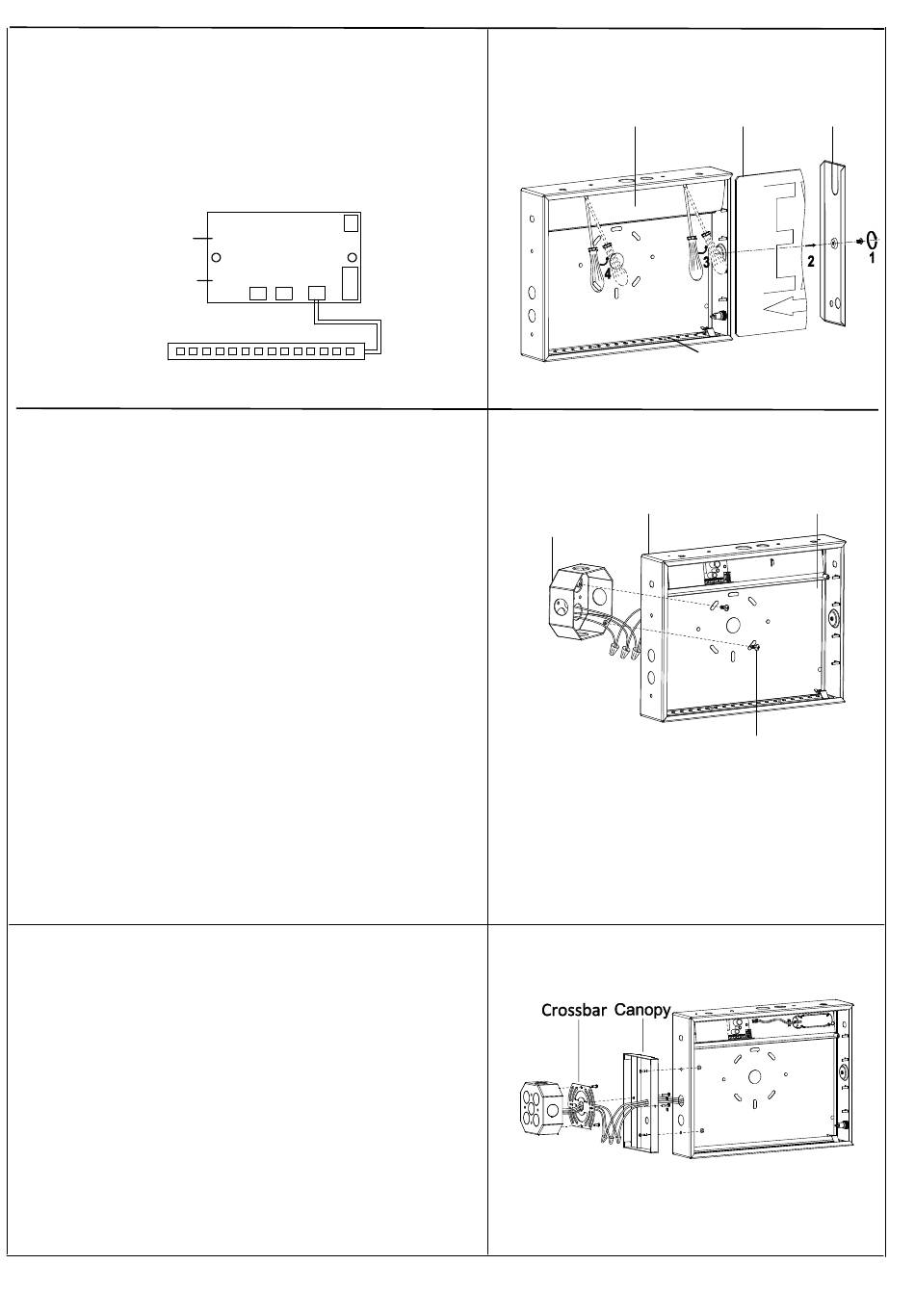

Fig 1
Junction box
(by others)
Liner Glass panel
EXIT LED strip
Housing
Junction box screws(by others)
Side cover
Fig 2
Back plate
Fig 3
Fig 4
