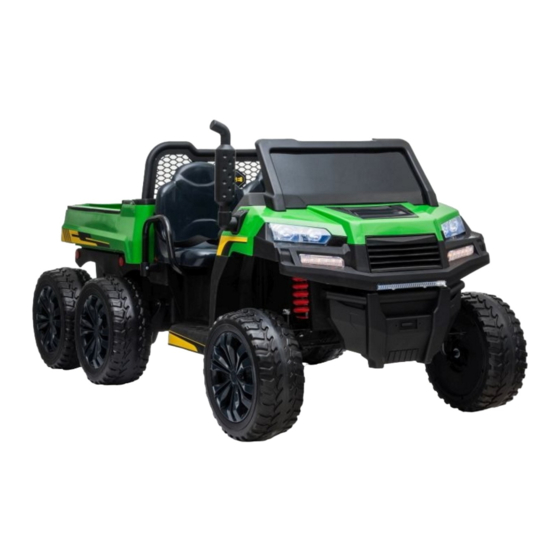

CHILDREN'S
ELECTRONIC TOY CAR
Assembly & User Instructions - Please keep for future reference
Important
Age: 3-8 years
Maximum user
weight: 60KG
Important - Please read these instructions fully before assembly or use
These instructions contain important information which will help you get the
best from your product and ensure safe and correct assembly, use and
maintance.
This item packed in 2 boxes.Assemble it till 2 boxes in hand.
Warning!
1. For family and domestic use only
2. Not to be used in traffic
3. Adult assembly required
A730-2 24V A/B
W730-2003

Advertisement

loading
Need help?

Need help?

Do you have a question about the A730-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lean Cars A730-2

Summary of Contents for Lean Cars A730-2

  • Page 1 A730-2 24V A/B CHILDREN'S ELECTRONIC TOY CAR Assembly & User Instructions - Please keep for future reference Important Warning! Age: 3-8 years 1. For family and domestic use only Maximum user 2. Not to be used in traffic weight: 60KG 3.

  • Page 2: Table Of Contents

    Table of Contents 1. About Your New Vehicle 2. Safety Information 3. Parts List 4. Parts Diagram 5. Assembly Steps 6. How To Operation Your Vehicle 7. Charging The Vehicle 8. Troubleshooting Guide 9. Disposal Of Battery 10. Maintaining Your Vehicle About Your New Vehicle Thank you for purchasing our products, we wants your child to enjoy this product for years to come.

  • Page 3: Safety Information

    Safety Information WARNING! General safety: • • Where products need assembly they must always be assembled by an adult.As a parent/carer,it is also your responsibility to check the tightness of screws,nuts and bolts before each use and if necessary,adjust and re-tighten.
  • Page 4 Safety Information WARNING! Charging the battery: • • All charging and re-charging must be carried out by an adult. • Do not attempt to use the product while it is being charged. • Charging should be carried out under cover and in a well-ventilated area. •...
  • Page 5 Parts List Please open the parts of both Box A and Box B before installing the car. BOX-A PART PART PART PART REMARKS REMARKS PICTURE PICTURE NAME NAME (pcs) (pcs) Vehicle Steering body wheel Assembly Rear axle package Driving Wheel wheel Carriage Tailgate...
  • Page 6 Parts List Please open the parts of both box A and Box B before installing the ca BOX-B PART PART PART PART REMARKS REMARKS PICTURE PICTURE NAME NAME (pcs) (pcs) Exhaust Rear pipe baffle Rear Seat frame Driving Windshield wheel Wheel...

  • Page 7: Parts List

    Parts List PART PART REMARKS PART PART REMARKS PICTURE PICTURE NAME NAME (pcs) (pcs) Vehicle Windshield body Gear Left & Seat pair right Driving Wheel wheel Wheel Steering wheel Exhaust Rear pipe frame Fixing Fixing pin part Carriage Tailgate...
  • Page 8 Parts List PART PART REMARKS PART PART REMARKS PICTURE PICTURE NAME NAME (pcs) (pcs) Rear Bogie baffle Placed in the Rear axle washer front axle Placed Placed M10 Nut washer rear and rear and front axle front axle Placed Placed M4X12 in the in the...

  • Page 10: Assembly Steps

    Assembly Steps 1.Install the rear frame and fixing part.  As shown in the picture, put the line plug through the hole.  As shown in the picture,install the rear frame to the corresponding place.  Install the fixing part to the corresponding place, fasten with the screws. ...
  • Page 11 Assembly Steps 1. Install the rear frame.  As shown in the picture, turn over the car body ,and fasten with the screws. 2. Install the bogie.  Disconnect the bogie parts.  As shown in the picture, install the bogie to the corresponding place, and fasten with the screws.
  • Page 12 Assembly Steps 3. Install the back wheels .  As showed in the picture, the wire connector plug butt.. NOTE：There is "L' and "R" on the motor to distinguish the left and right motors  As shown in the picture,disconnect the rear axle parts ,put the rear axle through the car body,and install gear box to the left side.
  • Page 13 Assembly Steps 4. Install the front wheel .  Remove the nut and washer on the front axle;  As showed in the picture, fix the washer, wheel, washer and nut onto the axle in proper order.  Fasten the nut with spanner. ...
  • Page 14 Assembly Steps 7. Install the rear baffle.  As showed in the picture, install the rear baffle to the corresponding place, and fasten with the screws. 8. Install the steering wheel .  Asshowed inthe picture, connect the steering wheel and gauge board middle connector.
  • Page 15 Assembly Steps 10. Install the seat.  As showed in the picture,install the seat tothe corresponding place, and fasten with the screws. 11. Install the windshield  As showed in the picture, press the windshield downward to fix it,and fasten with the screws. 12.
  • Page 16 Assembly Steps IMPORTANT SUPPLEMENTTO INSTRUCTION MANUAL Afterassemblinganywheelto theaxles,pleasecheckthe gap betweenthescrewthreadandthecollapsible(refertobelow picture), if the gap is too big, please add two or three washers inside the wheel, But after tightening the nut outside the wheel, please turn thewheelbyyourfingertocheckifthewheelcanrunsmoothly,this is very important, because if the wheel can run smoothly, it is ok, but if the nut press the wheel and the wheel can’t run smoothly, the motorwillbebrokeneasily!Thenyouneedtodecreaseoneortwo washers to make sure the wheel can run smoothly!

  • Page 17: How To Operation Your Vehicle

    HowToOperateYourVehicle Use Operation( Ensure the power switch has been turned on Warning! Please stop vehicle when changing the speed to avoid damage the gear box and motor. (1) Turn on the general power switch first,the sound can be played. (2) Forward Press the "Forward and Reverse switch"...
  • Page 18 HowToOperateYourVehicle How to use the remote controller: The car is with remote priority function: While it is controlled by remote, the step switch does not work; Disconnect the remote, the step switch works then. (Note: Remote is for adult using only, kids need to be prohibited to use remote.) 1.
  • Page 19 How To Operate Your Vehicle How to use the Sound System & Battery Indicator ( 8 )  1. Storage device slot.  2. Storage card slot.  3. AUX Port  4. Decrease volume/Last Song: Switch songs.  5. Increase volume/Next Song: Switch songs. ...
  • Page 20 Charging Your Vehicle ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!  non-rechargeable batteries are not to be recharged;  different type of batteries or new and used batteries are not to be mixed;  batteries are to be inserted with the correct polarity; ...
  • Page 21 Charging Your Vehicle WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: • Donotdropthebattery.Permanentdamagetothebatterycouldoccurorcauseseriousinjury. • Before charging the battery, check for wear or damage to the battery, charger, its supply cord andtheconnectors.DONOTchargethebatteryifanydamagetopartshasoccurred. • Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide PROBLEM: The vehicle does not run ■ PROBLEM CAUSE: The battery may low on power. After each use, or once a month minimum, charge the battery for 8-12 hours. Do not leave the battery on the charger for more than 20 hours. POSSIBLE CAUSE: Thermal fuse has tripped.
  • Page 23 Troubleshooting Guide PROBLEM: The vehicle does not run very long. ■ POSSIBLE CAUSE: Battery may be undercharged. You may not be charging the battery long enough. After each use, or once a month minimum, charge the battery for 8 to 12 hours. Do not leave the battery on the charger for more than 20 hours. POSSIBLE CAUSE: Battery is old.

  • Page 24: Disposal Of Battery

    Disposal Of Battery Disposal Of Battery ● Yoursealed lead-acid battery must be recycled or disposed of in an environmentally sound manner. ● Do not dispose of your lead-acid battery in a fire. The battery may explode or leak. ● Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.

  • Page 25: Maintainingyourvehicle

    MaintainingYourVehicle • It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be until that damage had been properly removed. •...
