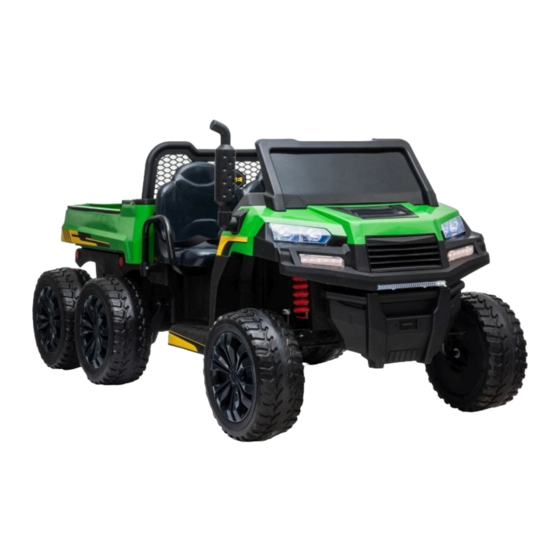

Lean Cars A730-2 Instruction Manual
  1. Manuals
  2. Brands
  3. Lean Cars Manuals
  4. Motorized Toy Car
  5. A730-2
  6. Instruction manual

Lean Cars A730-2 Instruction Manual

Hide thumbs Also See for A730-2:
Table of Contents

Advertisement

Quick Links

Download this manual

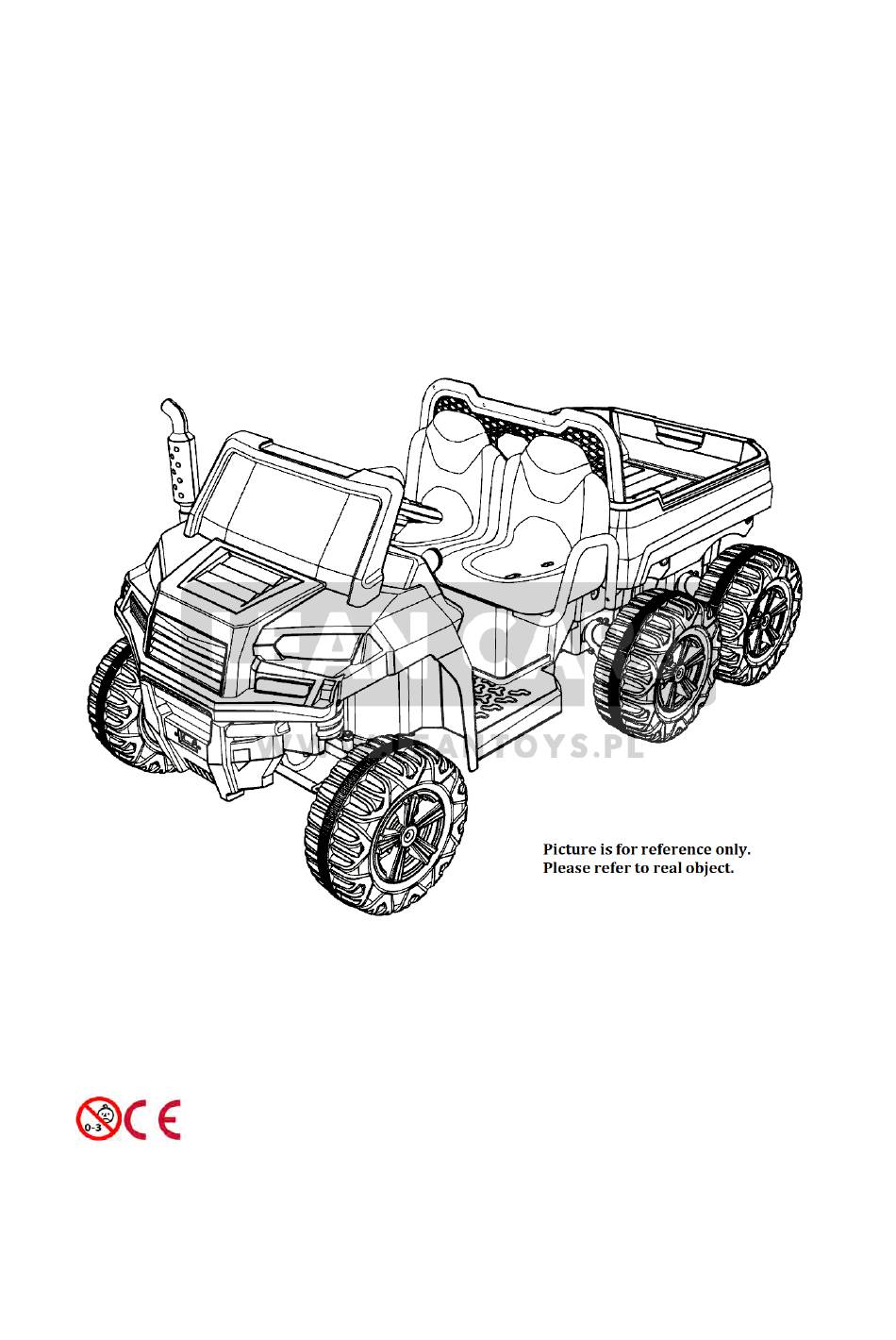

Manual Instruction
A730-2
Special Note:
The car hopper is a trim only. No loading people or goods.
◆Please read the manual carefully before assembling;
◆ Preserve the manual properly for future reference;
◆The manual is for assembling and using reference only. Details will be possibly
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A730-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lean Cars A730-2

Summary of Contents for Lean Cars A730-2

  • Page 1 Manual Instruction A730-2 Special Note: The car hopper is a trim only. No loading people or goods. ◆Please read the manual carefully before assembling; ◆ Preserve the manual properly for future reference; ◆The manual is for assembling and using reference only. Details will be possibly...

  • Page 2: Before Assembling

    improved and updated, including structure, appearance, packing, functions, and etc. Please refer to the real object as standard if there issomething different from the manual. 1. Before Assembling Warning! Choking Hazard: Small parts, Not for kids under 3 years.Dispose plastic bags carefully. It’s dangerous to kids.Adult assembly required.Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard.

  • Page 3: Exploded View And Parts List

    3. Exploded View and Parts List Parts Name Part Name Body seat Steer Wheel charger chimney Screw kit Remote control manual windshield Motor （Left&right） Front wheel Rear axle Rear wheel Metal rail （driving） Wheel cover Hopper baffle Note: some parts need to be fixed from 2 sides. Screw Kit parts Where to use...
  • Page 4 Shim M10 Steer rod hook split pin Steer rod hook 4. Turning structure and rod assembling 前知 A. Turn the turning rod hook, and put the turning structure onto the plastic body, make sure the screw holes on right position, then fix it by 8 pcs tapping screws.
  • Page 5 Turn the steer rod hook to make the hook head right to the steer rod hole of the steer structure, press it to make it through the rod hole. Then put the M10 shim on the hook head, and lock the head by the split pin. 5.
  • Page 6 A. Put the axles through the body, and assemble the motor, wheel by shim and M10 nut, then fix the wheel cover on to right buckle position and press it to lock. (Note: motors need to be distinguished as Left & Right.） A.
  • Page 7 1. Windshield, chimney and hopper baffle assembling A. Stuck the windshield into the slot, and fix it by 2 pcs tapping screws. A. Stuck the chimney into the slot, and fix it by 4 pcs tapping screws.
  • Page 8 A. Put the hopper baffle onto right position and fix it by 6 tapping screws. Battery wire connection, metal rail and seat assembling. A. Connect the battery wire terminals by color to color, and then connect the motor terminals to to other 2 terminals from the controller wire terminals, no color difference;...
  • Page 9 A. Put the seat onto right position and fix it by 4 tapping screws. Be noted the seat could be adjusted by different screw holes position. 1. Functions Sketch ⦁ Multifunctional control board; ⦁ Power switch; ⦁ Music button; ⦁ Forward/reverse switch;...
  • Page 10 1. USB port: play music files in USB device. 2. TF card port: play music files in TF card device. 3. AUX port: to connect MP3 device or mobile to play related files. 4. Education files play button & Pre. file shift(short press)/volume turning down(long press) 5.
  • Page 11 Note：Use screwdriver to get screws off and open battery box， install 2 pc AAA 1.5V battery in, and fix it with screws. 9. Functions of Remote: ⦁ ⦁...
  • Page 12 The car is with remote priority function: while it is controlled by remote, the step switch does not work; Disconnect the remote , the step switch works then. Remote: Open the battery holder and put in 2 pcs AAA LRO3 batteries. If the batteries are well fixed, there are frequency light and speed light will be on.
  • Page 13 ⦁ Choking Hazard: Small parts, Not for kids under 3 years. ⦁ Dispose plastic bags carefully. It’s dangerous to kids. ⦁ Adult assembly required.Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard. ⦁ Check if the charger is in good state, including the wire, socket, and all details.

  • Page 14: Fuse Maintenance

    ⦁ Only appointed battery and charger brand are allowed to use to the car. ⦁ Don’t use the car’s battery or charger to other products. ⦁ Don’t change the structure or cable lines. ⦁ Don’t connect the positive pole and negative pole by tools. ⦁...

  • Page 15: Troubleshooting

    If there is somewhere with any problem, stop using is till repaired. Fuse:The car is with self reset fuse. When its over loaded or used improperly,the fuse will power off the car for 15-20 seconds，and then to reset it. It’s installed under the seat. To avoid related troubles from the fuse 1.
  • Page 16 Motor not 1. Check if fuse disconnected？ Yes, restart the car； rotating No, check the next； 1. Check if pedal switch in poor No，repair the contact. contact. Yes, check the next； No, connect it. 1. Check if motor terminal welded. Yes, check the next；...
  • Page 17 DISPOSAL OF BATTERIES: CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED. Dispose old batteries at an approved battery dumping station; Contact your local environmental protection agency office for additional information. Adult assembly required. Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard.
