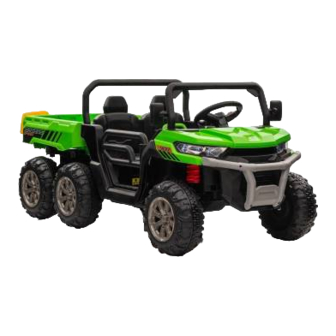

6 Wheels Dump Truck
WARNING:
Must be assembled by an adult.
OWNERS MANUAL
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 4-6 hours, but no more than 10
hours.
Battery Powered Ride-on
with Assembly Instructions
• Suitable for 3+ Years
• Maximum user weight: 50 kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lean Cars XMX623
Summary of Contents for Lean Cars XMX623
- Page 1 6 Wheels Dump Truck Battery Powered Ride-on WARNING: • Suitable for 3+ Years • Maximum user weight: 50 kg Must be assembled by an adult. OWNERS MANUAL with Assembly Instructions Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information. Before first time use, charge the battery for at least 4-6 hours, but no more than 10 hours.
-
Page 3: Specification
About Your New Vehicle On the purchase of your new Ride-On. This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference. -
Page 4: Parts List
Parts List Q’TY (PCS) PART NAME REMARK Vehicle body Rear gear box Driving wheel Normal wheel Ø12 washer Ø10 washer Lock nut Wheel cover Rear axle Front bumper Ø4x14 screw (black) Steering wheel M5x40 machine screw M5 nut Seat Seat back Rear roll bar Windshield Mirrors... -
Page 5: Parts Diagram
Parts Diagram HINT: Some parts shown are assembled on both sides of vehicle Assembly tools required: Screwdriver (not included) - Page 6 Safety WARNING: • CHOKING HAZARD! Not suitable for children under 36 months. • Must be assembled by an adult. • To reduce the risk of injury, adult supervision is required. • Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water;...
- Page 7 Attach the Front Wheels & Rear Axles Front botttom View Tools required: M10 Spanner Remove all the parts from the front axle. 1. Slide a Ø12 washer onto the front axle. 2. Slide a front wheel onto the front alxe. 3.
- Page 8 Attach the Middle Wheels Rear botttom View 1. Slide a Ø12 washer onto the axle. 2. Slide iron tube to the axle. 3. Slide a Ø12 washer onto the axle. 4. Slide a normal wheel onto the alxe. 5. Slide a Ø10 washer onto the axle. 6.
-
Page 9: Attach The Rear Wheels
Attach the Rear Wheels Rear botttom View There are two types of rear gear box rear gear box rear gear box 1. Plug the connector of the rear gear box to the connector from the vehicle body. And fit the rear gear box onto the rear axle, 2. -
Page 10: Attach The Steering Wheel
Attach the Steering Wheel 1-2. Fit the front bumper to the vehicle body, insert four Ø4x14 black screws and tighten. 3. Insert the handle to the holes in the dash. 4. Plug the sound unit connector on the steering wheel into the connector on the vehicle body. - Page 11 Connect the Power Supply & Attach the Seat Buttons Bottom of seat Bottom of seat 1. Plug the connector from the vehicle body into the connector on the battery. 2. Fit the seat back to the vehicle body. 3-4. Press and hold the buttosn on the bottom of the seat until the seat is attached to the body.
- Page 12 Attach the Windshield & Roll Bar 1-2. Insert the mirrors to the windshield. HINT: The mirrors are designed to fit vehicle only way. Insert and Tighten two Ø4x14 screws on each mirror. 3. Insert the tabs on the windshield into the holes on the vehicle body, push until you hear it “click”...
- Page 13 Use Your New Ride-on 1. Power button: Turn the product on and off. 2. Forward/Stop/Reverse lever: Changes the direction that product moves from forward to reverse. ● To move the product forward, shift the lever to top position. ● To move the product backward, shift the lever to down position. ●...
- Page 14 Use the Audio Player High Low MODE І ◄ ◄ ►► І ►II A. Previous / Long press for Volume - B. Play / Long press for Pause C. Next / Lone fress for Volume + D. On 12V product-Rocking button: Turn rocking mode on and off.
- Page 15 Use the Remote Controller Connection button Forward button Brake button Right button Reverse button Speed select Left button button High speed indicator Normal speed indicator Low speed indicator Insert the batteries of controller Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.
- Page 16 Charging WARNING! ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery! • The POWER SWITCH must be turned in OFF position when charging. •...
-
Page 17: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please. - Page 18 Maintaining • It is parents' responsibility to check main parts of the toy before using, must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
-
Page 19: Battery Fuse
Battery Fuse The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again.
