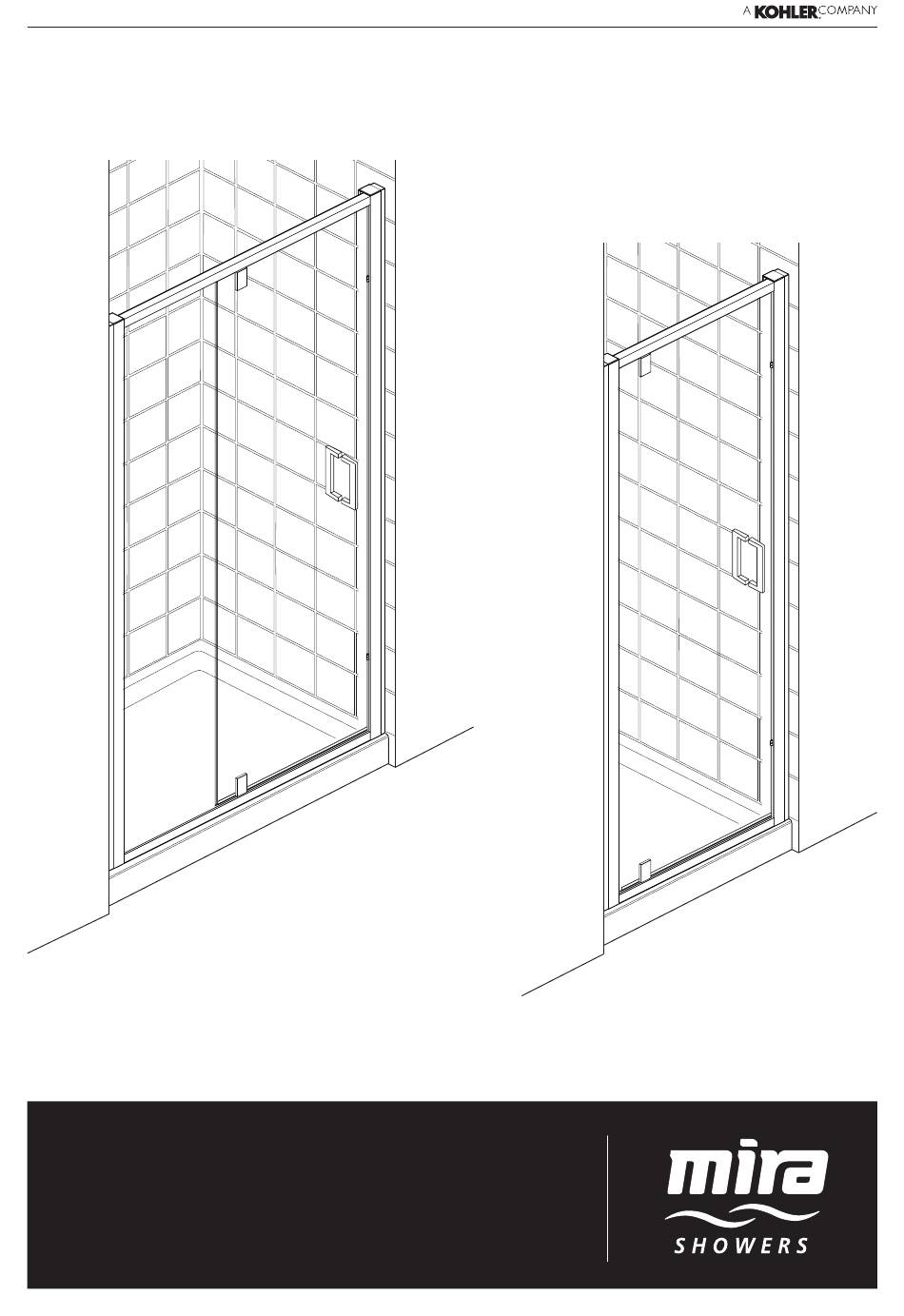

- Page 1 Leap Pivot Door (S43A) These instructions must be left with the user Installation Guide 1242340-W2-D...
-
Page 2: General Information
INTRODUCTION Thank you for purchasing a quality Mira product. To enjoy the full potential of your new product, please take time to read this guide thoroughly, having done so, keep it handy for future reference. The following pages aim to provide comprehensive installation instructions, plus advice on how to care and maintain your product. -
Page 3: Recommended Usage
Ensure the size of door/panel is suitable for the installation. Tempered safety glass cannot be cut. Ensure nothing can impact the door or glass panels during operation. When Fitting the Enclosure The wall channels must be installed onto a tiled or waterproof finished flat and even wall surface. -
Page 4: Pack Contents
PACK CONTENTS 1 x 2.0 mm A/F 1 x 3.0 mm A/F 1242340-W2-D... - Page 5 X 1 q X 2 q X 2 q X 2 q X 1 q 1242340-W2-D...
-
Page 6: Installation
INSTALLATION 10 mm Note! Make sure that the ± 0 mm walls have been tiled down to the tray. Height of Enclosure (mm) 1900 Min/Max Frame Adjustment Enclosure Size Minimum (mm) Maximum (mm) 1000 1010 1200 1150 1210 (a) Install the shower tray in accordance with the manufacturer’s instructions. Caution! Make sure that the shower tray is level and that the walls are vertical and square. - Page 7 (a) Remove the wall channel.from the door. 1242340-W2-D...
- Page 8 ± 0 mm 6 mm 10 mm (a) Position the wall channel (handle side) on the wall. Using a spirit level make sure that it is upright. (b) Mark the position of the fixing holes, then remove the wall channel. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (supplied).
- Page 9 ± 0 mm 6 mm 10 mm (a) Position the second wall channel (hinge side) on the wall. Using a spirit level make sure that it is upright. (b) Mark the position of the fixing holes, then remove the wall channel. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (supplied).
- Page 10 10 mm (a) Apply silicone sealant along the length of the wall and at the bottom where the wall channel will be placed. 1242340-W2-D...
- Page 11 (a) Install the first wall channel into the door frame and hold in position. (b) Install the door frame over the wall channel that had been secured to the wall earlier. Make sure that you do not smudge the silicone sealant applied in the previous step.
- Page 12 (a) Open the door. (b) Install the wall channel fixing screws through the access holes in the door frame. Note! The plastic sleeve is provided as an installation aid. (c) Fully tighten the fixing screws, making sure that the wall channel is upright. 1242340-W2-D...
- Page 13 ± 0 mm (a) Centralise the door frame within the wall channels, making sure that the door frame is square. 1242340-W2-D...
- Page 14 3.0 mm 90° (a) Using the 3.0 mm hexagonal wrench (supplied), turn through 90° clockwise in three locations to lock the door frame in position. Repeat this on the other wall channel. 1242340-W2-D...
- Page 15 (a) Install the splash seal to the door as shown above. For the inline pivot door the short seal will have to be cut to length after adjustment of the door in step 14. 1242340-W2-D...
- Page 16 5 11 (a) Install the panel seal to the door shown above. 1242340-W2-D...
- Page 17 5 12 (a) Partially remove the door sealing strips as shown above. (b) Apply a small amount of sealant in accordance with the sealant manufacturers instructions as shown above. (c) Fit the door sealing strips back in position. Remove any excess silicone sealant. 1242340-W2-D...
- Page 18 5 13 Note! Ensure infill strip is installed as illustrated with thicker section towards outside of enclosure. (a) Lubricate the rubber strip with washing up liquid or a suitable lubricant to help aid installation. (b) Install the rubber strip as shown above to both sides, working from top to bottom. (c) Install the infill strip.
- Page 19 5 14 INSIDE 2.0 mm (a) If necessary, adjust the door catch as shown above. 3.0 mm 3.0 mm 3.0 mm Note! Adjust door to minimise seal gap (b) If the door is out of square, adjust as shown above. 1242340-W2-D...
- Page 20 5 15 5 16 5 17 2.0 mm 1242340-W2-D...
- Page 21 5 18 Note! Silicone should be applied vertically where the door jamb and wall channel join on the outside of the enclosure. (a) Apply sealant in accordance with the sealant manufacturers instructions along the outside surfaces of the door frame only. (b) Allow the silicone sealant to cure for 24 hours before use.
-
Page 22: General Maintenance
Chrome Parts Use only cleansers expressly specified for chrome! KOHLER Glass Cleaner For occasional cleaning of glass treated with KOHLER Glass Protector or for more regular maintenance of untreated surfaces, we recommend using KOHLER Glass Cleaner. The cleaner cleans and polishes without smearing or streaking and rejuvenates the Glass Protector. -
Page 23: Spare Parts
SPARE PARTS 760, 800, 900 Pivot Door 1242340-W2-D... - Page 24 760, 800, 900 Pivot Door 1781.375 Pivot Door Glass Spare 760 1781.385 Pivot Door Glass Spare 800 1781.386 Pivot Door Glass Spare 900 1857.284 Handle Spare 1781.377 Door Top Cap Pack 1781.378 Hinge Spare 1781.379 Ball Catch Spare 1781.380 Locking Mechanism Spare 1781.381 Infill Spare All Vert Seals = 4.1857.368...
- Page 25 1000, 1200 Pivot Door 1242340-W2-D...
- Page 26 1000, 1200 Pivot Door 1781.385 Pivot Door Glass Spare 1000, 1200 1857.284 Handle Spare 1781.377 Door Top Cap Pack 1781.378 Hinge Spare 1781.379 Ball Catch Spare 1781.380 Locking Mechanism Spare 1781.381 Infill Spare 1857.283 Seal Kit Pivot Inline 1781.384 Pivot Panel Glass Spare 1000 1781.387 Pivot Panel Glass Spare 1200 1781.427...
-
Page 27: Declaration Of Performance
The performance of the products described above, are in conformity with the relevant community harmonisation legislation. This declaration of performance is issued under the sole responsibility of Kohler Mira Ltd. Signed for and on behalf of Kohler Mira Ltd. Signature:... - Page 28 United Kingdom and the Republic of Ireland). DAP 16.06.2013 5 013181 077070 Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. 1242340-W2-D © Kohler Co. January 2018...
