Kohler STERLING 5400 Series Installation And Care Instructions

Sliding Bath Doors Sliding Shower Doors
USA/Canada: 1-800-STERLING (1-800-783-7546)
México: 001-877-680-1310 SterlingPlumbing.com
Critical Information!
Read Before Installation!
WARNING: Risk of serious injury. Damage prior to installation can
result in glass shattering. Inspect the glass and all parts for damage
before installation.
WARNING: Risk of serious injury. Improper installation can result
in glass shattering. Follow all installation instructions.
WARNING: Risk of serious injury. Do not cut tempered glass.
Tempered glass will shatter if cut.
WARNING: Risk of serious injury. Shower door and side panels
can shatter. Regularly inspect the glass and all parts for damage,
missing, or loose parts.
WARNING: Risk of serious injury. Always wear safety glasses
while cutting and drilling.
IMPORTANT! Do not touch the edges of the tempered glass with tools or
any other hard objects. Do not set the unframed tempered glass directly on
the floor or any hard surface.
IMPORTANT! Leave this manual for the end user.
Read these instructions before installing or using this product.
IMPORTANT! Do not cut the top track the same length as the bottom track.
NOTICE: The warranty does not apply to a product that has been modified
or altered in a manner other than as expressly permitted in the Installation
and Care Guide.
Walls must be within 3/8" (10 mm) of plumb.
Cover the drain with tape to avoid loss of small parts.
Follow the silicone sealant manufacturer's instructions for application and
curing time.
To watch this installation video online, visit www.sterlingplumbing.com.
For care and cleaning and other information; visit
www.sterlingplumbing.com/care-and-cleaning.
Read and follow all instructions.
Measure distance "A." Subtract 1/4" (6 mm) or
1
the width of a number 2 pencil from "A" and cut
the bottom track.
A
1/4" (6 mm)
Cut Line "A" Mark
A
Remove the wall jambs. Drill 5/16" holes into the
6
walls and insert the anchors.
x2
3
2
1
1218556-2-G
Required Tools
9/64"
5/16"
5/16" Masonry Bit for Tile
Tin Snips
Rubber Mallet
Masking Tape
100% Silicone Sealant
Miter Box
32-teeth Per Inch Blade
Position the bottom track on the center of the
2
ledge. If needed, file the ends to match the
corners.
Reposition both wall jambs. Secure the wall
7
jambs with screws.
x2
Screw Cover
#8-18 x 1-1/2"
Screw Cover

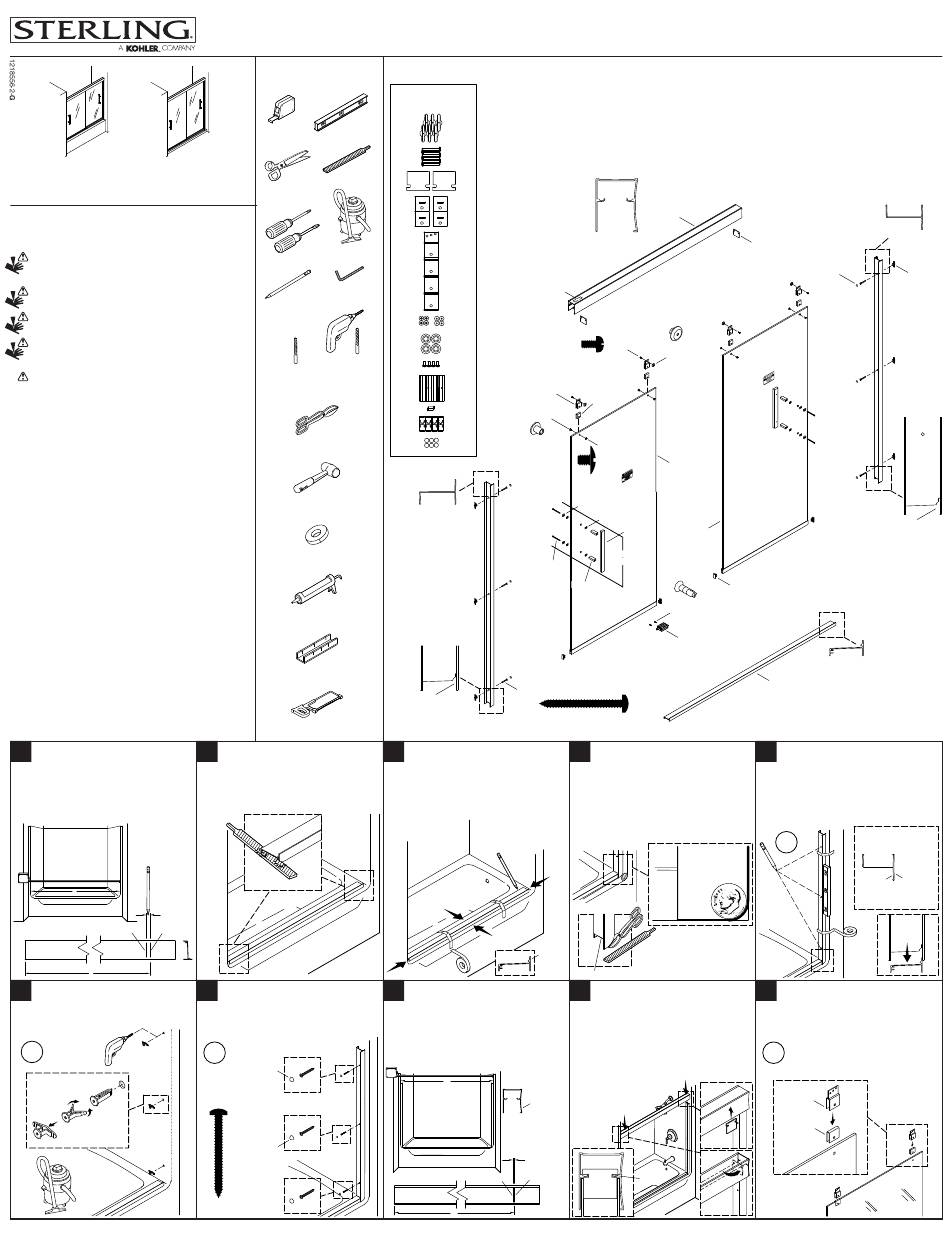

Parts Identifi cation
1218520**
Hardware Skin Pack
Serial Number Label
1219763-01**
Hanger Bracket
1050048-A
Barrel Nut
Wall Jamb*
Screw
1048208-C
Bottom Wall
Screw
Jamb Notch
#8-18 x 1-1/2"
Center the bottom track on the ledge with the leg
3
to the outside. Tape the bottom track in place and
mark the position.
Leg
Measure distance "B" above the wall jambs.
8
Subtract 1/32" (1 mm) or the width of a saw
blade from "B." Mark and cut the top track.
B
Top Track
1/32" (1 mm)
Cut Line "B" Mark
B
1
Installation and Care Instructions
5400 Heavy Glass Series Sliding Shower Doors
*Need help? Contact the STERLING Customer Care Center at
For service parts information, care and cleaning, and other information,
1214505-01**
Top Track
1051142-A
Screw 1050047
Roller
#8-32 x 3/8"
1213732
Gasket
1077763-A
Bolt
Left Door
Panel*
8-32 x 1/4"
Back Plate
Spacer
Handle
Right Door
Panel*
1285596-01*
Handle Kit
Post
1219162
End Cap
1056868-A
Screw
1218476**
Center Guide
IMPORTANT! The bottom track and wall jamb
4
must sit flat against the shower ledge and the
wall. If needed, trim and file the wall jamb. Use a
coin to match and to transfer the corner radius of
the shower to the wall jamb.
Notch
Place the top track over the wall jambs (either
9
side may face out). At each end of the top track,
insert and twist a bumper into place over the
rails. Slide the bumpers against the wall jambs.
Rails
1-800-STERLING (1-800-783-7546).
visit www.sterlingplumbing.com
**Finish/color code must be specifi ed when ordering.
Retain this document for future servicing.
Record model number from box for reference.
Model Number:______________
Wall Jamb*
1218971
Bumper
1031943**
Screw Cover
1077762
Anchor
Bottom Wall
Jamb Notch
1213333-01**
Bottom Track
Position the wall jambs over the bottom track.
5
The long leg of each wall jamb faces the outside
of the shower. Plumb both wall jambs. Mark the
screw holes.
Wall Jamb – Top View
x2
Long Leg Outside of
the Shower
For both doors, slide a gasket over the top of the
10
glass panel and into each mounting hole. Press
the hanger bracket over the gasket and align the
hanger brackets with the mounting holes.
x2
Hanger
Bracket
Gasket
