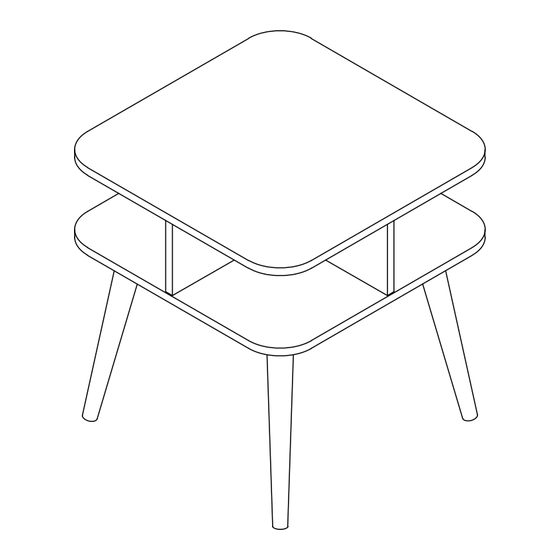

SAXTON SIDE TABLE
ASSEMBLY INSTRUCTIONS
DO NOT
USE
FOR DOMESTIC USE ONLY
PLEASE READ BEFORE YOU CONTINUE FURTHER
THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY
YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS
SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
ASSEMBLE ON A SOFT CLEAN SURFACE.
DO NOT USE ANY TOOLS OTHER THAN THOSE SHOWN.
ANY SPANNERS OR ALLEN KEYS REQUIRED ARE INCLUDED WITH
THE FITTINGS KIT.
DO NOT FOR ANY REASON USE A POWER TOOL TO ASSEMBLE
THIS PRODUCT. ITS USE WILL INVALIDATE ANY CLAIM YOU MAY
HAVE AND COULD MAKE THIS PRODUCT UNSAFE.
DEPENDING ON THE AMOUNT OF USE THIS PRODUCT RECEIVES
IT MAY BE NECESSARY TO TIGHTEN UP THE FIXINGS FROM TIME
TO TIME. THIS IS COMPLETELY NORMAL FOR ANY FLAT PACK
FURNITURE. DO NOT OVERTIGHTEN FIXING.
FOR CLEANING, YOU MAY USE A DAMP CLOTH (NOT WET) DO NOT
USE POLISH, DETERGENT OR CHEMICAL CLEANERS.
THE SURFACE OF THIS ITEM IS NOT HEAT RESISTANT. ALWAYS
USE A PLACE MAT UNDER HOT OR COLD ITEMS TO PREVENT
MARKING.
IMPORTANT
SEC/SH/10/23/EU1
Page 01
Advertisement
Related Manuals for Seconique SAXTON
Summary of Contents for Seconique SAXTON
- Page 1 SEC/SH/10/23/EU1 SAXTON SIDE TABLE ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
-
Page 2: Part List
SEC/SH/10/23/EU1 PART LIST Part Number Part Code Part Description Quantity Carton Large Centre Panel S300-302-062-EU1-01 Small Centre Panel S300-302-062-EU1-02 S300-302-062-EU1-03 Top Panel Bottom Panel S300-302-062-EU1-04 S300-302-062-EU1-05 Page 02... -
Page 3: Hardware List
SEC/SH/10/23/EU1 HARDWARE LIST DOWEL 6 X 30MM 18 PCS SCREW M6 X 50MM 8 PCS SCREW M3.5 X 20MM 16 PCS CAM BOLT + CAM NUT 8 SETS ALLEN KEY 1 PC ANGLED LEG FIXING PLATE 4 PCS 8 PCS (SCREWDRIVER NOT PROVIDED) USE A FLAT HEAD SCREWDRIVER TO TIGHTEN THE CAM NUTS. - Page 4 SEC/SH/10/23/EU1 STEP 1 PARTS REQUIRED 1 - LARGE CENTRE PANEL SMALL CENTRE PANEL HARDWARE REQUIRED INSERT PART 'A' INTO THE HOLE. MAKE SURE THAT BOTH SIDES ARE EQUALLY WITHIN ±9MM TOOLS REQUIRED STEP 2 PARTS REQUIRED 3 - TOP PANEL HARDWARE REQUIRED TOOLS REQUIRED Page 04...
- Page 5 SEC/SH/10/23/EU1 STEP 3 PARTS REQUIRED 1 - LARGE CENTRE PANEL 2 - SMALL CENTRE PANEL HARDWARE REQUIRED TOOLS REQUIRED STEP 4 PARTS REQUIRED TOP PANEL HARDWARE REQUIRED TOOLS REQUIRED Page 05...
- Page 6 SEC/SH/10/23/EU1 STEP 5 PARTS REQUIRED BOTTOM PANEL HARDWARE REQUIRED TOOLS REQUIRED STEP 6 EXAMPLE FOR ASSEMBLING ON STEP 7 PARTS REQUIRED THE HIGHER PART THE LOWER PART SIDE VIEW HARDWARE REQUIRED TOOLS REQUIRED TOP VIEW 3D VIEW MAKE SURE THE HIGHER SIDE OF PART (F) IS POINTING TOWARD THE CENTRE(A) AND THE LOWER SIDE (B) IS POINTING OUTWARD.
- Page 7 SEC/SH/10/23/EU1 STEP 7 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED STEP 8 REMOVE THE PLASTIC CAP BEFORE ASSEMBLY. PARTS REQUIRED 5 - LEG HARDWARE REQUIRED TOOLS REQUIRED Page 07...
