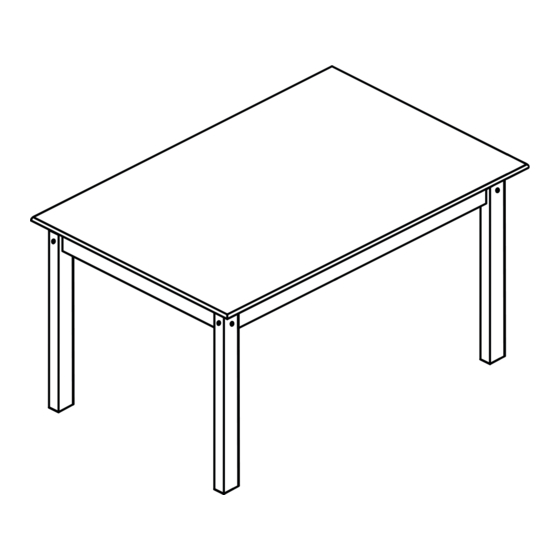

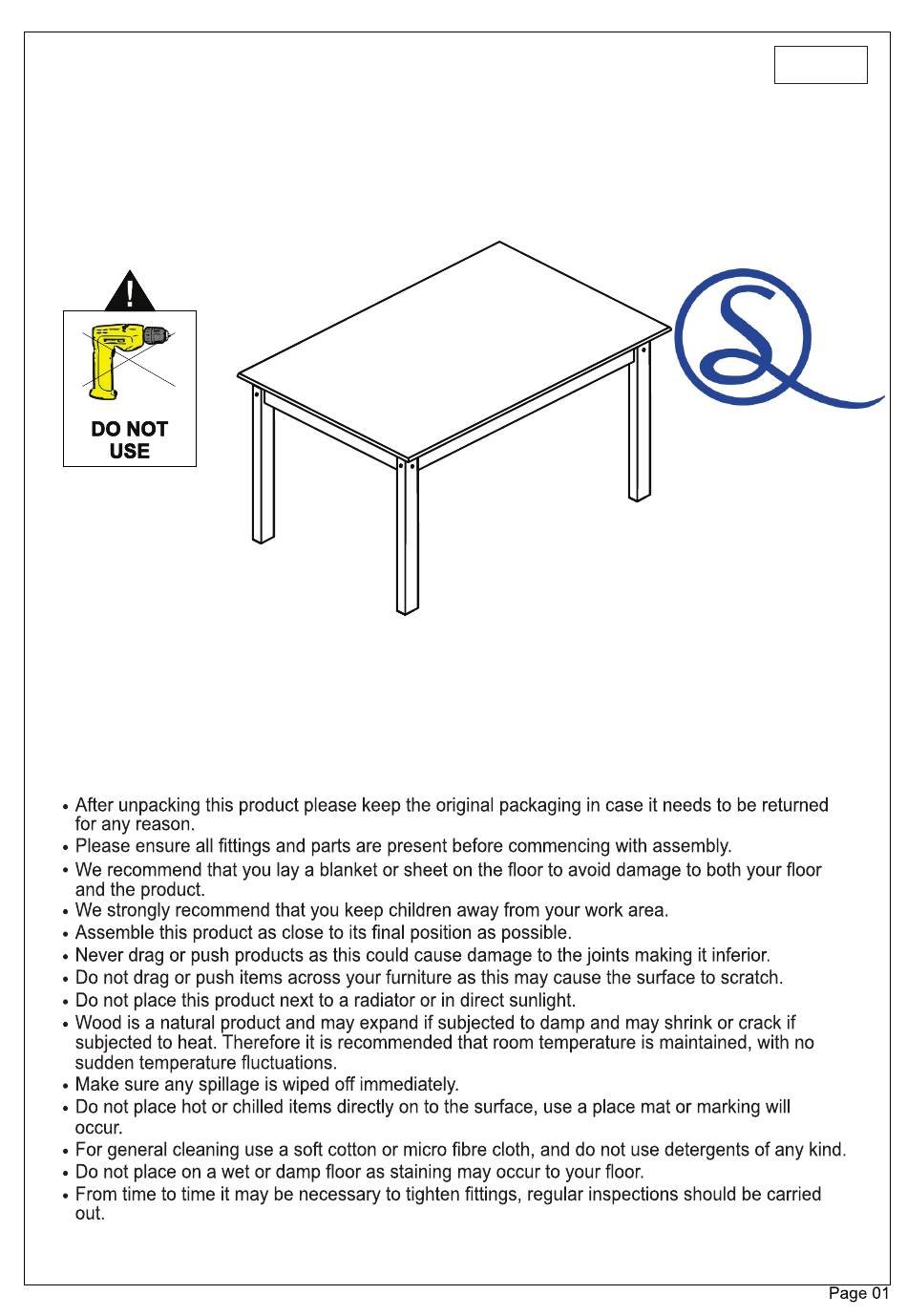

- Page 1 SEC/SH/11/23/DC1 56359 LIGHT OAK RATTAN EFFECT SANTANA 1+4 DINING TABLE ASSEMBLY INSTRUCTIONS IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE...
- Page 2 SEC/SH/11/23/DC1 S400-401-295-DC1-01T S400-401-295-DC1-02T S400-401-295-DC1-03T S400-401-295-DC1-04T S400-401-295-DC1-05T...
- Page 3 SEC/SH/11/23/DC1 7 x 90mm 4 x 35mm 10 x 40mm...
- Page 4 SEC/SH/11/23/DC1 STEP 1 Glue must be added to Parts 04 and 05. PARTS REQUIRED 04 - FRAME SIDE 05 - FRAME SIDE (BLUE) HARDWARE REQUIRED 10 x 40mm GLUE...
- Page 5 SEC/SH/11/23/DC1...
- Page 6 SEC/SH/11/23/DC1...
- Page 7 SEC/SH/11/23/DC1 56359 LIGHT OAK RATTAN EFFECT SANTANA DINING CHAIR ASSEMBLY INSTRUCTIONS 100KG MAX CHAIR WEIGHT IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE Page 01...
- Page 8 SEC/SH/11/23/DC1 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage.
- Page 9 SEC/SH/11/23/DC1 FITTINGS FITTINGS GLUE 4 x 35mm 7 x 90mm 7 x 60mm 10 x 40mm TOOLS REQUIRED Page 03...
- Page 10 SEC/SH/11/23/DC1 STEP 1 Glue must be added to Parts 06 and 09. PARTS REQUIRED SEAT RAIL 06 - SIDE SEAT RAIL 09 - HARDWARE REQUIRED GLUE 10 x 40mm TOOLS REQUIRED STEP 2 STEP 2 Glue must be added to Parts 04. PARTS REQUIRED 04 - BACKREST...
- Page 11 SEC/SH/11/23/DC1 STEP 3 7 x 90mm PARTS REQUIRED 01 - BACK LEG LEFT (BLUE) 7 x 60mm 03 - STRETCHER 07 - FRONT LEG LEFT (BLUE) 09 - SIDE SEAT RAIL HARDWARE REQUIRED GLUE 7 x 90mm TOOLS REQUIRED Glue must be added to Parts 01 and 07.
- Page 12 SEC/SH/11/23/DC1 STEP 5 7 x 90mm PARTS REQUIRED 04 - BACKREST SEAT RAIL 06 - 7 x 60mm HARDWARE REQUIRED GLUE 7 x 60mm TOOLS REQUIRED Glue must be added to Part 01 and 07. STEP 2 STEP 6 7 x 90mm PARTS REQUIRED 7 x 60mm HARDWARE REQUIRED...
- Page 13 SEC/SH/11/23/DC1 STEP 7 PARTS REQUIRED 05 - SEAT PAD HARDWARE REQUIRED 4 x 35mm TOOLS REQUIRED CENTRALIZE STEP 2 STEP 8 IMPORTANT NOTICE PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED Please allow at least 6 hours for the glue to 100KG dry before using your MAX CHAIR new chairs.
