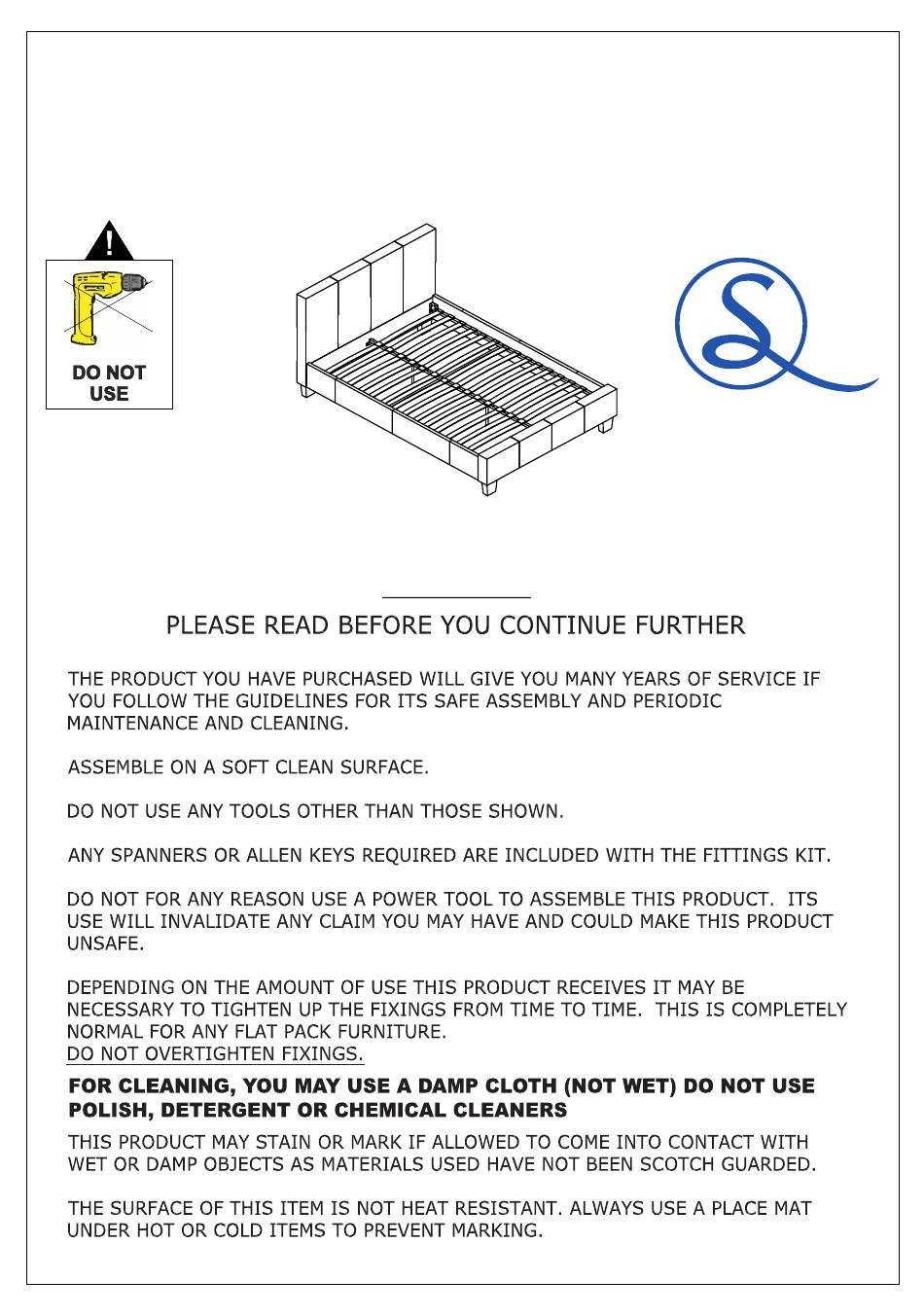

- Page 1 SEC/SH/08/22/HA1 BLACK PU PRADO 4'6'’ BED ASSEMBLY INSTRUCTIONS FOR DOMESTIC USE ONLY IMPORTANT Page 01...
-
Page 2: Part List
SEC/SH/08/22/HA1 PART LIST Part Number Part Code Part Description Quantity Carton Headboard S200-203-039-HA1-01 Footboard S200-203-039-HA1-02 Centre Support Leg S200-203-039-HA1-03 Feet S200-203-039-HA1-04 Siderail S200-203-039-HA1-05 Centre Rail S200-203-039-HA1-06 Wooden Slat S200-203-039-HA1-07 Centre Cross Rail S200-203-039-HA1-08 PLEASE CHECK THAT YOU HAVE ALL THE PARTS LISTED BEFORE YOU START ASSEMBLING.IF YOU DO FIND THAT SOMETHING IS MISSING.DO NOT CONTINUE ASSEMBLY. -
Page 3: Hardware List
SEC/SH/08/22/HA1 HARDWARE LIST HARDWARE NAME 5/16" x 25MM 8 PCS 5/16" x 45MM 2 PCS 2 PCS PLASTIC FOOT ADJUSTER 1 PCS 5MM ALLEN KEY CENTRE CAP 13 PCS 26 PCS END CAP 3 PCS 1/4" x 57MM 1/4" x BUTTERFLY NUT 3 PCS 6 PCS 1/4"... -
Page 4: Parts Required
SEC/SH/08/22/HA1 STEP 1 PARTS REQUIRED HEADBOARD FEET HARDWARE REQUIRED TOOLS REQUIRED STEP 2 PARTS REQUIRED FOOTBOARD FEET HARDWARE REQUIRED TOOLS REQUIRED Page 04... -
Page 5: Hardware Required
SEC/SH/08/22/HA1 STEP 3 1/4" x 57mm PARTS REQUIRED CENTRE SUPPORT LEG 5/16" x 45mm CENTRE RAIL 5/16" x 25mm HARDWARE REQUIRED 5/16" x 45mm TOOLS REQUIRED STEP 4 1/4" x 57mm PARTS REQUIRED HEADBOARD 5/16" x 45mm FOOTBOARD SIDERAIL 5/16" x 25mm HARDWARE REQUIRED 5/16"... - Page 6 SEC/SH/08/22/HA1 STEP 5 1/4" x 57mm PARTS REQUIRED CENTRE RAIL 5/16" x 45mm CENTRE CROSS RAIL 5/16" x 25mm HARDWARE REQUIRED 1/4" x 57mm TOOLS REQUIRED STEP 6 PARTS REQUIRED WOODEN SLAT HARDWARE REQUIRED TOOLS REQUIRED Page 06...
