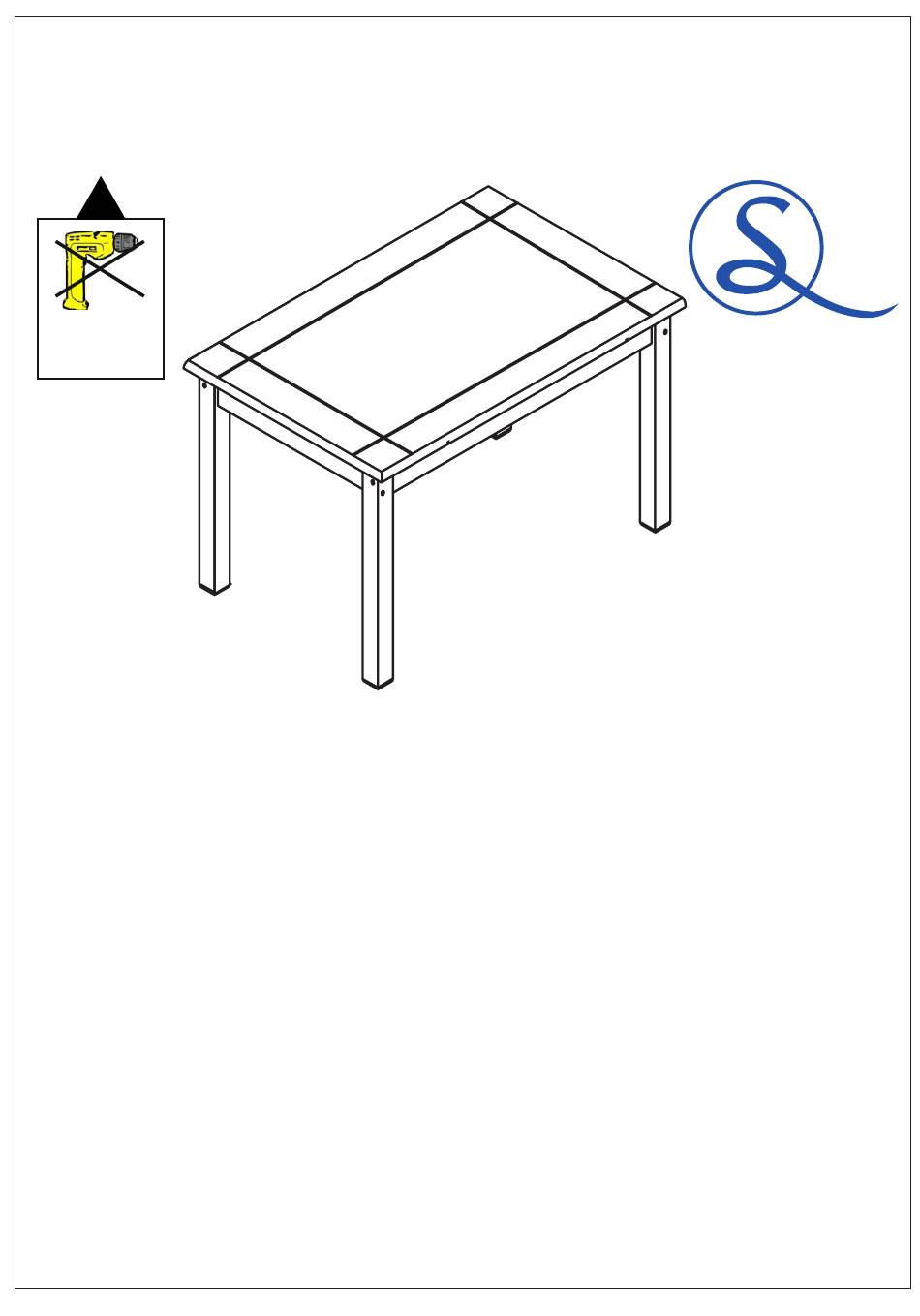

SEC/SH/10/20/DS1
CORONA BUDGET DINING TABLE
ASSEMBLY INSTRUCTIONS
!
DO NOT
USE

IMPORTANT

PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY

CARE AND MAINTENANCE

After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped off immediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
Page 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CORONA SEC/SH/10/20/DS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seconique CORONA SEC/SH/10/20/DS1

  • Page 1 SEC/SH/10/20/DS1 CORONA BUDGET DINING TABLE ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER FOR DOMESTIC USE ONLY CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason. •...
  • Page 2 SEC/SH/10/20/DS1 TOOLS REQUIRED Please Note: The below parts have been number/colour coded to help identify them during assembly. to help identify them during assembly. PARTS LIST Part Number Part Code Part Description Quantity Carton S400-401-152-DS1-01T Table Top S400-401-152-DS1-02T Table Leg (Blue Marking) S400-401-152-DS1-03T Table Leg...
  • Page 3 SEC/SH/10/20/DS1 STEP 1 PARTS REQUIRED TABLE LEG (BLUE) TABLE LEG (YELLOW) LONG FRAME SIDE HARDWARE REQUIRED Detail 1 GLUE (Yellow Marking) 7,0 x 80mm TOOLS REQUIRED Detail 2 (Blue Marking) (Blue Marking) Detail 1 Detail 2 STEP 2 PARTS REQUIRED TABLE LEG (BLUE) TABLE LEG (YELLOW) Detail 1...
  • Page 4 SEC/SH/10/20/DS1 STEP 3 PARTS REQUIRED SHORT FRAME SIDE (Blue Marking) (Yellow Marking) Detail 1 HARDWARE REQUIRED (Yellow Marking) GLUE 7,0 x 80mm (Blue Marking) Detail 2 TOOLS REQUIRED Detail 1 Detail 2 STEP 4 PARTS REQUIRED 1 - TABLE TOP FOR YOUR FUTURE REFERENCE ORDER NUMBER...
  • Page 5 SEC/SH/10/20/DS1 CORONA BUDGET DINING CHAIR ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason. •...
  • Page 6 SEC/SH/10/20/DS1 TOOLS REQUIRED PARTS LIST (PER CHAIR) Part Number Part Code Part Description Quantity Carton S400-401-152-DS1-01C Right Chair Side Le Chair Side S400-401-152-DS1-02C S400-402-152-DS1-03C Seat Pad Back Rail S400-402-152-DS1-04C Seat Rail S400-402-152-DS1-05C S400-402-152-DS1-06C Front Leg Side Seat Rail S400-402-152-DS1-07C Stretcher S400-402-152-DS1-08C HARDWARE LIST GLUE...
  • Page 7 SEC/SH/10/20/DS1 STEP 1 PARTS REQUIRED RIGHT CHAIR SIDE LEFT CHAIR SIDE FRONT LEG SIDE SEAT RAIL STRETCHER Detail 1 HARDWARE REQUIRED GLUE Ø7,0x70mm TOOLS REQUIRED TOOLS REQUIRED Detail 1 Detail 2 Detail 2 STEP 2 PARTS REQUIRED BACK RAIL SEAT RAIL Detail 4 Detail 3 HARDWARE REQUIRED...
  • Page 8 SEC/SH/10/20/DS1 STEP 3 PARTS REQUIRED Detail 3 Detail 4 HARDWARE REQUIRED GLUE Ø8x30mm Detail 3 Ø7,0x60mm TOOLS REQUIRED Detail 4 STEP 4 PARTS REQUIRED SEAT PAD FOR YOUR FUTURE REFERENCE ORDER NUMBER SHOULD BE HERE Detail 5 HARDWARE REQUIRED Ø4,0 x 35CP TOOLS REQUIRED CENTRALIZE Detail 5...
