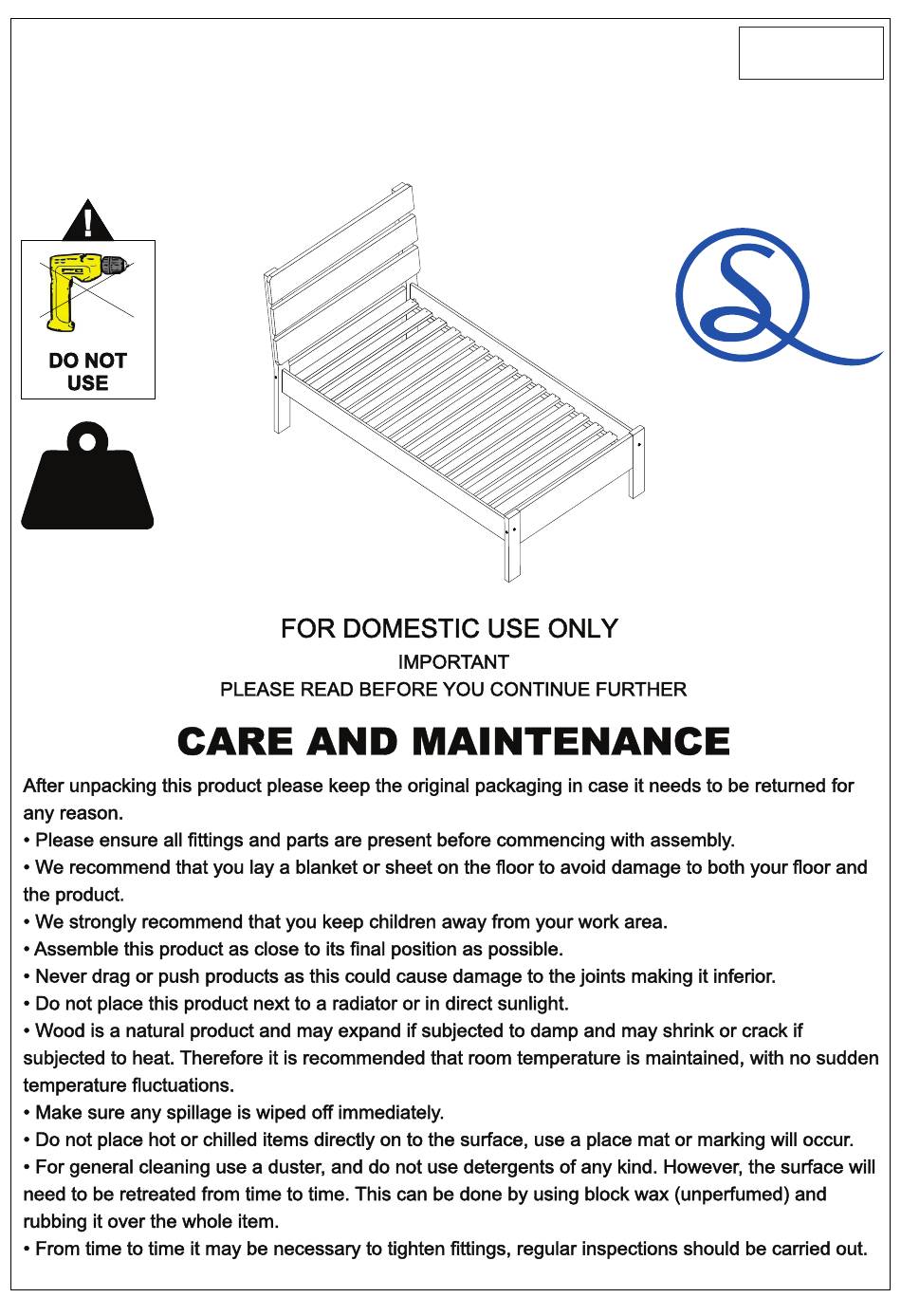

- Page 1 SEC/SH/01/24/PJ1 56360 RONAN 3' BED WAXED PINE ASSEMBLY INSTRUCTIONS 100KG MAX BED WEIGHT Page 01...
-
Page 2: Parts List
SEC/SH/12/23/PJ1 X X X * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage. -
Page 3: Tools Required
SEC/SH/01/24/PJ1 FITTINGS SPACER Ø8 x 50mm Ø8 x 30mm 1/4 x 90mm 17mm Ø4,0 x 50mm 17mm Ø7 x 100mm Ø10 x 50mm Ø4,0 x 30mm TOOLS REQUIRED Page 03... - Page 4 SEC/SH/01/24/PJ1 STEP 1 STEP 1 Ø10 x 50mm PARTS REQUIRED PARTS REQUIRED HEADBOARD CROSSBEAM HEADBOARD Ø8 x 50mm 5 - FOOTBOARD PANEL Ø8 x 30mm HARDWARE REQUIRED HARDWARE REQUIRED Ø8 x 50mm TOOLS REQUIRED TOOLS REQUIRED Please assemble on Please assemble on a clean soft surface a clean soft surface to avoid damage.
- Page 5 SEC/SH/01/24/PJ1 STEP 2 STEP 3 Ø10 x 50mm PARTS REQUIRED PARTS REQUIRED HEADBOARD RIGHT POST Ø8 x 50mm HEADBOARD LEFT POST(Blue) HARDWARE REQUIRED HARDWARE REQUIRED Ø8 x 30mm Ø8 x 30mm Ø8 x 30mm Blue TOOLS REQUIRED TOOLS REQUIRED Please assemble on Please assemble on a clean soft surface a clean soft surface...
- Page 6 SEC/SH/01/24/PJ1 STEP 5 STEP 5 PARTS REQUIRED PARTS REQUIRED LOWER HEADBOARD PANEL 10 - CENTRE HEADBOARD PANEL 11 - TOP HEADBOARD PANEL HARDWARE REQUIRED HARDWARE REQUIRED Ø 4,0 x 50mm TOOLS REQUIRED TOOLS REQUIRED Blue STEP 6 Ø7 x 100mm PARTS REQUIRED FOOTBOARD PANEL Ø1/4 x 90mm...
- Page 7 SEC/SH/01/24/PJ1 STEP 7 Ø7 x 100mm PARTS REQUIRED Ø1/4 x 90mm SIDERAIL X X X X X X HARDWARE REQUIRED Ø1/4 x 90mm Blue TOOLS REQUIRED Blue STEP 8 PARTS REQUIRED SLATS HARDWARE REQUIRED Ø4,0 x 30mm SPACER TOOLS REQUIRED 100KG MAX BED WEIGHT...
