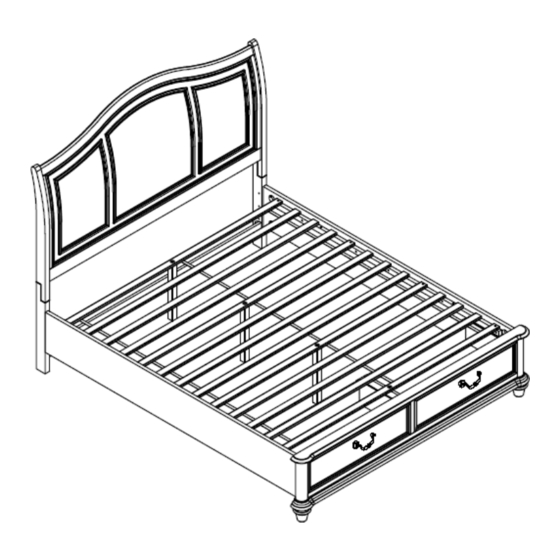

CM7613Q/CK/EK
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
DIFFICULT
Tools Required for Assembly:
Allen Wrench
Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 8
CM7614Q/CK/EK
(Included)
(Included)
(Not Included)
Rev.14-10-07
Advertisement
Related Manuals for Furniture of America CM7613Q
Summary of Contents for Furniture of America CM7613Q

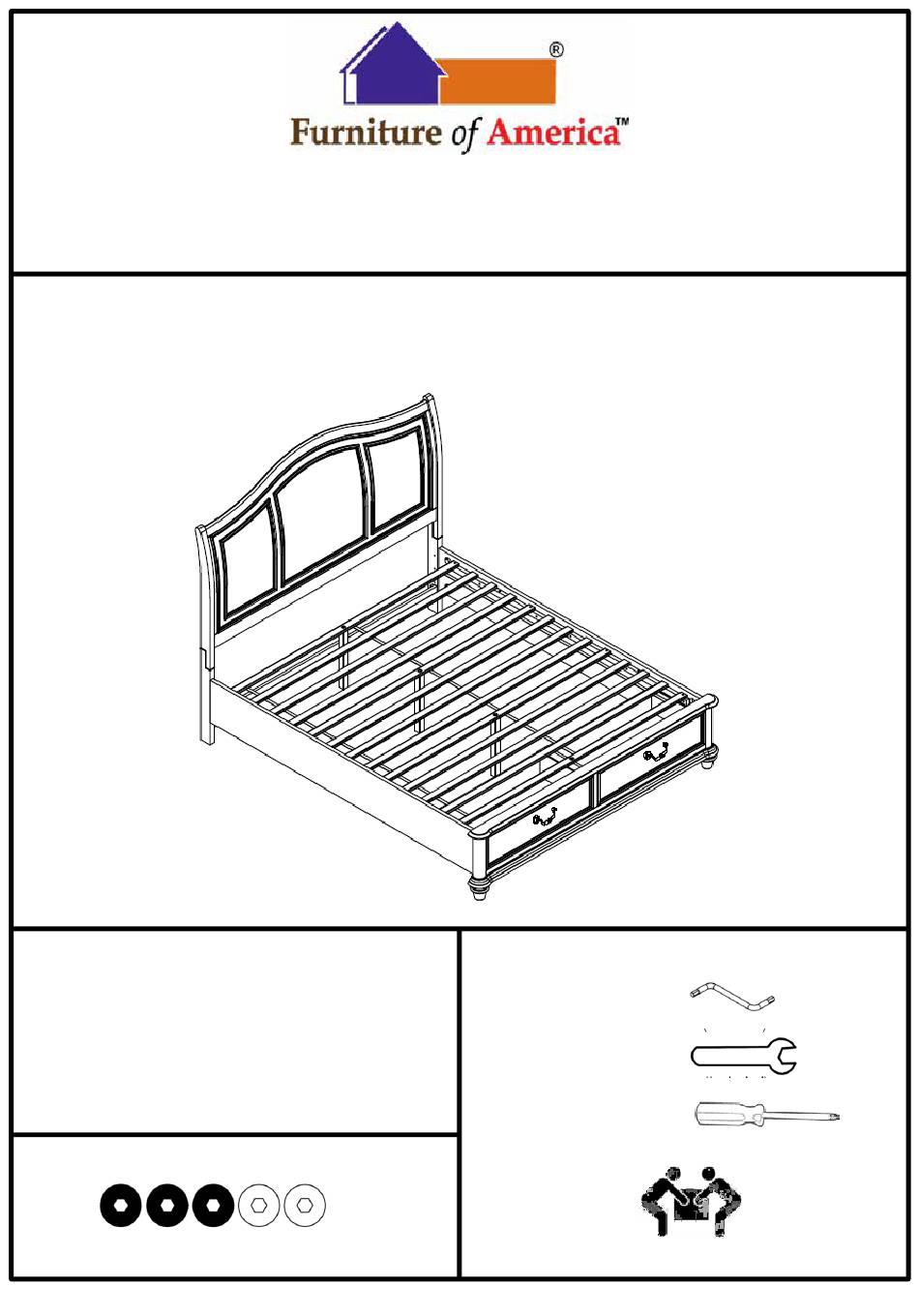

- Page 1 Assembly Instructions CM7613Q/CK/EK CM7614Q/CK/EK ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being Wrench easy and 5 being difficult). For some (Included) products, two persons are recommended.
- Page 2 Page 2 of 8...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List #2R x 1 pc #1 x 1 pc Right H/Board Leg Headboard #2L x 1 pc #3 x 1 pc Left H/Board Leg Leg Support...
- Page 4 Due to the size and/or weight of this product, it is highly recommended that the assembly should be done near the area of its intended location. Make sure you have enough space to move around during the assembly. ALWAYS have at least two people to help with transporting and assembling the product to avoid any potential injury and/or damage.
- Page 5 Align the leg support (#3) with the pre-drilled holes of the right headboard leg (#2R) and the left headboard leg (#2L). Prepare 4 bolt assemblies by inserting FIRST the lock washer (#C) onto the bolt (#A) and then the flat washer (#D) onto the SAME bolt (#A), in that order.
- Page 6 Remove the 2 drawers from the footboard (#4). Align the threaded ends of the 2 footboard feet (#5) with the pre- drilled holes on the bottom of the footboard (#4) and tighten by hand until secured. III. Align the threaded ends of the 3 footboard support legs (#6) with the pre-drilled holes on the bottom of the footboard drawer and tighten by hand until secured.
- Page 7 Align the threaded ends of the 3 slat support legs (#9) with the pre- drilled holes along the center of the slat kit (#8) and tighten by hand until secured. Turn right (clockwise) to tighten Align the ends of the assembled slat kit (#8) with the pre-drilled holes on the side rails (#7).
- Page 8 Insert the two drawers back into the footboard (#4). Make sure the bed is rested on a flat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened. ASSEMBLY IS COMPLETED Page 8 of 8...
