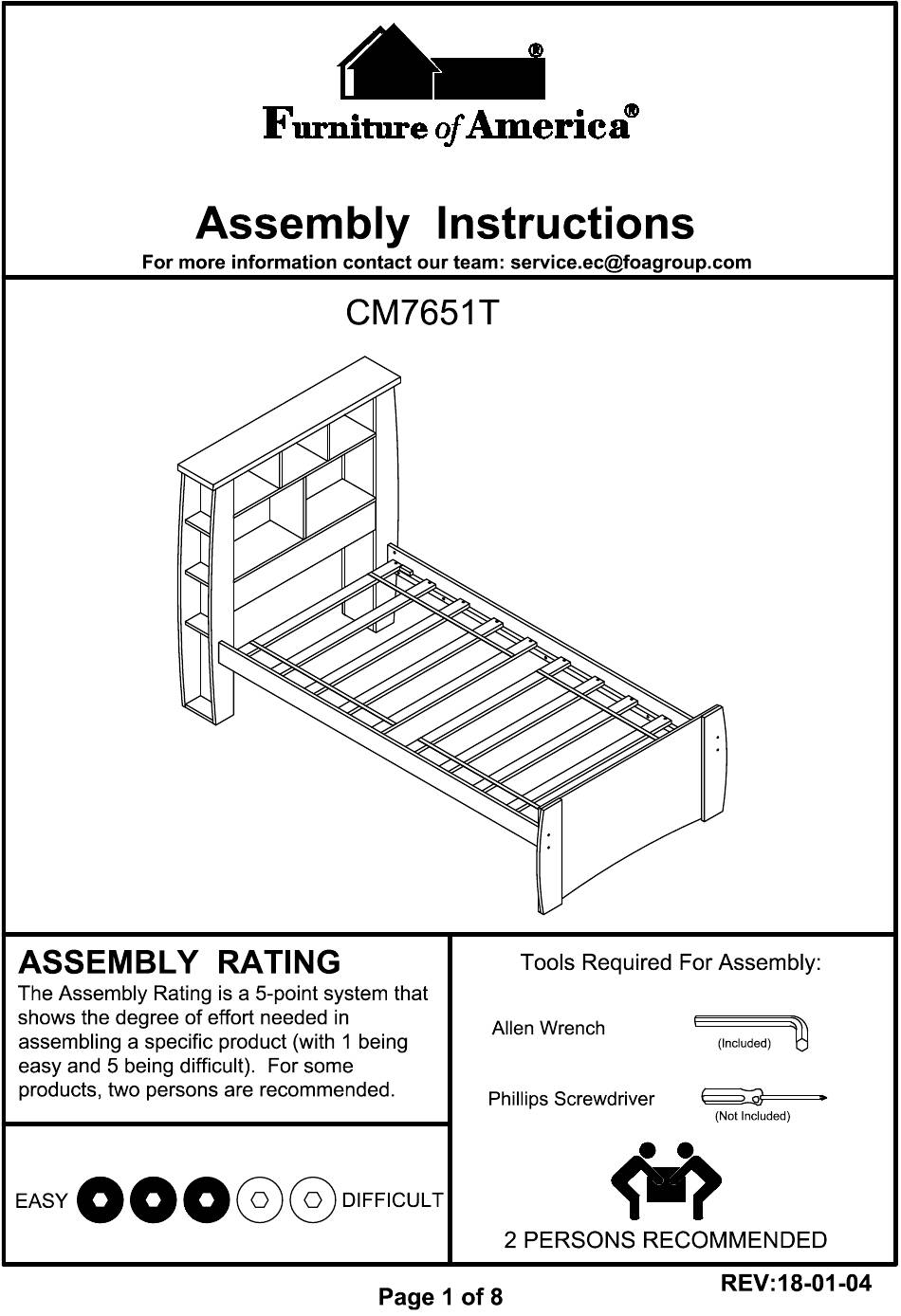

Assembly Instructions
EASY
DIFFICULT
Page 1 of 8
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
REV:18-01-04
CM7651T
Phillips Screwdriver
(Not Included)
Allen Wrench
(Included)
For more information contact our team: service.ec@foagroup.com
Advertisement
Related Manuals for Furniture of America Marlee CM7651T
Summary of Contents for Furniture of America Marlee CM7651T
- Page 5 Align bottom shelf (#3) to the holes of the middle shelf (#4), then secure by using bolts (#C). Align bottom shelf (#5) to the holes of the middle shelf (#4), then secure by using bolts (#C).
- Page 6 2) Attach dowels (#A) to the holes of the HB legs (#2R/L), then align shelves (#3,4,6) to the holes of the HB legs (#2R/L), then secure by using bolts (#C). 1) Attach dowels (#A) to the holes of the bottom panel (#5), then align and attach dowel holes of upper shelf (#6) to the dowels (#A) of bottom panel (#5).
- Page 7 Attach dowels (#A) to the holes of headboard top panel (#1), then align top panel (#1) to the holes of the headboard base. Secure by using bolts (#C). Align back panel (#8) to the back of the headboard. Secure by using screws (#F).
- Page 8 Attach dowel (#A) to the middle hole of the side rails (#10). Align side rails (#10) to the holes of the headboard legs (#2R/L) and footboard (#9). Insert barrel nuts (#D) to the holes of the side rails (#10), then secure by using bolts (#B) onto barrel nuts (#D). Align slat kit (#11) to the side rails (#10), then secure by using screws (#E).
- Page 13 Align bottom shelf (#3) to the holes of the middle shelf (#4), then secure by using bolts (#C). Align bottom shelf (#5) to the holes of the middle shelf (#4), then secure by using bolts (#C).
- Page 14 2) Attach dowels (#A) to the holes of the HB legs (#2R/L), then align shelves (#3,4,6) to the holes of the HB legs (#2R/L), then secure by using bolts (#C). 1) Attach dowels (#A) to the holes of the bottom panel (#5), then align and attach dowel holes of upper shelf (#6) to the dowels (#A) of bottom panel (#5).
- Page 15 Attach dowels (#A) to the holes of headboard top panel (#1), then align top panel (#1) to the holes of the headboard base. Secure by using bolts (#C). Align back panel (#8) to the back of the headboard. Secure by using screws (#F).
- Page 16 Attach dowel (#A) to the middle hole of the side rails (#10). Align side rails (#10) to the holes of the headboard legs (#2R/L) and footboard (#9). Insert barrel nuts (#D) to the holes of the side rails (#10), then secure by using bolts (#B) onto barrel nuts (#D). Attach support legs (#12) to the holes of the slat kit (#11).
- Page 17 Align slat kit (#11) to the side rails (#10), then secure by using screws (#E).
