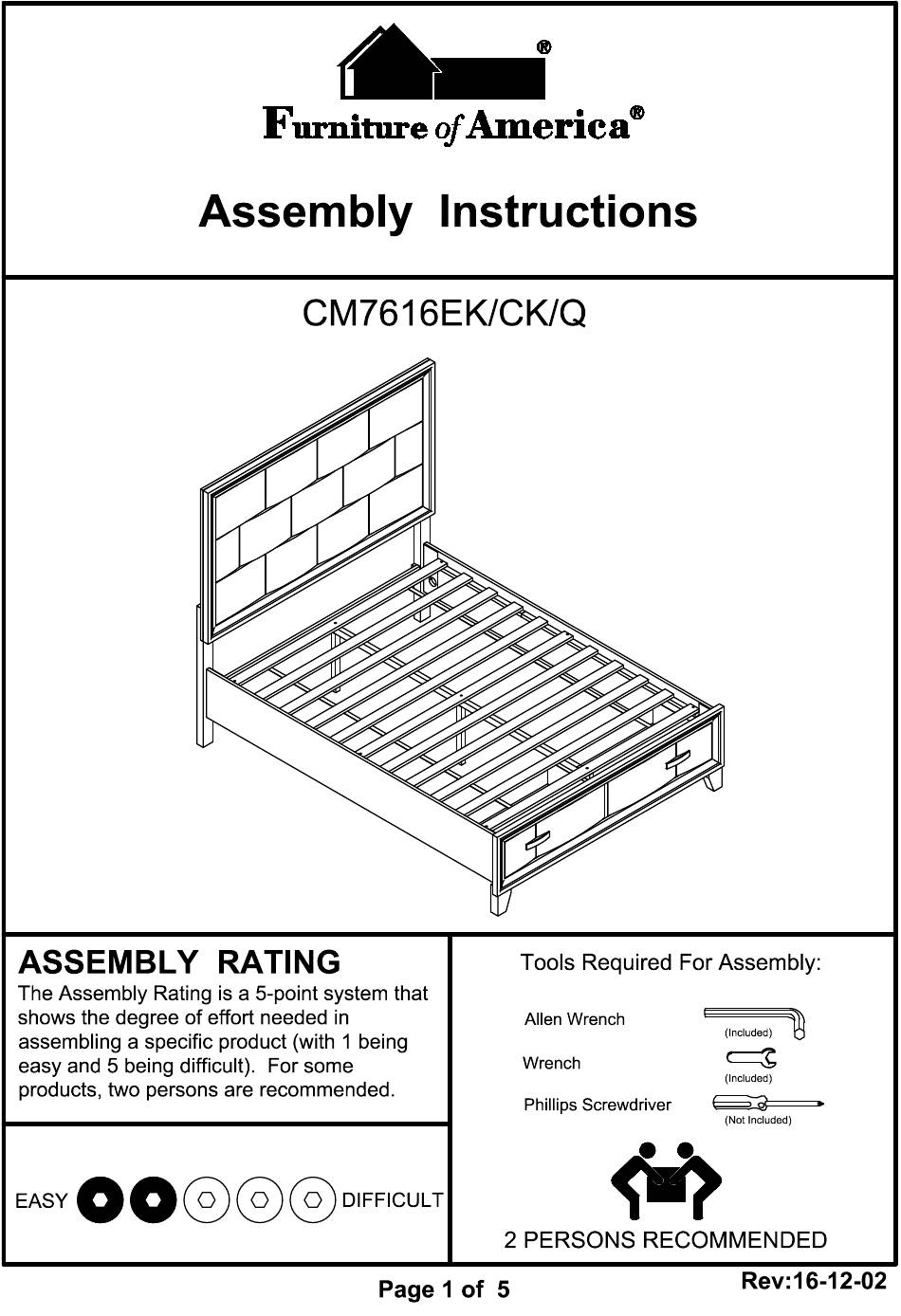

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 1) Prepare 10 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align headboard legs (#2R/L) to the holes of the headboard (#1). Secure with bolts (#A). 2) Align cross bar (#3) to the holes in0between the headboard legs (#2R/L), then secure with bolts (#A).
- Page 5 Align bed slats (#6) to the holes of the center support (#7), then the holes of the support legs (#8,9). Secure bed slats (#6), center support (#7), and support legs (#8,9) all together with bolts (#F). Align slats to the side rails (#4), then secure with screws (#E).
